Z270, H270, B250, H110 and HM175 - what's the difference?

Article Tags:

Along with the new Intel 7th Generation 'Kaby Lake' Core processors (numerically will read 7xxx), comes a new set of chipsets to pair them with: Z270, H270, B250 for consumer motherboards, Q270 and Q250 for business use, CM238 for Xeon processors, existing H110 for entry motherboards and HM175 for notebooks. Intel 7th Gen processors also work in existing Z170, H170, B150, Q170, Q150 and H110 series motherboards, as long as you have the BIOS updated to the latest versions. However, ideally you'll want to pair the new chips with the latest motherboards as they are designed expressly for each other, offering best features and performance and overclocking where available.

  Z270 H270 B250 Q270 Q250 HM175 QM175 CM238
DMI 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0
PCIe 3.0 Lanes 24 20 12 24 14 16 16 20
SATA 6 Gbps Ports 6 6 6 6 6 4 4 8
USB 3.0 Ports >= 10 8 6 >= 10 8 >= 8 >= 8 >= 10
Total # USB 2.0/3.0 14 14 12 14 14 14 14 14
Max Drives for PCIe RST 3 2 1 3 1 2 2 3
PCI-Express Config options x16
x16 x16 x16
x16 x16
Overclocking Yes No
vPro No No No Yes No No Yes Yes
Intel Management Support No No No Yes Yes No Yes Yes



The Z series is designed for enthusiasts. It's the only chipset that allows overclocking and it delivers the most hardware to build on: more PCI-Express, USB 3.0 and RST drives across both PCI-Express and SATA.

While the available CPU PCI-Express lanes remain the same: 16x single, split into 8x8x for SLI/CrossFire or a single 8x with two 4x, there are 24 PCI-Express 3.0 lanes available at the PCH that can be directed to additional chipsets like networking, wireless, or M.2/U.2 storage drives. Some of these PCI-Express lanes share IO duty with USB/SATA, so motherboards will unlikely offer all 24, but instead it gives flexible combinations of PCI-E, USB and SATA to meet specific needs for different models. Up to three drives in PCI-Express RST for RAID-0/5 across multiple M.2/U.2 where available.

Who needs the Z270? Users who demand the "-st": Fastest, Best, Most. Overclockers, multi-GPU gamers and big, fast storage array users; anyone who wants to maximize their potential build without jumping into the more expensive X-series chipsets and LGA2011-E CPUs.

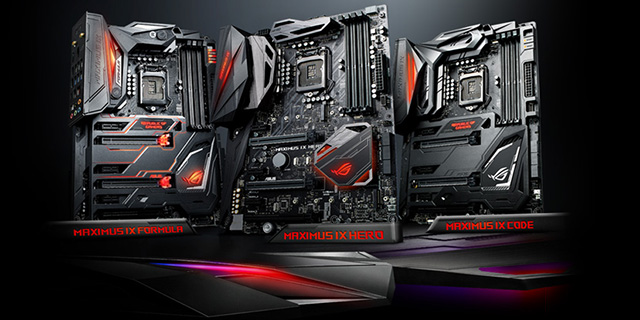

ROG and ROG Strix Z270 Gaming motherboards to look out for:



The H270 is ideal for gamers looking for a straight-forward build with many features for add-ins or future upgrades, but without fussing with overclocking or multi-GPU. The H270 offers almost as many PCI-Express lanes, USB 3.0 ports and SATA as the Z270. Up to two drives in PCI-Express RST for super fast RAID-0 M.2/U.2 where available.

H270 offers up to four DIMMs, six SATA ports and importantly can even use M.2/U.2 PCI-Express storage devices via CPU - a must for anyone looking to maximize their storage performance - and something the B250 doesn't offer.

Who needs the H270? Single-GPU gamers who want fast systems with big, rapid storage setups and plenty of other extra hardware and upgrade potential, but don't want to worry about overclocking.

ROG H270 Gaming motherboards to look out for:



Like the H270, the B250 is aimed at users who prefer single GPU gaming setups without overclocking. However the B250 offers a slimmer feature set than H270, making it suitable for users who need less expansive systems. It still offers six SATA 6Gbps and plenty of USB 3.0, but there's only ~half the PCI-Express lanes available and no multi-drive PCI-Express M.2/U.2 support for RAID-0 - only one is covered by Intel RST.

Who needs the B150? Single-GPU gamers who opt for a single, fast M.2/U.2 device with plenty of SATA used for storage. Peripheral needs are more basic, and less than the wealth offered by H270.

ROG B250 Gaming motherboards to look out for:



A roll-over from the previous generation, existing H110 motherboards will feature BIOS updates for 7th generation compatibility and as 2017 progresses we may see some 7th Generation focused refresh models arrive.

H110 is designed for entry-level motherboards, meaning it meets basic build needs as features are most limited. For example, the DMI link between CPU and H110 (PCH) is limited to a slower 5GT/s vs 8GT/s, there's no PCI-Express 3.0 on the PCH, fewer USB devices and just two DIMM slots available versus the four on the higher performance chipsets above. It's your go-to option for basic, yet stable builds that meet a core set of needs.

ASUS H110 Signature motherboards to look out for:



The M series is for notebooks. You'll see the HM175 in the spec list of ROG and Strix gaming laptops fitted with 7th Gen processors, such as the i7-7770HQ or i5-7300HQ. Despite still being a '1' series it still offers plenty of PCI-Express and USB ports for notebook connectivity, and up to two M.2 drives in RAID-0 can be fitted. It's unlikely you'll need both this and all four SATA 6Gbps ports, but it's all in there, just in case!
