ROG STRIX X670E-E GAMING WIFI

AMD X670 ATX motherboard with 18 + 2 power stages, DDR5 support, two PCIe® 5.0 x16 slots, PCIe Slot Q-Release, four M.2 slots with heatsinks, PCIe 5.0 NVMe® SSD support, M.2 Combo-Sink, M.2 backplate, Massive M.2 Heatsink, USB 3.2 Gen 2x2, onboard WiFi 6E, Dynamic OC Switcher, Ryzen Core Flex, AI Cooling II, and Aura Sync RGB lighting

  • AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
  • Robust Power Solution: 18 + 2 teamed power stages with 8+8 pin ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Massive VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, L-shaped heatpipe, M.2 Combo-sink and M.2 backplate for the PCIe® 5.0 M.2_1 slot, three onboard M.2 heatsinks, plus a massive M.2 heatsink as an accessory
  • Overclocking technologies: Dynamic OC Switcher, Ryzen Core Flex, Asynchronous Clock and PBO Enhancement
  • High-Performance Networking: Onboard WiFi 6E, Intel® 2.5 Gb Ethernet and ASUS LANGuard
  • Fastest Gaming Connectivity: Two PCIe 5.0 expansion slots, three onboard PCIe 5.0 M.2 slots, USB 3.2 Gen 2x2 front-panel connector and Thunderbolt header
  • Industry-Leading Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
  • DIY-Friendly Design: Power button, Pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-Code, Q-LED, BIOS FlashBack, Clr CMOS Button, FlexKey, SafeSlot and SafeDIMM
  • Intelligent Control: ASUS-exclusive tools including AI Cooling II, Two-Way AI Noise-Cancelation and AI Networking for easy configuration
  • Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and intuitive UEFI BIOS dashboard

Awards

Video Reviews

The review from the channel Konsumer

AMD vs Nvidia?! - What Should You Buy! (RX 7900 XTX vs RTX 4080 Gameplay Benchmarks)

Building The ULTIMATE Gaming PC

MY ULTIMATE GAMING PC [PROJECT PHANTOM LIBERTY] 4K GAMING, STREAM and EDITING

MY ULTIMATE GAMING PC [PROJECT PHANTOM LIBERTY] 4K GAMING, STREAM and EDITING

TO START THE YEAR OFF RIGHT!

There are also a lot of you out there that just want the most high-end, the most RGB, and most over-the-top hardware.

I think, one of the biggest strengths these ASUS boards have to offer is their BIOS.

When there's a new AMD processor in town, a new ROG motherboard comes to play 🌚 Introducing the ROG Strix X670E-E Gaming WiFi motherboard 🥰

X670 vs B650-What's the difference?🤔 ROG Strix X670E-E Gaming Wifi and ROG Strix B650-A Gaming Wifi

Perfect for Gaming

Adjust your CPU to the maximum.

Nyoba Mobo 9 Jutaan : Worth It atau Terlalu? I ROG Strix X670E-E Gaming Wifi

Nyoba Mobo 9 Jutaan : Worth It atau Terlalu? I ROG Strix X670E-E Gaming Wifi

Nyoba Mobo 9 Jutaan : Worth It atau Terlalu? I ROG Strix X670E-E Gaming Wifi

It is a very good quality card. A plus is the button that allows ejection of the graphics card. The heatsinks are good because they are big. The display that warns of any problems is also excellent.

Compared to its predecessors, it is a more advanced board and has many more features. Performance-wise there is nothing to say. Connectivity is very good and all the components are very high-end. The cost is the only negative note.

Compared to its predecessors, it is a more advanced board and has many more features. Performance-wise there is nothing to say. Connectivity is very good and all the components are very high-end. The cost is the only negative note.

It is a very good quality card. A plus is the button that allows ejection of the graphics card. The heatsinks are good because they are big. The display that warns of any problems is also excellent.

In this video I installed an ASUS ROG Strix X670E-E with an AMD Ryzen 9 7950X, we will see the Bios and I will do a general system test. Being a ROG there's not much to say about the quality part, it's still very good and elegant in terms of design as well.

The ASUS ROG STRIX Z790-A GAMING WIFI II is a fantastic motherboard, which I have used to test all Intel cpu's. It is a level motherboard that has everything you could ask for.

After today's review, I have to admit that even expensive boards can have their merits. Features such as AI Overclock, Core Flex and the ability to set different conditions here are the strengths of these more expensive Asus X670E pieces. It's just a shame that the USB 4.0 gear is only available on the Hero.

Both boards are absolutely fantastic, one is better and better equipped and more expensive.

I was really looking forward to Ryzen 9000 with the new Zen 5 architecture. The previous Zen 4 proved to be a great architecture and this generation was only going to improve things. The reality, however, is a bit different. AMD made a great architecture, but completely neglected everything around it...

ASUS ROG Strixe-E Gaming Wifi panel preview

ROG Strix boards are always intended for gamers and enthusiasts who have neither high ambitions for extreme overclocking, nor actually the budget for full-blooded ROG boards

The review from the channel Konsumer

Today on the test by far the best ASUS STRIX AM5 board so far! It earned a Gold award from us. AOur recommendation.

Media Reviews

ROG STRIX X670E-E GAMING WiFi

The ROG Strix X670E-E Gaming WiFi is perched at the top of the series, packing robust power delivery and exclusive ROG overclocking tools to max out the stats of AMD Ryzen™ 7000 Series processors. PCIe 5.0 support extends to the furthest reaches of chipset capabilities, and an additional beefy heatsink is prepped to keep even the fastest M.2 drives chilled. With leading performance, the latest connectivity, and DIY-friendly features that span from hardware installation to system setup, this Strix beast grips AM5 and effortlessly soars to victory.

RYZEN AMD, AMD SOCKET AMS X670E logos

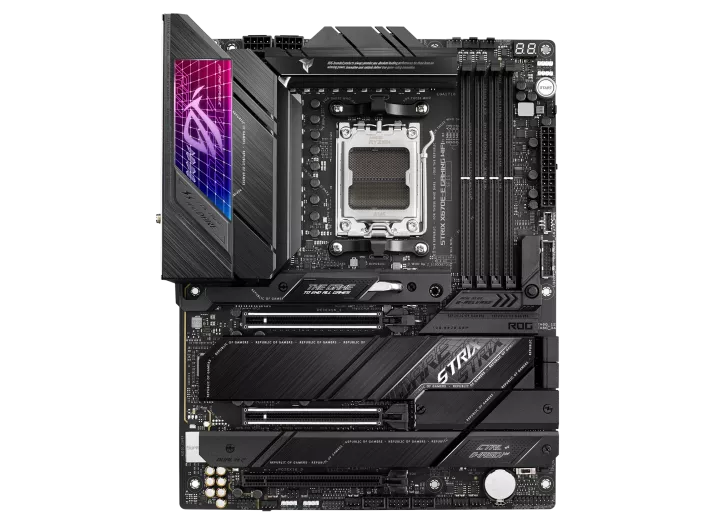

ROG Strix X670E-E Gaming WiFi motherboard
  • Power Stages

    18 + 2 teamed power solution rated for 110A per stage

  • Overclocking Technologies

    Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance

  • AI Cooling II

    AI Cooling II uniquely balances noise and thermals for your system with a single click

  • PCIe 5.0

    Both x16 slots and three on-board M.2 slots are PCIe Gen 5-ready

  • DDR5

    MT/s+, AMD EXPO, DRAM IC profiles, and AEMP

  • DIY Friendly

    Easy installation for GPUs and SSDs, plus simple BIOS resets and updates

    Learn more
  • WiFi 6E

    Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band

  • Massive M.2 Heatsink

    Bonus accessory takes M.2 cooling to the next level

DIY-FRIENDLY FEATURES

  • PCIe Slot Q-Release

  • M.2 Q-Latch

  • CLR CMOS & BIOS
    Flashback™ Buttons

  • Q-Code

  • Start Button

SPECIFICATIONS

  • Cooling
  • Gaming Immersion
  • Connectivity

BUILT FOR SPEED AND EXPANSION

ROG Strix X670E-E performance specifications
ROG Strix X670E-E performance specifications
  1. AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
  2. Expansion Slots
    • 2 x PCIe 5.0 x16 Safeslots [CPU]
    • 1 x PCIe 4.0 x16 Slot [Chipset]
  3. 18 + 2 Power Stages
  4. DDR5 + (OC)
    • 4 x DIMM
    • Dual Channel
  5. 4 x M.2 Slots
    • 2 x M.2 2242-2280 (PCIe 5.0 x4)
    • 1 x M.2 2242-22110 (PCIe 5.0 x4)
    • 1 x M.2 2242-2280 (PCIe 4.0 x4)

ALL-ROUND PERFORMANCE

From power delivery, to PCIe 5.0 support, I/O, and on-board cooling, the Strix X670E-E fully flexes AM5 and infuses AMD Ryzen™ 7000 Series processors with additional agility to plough through every task.

  • Overclocking
  • Power Design
  • Memory
  • Cooling

PCIe 5.0

Blazing fast storage is at your command with three PCIE 5.0 M.2 slots and one PCIE 4.0 M.2 slot. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to two x16 extension slots, which include SafeSlot to support heavy graphics cards and Q-release (top slot only) for easy upgrades.

PCIe 5.0 M.2 and expansion slot layout
ROG Strix X670E-E power design layout
  • ROG Strix X670E-E power design layout
  • ROG Strix X670E-E features alloy chokes and durable capacitors
  • ROG Strix X670E-E ProCool II connector locations
  • ROG Strix X670E-E Digi+ module location
  • ROG Strix X670E-E features an eight-layer PCB
  • TEAMED POWER ARCHITECTURE

    18 + 2 power stages, strategically teamed to rapidly respond to load changes and drive Ryzen™ 7000 through any workload.

  • ALLOY CHOKES AND DURABLE CAPACITORS

    Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

  • 2 x 8-PIN PROCOOL II POWER CONNECTORS

    ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.

  • DIGI+ POWER CONTROL

    The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency, and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

  • EIGHT-LAYER PCB

    A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

LEADING CONNECTIVITIY

The ROG Strix X670E-E Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

  • Audio
ROG Strix X670E-E features WiFi 6E, an included antenna, and 2.5 Gb ethernet
  • WIFI 6E ANTENNA

    The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5, and 6 GHz bands.

  • ADJUSTABLE DESIGN

    Four-way positioning enables better signal reception.

  • MAGNETIC BASE

    A powerful magnetic base secures the antenna on the top or side of the PC case.

PLAY IN STYLE

A bold and balanced aesthetic ties together elements from the ROG Strix lineup and then subtly increases contrast with bright accents, visible silver components, and a splash of RGB. Pair the ROG Strix X670E-E with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

  • Aura Sync
  • Compatibility
  • PHOTO
  • VIDEO

UNDENIABLY ROG STRIX

The ROG Strix X670E-E Gaming WiFi makes quite a statement compared to its slightly more subdued brethren. A high-contrast monochromatic colorway includes silver metal components and white design accents on top of a black PCB and dark metallic heatsinks. Aggressive angles and a splash of customizable RGB on the I/O shroud help it stand out even further from the crowd.

The ROG Strix X670E-E front and back designs offer a clean, modern aesthetic

ROG Strix X670E-E Gaming WiFi

SOFTWARE UTILITIES

ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.

  • Optimization
  • Advanced Audio
  • AIDA64
  • Armoury Crate
  • TWO-WAY AI NOISE CANCELATION
  • AI NETWORKING
ROG Strix X670E-E AI Cooling II user interface

AI COOLING II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
