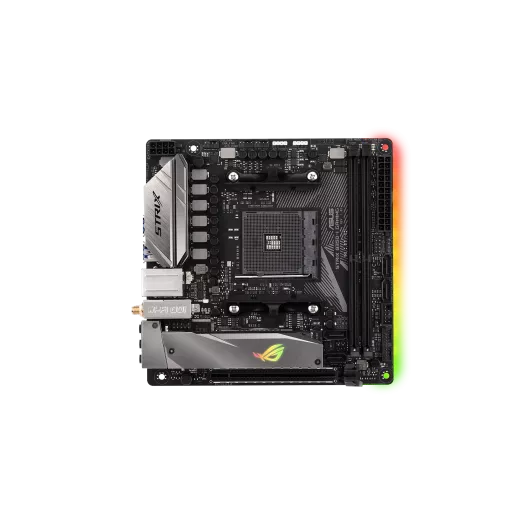

ROG STRIX B350-I GAMING

AMD AM4 B350 mini-ITX gaming motherboard with discrete M.2 Audio Combo Card design, dual M.2, USB 3.1 Gen2, 802.11ac Wi-Fi, DDR4 3600MHz and Aura Sync RGB Lighting

  • Supports AMD AM4-socket Ryzen™ processors, 7th Generation A-series APUs and Athlon™ ACPUs.
  • Gaming innovation: Discrete M.2 Audio Combo Card delivers clean audio and alleviates board space for more features.
  • SupremeFX audio: Renowned audio performance with intuitive Sonic Studio III and Sonic Radar III.
  • Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
  • Gaming networking: Intel Gigabit Ethernet, LANGuard, GameFirst and 2x2 802.11ac Wi-Fi with MU-MIMO support.
  • 5-Way Optimization: One-click system-wide overclocking and cooling.
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strip.
  • Gaming durability: ASUS SafeSlot and premium components for maximum durability.

ROG Strix B350-I Gaming draws on the proud legacy of our renowned Pro Gaming series by packing acclaimed ROG innovations into a mini-ITX motherboard that’s as sleek, small and stylish as it is powerful — ready for you to create a gaming rig that rivals anything built around a bigger board! Experience the all-new ROG M.2 Audio Combo Card that both frees up space and delivers crystal-clear audio, push performance to the limits with 5-Way optimization, and up the aesthetic ante with Aura Sync illumination. Join the Republic with ROG Strix B350-I Gaming and dominate your game!

  • AM4 socket for AMD®
    Ryzen™/7th Generation
    A-series/Athlon™ Processors
    Support 14nm CPU
  • 4 x USB 3.1 Gen1 ports
  • Intel® I211-AT
    ROG GameFirst IV
    Anti-surge LANGuard
  • 2 x USB 3.1 Gen2 ports
    (2 x Type-A )
  • Wi-Fi 802.11 a/b/g/n/ac
    - 2X2, supports MU-MIMO
    - Bluetooth v4.2
  • 3 x LED-illuminated
    audio jacks
  • SupremeFX S1220A CODEC
    - Impedance sense for front and rear
    - Dual op amplifiers
    - Sonic Studio III & Sonic Studio Link
    - Sonic Radar III
  • Aura Sync
    1 x Addressable 3-pin header
    1 x RGB 4-pin header
  • DDR4 3600(OC)MHz
    2 x DIMM Dual Channel DDR4
  • M.2 Audio Combo Card
    1 x M.2 2242-2280 on card

    (PCIe 3.0 x4 / SATA mode)
    1 x M.2 2242-2280 at rear
    (PCIe 2.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • 1 x USB 2.0
  • T-sensor header
  • 1 x USB 3.1 Gen1
  • 1 x PCIe 3.0 x16 (up to x16)

INNOVATION
& AUDIO

M.2 Audio Combo

ROG Strix B350-I Gaming features an innovative riser card to help alleviate the constraints imposed by the mini-ITX form factor. The M.2 Audio Combo Card frees up prized real estate by raising M.2 drives and SupremeFX audio circuitry above the mainboard to minimize lateral signal interference. And it’s neatly covered by a stylish heatsink that’s capable of keeping the latest high-performance SSDs cool.

SupremeFX

Shielded audio, superior sound

ROG Strix SupremeFX audio has levelled up, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection, and 120dB on the line-out for crystal-clear recording and playback. We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220A codec, plus Texas Instruments® RC4580 and OPA1688 op-amps for high gain with low distortion. It all adds up to audio that envelops you as never before.

Learn more about SupremeFX

A. Dual Op Amplifiers

One op amp adds voltage gain while the other works as a buffer. Together, they’re capable of driving 32-600Ω headphones effortlessly.

B. LED-Illuminated Audio Jacks

Backlit audio jacks save you from fumbling around in the dark.

C. Premium Nichicon™ Audio Capacitors

High-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

Sonic Studio III

Sonic Studio now supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Sonic Studio UI
  • 1
  • 2
  • 3
  • APP-SPECIFIC PROFILES

    Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.

  • SURROUND SOUND

    Surround sound for a truly immersive audio experience

  • SONIC STUDIO LINK

    New Sonic Studio Link VR functionality extends its HRTF effects to headsets like the Oculus Rift and HTC Vive.

    SONIC STUDIO LINK

*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.
**Please note Sonic Studio Link is available only in version 3.6 and later.

Sonic Studio UI

SONIC RADAR III

SCAN AND DETECT TO DOMINATE

Sonic Radar III is all new – with an evolved audio engine that processes sounds more accurately than ever, ensuring you're always aware of what's going on around you. A new on-screen arrow has also been added to help you pinpoint the enemy position instantly!

  • IMPROVED AUDIO ALGORITHM

    The new Sonic Radar III audio algorithm is now even more accurate to allow enemies to be pinpointed with even more accuracy.
  • 3D ENGINE

    Sonic Radar III is built around it's all new HUD with an in-game 3 dimensional arrow for a more intuitive experience.
  • AUDIO BOOST

    The new audio boost feature now allows the boosted audio to be heard directly.
  • AUDIO RADAR

    Sonic Radar III is effective regardless of surrounding noise and chaos.

Connectivity &
networking

DUAL NVM EXPRESS PCIE M.2

LET YOUR SSD SCREAM AT SPEEDS OF UP TO 32GBPS

With x4 PCI Express® 3.0/2.0 bandwidth, M.2 supports up to 32Gbps* data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole gaming PC or professional apps work as fast as possible.

* AMD Ryzen™ processor required for full PCIe 3.0 bandwidth.

USB 3.1 GEN2 TYPE-A

ULTIMATE-SPEED 10Gbps WITH ONBOARD USB 3.1

With two USB 3.1 Gen2 Type-A ports, you’ll experience data-transfer speeds of up to 10Gbps – twice as fast as USB 3.1 Gen1. USB 3.1 Gen2 is also completely backward-compatible with existing USB devices – so you’ll be set for breakneck USB 3.1 Gen2 speeds with every connection.

INTEL GIGABIT ETHERNET

MORE THROUGHPUT AND LESS PROCESSING EQUALS FASTER ONLINE PLAY

ROG Strix B350-I Gaming features the very latest Intel® Ethernet Controller I211-AT for faster, smoother gaming. Intel Ethernet controllers have a natural synergy with their processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for games and other tasks.

LOWER CPU WORKLOAD

HIGH TCP & UDP THROUGHPUT

2X2 WI-FI WITH MU-MIMO

ONBOARD WI-FI WITH TRANSFER SPEEDS UP TO 867 MBPS

Next-level 802.11ac Wi-Fi with 2x2 dual-band 2.4/5GHz antennas offer up to 867Mbps* transfer speeds — and the very latest Multi-User MIMO (MU-MIMO) technology ensures that every connected user** experiences the best wireless and online speeds!


* Actual speed varies, and Wi-Fi hotspot feature operates at 802.11a/b/g/n. Windows 10 does not currently support Wi-Fi hotspot functionality.

** Requires MU-MIMO-ready client.

LANGUARD

PUMPED-UP THROUGHPUT. BEST SURGE PROTECTION

LANGuard means safer, more reliable connections for your battles. Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your ROG Strix B350-I Gaming's connection, while surge-protected components (ESD Guards) provide 1.9X-greater tolerance to static electricity and 2.5X-greater protection against surges – up to 15kV!

1.9X HIGHER

STATIC-ELECTRICITY TOLERANCE

2.5X-GREATER

SURGE TOLERANCE

GAMEFIRST IV

TEAM UP TO BANISH LAG

GameFirst IV optimizes network traffic for faster, lag-free online gaming — and now we've added Multi-Gate Teaming to team all your networks for maximum bandwidth and the smoothest-ever gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for the best performance.

performance

DDR4 OVERCLOCKING

Ryzen’s mesh architecture favors high memory speeds to deliver peak performance. Featuring a two-slot layout and optimized trace routing, ROG Strix B350-I Gaming unleashes the platform’s raw potential by allowing you to drive memory frequencies to DDR4-3600 and beyond.

5-WAY OPTIMIZATION

One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

・ An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
・ Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
・ All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.

  • TPU

  • EPU

  • FAN XPERT 4

  • DIGI+
    POWER CONTROL

  • TURBO
    APP

CPU PERFORMANCE BOOST

Unleash your PC's full performance with the ASUS AI Suite 3 utility. A TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

ALL-ROUND ENERGY EFFICIENCY

With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

FLEXIBLE COOLING CONTROLS FOR AIR OR LIQUID

With ROG Strix B350-I Gaming, you have comprehensive control over fans and even all-in-one (AIO) coolers, via either Fan Xpert 4 or our award-wining UEFI. Whether you’re cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum – keeping your system whisper-quiet when performing light tasks.

PRECISE DIGITAL POWER CONTROL

Digi+ delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

GAME FASTER, RANK HIGHER

ASUS Turbo App is the intuitive tuning panel to boost everything to secure your victory in your favorite titles! Overclock your CPU, prioritize game data across your network and optimize the audio settings for fantastically clear audio and in-game-chat. History is written by the victors, so don't go to war without Turbo App.

COOLER BY DESIGN

ROG Strix B350-I Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.

ROG Strix Z370-I Gaming
  • Multiple temperature sources

  • 4-pin PWM/DC fan

  • Smart protection

  • AIO pump

  • Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI.

  • Every onboard header supports auto-detection of PWM or DC fans.

    * AIO PUMP is also PWM/DC controllable.
  • A dedicated integrated circuit that protects each fan header from over-temperature and over-current.

  • A dedicated PWM/DC header for self-contained water-cooling setups.

AWARD-WINNING BIOS DESIGN

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more gorgeous. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

CRASHFREE BIOS 3

Never again worry about corrupted BIOS, as CrashFree BIOS 3 lets you restore a PC to working order — even when it won't boot!

EZ FLASH 3

Update the latest BIOS via the internet or from within the system BIOS.

Lighting

AURA LIGHTING CONTROL

With ROG Strix B350-I Gaming we’ve upgraded our Aura Sync RGB lighting so that you can tastefully accent your build with a range of colors and effects. An array of RGB LEDs is embedded into the M.2 heatsink, so the ROG logo now glows by your command. And for off-board illumination, there are headers for 5050 RGB strips and addressable RGB gear, allowing Aura to radiate throughout an entire chassis. Fire up all your Aura Sync devices and see them perform in perfect harmony!

  • Static Static
  • Breathing Breathing
  • Strobing Strobing
  • Color cycle Color Cycle
  • Music effect Music Effect
  • CPU temperature CPU Temperature
  • Rainbow Rainbow
  • Comet Comet
  • Flash & dash Flash & Dash
  • Glowing Yo Yo Glowing Yo Yo
  • Wave Wave
  • Starry night Starry Night

RGB HEADERS

RGB LIGHTING PERFECTED

ROG Strix B350-I Gaming features an onboard 5050 RGB header and an addressable header that can be connected to compatible lighting strips, fans, coolers, and PC cases, creating a new world of illumination possibilities.

*The addressable RGB header supports WS2812B addressable RGB LED strips (5V/Data/Ground), with a max power rating of 3A (5V) and a max of 60 LEDs.
* The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.
**An addressable RGB LED extension cable is included. LED strips and Aura Sync-compatible devices are sold separately.

Addressable RGB header

4-pin RGB header

INFINITE LIGHTING POSSIBILITIES

ASUS Aura SDK allows developers to take full advantage of the vast eco-system of Aura Sync-capable PC gear. From in-system illumination to peripherals and beyond, the SDK provides an evolving toolkit of options to enhance games and software with RGB lighting. Game effects, alerts, and audio can all be portrayed via Aura-compatible hardware, creating subtle or dazzling visual cues to augment the action. There's also scope to map system parameters such as temperatures to lighting, giving enthusiasts new ways to monitor vital information.

Visit the ASUS Aura microsite to learn more about Aura SDK.

gamer's
guardian

SAFESLOT

SafeSlot* is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

* Patent Pending

Q-LEDS

Onboard LEDs to indicate the power status, and problems with the CPU, memory, graphics card or boot device for quick diagnosis.

DIGI+ VRM

The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times!

DRAM OVERCURRENT PROTECTION

1 additional resettable fuse protects connection ports and DRAM against overcurrent and short-circuit damage.

Q-SHIELD

NO pain!

Protect your hands from nicks and cuts.

Q-SLOT

1 clip

makes it easy to swap or secure your graphics card.

Q-DIMM

1 sided

clips for super-simple, super-secure handling of memory modules.

ROG Strix
Gives you more

OVERWOLF

STAY IN THE GAME

A clever, unobtrusive overlay keeps you in the game and allows you to browse the Web, email, IM, stream or record while you play. The overlay is dressed in color-matched ROG skins to show you're part of an elite pack. Grab it now from the Overwolf Appstore!

watch video
  • In-game dock- 5 customizable apps

  • In-game calling- 0 missed calls during gaming

  • Multi-IM support- 5+ clients in a single interface

  • 5 customizable apps

  • 0 missed calls during gaming

  • 5+ clients in a single interface

ROG CLONE DRIVE

IMAGE YOUR DRIVES, THE SMART WAY

All-new ROG Clone Drive is the smart, convenient cloning solution that quickly and efficiently replicates hard drives or SSDs. Clone Drive is so smart that it can clone one drive to two target drives at the same time, or image any file from your disk at breakneck speeds.

RAMCACHE II

SPEED YOUR GAME LOADS

ROG's uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it's activated. RAMCache II turns milliseconds into microseconds to boost game-load times to stratospheric levels.

Automatically caches all your storage devices at the same time for optimal use of your system‘s caching resources.

Beyond VR ready

ROG Strix B350-I Gaming isn't just VR Ready — it goes way beyond! The ASUS ROG Beyond VR Ready marque means that ROG Strix B350-I Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance after you've taken off the headset. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

THE POWER OF AMD

Ready for AMD AM4-Socket Ryzen, 7th Generation A-series APUs and Athlon CPUs

This motherboard supports AMD® Ryzen™ processors, 7th Generation A-series accelerated processing units (APUs) and Athlon™ CPUs. The high-performance Ryzen™ processor supports up to eight cores, and is based on the innovative Zen core architecture. The 7th Generation A-series APUs feature integrated AMD Radeon R-series graphics. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5Gbps USB 3.0 and 16 PCI Express® 3.0/2.0 lanes for superb performance.

AMD B350 Chipset

The AMD B350 chipset delivers outstanding overclocking capabilities for the latest AMD® AM4-socket Ryzen™ processors, 7th Generation A-series APUs and Athlon™ ACPUs. It is optimized for multiple GPU configurations including NVDIA SLI™ and AMD CrossFireX™. It also provides two 10Gbps USB 3.1 ports and eight 6Gbps SATA ports for faster data retrieval.
