AM5 kicks off in style with ROG Crosshair and ROG Strix X670 motherboards

Sep 26, 2022 Written by:ROG Article

Gamers everywhere trust AMD Ryzen™ CPUs for their battlestations. Packed to the brim with cores, these chips excel at tasks that call for an extra dose of parallel computing power, like heavy multitasking, livestreaming game sessions on Twitch—and, of course, powering through the latest games at high frame rates. Now, AMD has fired off its fourth salvo of AMD Ryzen CPUs, and we’ve readied the X670E and X670 motherboards you’ll need to harness the full potential of these new chips.

Our X670E and X670 motherboard lineup includes a wide range of tempting choices for gamers everywhere. The ROG Crosshair series returns to offer uncompromising performance and style for those who dare to build a gaming PC like none other. ROG Strix boards deliver gaming prowess in a wide range of designs. We’ve also added X670E and X670 motherboards to our TUF Gaming, ProArt, and Prime motherboard families? Click here for all the details.

am5 socket

Ready to find the perfect partner for your new AMD Ryzen CPU? In this guide, we’ll walk you through the core features of the platform and introduce you to our ROG X670E and X670 motherboards. Whether you’re an experienced PC enthusiast or a newcomer planning out your first build, we’ll help you find the best Ryzen motherboard for your needs and budget.

Raised to the power of five

Key changes to AMD’s CPUs and chipset enable us to make X670 a truly next-gen platform. Fabricated on a cutting-edge 5nm process, Ryzen 7000-series processors slot into the all-new AM5 socket. As an LGA-style socket, the pins are on the motherboard, not the CPU, making any accidental bending or damage to the pins less likely. AM5 supports up to a 170W TDP, enabling exceptional compute performance for high-core-count CPUs in heavy workloads.

ddr5

But it’s not just the CPU socket that’s enjoying a next-gen upgrade. X670E and X670 motherboards support the latest DDR5 RAM. With data rates 50% faster than previous-generation DDR4 memory, DDR5 unleashes a new tier of performance, and our motherboards offer a host of hardware and firmware optimizations that enable users to overclock capable kits to the absolute limit.

X670E and X670 motherboards also boast PCIe 5.0 connectivity. With double the link speeds of PCIe 4.0, the new standard provides us with the bandwidth to deck out our X670E and X670 motherboards with a comprehensive selection of high-speed ports. You’ll find models equipped with the latest USB4 ports, and USB 3.2 Gen 2x2 ports abound across our lineup.

genz 2

X670E and X670 boards differ in their deployment of PCIe 5.0 and PCIe 4.0 across the circuitry. The “E” in X670E stands for “Extreme,” it ensures that you’re getting a board decked out with a PCIe 5.0 x16 slot and at least one PCIe 5.0 M.2 socket. But we’re not content to just provide the minimum—if high-speed storage is your jam, you’ll find it in abundance in our top-tier offerings. Most of our ROG Strix X670E offerings have at least two onboard PCIe 5.0 M.2 slots, and the flagship ROG Crosshair X670E Extreme offers a total of four PCIe 5.0 slots between its onboard slots and bundled add-in cards. Since higher-end and larger-capacity M.2 SSDs can produce more heat, we’re also upping our cooling game for X670E and X670. Many of our M.2 slots include a dual-sided M.2 heatsink to aid in heat dissipation.

Hassle-free PC building

It's been decades since building a PC required a computer science degree, and we work tirelessly to make PC DIY easier with each generation of motherboards. Exclusive ASUS Q-Design innovations across our X670E and X670 lineup simplify and streamline the process of building and upgrading your PC.

pcie slot q-release

Today’s cutting-edge graphics cards often have beefy cooling solutions and sturdy backplates. That’s great for performance—but they can get in the way of popping the PCIe release latch free. Our PCIe Slot Q-Release button lets you release your graphics card from the slot with one press, no fumbling or tiny fingers required. You’ll find this convenient feature on all ROG Crosshair X670E motherboards and most ROG Strix options.

Similarly, traditional DIMM slot designs require you to lock in both sides of the memory stick, and it wasn’t always easy for those of us with larger fingers to unlock the latch closest to the graphics card. That’s why we’ve also implemented our single-sided Q-DIMM latching design on all our X670E motherboards. With this arrangement, you won’t have to worry about a latch that may be too close to your graphics card. A single latch on the easier-to-access side of the DIMM slot is all it takes to hold your memory stick firmly in place. Installing your RAM—and upgrading it down the road—is that much easier.

q-latch

We’ve even simplified the process of installing an M.2 drive. Our M.2 Q-Latch gives you the peace of mind that you’ll never have to handle another tiny, easily lost M.2 screw ever again. Now, you can secure or loosen an M.2 drive with just your fingertips.

A new generation of cool

Many builders these days opt for higher-RPM case fans capable of moving large volumes of air. These fans are just the ticket for keeping high-performance components cool under load, but they can produce excessive noise when users are performing light tasks like reading posts online, browsing YouTube, or responding to email. To give you an easy tool for getting effective airflow under load and quiet operation during light tasks, we’re debuting AI Cooling II for our entire X670E and X670 motherboard lineup.

When you first enable this tool though FanXpert in the Armoury Crate app, it uses a machine learning algorithm to gather data about your system during a brief stress test. From then on, AI Cooling II monitors your CPU and uses the data from its stress test to calculate the lowest fan speed required to effectively cool your system—while keeping noise levels low. This fan control system can reduce system fan noise by up to 5.7dB under sustained loads. Through this self-adaptive system, you’ll always have cooling power when you need it and quiet operation when you want it. We’ve also taken the opportunity to update FanXpert with our full set of fan calibration and control options. You’ll get temperature input mapping and fan response mapping, all inside Windows through the convenient Armoury Crate app.

Powerful tools for power users

The first thing that many hardware enthusiasts out there will do with their new AMD Ryzen 7000 series processors and X670E motherboard is see just how much extra performance they can coax out of their system through overclocking. In heavily threaded workloads, an all-core manual overclock can offer substantial benefits. But for more lightly threaded applications like gaming, AMD’s built-in Precision Boost Overdrive (PBO) is often the superior choice. This performance-maximizing tech automatically analyzes factors including CPU temperature, number of actives, and power consumption to intelligently raise clock speeds.

overclocking

We don’t think that you should have to choose between PBO and your manual all-core overclock. That’s why we developed Dynamic OC Switcher. We debuted this feature in our legendary last-gen ROG Crossshair VIII Dark Hero motherboard, and now we’re including the necessary onboard microcontroller on all our X670E motherboards to bring it to a wider audience. This tool automatically flips between the two modes to give you the best performance for the task at hand. After you’ve configured a manual overclock for heavy tasks, select a threshold for Dynamic OC Switcher to activate based on amperage and temperature. From that point, your system will operate with PBO by default, but will kick over to your manual overclock dynamically to give you exceptional multithreaded performance exactly when you need it the most.

You can also use the new Core Flex feature to smash limits farther than ever before by controlling clock, power, and thermals. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. The system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

gene

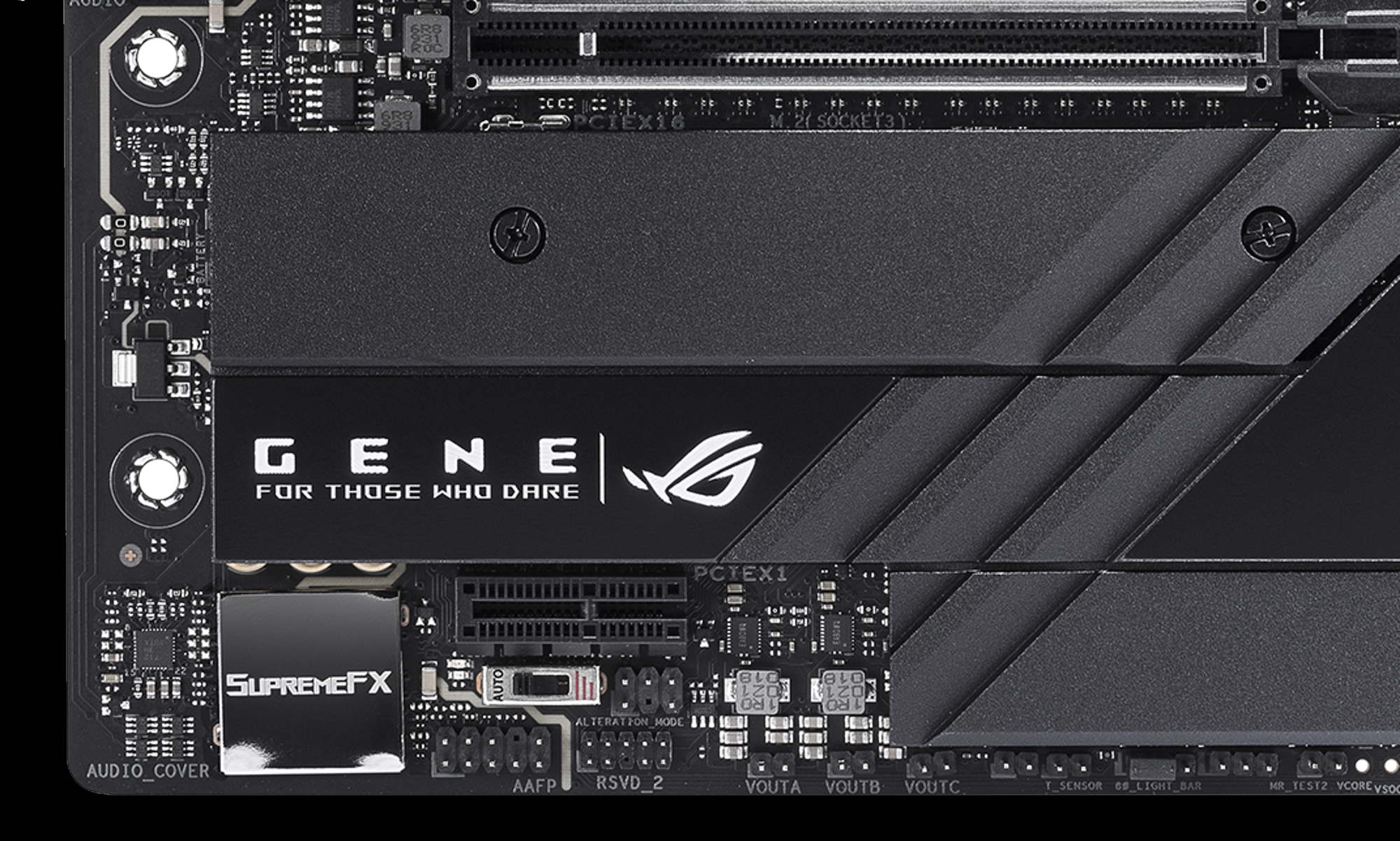

Our X670E lineup also heralds the return of the ROG True Voltician. This oscilloscope kit, bundled with the ROG Crosshair X670E Extreme and the ROG Crosshair X670E Gene, streamlines the workflow of enthusiasts who need detailed analysis of the power circuitry on their motherboard to extract the highest levels of performance from their hardware. Once connected to your system, the oscilloscope system intuitively presents real-time voltage information on a separate system. It’s never been easier to collect the data you need for professional-level overclocking.

ROG Crosshair leads the charge

Since 2006, Republic of Gamers motherboards have relentlessly pushed the boundaries of design and performance to deliver true enthusiast-grade products for gamers who demand more. Using top-notch components and cutting-edge designs capable of hitting the highest speeds, ROG engineers create motherboards that exude quality and craftsmanship while redefining the possibilities of desktop computing.

Our trio of ROG Crosshair X670E motherboards propel the series into the future with a truly next-gen feature set. The ROG Crosshair X670E Hero beckons with an unconquerable blend of enthusiast-grade features and sizzling style. The ROG Crosshair X670E Gene brings the high-end features of the new platform to mid-sized microATX builds. And atop the stack is the mighty ROG Crosshair X670E Extreme, an EATX motherboard built for those who want it all.

ROG Crosshair X670E Hero

As the most accessible model in the ROG Crosshair X670E lineup, the ROG Crosshair X670E Hero bridges the gap between professional PC builders and everyday gamers, allowing everyone to construct a high-performance showcase PC.

X670E_Hero_02-2

Dark hues predominate the surface of the ROG Crosshair X670E Hero, providing an intense backdrop for your build. Polymo lighting across the integrated I/O shield delivers a sizzling accent. This microstructural array of light and color features two RGB patterns, empowering builders to show off a luminous RGB style that they won’t see anywhere else.

Ready to take one of AMD’s new chips to the next level? With its 18 + 2 teamed power stages rated for 110A, this motherboard will effortlessly deliver stable power to your CPU. Substantial integrated heatsinks keep the circuitry cool, and a wide array of headers let you set up your dream cooling solution.

X670E_Hero_09-1

The ROG Crosshair X670E Hero sets you up for a thoroughly next-gen gaming build. Its pair of PCIe 5.0 x16 slots stand ready for next-gen graphics cards–or the included PCIe 5.0 M.2 card, which gives you a third Gen 5 M.2 slot, in addition to the two onboard slots, that are wired for PCIe 5.0 connectivity. Enjoy pristine audio for competitive gaming and entertainment alike with an audiophile-grade ESS® ES9218 Quad DAC that pumps top-notch sound to the front-panel output. With an exceptional signal-to-noise ratio, this audio solution is perfect for plugging in a high-end headset.

High-end connectivity rounds out the Hero’s feature set. WiFi 6E lets you access the freshly opened 6GHz band for unhindered wireless networking with compatible routers in select regions. Dual rear USB4 ports give you flexible access points for high-speed external storage and peripherals.

ROG Crosshair X670E Hero
Size ATX
Memory 4 x DIMM, up to 128GB, DDR5
PCIe 2 x PCIe 5.0 x16 (@x16 or x8/x8)
1 x PCIe 4.0 x1
Storage 2 x 2280 (PCIe 5.0 x4)
2 x 2280 (PCIe 4.0 x4)
Networking 1 x 2.5Gb Ethernet
WiFi 6E
Audio Realtek ALC 4082
ESS® ES9218 Quad-DAC
Rear I/O 2 x USB4®
3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 2: 8 x USB Type-A, 1 x USB Type-C®
Front I/O 3.2 Gen 2x2: 1 x USB Type-C® with Quick Charge 4+
3.2 Gen 1: 4 x USB Type-A
2.0: 6 x USB Type-A
Aura 3 x Addressable Gen 2 headers
1 x Aura RGB header
Cooling 8 x fan headers
PCIe 5.0 M.2 card 1 x 22110 (PCIe 5.0 x4)

ROG Crosshair X670E Gene

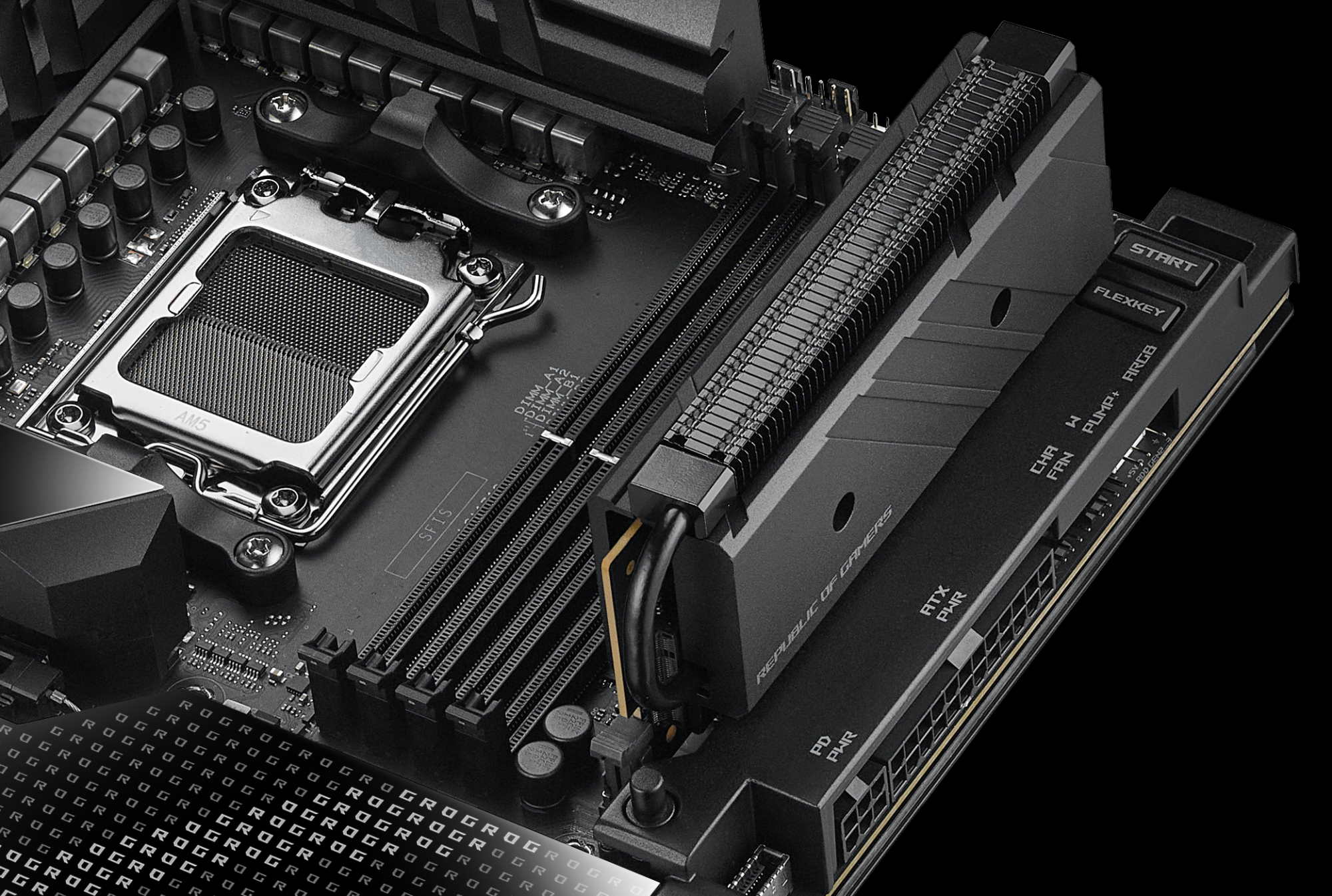

You might say that MicroATX inhabits the Goldilocks zone of motherboard sizes—not too large, not too small. For gamers with no need for a second PCIe x16 slot, the ROG Crosshair X670E Gene delivers high-end performance, an exceptional feature set, and the signature ROG aesthetic in the mid-size MicroATX form factor.

x670e gene

An engraved, reflective ROG logo on the integrated I/O shield and a pixelated Fearless Eye icon on the chipset heatsink herald your allegiance to the Republic of Gamers. RGB LED accents on the VRM heatsink, customizable with Aura Sync, provide a splash of color on a board that otherwise makes a statement with its dark tones and angular accents.

dimm.2 gene

The thoroughly next-gen X670 platform gives us the opportunity to take your gaming experience to the power of five with PCIe 5.0 and DDR5. Its PCIe 5.0 x16 slot stands ready for the fastest graphics of today and tomorrow, and its support for DDR5 lets you enjoy the massive bandwidth, sizzling new speeds, and exceptional power efficiency offered by next-generation DDR5 RAM. Between its onboard slots and the ROG Gen-Z.2 card, the Gene offers two PCIe 5.0 M.2 slots and one PCIe 4.0 M.2 slot, giving you ample elbow room to build out a fast and spacious game library—and expand it down the road. And, of course, this motherboard is built for even the mightiest next-gen AMD Ryzen CPU with its robust power solution with 16 + 2 teamed power stages rated for 110A.

The Gene’s wide suite of connectivity options checks all your boxes for a top-tier motherboard. Access to the freshly-opened 6GHz band through the latest WIFi 6E radio? Check. Intel 2.5Gb Ethernet for unhindered networking? Check. A pair of USB4 ports on the rear I/O, a connector for a front-panel USB 3.2 Gen 2x2 Type-C port, and support for Quick Charge 4+? Check, check, and check.

ROG Crosshair X670E Gene
Size Micro-ATX
Memory 2 x DIMM, up to 64GB, DDR5
PCIe 1 x PCIe 5.0 x16 (@x16)
1 x PCIe 4.0 x1
Storage 1 x 2280 (PCIe 5.0 x4)
Networking 1 x 2.5Gb Ethernet
WiFi 6E
Audio Realtek ALC 4080
Savitech SV3H712 AMP
Rear I/O 2 x USB4®
3.2 Gen 2: 5 x USB Type-A, 1 x USB Type-C®
2.0: 2 x USB Type-A
Front I/O 3.2 Gen 2x2: 1 x USB Type-C® with Quick Charge 4+
3.2 Gen 1: 2 x USB Type-A
2.0: 4 x USB Type-A
Aura 2 x Addressable Gen 2 headers
1 x Aura RGB header
Cooling 7 x fan headers
ROG Gen-Z.2 1 x 22110 (PCIe 5.0 x4)
1 x 22110 (PCIe 4.0 x4)

ROG Crosshair X670E Extreme

Get ready for the new look of high-end. The ROG Crosshair X670E Extreme accepts no compromises and takes no prisoners. With its angular lines, vivid RGB LED accents, and moody black tones, the ROG Crosshair X670E Extreme motherboard loves taking center stage. For unmatched personalization options, this board features the AniMe Matrix™ display, an array of LEDs that can show off custom retro-style animations.

ROG CROSSHAIR X670E EXTREME

Time and again, the striking visual elements of the ROG Crosshair X670E Extreme serve your desire for unbridled performance. Large heatsinks atop the VRM circuitry, chipset, and onboard M.2 slots offer substantial cooling power and symmetrical beauty. Multilayer graphics grace the surface of the wide heatsink cover for the primary M.2 slot. And the integrated aluminum I/O cover assists in cooling circuitry, simplifies your build process, and looks sharp in the process.

A robust power solution gives the ROG Crosshair X670E Extreme nearly unbounded potential for taking your next-gen AMD Ryzen CPU to the next level. With its 20 + 2 teamed power stages rated for 110A, this EATX motherboard stands ready to deliver a stable stream of power to your CPU. Today’s processors take advantage of available power and thermal headroom to offer you the best performance at any moment, so cooling isn’t just a matter of comfort—comprehensive cooling makes sure that you get the sustained performance that you demand. The ROG Crosshair X670E Extreme gives you a full suite of options for setting up your dream cooling solution. Six headers for chassis and radiator fans let you establish and control system airflow. Planning to deploy a custom liquid-cooling solution? A wealth of headers for pumps and flow rates give you total command over the coolant coursing through your build.

ROG CROSSHAIR X670E EXTREME-1

With double the link speeds of PCIe 4.0, the new standard provides us with the bandwidth to deck out the ROG Crosshair X670E Extreme with USB4® and USB 3.2 Gen 2 ports. Since so many gamers use their PC’s front panel USB ports to recharge devices, the ROG Crosshair X670E Extreme offers a front panel USB 3.2 Gen 2 2x2 connector with support for Quick Charge 4+. Make sure to pair this motherboard with a case featuring a front-panel USB Type-C port so that you can have convenient access to 60W charging.*

Two PCIe 5.0 x16 slots stand ready for the cutting-edge graphics cards of today and tomorrow. Between its two onboard slots and the three additional slots made available through the ROG PCIe 5.0 M.2 card and the ROG GEN-Z.2 card, the ROG Crosshair X670E Extreme offers five total M.2 slots. Four support PCIe 5.0 x4 mode. Heatsinks for all the slots, including those on the add-in cards, ensure that you get the full performance of your drives without throttling. Six SATA 6Gbps ports let you establish an even larger storage array so you never have to ration your game library.

The motherboard’s networking options have reason to brag, as well. WiFi 6E connectivity lets you use a compatible router in select regions to access the freshly opened, low-interference 6GHz band. An Intel 2.5Gb Ethernet port gives you a high-bandwidth hardline to your router, while a Marvell AQtion 10Gb Ethernet port preps your machine to easily handle multi-terabyte file transfers on fast networks.

supremefx

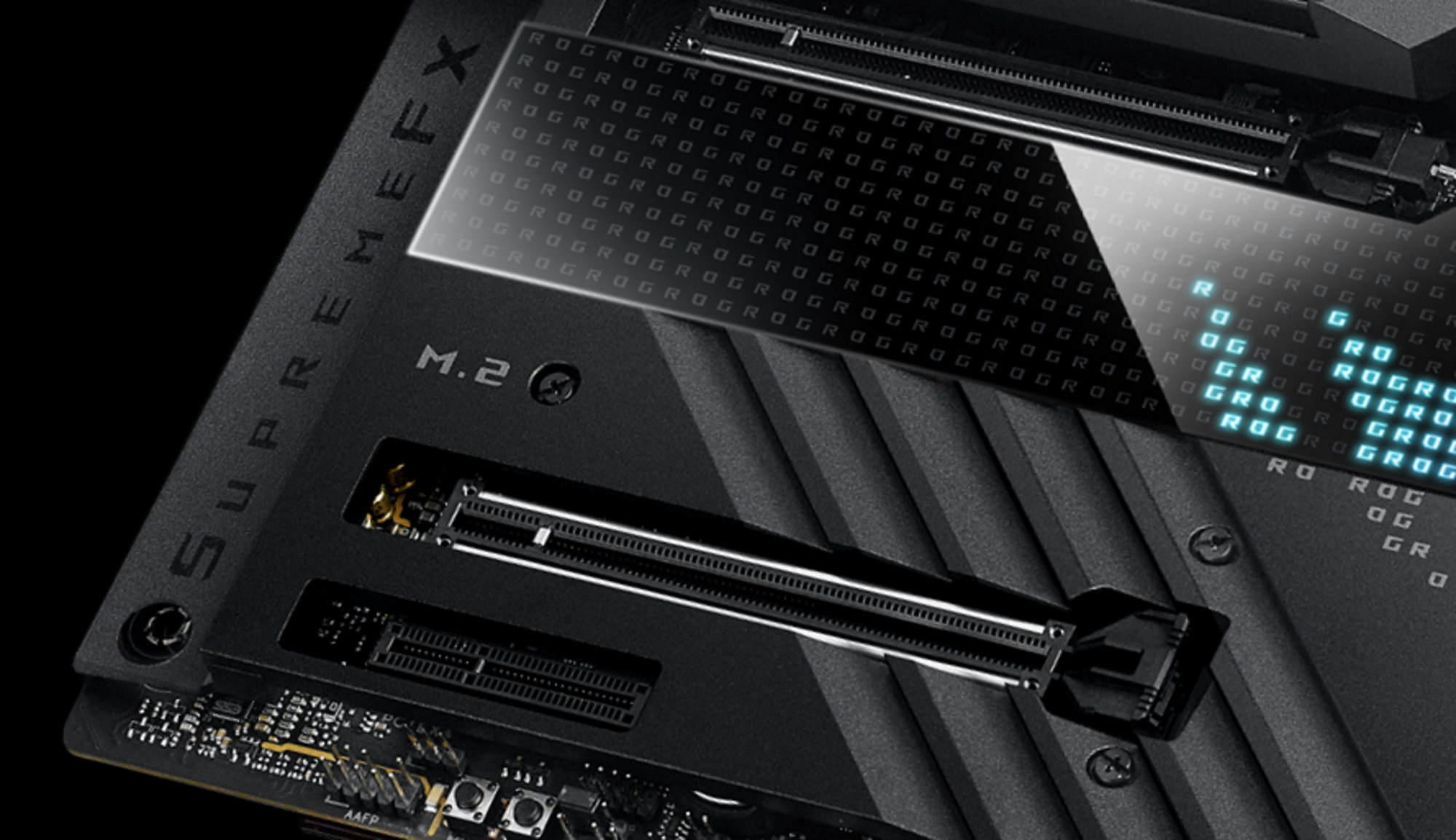

If visuals take the driver’s seat when it comes to gaming, audio rides shotgun. It starts with a SupremeFX 7.1 Surround Sound audio solution with integrated amplifiers and op-amps. The audio circuit design uses premium capacitors, interference shielding, and discrete traces for the left and right channels. Auto impedance detection lets you use even high-impedance audiophile headphones and get crystal-clear, distortion-free output. An ESS ES9218 Quad DAC pumps top-notch audio to the front-panel output with an exceptional 120 dB signal-to-noise ratio, perfect for plugging in a high-end headset.

ROG Crosshair X670E Extreme
Size EATX
Memory 4 x DIMM, up to 128GB, DDR5
PCIe 2 x PCIe 5.0 x16 (@x16 or x8/x8)
1 x PCIe 4.0 x4
Storage 2 x 2280 (PCIe 5.0 x4)
Networking 1 x Marvell® 10Gb
1 x 2.5Gb Ethernet
WiFi 6E
Audio Realtek ALC 4082
ESS® ES9218 Quad-DAC
Rear I/O 2 x USB4®
3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 2: 8 x USB Type-A, 1 x USB Type-C®
Front I/O 3.2 Gen 2x2: 1 x USB Type-C® with Quick Charge 4+
3.2 Gen 2: 1 x USB Type-C®
3.2 Gen 1: 4 x USB Type-A
2.0: 4 x USB Type-A
Aura Onboard: 3 x Addressable Gen 2 headers, 1 x Aura RGB header
ROG Fan Controller: 6 x Gen 2 addressable headers
Cooling Onboard: 8 x fan headers
ROG Fan Controller: 6 x headers, 2 x sensor
ROG Gen-Z.2 1 x 22110 (PCIe 5.0 x4)
1 x 22110 (PCIe 4.0 x4)
PCIe 5.0 M.2 card 1 x 22110 (PCIe 5.0 x4)

ROG Strix rallies gamers everywhere

For folks building a PC first and foremost for gaming, some of the exotic features of the ROG Crosshair series may feel more like luxuries than necessities. ROG Strix motherboards retain key elements of the style and performance of the Crosshair series while avoiding specialized features that everyday builders might not need. In total, we’re offering four ROG Strix X670E motherboards: a trio of high-performance ATX motherboards with varying levels of features and styles, and a Mini-ITX marvel in the ROG Strix X670E-I.

ROG Strix X670E-E Gaming WiFi

As the highest-performance board of the Strix family, the ROG Strix X670E-E Gaming WiFi merges the best of form and function. Angular accents sweep across the board’s heatsinks alongside distinctive ROG iconography, while an illuminated acrylic display on the integrated I/O cover makes an impactful statement.

strix x670e-e

Comprehensive power and thermal solutions set you up to tame the latest high-end gear. 18 + 2 teamed power stages rated for 110A deliver a stable stream of power to your AMD CPU. Two PCIe 5.0 x16 slots stand ready for next-gen graphics cards and add-in cards. To keep PCIe 5.0 SSDs operating comfortably, the hefty and thick M.2 Combo-sink provides a large surface area for cooling. And the Massive M.2 Heatsink is included in the accessory kit.

A new generation of conveniences ease the building process with the ROG Strix X670E-E Gaming WiFi. In addition to the PCIe Slot Q-Release button, which makes it easy to remove the graphics card, there’s an integrated power button on the motherboard that makes it easy to do a pre-test prior to building the whole system. And a spare M.2 thermal pad in the ROG accessory kit makes sure that you’re ready to keep future replacement drives operating optimally.

ROG Strix X670E-E Gaming WiFi
Size ATX
Memory 4 x DIMM, up to 128GB, DDR5
PCIe 2 x PCIe 5.0 x16 (@x16 or x8/x4)
1 x PCIe 4.0 x16 (@x4)
Storage 1 x 22110 (PCIe 5.0 x4)
2 x 2280 (PCIe 5.0 x4)
1 x 2280 (PCIe 4.0 x4)
Networking 1 x 2.5Gb Ethernet
WiFi 6E
Audio Realtek ALC 4080
Savitech SV3H712 AMP
Rear I/O 3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 2: 10 x USB Type-A, 2 x USB Type-C®
Front I/O 3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 1: 2 x USB Type-A
2.0: 6 x USB Type-A
Aura 3 x Addressable Gen 2 headers
1 x Aura RGB header
Cooling 8 x fan headers

ROG Strix X670E-F Gaming WiFi and ROG Strix X670E-A Gaming WiFi

These days, many gamers only take advantage of one of the PCIe x16 slots on their motherboard. For them, the ROG Strix X670E-F Gaming WiFi and ROG Strix X670E-A Gaming WiFi offer everything they need for a high-end build in two striking and strikingly different styles.

ROG STRIX X670E-F GAMING WIFI_06

These two motherboards share many of the same elements: one PCIe 5.0 x16 slot, four onboard M.2 slots, two wired for PCIe 5.0 and two for PCIe 4.0, WiFi 6E, and DDR5 support. The Strix X670E-F takes its visual cues from the Strix X670E-E, offering predominantly black surfaces slashed with angular accents. The illuminated acrylic panel on the Massive VRM Heatsink, illuminated with Aura Sync RGB LEDs, adds the right touch of style and luxury.

X670E-A02

The trendsetting Strix X670E-A takes another path. Bold metallic white surfaces on its surfaces make it an ideal candidate for a white-themed build. Its RGB LED illuminated acrylic panel gives the board a frosty look that perfectly complements the thermal prowess of its hardware.

ROG Strix X670E-E Gaming WiFi ROG Strix X670E-A Gaming WiFi
Size ATX
Memory 4 x DIMM, up to 128GB, DDR5
PCIe 1 x PCIe 5.0 x16 (@x16)
1 x PCIe 4.0 x16 (@x4)
1 x PCIe 3.0 x1
Storage 2 x 2280 (PCIe 5.0 x4)
1 x 22110 (PCIe 4.0 x4)
1 x 2280 (PCIe 4.0 x4)
Networking 1 x 2.5Gb Ethernet
WiFi 6E
Audio Realtek ALC 4080
Savitech SV3H712 AMP
Rear I/O 3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 2: 7 x USB Type-A, 2 x USB Type-C®
2.0: 2 x USB Type-A
3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 2: 7 x USB Type-A, 1 x USB Type-C®
3.2 Gen 1: 1 x USB Type-A
2.0: 2 x USB Type-A
Front I/O 3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 1: 2 x USB Type-A
2.0: 4 x USB Type-A
Aura 3 x Addressable Gen 2 headers
1 x Aura RGB header
Cooling 8 x fan headers

ROG Strix X670E-I Gaming WiFi

The Strix X670E-I might seem impossibly small for what it offers: a complete platform for a next-gen gaming build. You’ll find a PCIe 5.0 x16 slot prepped and ready for a cutting-edge graphics card, a pair of DDR5 DIMM slots, and two M.2 slots, one wired for PCIe 5.0 and one wired for PCIe 4.0.

x670e-i

Innovative design elements make sure that you get the performance and features you need, even when you’re building inside the tight confines of a Mini-ITX case. The I/O shield is pre-mounted for easier installation and a tidier fit around rear ports.  A single heatsink cools the PCIe 5.0 M.2 slot and the chipset simultaneously, and VRM temps are aided by a large backplate, which utilizes a thermal pad to transfer heat away from critical decoupling capacitors. The space-saving ROG FPS-II card gives you easy access to front-panel headers, 2 SATA ports, important headers for clearing CMOS and enabling CPU overvoltage, and a PCIe mode switch for legacy expansion cards.

strix hive

It’s the all-new ROG Strix Hive that truly sets the ROG Strix X670E-I motherboard apart from the competition, though. This external control interface neatly addresses common challenges that PC builders face when putting together a compact Mini-ITX machine—and goes a step further by putting motherboard gaming features right at your fingertips.

The Mini-ITX form factor doesn’t provide much space for a high-end audio solution, so we (very literally) thought outside the box. The Hive houses top-shelf audio hardware—an ALC4050 codec and an ESS® Sabre 9260Q DAC, to be precise. A headset jack and optical S/PDIF out deliver pristine audio, while an integrated volume knob keeps you in control.

Premium audio isn’t the only trick up the ROG Strix Hive’s sleeve. It offers a convenient USB 3.2 Gen 2 Type-C port that makes it easy to connect external storage and peripherals. It includes our intuitive Q-LED array so that you can quickly diagnose build problems. An EZ Mode PBO button lets you activate a finely-tuned PBO profile in your OS in real-time—without entering BIOS. And you’ll even find physical Flexkey and BIOS Flashback buttons, as well. Building, updating, and troubleshooting a Mini-ITX PC has never been easier.

ROG Strix X670E-I Gaming WiFi
Size Mini-ITX
Memory 2 x DIMM, up to 64GB, DDR5
PCIe 2 x PCIe 5.0 x16 (@x16)
Storage 2 x 2280 (PCIe 5.0 x4)
1 x 2280 (PCIe 4.0 x4)
Networking 1 x 2.5Gb Ethernet
WiFi 6E
Rear I/O 2 x USB4
3.2 Gen 2: 5 x USB Type-A
2.0: 3 x USB Type-A
Front I/O 3.2 Gen 2: 1 x USB Type-C®
3.2 Gen 1: 2 x USB Type-A
2.0: 2 x USB Type-A
Aura 1 x Addressable Gen 2 headers
1 x Aura RGB header
Cooling 3 x fan headers
ROG Strix Hive 3.2 Gen 2: 1 x USB Type-C®
2.0: 1 x USB Type-A
Realtek ALC 4050
ESS ES9260Q Quad-DAC

Complete your build with ASUS PC DIY components

As a company, we built our reputation on the quality and performance of our motherboard lineup. But our product portfolio includes just about everything that you’d need to build a complete PC—from graphics cards to cases, from case fans to AIO liquid coolers, from power supplies to graphics card holders. And that’s before you consider our complete lineup of displays, peripherals, and wireless networking products. To build a PC with a cohesive, unified aesthetic, a PC that offers the legendary quality of our motherboards in every component, complement your ASUS X670E or X670 motherboard with an array of parts from our other product families.

ROG-STRIX-RTX40

Gamers and creators will be looking for a graphics card for their new Ryzen build, and we’ve got a large selection of options at the ready. Whether you need a cutting-edge graphics card with one of the best GPUs offered by our partners at AMD and NVIDIA, or whether you’re looking for an affordable entry-level model, we have what you’re looking for. Click here to learn all about the latest GeForce RTX 4090 and RTX 4080 graphics cards from ROG Strix and TUF gaming—or click here to learn more about all our different graphics card families.

Looking for a little help getting started with your first build—or perhaps some inspiration for how you’ll design your next PC? Head on over to our PC DIY portal for insider info on our latest products, videos breaking down the process of building a PC, and recommended builds that make it easy to put together a complete shopping list. Assembling a PC is easier than you might think, and we’re happy to help you get started.

*For 60W charging, a 6-pin PCIe power cable must be connected to the motherboard.
