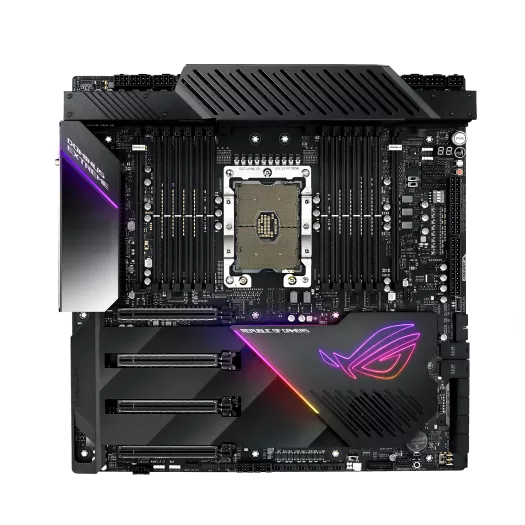

ROG Dominus Extreme
EEB motherboard compatible with ATX mounts, support for 6 channel DDR4 4200MHz+ (OC), dual DIMM.2 with heatsinks, quad M.2, onboard 10G Lan, integrated Wi-Fi, USB 3.1 and dual U.2
- LGA 3647 socket for Intel Xeon® W-3175X processor
- Designed for extreme performance: 32 power stages, dual 24-pin, quad 8-pin and dual 6-pin 12V power connectors that deliver industry-leading power efficiency
- Quad strength graphic power: 4-Way PCIe 3.0 link supporting NVidia GeForce SLI, NVidia NVLink and AMD CrossFireX on demand
- Built for High Performance Networking: Onboard Aquantia AQC-107 10Gbps LAN, Intel I219-LM gigabit LAN, Intel® Wireless AC-9260 Wi-Fi 5 (802.11ac), and ROG GameFirst technology
- 5-Way Optimization featuring Auto-Tuning and FanXpert 4: Provides automatic overclocking profiles for maximum OC performance, plus 14 PWM fan headers to support dynamic system cooling
- Unmatched personalization: 1.77 inch” color LiveDash OLED, full aluminum body cover, backplate armor and ASUS exclusive Aura Sync RGB lighting
- ROG gaming audio: SupremeFX S1220 teamed with Sonic Studio III to cast an aural landscape that draws you deeper into the action.
ROG Dominus Extreme is built to provide the best foundation for extreme scenarios. With 28-core processing, effective cooling is extremely important, so ROG Dominus Extreme provides comprehensive cooling features that enable higher performance at lower temperatures.
1ALUMINUM IO COVER
The cover is crafted from pure aluminum to efficiently cool the 10G Ethernet controller.
Dual backplates add rigidity and additional functionality to the oversized board. The upper one adds additional mass to siphon heat from the VRM.
Fans located within the heatsink turn on above 30°C and allow ROG Dominus Extreme to handle sustained power draw of over 570 amps.
4ACTIVE PCH HEATSINK
The PCH heatsink blends seamlessly with the Aluminum cover. Underneath is a fan that turns on above 30°C and prominently features the ROG logo.
Cooler By Design
ROG Dominus Extreme features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Multiple temperature sources
4-pin PWM/DC fan
Bundled Fan Extension Card II
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.
Two headers that can supply over 3A to high-performance PWM or DC water pumps.
Every onboard header supports auto-detection of PWM or DC fans.
*W_PUMP+ is also PWM/DC controllable.
Includes six additional DC or PWM fan headers, plus three thermal-probe headers.
Two groups of four dedicated headers, each designed to accommodate a fan configuration of up to a 480 Radiator.
Allows for monitoring of temperature at the input/out of any component.
Allows for constant monitoring of the flow rate of entire loop
A special connector that lets water blocks designed for the ROG Dominus Extreme provide flow, temperature and leakage data.
ROG Water-Cooling Zone
ROG Water-Cooling Zone's dual water-temperature headers and flow-rate header feed information straight into the AI Suite utility, so you can keep track of coolant temperatures, and the flow rate of the entire loop.
fan Extension card II
ROG Dominus Extreme includes Fan Extension Card II, which adds six headers that are controllable via FanXpert 4. The card has three temperature-sensor headers to complement the one available onboard and, more importantly, it comes with three thermistors that you can affix to different components. In addition to supplying extra headers for cooling, it has three primed for RGB LED strips.
We’ve designed every aspect of Dominus Extreme to provide the solid foundation needed to create an extreme gaming and workstation system that delivers the highest performance.
POWER DESIGN THAT BUCKS TRENDS
The monstrous compute power of high core count processors necessitates a power circuit that rapidly responds to massive current swings. And those demands increase exponentially when the CPU is overclocked. Featuring an array of 32 strategically teamed power stages, the Dominus Extreme VRM is geared for any workload and all operating conditions.
Overclocked multi-core processors place incredible loads on the VRM when transitioning between load states. However, conventional motherboard design practices place primary focus on component specs without implementing circuit topologies that provide optimal transient response. The Dominus Extreme bucks industry trends by utilizing teamed PowIRstages to quadruple the burst current of each phase and rapidly respond to load changes.
The Dominus Extreme’s VRM reacts quickly to load changes and suffers from less overshoot and undershoot than alternative power solutions, allowing the processor to remain stable at lower average core voltages.
THE FINEST POWER,
Compared with traditional power inputs, ProCool sockets are built to tight specifications
to ensure flush contact with the PSU power lines. The lower impedance helps to prevent
hotspots and connector failure.
ROG's revered digital power controller now delivers even-finer power, with Texas Instruments NexFET™ MOSFETs, MicroFine alloy chokes, Digi+ PWM controller and 10K black metallic capacitors — ensuring Extreme Engine Digi+ always delivers the smoothest core voltages.
HCC processors crunching multi-threaded compute workloads can demand colossal memory space and bandwidth. The Dominus Extreme features T-topology to maximize signal integrity and drive high-density memory configurations to speeds previously reserved for low-capacity setups.
The Dominus Extreme is packed with intuitive and flexible tools that let you customize every aspect of your system. Pre-configured overclocking profiles let you enjoy maximum performance with minimal configuration, while comprehensive UEFI BIOS settings let you take full manual control and tune your system exactly the way you want.
Performance Level Up
AI Suite 3’s dashboard-style control panel lets you fine-tune almost every aspect of your ROG Dominus Extreme system. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
FAN XPERT 4
All-around energy efficiency
With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible cooling controls for air or liquid
Enjoy comprehensive control over fans and water pumps, via either Fan Expert 4 or our UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.
Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
Easy-to-use UEFI BIOS
The UEFI BIOS is an early waypoint on any PC-building journey, and ROG Dominus Extreme offers one of the best in the business.
When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and identify potential failures.
Automatically detect selected ASUS graphics cards to view detailed information.
Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
Port configuration settings between different BIOS versions or share them with friends
Configure the fan's operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75°C.
Designed to simplify setup, EZ mode presents all the vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
EZ tuning wizard
Streamline your RAID configuration for faster data retrieval and backups.
Intuitive graphical fan controls
Fine-tune individual fans simply by dragging a curve with the mouse.
View SATA port details for easy device recognition.
Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Every aspect of Dominus Extreme is designed to enhance your gaming and creative experience. The Intel 10Gbps Ethernet controller facilitates high-bandwidth data transfer, while four M.2 slots offer fast load times and flexible storage expansion. Finally, integrated SupremeFX audio enhances recording quality to ensure superb clarity for streaming, gaming chat and more.
ROG Dominus Extreme comes equipped with two Dimm.2 slots to let you take full advantage of Intel’s VROC and CPU RAID for ultimate SSD storage speeds.
Use the exclusive ROG DIMM.2 module to take advantage of Intel's Virtual RAID on CPU (VROC)
feature* by connecting the four M.2 drives in RAID configurations. With VROC, your RAID
arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated
so your storage is not held back by other traffic.
*Additional purchase of Intel VROC hardware key required for RAID 1, 5 or 10
Intel Integrated Ultra Wi-Fi Support
ROG Dominus Extreme features Intel Wireless AC-9260 Wi-Fi (802.11ac) with 2x2 MU-MIMO and wide 160MHz channel, for wireless speeds of up to 1.73Gbps.* In fact, the integrated adapter pushes wireless data up to 2X faster than other Wi-Fi solutions — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.
* Actual speed varies, and depends on networking conditions.
10Gbps Onboard ETHERNET
Designed for the demanding requirements of power users and content creators who push the envelope, 10Gbps onboard Ethernet plugs you into a new era of home networking. With up to 10X the bandwidth of standard gigabit Ethernet, you’ll enjoy streaming uncompressed 4K UHD videos, and backups and file transfers that are faster than ever before. And there’s also support for intermediate 2.5Gbps and 5Gbps connectivity, allowing you to step up to faster networks for maximum flexibility. Choose the bandwidth that meets your needs and enjoy ultra-low latency at any speed.
*Minimum Category 6 network cables required for 10Gbps operation. Category 5e cables support up to 5Gbps.
ROG Dominus Extreme features the latest Intel® Ethernet (I219-LM) for faster, smoother gaming. This Intel controller has a natural synergy with Intel processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput – so there's more power for games and other tasks.
LED-ILLUMINATED AUDIO JACKS
Backlit audio jacks save you from fumbling around in the dark
ESS® SABRE9018Q2C DAC/AMP
Creates a perfect balance for top-tier audio clarity capable of –115dB THD
10 DAC channels, simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs
Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity
PERSONALIZED FOR YOU
In addition to extraordinary performance, ROG Dominus Extreme provides extensive styling and customization options to let you build a system that truly stands apart.
Grow Your Gaming World
Gear up with ROG components, from graphics and monitors to mice and keyboards, and up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
*The addressable RGB header supports WS2812B addressable RGB LED strips (5V/Data/Ground), with a max power rating of 3A (5V) and a max of 120 LEDs.
- Color cycle
- Flash and dash
- Starry Night
- Music Effect
**The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.
***RGB extension cables are included. LED strips and Aura Sync-compatible devices are sold separately.
GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.
Interface directly with a ROG router and automatically configure QoS to prioritize network bandwidth to games.
Optimize network traffic for active apps, or allocate more bandwidth to games.
Speed network packets for specific applications, helping reduce latency.
Extreme mode on: 371.7Mbps
Extreme mode off: 16.03Mbps
* Tested with 4GB file download while playing 4K online video.
View real-time traffic by biggest hogs, app groups, and task types, or drill down for detailed connection information.
RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.
Automatically caches all your storage devices to maximize your system’s resources
The intuitive interface displays real-time drive information, such as current read/write speeds.
And allows you to quickly check the health status of assigned memory.
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
Sonic Studio Link
The new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.
Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.
ROG Dominus Extreme motherboards is equipped with a 1.77” LiveDash — a built-in color OLED panel that displays useful information and customizable graphics.
During the power-on, self-test (POST) phase, LiveDash shows key progress stats, in simple language and via traditional POST codes. Then, during normal operation, the vibrant panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water Cooling Zone.
You're also able to customize the default LiveDash GIF, so it'll display your own image or animation.
The brand-new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers.
View, manage, and download the latest drivers, utilities and user manual.
Download Armoury Crate
THE POWER OF Intel
Intel® Xeon® W-3175X processor for LGA 3647 socket: 6-channel (12-DIMM), 48 PCI Express 3.0/2.0 lanes.
