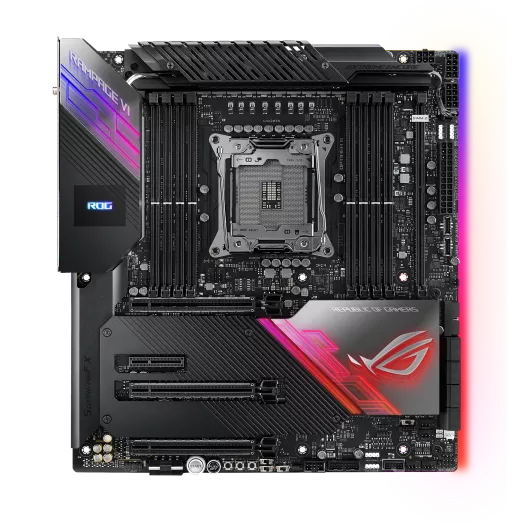

ROG Rampage VI Extreme Encore

Intel X299 E-ATX motherboard LGA 2066 for Intel Core X-series processors, with 16 power stages, onboard Wi-Fi 6 (802.11ax), 10 Gbps Ethernet, USB 3.2 Gen 2x2, dual USB 3.2 Gen 2 front panel connectors, SATA, quad M.2 and Aura Sync RGB lighting

  • Ready for the latest Intel® Core™ X-series processors to maximize connectivity and speed with up to four M.2 drives, USB 3.2 Gen 2x2, Intel® VROC and Intel® Optane™ memory compatibility
  • Robust power delivery: Optimized power solution with 16 Infineon TDA21472 power stages, ProCool II power connectors, MicroFine Alloy chokes and 10K capacitors
  • AI Overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
  • Comprehensive thermal design: Active cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate, fan extension card II and water-cooling zone
  • High-performance networking: Onboard Aquantia® 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support, and GameFirst V technology
  • Unmatched personalization: Color OLED and ASUS-exclusive Aura Sync RGB lighting, including two additional RGB headers and two Gen 2 RGB addressable headers
  • Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9018Q2C for enthusiast-grade audio performance driven by Japanese capacitors
  • DIY-friendly design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and FlexKey

Teamed Power Architecture

Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

OPTIMEM III DDR4 4266+ MHZ (O.C.)

OptiMem III is a major milestone in our pursuit to create motherboards that offer the most memory overclocking headroom. When applied to the X299 platform, OptiMem III increases frequency margin to the point that the board is no longer a bottleneck. Pair the Extreme Encore with a capable chip and memory kit and achieve frequencies up to DDR4-4266MHz in a 4 or 8-DIMM configuration.

Cooling Heatsinks

  • 1

    Active cooling VRM heatsink
    Custom Delta Superflo fans located within the heatsink kick on after 60° C and allow the Rampage VI Extreme Encore to handle sustained power draw of over 500 watts.

  • 2

    Aluminum I/O cover
    An aluminum I/O cover is connected to the primary heatsink via an embedded heatpipe, increasing mass and surface area.

  • 3

    Aluminum heatsink cover
    The heatsink cover is crafted from pure aluminum to efficiently cool the two onboard M.2 drives.

  • 4

    DIMM.2 heatsinks
    The ROG DIMM.2 module now passively cools M.2 drives with metal heatsinks that also keep your build looking clean.

  • 5

    Solid steel backplate
    A steel, electro-galvanized, cold-rolled coil construction backplate strengthens the motherboard to prevent bending, and adds additional mass to siphon heat from the VRM.

  • 6

    PCH heatsink
    A PCH heatsink blends seamlessly with the aluminum heatsink cover and prominently features the ROG logo.

Cooler by Design

Rampage VI Extreme Encore features the most comprehensive cooling options ever.

Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

Every onboard header supports auto-detection of PWM or DC fans.

One header is dedicated fully to the onboard heatsink fan.

Bundled card Includes six additional DC or PWM fan headers, plus three thermal-probe headers.

ROG Water-Cooling Zone

Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.

A dedicated header can supply over 3 amps to high-performance PWM or DC water pumps.

A dedicated header enables monitoring of temperatures at the input/output points of any component.

A dedicated header enables constant monitoring of flow rate throughout the entire loop.

A special connector enables specially designed water blocks to provide flow, temperature and leakage data.

Fan Extension Card II

ROG Rampage VI Extreme Encore includes the new Fan Extension Card II, which adds six headers that are controllable via FanXpert 4. The card features three temperature-sensor headers to complement the one available onboard, and also comes with three thermistors that can be affixed to different components. In addition to supplying extra headers for cooling, it provides three RGB headers to provide illuminated effects for your RGB fan.

  • 1

    Screw holes allow you to mount the card to the 2.5-inch bay on your chassis.

  • 2

    The ASUS Node connector allows you to connect additional compatible PSU or accessories.

AI Overclocking

ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooler to predict the optimal configuration for each individual system.

Accurate Voltage Monitoring

Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The Encore features a differential sensing circuit that simplifies overclocking and tuning by allowing you to track voltages more accurately.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

Performance Level Up

The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your Rampage VI Extreme Encore system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.

Storage

Four M.2 slots let you fully utilize the Intel VROC and NVMe RAID to achieve ultimate SSD storage speeds.

VROC

The exclusive ROG DIMM.2 module allow you to take advantage of the Intel Virtual RAID on CPU (VROC) feature* by connecting two M.2 drives in RAID configuration. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated.
*Additional purchase of Intel VROC hardware key required for RAID 1, 5 or 10

PCH RAID

Wired directly to the X299 PCH, the two onboard M.2 slots can be used in chipset-based RAID configurations to improve storage performance or provide a layer of redundancy.

USB 3.2 Gen 2x2

Reversible USB 3.2 Gen 2x2 Type-C™ ports provide ultimate flexibility and blazing data-transfer speeds of up to 20 Gbps.

USB 3.2 Gen 2 front-panel connectors

Two front-panel USB 3.2 connectors are ready to accommodate a wide variety of devices.

Wi-Fi 6 (AX200)

Onboard Wi-Fi 6 (802.11ax) supports ultrafast network speeds, improved capacity and better performance in dense Wi-Fi environments, providing exceptional online gaming experiences.

10 Gbps onboard Ethernet

Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10X the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos, and backups and file transfers that are faster than ever before.

Intel Ethernet

ROG Rampage VI Extreme Encore features the latest Intel® Ethernet (I219-V) for faster, smoother gaming. This Intel controller has a natural synergy with Intel processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput – so there's more power for games and other tasks.

* Actual speed varies depending on networking conditions.
** Minimum Category 6 network cables required for 10 Gbps operation. Category 5e cables support up to 5 Gbps.

* Actual speed varies depending on networking conditions.
** Minimum Category 6 network cables required for 10 Gbps operation. Category 5e cables support up to 5 Gbps.

Led-illuminated audio jacks Makes it easy to find audio jacks — even in the dark.

Creates a perfect balance for top-tier audio clarity capable of –115dB THD

10 DAC channels provide simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs

Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs

Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity

Led-illuminated audio jacks Makes it easy to find audio jacks — even in the dark.

Creates a perfect balance for top-tier audio clarity capable of –115dB THD

10 DAC channels provide simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs

Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs

Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity

Gamefirst V Network Control

GameFirst V is an ROG-exclusive tool that lets you build an ROG networking ecosystem with an ROG router. Select the best Wi-Fi channel for maximum stability and minimum interference, optimize network traffic and your connection for lag-free online gaming, team your gateways and keep tabs on bandwidth-hogging apps — all from an intuitive interface that enables easy, on-the-fly adjustments.

RAMCache lll turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

Sonic Studio III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.

DTS : Sound Unbound​

ROG Rampage VI Extreme Encore includes a pre-loaded DTS Sound Unbound app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with developers for titles that offer support.

Stereo sound

Surround Sound

Spatial Sound

OLED

ROG Extreme motherboards are equipped with a built-in color OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, OLED shows key progress stats in simple language, using traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water-Cooling Zone. You're also able to customize the default OLED GIF, so it'll display your own image or animation.

Armoury Crate

Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a select and growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news areas to help you stay in touch with the ROG gaming community.
