Windows 11 reader

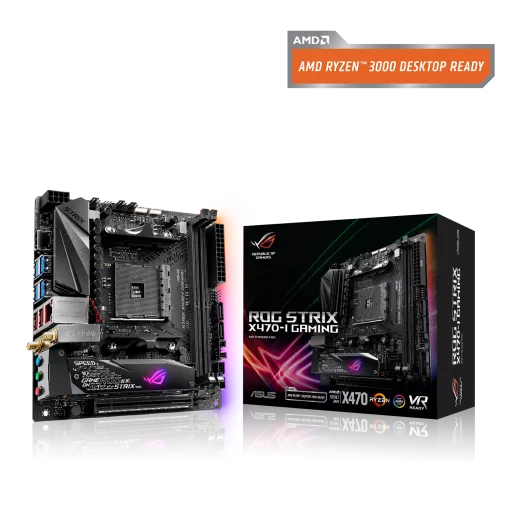

ROG STRIX X470-I GAMING

AMD X470 ITX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED lighting, DDR4 3600MHz support, HDMI 2.0, 802.11ac Wi-Fi, dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2

  • AM4 Socket for AMD Ryzen™ processors
  • Synchronized RGB lighting technology works with a vast portfolio of Aura Sync-capable PC gear and includes support for addressable light strips and Phillip Hue
  • Onboard M.2 Heatsink provides cooling for the M.2 drive, delivering consistent storage performance and enhanced reliability
  • Gaming connectivity: Intel Gigabit Ethernet, LANGaurd, 2x2 802.11ac MU-MIMO WiFi, dual M.2, USB 3.1 Gen 2
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
  • Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
  • Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance

Awards

ROG Strix X470-I

Elevating SSD cooling and premium sound lets the ROG Strix X470-I Gaming transcend Mini-ITX. Infused with all the essential ROG engineering ready for you to create a gaming rig that rivals anything built around a bigger board. Push performance to the limits with 5-Way optimization, and up the aesthetic ante with Aura Sync illumination. Go compact without compromise with ROG Strix X470-I Gaming and dominate your game!

  • Overview

  • DIY Friendly Design

  1. HDMI 2.0 Port
  2. 4 x USB 3.1 Gen1 Ports
  3. Intel® I211-AT

    ROG GameFirst IV
    Anti-surge LANGuard

    2 x USB 3.1 Gen2 Ports (2 x Type-A )
  4. Wi-Fi 802.11 a/b/g/n/ac - 2X2, supports MU-MIMO - Bluetooth v4.2
  5. 3 x LED-illuminated Audio Jacks SupremeFX S1220A CODEC

    - Impedance sense for front and rear
    - Dual op amplifiers
    - Sonic Studio III & Sonic Studio Link
    - Sonic Radar III

  6. 1 x PCIe 3.0 x16 (up to x16)
  7. AURA SYNC 1 x Addressable 3-pin header 1 x RGB 4-pin header
  8. AM4 socket for AMD 2nd /1st Generation Ryzen™ /Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/ Athlon X4 Processors
  9. DDR4 3600(OC)MHz 2 x DIMM Dual Channel DDR4
  10. 4 x SATA 6Gb/s ports
  11. T-sensor header
  12. 1 x USB 3.1 Gen1 1 x USB 2.0
  13. Audio Combo Card 1 x M.2 2242-2280 at card

    (PCIe 3.0 x4 / SATA mode)

    1 x M.2 2242-2280 at rear

    (PCIe 3.0 x4 mode)

  1. Digi+ VRM

    The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring smooth power delivery to the CPU.

    ESD GUARDS
  2. High-Quality Solid Capacitors

    High-quality capacitors withstand extreme temperatures of -55℃ to 105℃.

    TRUEVOLT USB
  3. SafeSlot

    ASUS SafeSlot is the PCIe slot reinvented. Featuring a new sin-gle-step, insert-molding manufacturing process that integrates fortifying metal and additional solder points, SafeSlot provides stronger PCIe device retention and greater shearing resistance.

    SAFESLOT
  4. Q-LEDs

    Onboard LEDs indicate power status as well as potential problems with the CPU, memory, graphics card, or boot device.

    Q-DIMM
  5. Overcurrent Protection

    Onboard resettable fuses protect all connection ports and DRAM modules against overcurrent and short-circuit damage, extending the lifespan of your motherboard.

    Q-SLOT

INNOVATION

ROG Strix X470-I Gaming features an innovative riser card to help alleviate the constraints imposed by the mini-ITX form factor. The M.2 Audio Combo Card frees up prized real estate by raising M.2 drives and SupremeFX audio circuitry above the mainboard to minimize lateral signal interference. And it's neatly covered by a stylish heatsink that's capable of keeping the latest high-performance SSDs cool.

  • M.2 HEATSINK WITH EMBEDDED LED CARD

  • PCIE M.2 SSD

  • M.2 AUDIO COMBO

  • PCH HEATSINK

PERFORMANCE

Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies that enhance memory reliability and speed.

Improved DDR4 Stability

Strategic placement of components and optimized trace pathways allow the Strix X470-I to achieve memory frequencies that drive AMD Ryzen performance to the redline. Capable of packing up to 32GB of high-speed memory, the X470-I can tackle complex workloads or supply the bandwidth needed for smooth gameplay.

RAMCache II

RAMCache II turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

Smart mode: Automatically caches all your storage devices to maximize your system’s resources.

ONE-CLICK OVERCLOCKING AND COOLING

Take care of complex tuning with just one click. ASUS 5-Way Optimization makes your PC smart by dynamically optimizing essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig.

・ An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
・ Fans stay whisper-quiet during everyday computing, and deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.
・ An all-new stress test allows users to optimize and overclock for CPU- or memory-centric workloads.

  • TPU

    CPU PERFORMANCE BOOST

    Unleash your PC's full performance potential with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclocking.

  • EPU

    ALL-ROUND ENERGY EFFICIENCY

    With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

  • Fan Xpert 4

    FLEXIBLE COOLING CONTROLS FOR AIR OR LIQUID

    ROG Strix X470-I Gaming gives you comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all.

  • Digi+ Power control

    PRECISE DIGITAL POWER CONTROL

    ROG’s Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

  • Turbo Core App

    OPTIMIZE PER-CORE PERFORMANCE FOR EVERY APP

    AMD's latest processors feature per-core tuning, and the ASUS Turbo Core app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.

Media-acclaimed UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your Ryzen-based rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

  • EZ Tuning Wizard: OC and RAID. Select your hardware and apply different scenarios to tune system performance, or streamline your RAID configuration for faster data retrieval and backups.

  • Intuitive graphical fan control: Fine-tune individual fans simply by dragging a curve with the mouse.

  • SATA Information: View SATA port details for easy device recognition.

  • AURA on/off/stealth: Optimize performance and cooling, monitor stats, enable and disable onboard features, and configure which ports and drives have priority

  • Fast Clock Adjustment: Use mouse controls to change the time and date.

Designed for easy setup, the EZ Mode presents all the vital settings and stats on a single page. With guided wizards, drag and drop capability that takes the hassle out of complex tasks, and one-click convenience to apply important settings, your rig will be up and running in no time.

  • My Favorites: Quickly find tuning options and add preferred tools to the list.

  • EZ Flash 3: Flash the latest BIOS via the internet from within the BIOS.

  • S.M.A.R.T.: Check your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.

  • GPU POST: Automatically detect selected ASUS graphics cards to view detailed information.

  • Secure Erase: Restore your SSDs to factory-fresh condition.

  • Last Modified Log: Track the latest changes and save preferred profiles onto a USB drive.

  • SATA Port Renaming: Rename SATA ports for easy identification.

  • Search Function: Quickly and easily find the option or setting you’re looking for.

  • ASUS User Profile: Port configuration settings between different BIOS versions or share them with friends.

When you’re ready to take a deeper dive into the configuration of your gaming rig, Advanced Mode grants total control. Each section is intuitively organized, and a built-in search feature makes it easy to find the option you need. Tweak cooling parameters, save profiles, apply overclocks, and unleash the full potential of your Ryzen-based gaming rig.

Cooler By Design

ROG Strix X470-I Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.

Rampage VI Extreme
  • Multiple temperature sources position
  • 4-pin PWM/DC fan position
  • Smart Protection position
  • Water pump+ position
  • Multiple temperature sources

  • 4-pin PWM/DC fan

  • Smart protection

  • AIO pump

  • Each header can be set to monitor and react to three user-configurable thermal sensors, for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

  • Every onboard header supports auto-detection of PWM or DC fans.

    *W_PUMP+ and AIO PUMP are also PWM/DC controllable.
  • A dedicated circuit protects each fan header from over-temperature and over-current.

  • A dedicated PWM/DC header for self-contained water-cooling setups.

    detail

Dual M.2 with Perfected Cooling

ROG Strix X470-I Gaming is equipped with a stylish, angular M.2 heatsink that keeps your SSD cool. By efficiently dissipating heat away from the M.2 area, ROG Strix X470-I Gaming minimizes the possibility of performance-sapping throttling, which can occur when drives become too warm.

AUDIO

Built-in gaming audio means you’re ready to play, chat, stream or kick back with videos — right out of the gate. And included smart routing technology allows you to direct various audio streams to different devices.

Sonic Studio III

Intuitive Audio-Tuning Suite

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

*Learn more about Sonic Studio III.

Sonic Studio UI
  • 1
  • 2
  • 3
  • APP-SPECIFIC PROFILES

    Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.

  • SURROUND SOUND

    Surround sound for a truly immersive audio experience.

  • Sonic Studio Link

    New Sonic Studio Link VR functionality extends its HRTF effects to headsets like the Oculus Rift and HTC Vive.

*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.

Sonic Studio UI
  • In-game sound effects and music are adjusted automatically to increase the feeling of immersion, so audio pulls you further into the game.

    GAMING

  • The Voice Clarity and Smart Volume sliders are set high to emphasize dialog, so you’ll hear the softest whispers and experience minimum distortion at maximum volume.

    MOVIE

  • Voice Clarity, Bass Boost and Treble Boost are carefully balanced so your music-listening experience feels like a live performance.

    MUSIC

  • Soft sounds are accentuated by Smart Volume for enhanced listening, while Voice Clarity boosts speech for crystal-clear conversations.

    COMMUNICATION

  • Sonic Studio Link applies Sonic Studio III effects to your VR headset, boosting immersion in virtual worlds.

    VIRTUAL REALITY

  • Easy-to-use routing assigns different audio streams to different outputs, such as browser effects to headphones and game audio to speakers.

    MULTITASKING

Sonic Radar III

Scan and Detect to Dominate

The new Sonic Radar III has an evolved audio engine to process sounds more accurately than ever, ensuring you're always aware of what's going on around you. It now also includes an on-screen arrow — to help you instantly pinpoint the enemy's position! See the origin of key in-game sounds and hone your enemy-pinpointing skills. Plus the new Audio Boost feature provides filters that let you hear even the faintest sounds, so you can become the hunter, not the hunted!

*Learn more about Sonic Radar III.

  • Improved Audio Algorithm

    The new Sonic Radar III audio algorithm offers improved accuracy that helps you pinpoint the enemy.
  • 3D Engine

    Sonic Radar III is built around an all-new HUD, and it includes an in-game 3D arrow for a more intuitive experience.
  • Audio Boost

    Hit hotkeys to briefly increase bass, midrange or treble frequencies to improve focus during different parts of your game.
  • Audio Radar

    A visual cue to ensure Sonic Radar III is effective regardless of surrounding noise and chaos.

SupremeFX

Shielded audio, superior sound

Immerse yourself in sound with ROG Strix's SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that’s engineered to provide a flat frequency response for a neutral, detailed sound signature. The addition of two op amps on the front-panel headphone output ensures adequate voltage and current to drive headphones to their full potential.
>Learn more about ROG AUDIO TECHNOLOGY

A. Dual Op Amplifiers

Two onboard op amps pump exceptional audio to your favorite cans, with 32-600Ω headphone impedance.

B. LED-Illuminated Audio Jacks

Backlit audio jacks save you from fumbling around in the dark.

C. Premium Nichicon™ audio capacitors

High-quality Japanese-made components produce warm, natural audio with exceptional clarity

AESTHETICS

Up your aesthetic horizons with a new cyber-text design and Aura illumination — to create a personalized gaming with immersion that extends from the inside out.

Cyber Outlook

The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it’s not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a satisfying premium touch.

ROG Strix H370F Gaming

Outshine the Competition

ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

*The addressable RGB header supports WS2812B addressable RGB LED strips (5V/Data/Ground), with a max power rating of 3A (5V) and a max of 60 LEDs.
*The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.
**RGB extension cables are included. LED strips and Aura Sync-compatible devices are sold separately.
  • Static Static
  • Breathing Breathing
  • Strobing Strobing
  • Rainbow Rainbow
  • Color cycle Color cycle
  • Comet Comet
  • Flash and dash Flash and dash
  • Wave Wave
  • Glowing Yo-Yo Glowing Yo-Yo
  • Starry Night Starry Night
  • Music effect Music Effect
  • Smart Smart

AAddressable Strip

BRGB Strip

AURA SYNC X PHILIPS HUE

ROG Strix X470-I Gaming takes ASUS Aura into the home, with the all-new ability to synchronize effects with Philips® Hue* personal wireless lighting. Now you can control Hue light bulbs, strips and lamps from the intuitive Aura app. Create immersive illumination that extends beyond your rig — make the whole room part of your gaming experience.

Perfect
Synchronization

The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. Your ROG Strix motherboard’s built-in Aura RGB lighting can be easily synced with PC cases, memory modules, coolers and RGB LED strips from a broad selection of well-known manufacturers. And they can all be easily managed via the intuitive ASUS Aura software.

*Learn more about ASUS Aura Sync.

ROG Strix
Gives You More

Design, build, tweak and show off your style — with ROG Strix behind you every step of the way.

GameFirst IV

Team Up to Banish Lag

GameFirst IV optimizes network traffic for faster, lag-free online gaming. New Multi-Gate Teaming brings together all your networks to create gargantuan bandwidth and smoothest-ever gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for best performance.

watch video

greater total bandwidth gamefirst

OVERWOLF

Stay in the Game

Overwolf is a clever, unobtrusive overlay that lets you browse the internet, email, IM, and stream or record gameplay – all while you’re in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.

watch video
  • In-game dock- 5 customizable apps
  • In-game calling- 0 missed calls during gaming
  • Multi-IM support- 5+ clients in a single interface
  • 5 customizable apps
  • 0 missed calls during gaming
  • 5+ clients in a single interface

BEYOND VR READY

ROG Strix X470-I Gaming isn't just VR ready — it goes way beyond! The ASUS ROG Beyond VR Ready marque means that ROG Strix X470-I Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS ROG Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

THE POWER OF AMD

AM4 socket for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A Series / Athlon X4 processors.

The high-performance Ryzen processor supports up to eight cores, and is based on the innovative Zen core architecture. The 7th Generation A Series APUs feature integrated AMD Radeon R Series graphics. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes for superb performance.

AMD X470 chipset

The AMD X470 chipset delivers outstanding overclocking capabilities for the latest AMD AM4-socket Ryzen processors, 7th Generation A Series APUs and Athlon CPUs. It is optimized for multiple GPU configurations including NVDIA SLI and AMD CrossFireX™. It also provides two 10Gbps USB 3.1 Gen 2 ports and six 6Gbps SATA ports for faster data retrieval.

AMD StoreMI

AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.

For more detailed information, please refer to AMD official website : https://www.amd.com/en/technologies/store-mi

CUSTOMER REVIEWS

Recommended Products

ROG STRIX X470-F GAMING

AMD X470 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED lighting, DDR4 3600MHz support, dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2

ROG CROSSHAIR VII HERO (WI-FI)

AMD X470 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 3600MHz, 802.11ac Wi-Fi, dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2

ROG Crosshair VIII Impact

AMD AM4 X570 Mini-DTX enthusiast gaming motherboard with an SO-DIMM.2 card (dual M.2), Wi-Fi 6 (802.11 ax), PCIe 4.0, SupremeFX audio, Aura Sync RGB LED lighting, SATA 6Gb/s and USB 3.2 Gen 2

ROG Strix X570-I Gaming

AMD X570 mini-ITX Gaming motherboard with PCIe 4.0, Aura Sync RGB, Intel Gigabit Ethernet, Wi-Fi 6 (802.11ax), dual M.2 with heatsink, HDMI 2.0, DisplayPort 1.4, SATA 6Gb/s, and USB 3.2

Related Products

ROG-STRIX-RTX3060TI-8G-GAMING

ROG Strix GeForce RTX™ 3060 Ti 8GB GDDR6 buffed-up design with chart-topping thermal performance

ROG-STRIX-RTX3070-O8G-GAMING

ROG Strix GeForce RTX™ 3070 buffed-up design with chart-topping thermal performance

ROG STRIX LC 120 RGB

ROG Strix LC 120 RGB all-in-one liquid CPU cooler with Aura Sync, and ROG 120mm addressable RGB radiator fan

ROG-STRIX-750G

The ROG Strix 750W Gold PSU brings premium cooling performance to the mainstream.

Product has High-Definition Multimedia Interface

Disclaimer

  • The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
  • The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
  • WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
  • The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
  • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
  • Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
  • The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
Product Comparison

Product added to comparison. Add up to 4 products or proceed to view compare products selected.

    VIEW COMPARISON

    ROG Footer
