New ROG Z690 and B660 motherboards stand ready to power your next Intel build

Jan 05, 2022 Written by:Eric Born

Late in 2021, we launched the first wave of our Z690 motherboard lineup. Offering PCIe 5.0 connectivity, support for DDR5 RAM and PCIe 5.0 SSDs in the higher-end models, and sharp new styles, these boards proved themselves as rock-solid foundations for Intel’s 12th Gen CPUs. Today, we’re expanding this family with a wide range of options that offer the latest technologies to a broader audience than ever before. We’re expanding our ROG Strix Z690 lineup. We’re giving you a stylish, high-performance option for cooling your CPU with the new ROG Ryujin II ARGB liquid cooler. And we’re debuting a full lineup of B660 motherboards that bring the Intel 12th Gen platform to the mainstream.

A new contender for your high-end Z690 rig

For enthusiasts seeking out exceptional overclocking tools, unhindered performance, and the latest connectivity options, our Z690 motherboard lineup stands ready. This platform brings many new features to the market, such as DDR5 memory support and PCIe 5.0 connectivity. Check out our full Z690 motherboard guide for a rundown on the new tech. If you're looking for full and detailed information on a particular model, head over to our dedicated hub for our Intel 12th Gen motherboards.

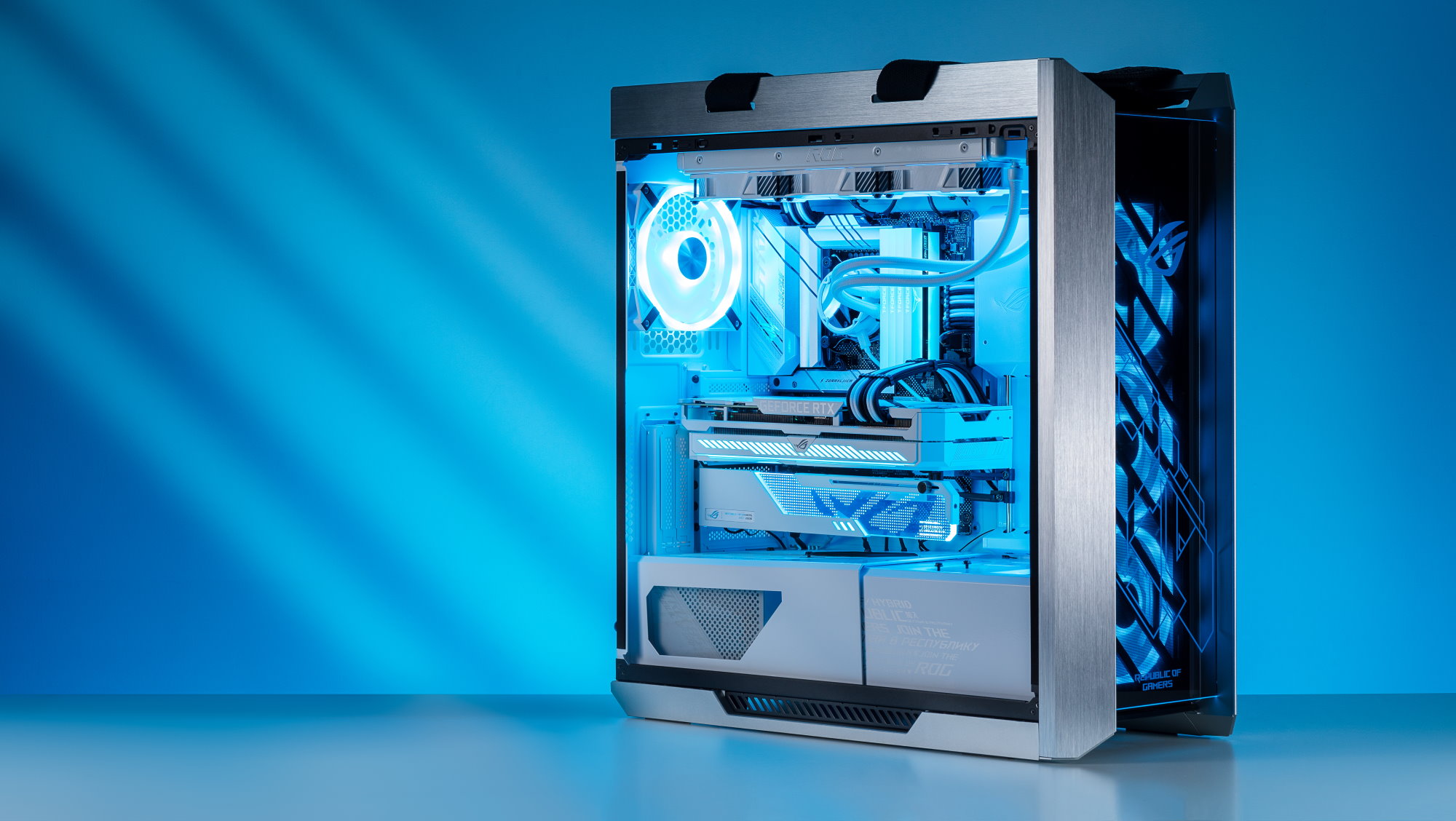

ROG Strix -A build

New for 2022, we’re adding a new ROG Strix Z690 motherboard to the lineup to give gamers even more options for their next build: the ROG Strix Z690-A Gaming WiFi. Last fall’s ROG Strix Z690-A Gaming WiFi D4 turned heads with its angular white planes and clear acrylic cover that spans the I/O shield, a combination that makes it an ideal choice for a white-themed gaming build.

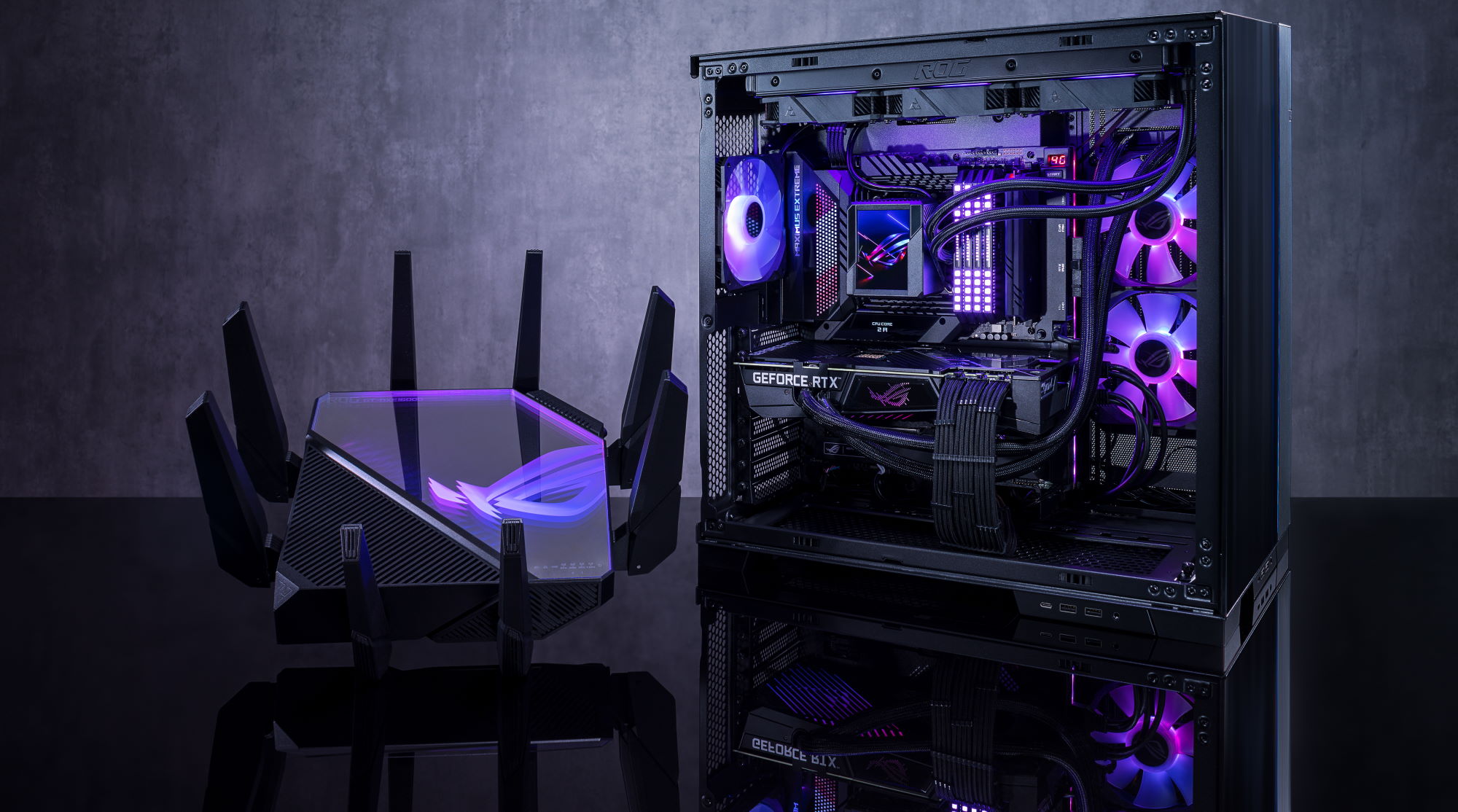

The new ROG Strix Z690-A Gaming WiFi lets you enjoy this pristine aesthetic alongside the next-gen performance of DDR5 RAM and Wi-Fi 6E. Blazing-fast DDR5 RAM lets you take advantage of the sizzling new speeds and supreme power efficiency offered by the latest evolution of system memory. Paired with a Wi-Fi 6E router, this motherboard will let you rise above the often-congested 2.4GHz and 5GHz bands and enjoy reliable, high-end wireless connectivity in the freshly opened 6GHz band. Like the previous model, this board offers Intel 2.5Gb Ethernet, a PCIe 5.0 x16 slot, high-fidelity audio, and a rich selection of connectivity.

ROG Strix Z690-A Gaming WiFi
Size ATX
Memory 4 x DDR5 up to 6400 (OC)
PCIe 1 x PCIe 5.0 x16 (@x16)
1 x PCIe 3.0 x16 (max @x4)
1 x PCIe 3.0 x1
Storage 2 x M.2 22110 (PCIe 4.0 x4)
1 x M.2 2280 (PCIe 4.0 x4)
1 x M.2 2280 (PCIe 4.0 x4 & SATA)
Networking 1 x Intel® 2.5Gb
Intel® Wi-Fi 6E
Audio ROG SupremeFX ALC4080
Savitech SV3H712 AMP
Thunderbolt™ 1 x header
Rear I/O 3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 2: 2 x Type-A, 1 x USB Type-C®
3.2 Gen 1: 4 x USB Type-A
2.0: 2 x USB Type-A
Front I/O 3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 1: 2 x USB Type-A
2.0: 4 x USB Type-A
Aura 3 x Addressable Gen 2 RGB headers
1 x AURA RGB header
Cooling 8 x fan headers

B660 boards bring Intel 12th Gen performance to the masses

Some builders use powerful cooling hardware and premium components to unleash their CPUs with high overclocks. For them, ROG Z690 motherboards provide the top-end features, massive power delivery subsystems, and robust cooling they need to push their processors to the limit. Other builders trust Intel’s 12th Gen CPUs to deliver the horsepower they need right out of the box. For them, we offer a full lineup of B660 motherboards that balance powerful performance with exceptional value.

Our menu of B660 motherboards lets you select a foundation for your next Intel 12th Gen build that has just the right features for your needs and budget. Options with PCIe 5.0 x16 slots give you a front-row seat to the next generation of graphics cards. Spring for a model with DDR5 RAM support to get access to the fastest memory speeds on the market—or make a value play with a model designed for DDR4 RAM instead. Either way, your ROG B660 motherboard will let you enhance your system’s performance with memory overclocking. Need a motherboard with Wi-Fi 6 or a Thunderbolt header? Our lineup has you covered there, too.

ROG Strix B660-F Gaming WiFi

Three new motherboards headline the ROG Strix B660 lineup. Sitting atop the stack is the ROG Strix B660-F Gaming WiFi. With its 16+1 teamed power stages, this ATX motherboard is ready to deliver copious amounts of stable power to a high-end Intel 12th Gen CPU. A PCIe 5.0 x16 slot and DDR5 RAM support let you reap the advantages of next-gen graphics cards and memory, and its three onboard M.2 slots make it convenient to set up a high-speed and high-capacity storage array.

When it comes to cooling your build, the ROG Strix B660-F Gaming WiFi gives you plenty of options. The I/O shield is integrated into the VRM heatsinks for improved thermals and an eye-catching design. The three M.2 slots and the chipset all have dedicated heatsinks. Multiple 4-pin PWM fan headers let you set up and control an array of case fans, while a dedicated pump header makes it easy to connect an AIO liquid cooler.

ROG Strix B660-F

We’d be remiss if we failed to mention this motherboard’s sizzling good looks. Contrasting black and white hues predominate across the board’s surface, while accents on the I/O shroud and chipset heatsink deliver a dash of vibrant color. Three 3-pin addressable RGB headers and one 4-pin Aura RGB header give you the tools to go all-out with your case’s lighting and keep it all coordinated through Aura Sync.

Premium audio courtesy of a SupremeFX ALC4080 codec keeps you on top of the game—and makes listening to music or unwinding with a movie a high-end experience. A Savitech SV3H712 dedicated front-panel headphone amplifier delivers heart-pounding audio when you immerse yourself in the action with a headset.

Exceptional connectivity rounds out this motherboard’s list of features. Wi-Fi 6 lets you tap into tech that can relieve network congestion when you pair the motherboard with a compatible Wi-Fi 6 router, while a 2.5Gb Ethernet port gives you a fast wired connection. A fleet of USB ports, including a pair of USB Type-C ports, makes it easy to hook up all your favorite peripherals. Headers for a front-panel USB 3.2 Gen 2 Type-C port and a Thunderbolt 4 port let you set up high-speed and versatile ports within convenient reach at the front of a compatible case.

ROG Strix B660-F Gaming WiFi
Size ATX
Memory 4 x DDR5 up to 6000 (OC)
PCIe 1 x PCIe 5.0 x16 (@x16)
1 x PCIe 3.0 x16 (@x4)
2 x PCIe 3.0 x1
Storage 2 x M.2 22110 (PCIe 4.0 x4)
1 x M.2 2280 (PCIe 3.0 x4)
4 x SATA 6Gb/s
Networking 1 x Intel® 2.5Gb
Intel® Wi-Fi 6
Audio ROG SupremeFX ALC4080
Savitech SV3H712 AMP
Thunderbolt™  1 x header
Rear I/O 3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 2: 1 x Type-A
3.2 Gen 1: 4 x Type-A, 1 x USB Type-C®
2.0: 2 x USB Type-A
Front I/O 3.2 Gen 2: 1 x USB Type-C®
3.2 Gen 1: 2 x USB Type-A
2.0: 4 x USB Type-A
Aura 3 x Addressable Gen 2 headers
1 x Aura RGB header
Cooling 7 x fan headers

ROG Strix B660-I Gaming WiFi

Building for a smaller system? We engineered the ROG Strix B660-I Gaming WiFi to give you high-end gaming performance in a small-form-factor build. Inside a compact mini-ITX layout, it offers premium-grade power delivery, DDR5 memory support, onboard Wi-Fi 6, and two PCIe 4.0 M.2 slots.

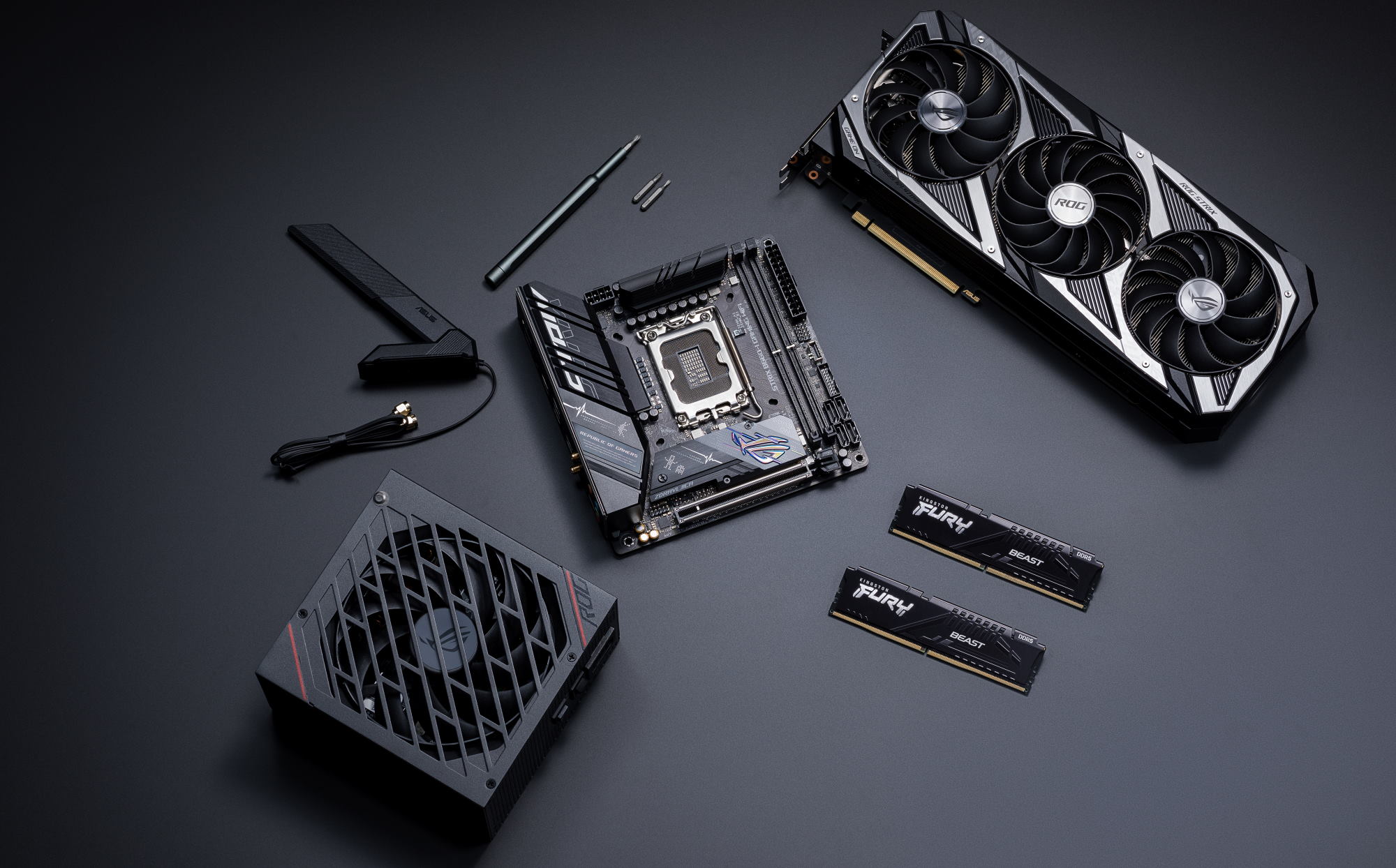

ROG Strix B660-I

Your motherboard’s cooling game needs to be on point inside the tight confines of a mini-ITX case. A heatsink for the chipset and primary M.2 slot, and a massive heatsink for the VRMs, ensure stable and reliable performance. Three PWM fan headers help you set up the airflow your components need.

ROG Strix B660-I Gaming WiFi
Size ITX
Memory 2 x DDR5 up to 6200 (OC)
PCIe 1 x PCIe 5.0 x16 (@x16)
Storage 2 x M.2 2280 (PCIe 4.0 x4)
Networking 1 x Intel® 2.5Gb
Intel® Wi-Fi 6
Audio ROG SupremeFX S1220A
Thunderbolt™   1 x header
Rear I/O 3.2 Gen 2x2: 1 x USB Type-C®
3.2 Gen 1: 3 x Type-A + 1 x USB Type-C®
2.0: 3 x USB Type-A
Front I/O  3.2 Gen 2: 1 x USB Type-C®
3.2 Gen 1: 2 x USB Type-A
2.0: 2 x USB Type-A
Aura 1 x Addressable Gen 2 RGB headers
1 x Aura RGB header
Cooling 3 x fan headers

ROG Strix B660-A Gaming WiFi D4

Not every builder needs the full suite of features offered by the Intel 12th Gen platform. For value-minded gamers looking for a motherboard with a well-rounded set of specs and easy performance-tuning tools, the ROG Strix B660-A Gaming WiFi D4 stands ready.

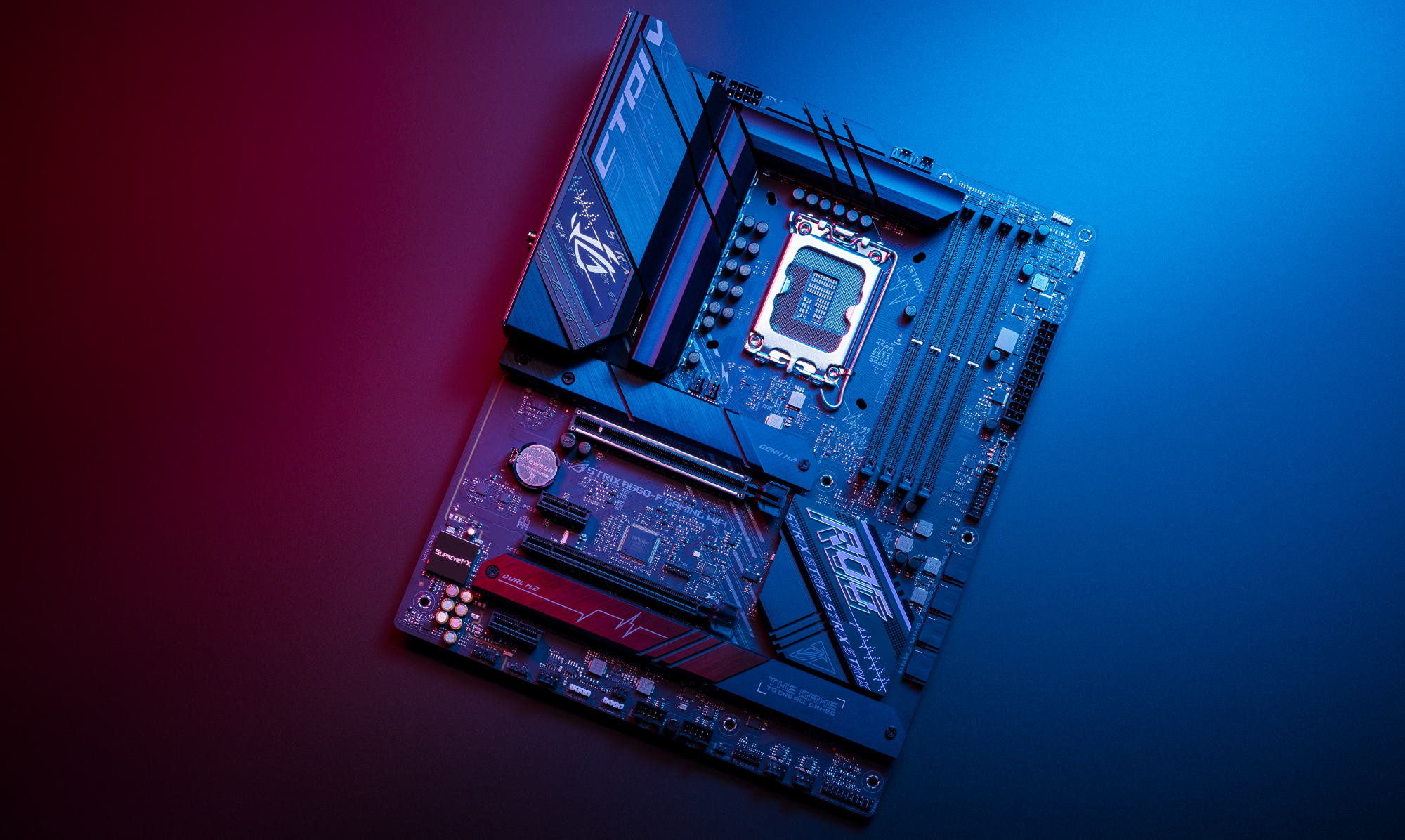

B660-A-D4-2D

This motherboard boasts a PCIe 5.0 x16 slot ready for next-gen graphics cards, a robust power delivery system with 12+1 teamed power stages, and a trio of onboard M.2 slots, all with heatsinks to ensure reliable, long-term performance. Thick heatsinks integrated into the I/O shield keep the VRMs operating comfortably. Four DIMM slots support DDR4 memory kits up to 5333MHz (overclocked). And with a suite of connectivity options including a pair of onboard USB Type-C ports, Wi-Fi 6, a 2.5Gb Ethernet port, and a Thunderbolt header, this motherboard is ready to get your build up and running.

Perhaps you like the look and feature set of the ROG Strix B660-A Gaming WiFi D4, but would prefer a model with DDR5 RAM support. Fret not—we have a DDR5 version of this motherboard on the way. Stay tuned for more information on its availability.

ROG Strix B660-A Gaming WiFi D4
Size ATX
Memory 4 x DDR4 up to 5333 (OC)
PCIe 1 x PCIe 5.0 x16 (@x16) 
1 x PCIe 3.0 x16 (max @x4) 
2 x PCIe 3.0 x1
Storage 2 x M.2 22110 (PCIe 4.0 x4) 
1 x M.2 2280 (PCIe 4.0 x2) 
Networking 1 x Intel® 2.5Gb 
Intel® Wi-Fi 6
Audio ROG SupremeFX ALC4080
Savitech SV3H712 AMP 
Thunderbolt™  1 x header 
Rear I/O 3.2 Gen 2x2: 1 x USB Type-C® 
3.2 Gen 2: 1 x USB Type-A
3.2 Gen 1: 2 x Type-A, 1 x USB Type-C® 
2.0: 4 x USB Type-A 
Front I/O 3.2 Gen 2: 1 x USB Type-C® 
3.2 Gen 1: 2 x Type-A
2.0: 3 x Type-A 
Aura 3 x Addressable Gen 2 RGB headers 
1 x Aura RGB header 
Cooling 6 x fan headers 

Unleash your Intel 12th Gen CPU with the ROG Ryujin II ARGB

Have a CPU cooler that you’re not quite ready to retire yet? To ensure backwards compatibility with as many coolers as possible, our motherboards include LGA 1200-compatible mounting holes in addition to mounting holes for next-gen kits. If you already own one of our AIO liquid coolers, its LGA 1200 retention kit ensures that you’re ready for Z690. Purchase one of our select new AIO liquid coolers, and you’ll find an LGA 1700 mounting kit package in the box. Check this website to find an eligible model.

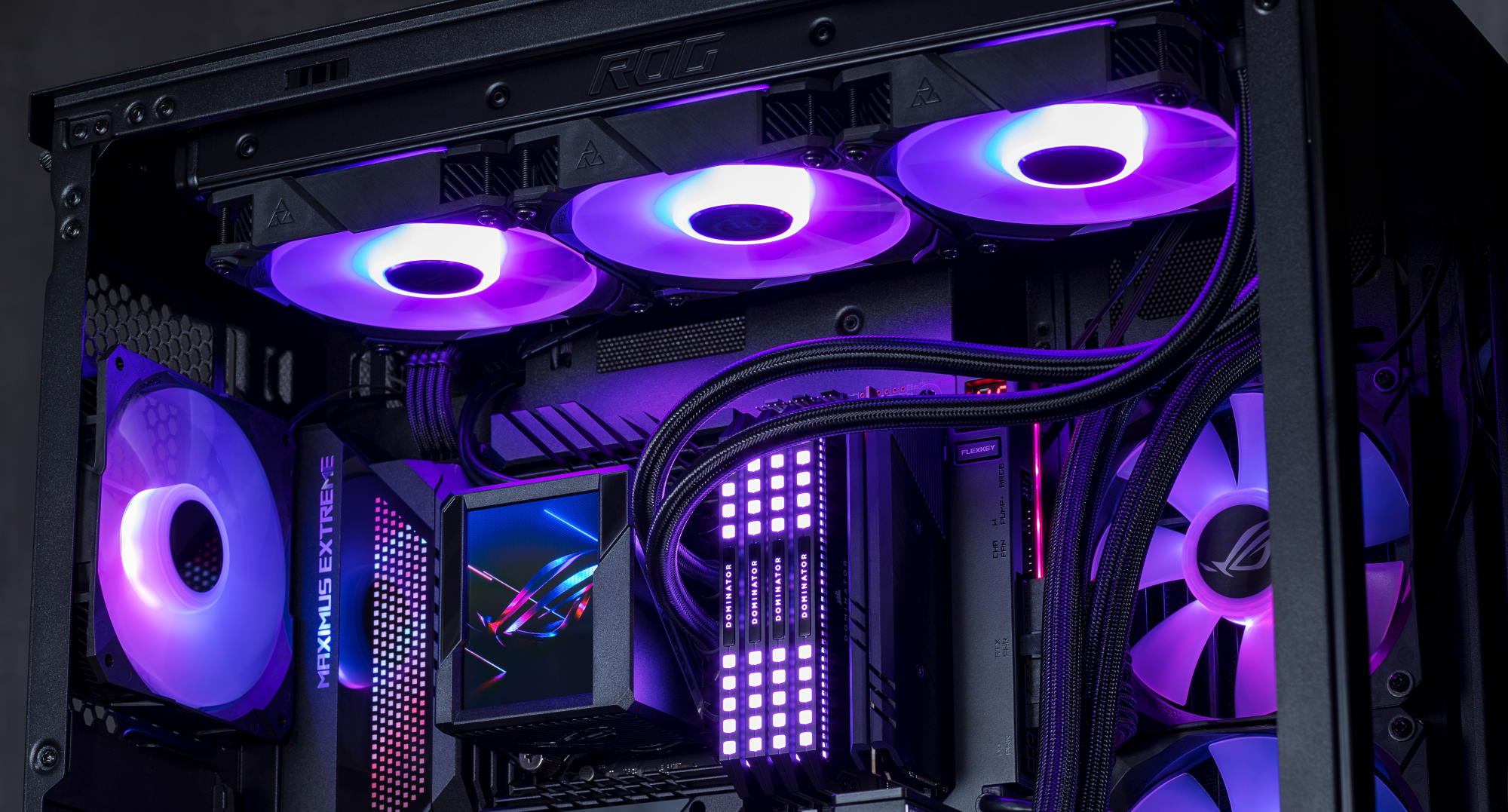

ryujin ii argb

For those shopping for an all-new cooler to pair with their all-new CPU, we have a tempting new option: the ROG Ryujin II ARGB. This AIO liquid cooler pairs premium performance with extravagant style. Its 7th Gen Asetek pump, embedded downward-facing pump fan, and fans with our proven Axial-tech design will tame your CPU’s temperatures while staying whisper-quiet. Its integrated 3.5” OLED panel gives you an attention-grabbing canvas for displaying custom graphics or vital system information. And with addressable Aura RGB LEDs on the 360mm or 240mm radiator, you’ll have the tools to set up a customizable lighting array for your gaming rig.

ryujin ii argb-2

If your CPU cooler was made by another manufacturer, we recommend that you contact them for more information about your specific hardware. Our Z690 motherboards offer the mounting holes for previous-gen LGA1200-compatible cooling systems, but due to the lower z-stack height of the LGA1700 socket, you might need a special bracket.

Save power without sacrificing performance

Gaming prowess is paramount for ROG motherboards. Conscious of the impact that their energy consumption can have on the environment and their monthly energy bill, many gamers also prioritize efficient operation as they plan out their next build. We embrace our social responsibility as a leading motherboard manufacturer, so we’re keenly interested in equipping our users with impactful power-saving tools. Today, we're proud to announce new modes for all of our Z690 and B660 motherboards that reduce their overall energy footprint without diminishing their exceptional gaming performance.

B660-A-D4-power

Even when it’s not under load, your graphics card still draws power. Since even this small amount of energy can add up over time, we’re refining how graphics cards draw power at idle in our 12th Gen motherboards. For example, in our testing we were able to reduce the idle power consumption of an NVIDIA GeForce RTX 3070 by up to 27.9%, and the idle power draw of an AMD Radeon RX 5600XT by up to 35.7%. That adds up to significant savings over those products’ expected lifetime.*

But that’s not all. With ASUS Performance Enhancement (APE) enabled, you can reduce the power consumption of your Intel 12th Gen CPU, even at full load. In our tests, we were able to reduce power draw by up to 10.7% during CPU benchmarking, all without measurably reducing performance.

*Actual performance varies by configuration.
