Intel Z390 LGA 1151 mini-ITX gaming motherboard with integrated I/O shield & VRM heatsink, Intel Wi-Fi, DDR4 4600+ , M.2, SATA 6Gbps, HDMI 2.0, and USB 3.1 Gen 2

LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
Comprehensive cooling: Integrated I/O shield and VRM heatsink, Double decker M.2 heatsink
5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig
Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors
Gaming networking: Intel Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance

Strix Z390-I

ROG Strix Z390-I Gaming delivers amped power in a small package. Its revolutionary heatsink design handles the latest Intel processors, so your battlestation stays cool when the game heats up. With a unique dual-capacity DRAM setup, one-click optimization and a complete arsenal of ROG software, ROG Strix Z390-I Gaming is a compact gaming powerhouse.

The industry's first U-shaped heatsink layout

Revolutionary integrated I/O shield and VRM heatsink design

Integrated I/O shield and VRM heatsink
Display Ports
‧ HDMI 2.0a
‧ DP 1.2
Intel^® I219-V Gb LAN
‧ ROG GameFirst V
‧ LANGuard
Intel^® Wireless-AC 9560
‧ Intel Wi-Fi 802.11 a/b/g/n/ac
‧ 2x2, supports MU-MIMO
‧ Bluetooth V5.0
SupremeFX S1220A CODEC
‧ Impedance sense
‧ High quality output and input
‧ Dual OP amplifiers
Sonic Studio III + Sonic Studio Link Sonic Radar III
1 x AURA Addressable header
1 x AURA RGB header
DDR4 4600+ MHz(O.C.)
‧ 2 x DIMM, dual-channel
‧ Double capacity DIMM support, Max. to 64GB
‧ XMP Support
9^th / 8^th Gen Intel^® Core^™
Pentium^® Gold and Celeron^® processors
on LGA 1151 socket
MemOK! II switch
USB 3.1 Gen 2 front panel connector
4 x SATA 6Gb/s
Double Decker Heatsink
2 x M.2 Socket 3
‧ 1 x 2242-2280 (at front)
supports SATA & PCIe 3.0 x4 modes
‧ 1 x 2242-2280 (at rear)
supports SATA & PCIe 3.0 x4 modes
1 x PCIe 3.0 x16
(supports x16 mode)

SOLID HARDWARE SPECS FOR GAMING AND MORE

With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-I Gaming provides exceptional performance in a compact, minimalist form factor that's perfect for minimalist battlestations.

Power Design

Digital power control and an array of DrMOS power stages ensure the ROG Strix Z390 Gaming Series has the muscle to control Intel's latest CPUs.

ProCool Power Connector

Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. The lower impedance helps to prevent hotspots and connector failure.
Digi+ Power Control

The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
DrMOS

The ROG Strix Z390-I Gaming's CPU VRM utilizes DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that Intel's latest processors demand.
Thermal Solution

The Strix Z390-I Gaming uses high-quality thermal pads to help transfer heat from the inductor and phase array to a heatsink that has ample surface area to deal with the power demands of all Coffee Lake processors.
High Quality Choke and Caps

Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

Cooler by Design

ROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS

COOLER BY DESIGN

ROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS

CPU
Chassis
M.2
VRM

- AIO Pump Fan

  A dedicated PWM/DC for self-contained water-cooling setups.
- CPU Fan

  A dedicated pair of PWM/DC fans for CPU coolers.
- 4-pin PWM/DC Fan Header

  Every onboard header supports auto-detection of PWM or DC fans.
- Double Decker Heatsink

  An innovative double-decker design separates the primary M.2 SSD slot's heat spreader from the PCH heatsink. Both are isolated to prevent the PCH and M.2 thermals from affecting each other. This clever arrangement maximizes space on the mini-ITX board and also cools the M.2 SSD by up to 15°C.
- VRM Heatsink & Thermal Pad

  An integrated I/O shield and VRM heatsink utilize almost one third of the Strix Z390-I mini-ITX board to deliver a uniquely effective cooling system. This industry-first layout employs transfers heat from the CPU power supply to the heatsink, helping to keep temperatures under control even in cramped mini-ITX chassis.

DDR4 OC 4600+MHz

To provide Intel's latest CPUs with unfettered access to memory bandwidth, we've reimagined motherboard trace routing from the ground up. Our OptiMem II tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk. And to further enhance overclocking headroom for fully stacked memory configurations, we've employed a highly customized T-Topology layout that delivers time-aligned signaling.

Double-capacity DIMM support

ROG Strix Z390-I Gaming features a unique memory-trace design that supports up to 32GB per channel for a total memory capacity of 64GB. With double-capacity UDIMM modules, ROG Strix Z390-I Gaming delivers four-DIMM memory bandwidth in a compact, dual-DIMM design.

Dual PCIe Gen3 M.2

Dual PCIe 3.0 x4 M.2 slots provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 3.0 storage devices via the dual M.2 slots to enjoy the fastest data-transfer speeds on the 8th Generation Intel Core platform.

Intel OPTANE MEMORY Learn more>

Intel Integrated
Ultra Wi-Fi support

ROG Strix Z390-I Gaming features the latest Intel 802.11ac Wi-Fi with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9560 Wi-Fi adapter pushes wireless data up to 2X faster than other Wi-Fi solutions — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9560 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.

* Maximum achievable speed depends on router

Intel Gigabit Ethernet

ROG Strix Z390-I Gaming features Intel Ethernet (I219-V), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.

Lower CPU workloads

High TCP and UDP throughput

LANGuard

Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.

ESD guards

Surge-protected
components

SupremeFX

Shielded Audio, Superior Sound

Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
>Learn more about ROG audio technology

A. Audio-line shielding

Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

B. Dual Op Amplifiers

With two op-amps onboard you're able to pump exceptional audio to your favorite cans, with 32-600Ω-headphone impedance for great flexibility.

C. Premium Nichicon™ audio capacitors

Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

DESIGN, CUSTOMIZATION, AND SETUP

A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix Z390-I Gaming wonderfully easy.

Cyber Fusion

The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation.

Outshine the Competition

ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

*The addressable RGB header supports WS2812B addressable RGB LED strips (5V/Data/Ground), with a max power rating of 3A (5V) and a max of 60 LEDs.
**The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.
***RGB extension cables are included. LED strips and Aura Sync-compatible devices are sold separately.

Static
Breathing
Strobing
Rainbow
Color cycle
Comet
Flash and dash
Wave
Glowing Yo-Yo
Starry Night
Music Effect
Smart

Addressable RGB Header

RGB Header

Perfect
Synchronization

The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. Your ROG Strix motherboard's built-in Aura RGB lighting easily syncs with PC cases, memory modules, coolers and RGB LED strips from a broad selection of well-known manufacturers. ASUS Aura software provides simple and intuitive lighting management.

*Learn more about ASUS Aura Sync.

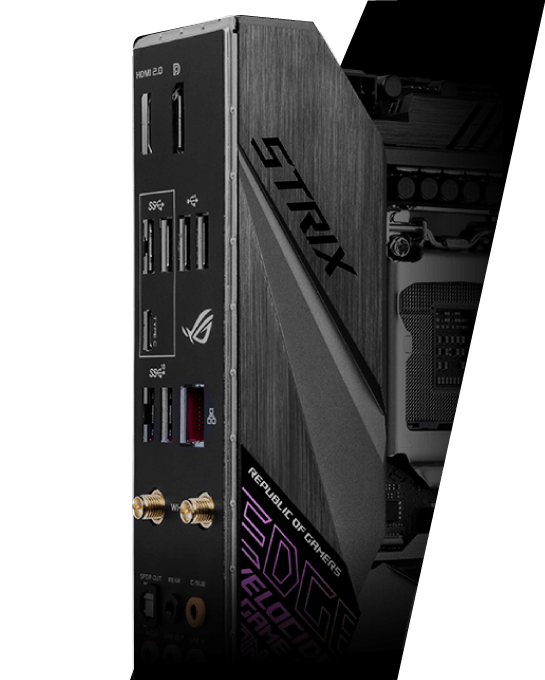

Pre-Mounted I/O Shield

ROG's patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

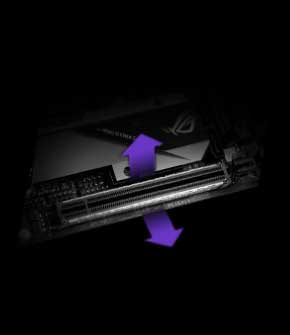

SafeSlot

1X slot
Provides stronger PCIe device retention and greater shearing resistance

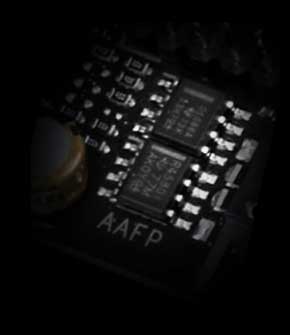

ESD Guards

2X greater
electrostatic protection than the industry standard. ESD Guards cover the USB, audio and LAN ports.

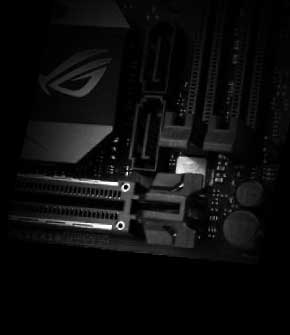

Q-SLOT

1 clip
to swap or secure your graphics card.

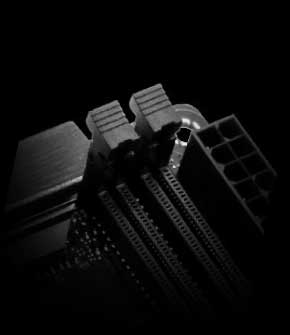

Q-DIMM

1 sided
clips for super-simple, super-secure handling of memory modules.

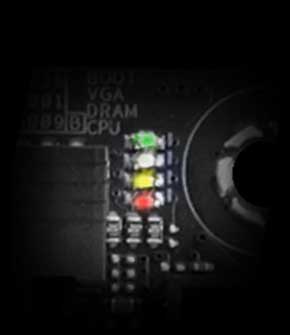

Q-LED

Onboard LEDs to Indicate the power status, and problems with the CPU, memory, graphics card or boot device for quick diagnosis.

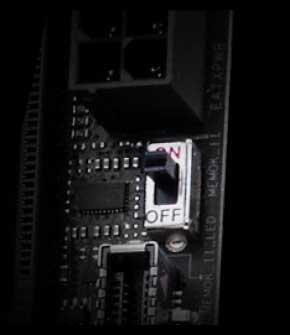

MemOK II

MemOK II automatically fixes boot failures that arise due to memory overclocking and instability.

Certified Compatibility

Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. That's why ROG Strix undergoes an extensive certification program focused on providing the very best compatibility with the widest range of components and devices. Our extensive list of guaranteed-compatible components is an invaluable aid to building a ROG Strix gaming rig. It specifies thousands of compatible parts, and it includes a dedicated Qualified Vendor List (QVL) for memory — so you can build fuss-free.
Explore compatible components>

The ROG Strix Ecosystem Awaits

Gear up with ROG Strix components, from graphics and sound cards, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility — and enjoy more choice than any competing brand.

TUNE YOUR RIG THE WAY YOU WANT

Whether it's overclocking, cooling, assigning network priorities, or tuning audio characteristics, the ROG Strix Z390-I Gaming has the firmware options and software utilities to tailor your rig's performance for any type of gaming environment.

AI Overclocking

ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.

CPU POTENTIAL

We created a proprietary algorithm that evaluates the capabilities of your CPU.

COOLING CAPABILITY

The onboard intelligence also watches system vitals like temperatures, fan speeds, and power draw to gauge cooling performance.

AI OVERCLOCKING

Utilizes onboard intelligence to perform automated clocking and provides target frequency and voltage estimations for savvy veterans that prefer manual tuning.

5-Way Optimization

Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking,but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.

TPU INSIGHT
EPU Guidance
FAN XPERT 4
DIGI+
POWER CONTROL
TURBO APP

TPU INSIGHT

The TurboV Processing Unit (TPU) Insight provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking.
EPU Guidance

The Energy Processing Unit (EPU) Guidance enables system-wide power efficiency, automatically optimizing consumption to maximize savings.
Fan Xpert 4

Enjoy comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI.
Digital Power Controls

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
Game Faster, Rank Higher

Intel's processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

When you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.

ADVANCED MODE

Prediction

AI OC monitors system vitals like temperatures, fan speeds, and power draw to estimate overclocking performance.

My Favorites

Quickly find tuning options and add preferred tools to the list.

EZ Flash 3

Flash the latest BIOS via the internet from within the BIOS.

AI OC Guide

The AI OC Guide allows you to enable the AI Optimization or view a quick guide.

SMART

Check your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.

GPU POST

Automatically detect selected ASUS graphics cards to view detailed information.

Secure Erase

Restore your SSDs to factory-fresh condition.

Last Modified Log

Track the latest changes and save preferred profiles onto a USB drive.

SATA Port Renaming

Rename SATA ports for easy identification.

Search Function

Quickly and easily find the option or setting you're looking for.

ASUS User Profile

Port configuration settings between different BIOS versions or share them with friends.
Designed to simplify setup, EZ mode presents all the vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.

EZ MODE

EZ Tuning Wizard

Streamline your RAID configuration for faster data retrieval and backups.

Intuitive graphical fan control

Fine-tune individual fans simply by dragging a curve with the mouse.

SATA Information

View SATA port details for easy device recognition.

Fast Clock Adjustment

Use mouse controls to change the time and date.

Aura On/Off mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.

Sonic Studio III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

*Learn more about Sonic Studio III.

*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process true-to-life sound.

In-game sound effects and music are adjusted automatically to increase the feeling of immersion, so audio pulls you further into the game.

GAMING
The Voice Clarity and Smart Volume sliders are set high to emphasize dialog, so you'll hear the softest whispers and experience minimum distortion at maximum volume.

MOVIE
Voice Clarity, Bass Boost and Treble Boost are carefully balanced, so your music-listening experience feels like a live performance.

MUSIC
Soft sounds are accentuated by Smart Volume for enhanced listening, while Voice Clarity boosts speech for crystal-clear conversations.

COMMUNICATION
Sonic Studio Link applies Sonic Studio III effects to your VR headset, boosting immersion in virtual worlds.

VIRTUAL REALITY
Easy-to-use routing assigns different audio streams to different outputs, such as browser effects to headphones and game audio to speakers.

MULTITASKING

Scan and Detect to Dominate

Sonic Radar III

The new Sonic Radar III has an evolved audio engine to process sounds more accurately than ever, ensuring you're always aware of what's going on around you. It now also includes an onscreen arrow to help you instantly pinpoint the enemy's position and the origin of key in-game sounds. Plus, the new Audio Boost feature provides filters that let you hear even the faintest sounds, so you can become the hunter, not the hunted!

*Learn more about Sonic Radar III.

Improved Audio Algorithm
The new Sonic Radar III audio algorithm offers improved accuracy that helps you pinpoint the enemy.
3D Engine
Sonic Radar III is built around an all-new HUD, and it includes an in-game 3D arrow for a more intuitive experience.
Audio Boost
Press hot keys to briefly increase bass, midrange or treble frequencies for improved focus during different parts of your game.
Audio Radar
A visual cue to ensure Sonic Radar III is effective regardless of surrounding noise and chaos.

GameFirst V

GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

Smart/Auto modes

Optimize network traffic for active apps, or allocate more bandwidth to games.
GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

One-click prioritization

Speed network packets for specific applications, helping to reduce latency.

Extreme mode on: 371.7Mbps
Extreme mode off: 16.03Mbps

* Tested with 4GB file download while also playing 4K online video.
GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

ROG First

Interface directly with a ROG router and automatically configure QoS to prioritize network bandwidth to games.
GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

Network insight

View real-time traffic by biggest hogs, app groups, and task types, or drill down for detailed connection information.

All New Status Overlay

Team With ROG Routers For More Wins

RamCache III

RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

Armoury Crate

The brand-new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers.

Overwolf

Overwolf is a clever, unobtrusive overlay that lets you browse the internet, email, IM, and stream or record gameplay – all while you're in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.

watch video

In-game dock- 5 customizable apps
In-game calling- 0 missed calls during gaming
Multi-IM support- 5+ clients in a single interface

5 customizable apps
0 missed calls during gaming
5+ clients in a single interface

BEYOND VR READY

ROG Strix Gaming is VR Ready — and beyond! The ASUS Beyond VR Ready marque means that ROG Strix Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.
>Learn more about ASUS Beyond VR Ready

THE POWER OF Intel

Intel Z390 chipset

The Intel^® Z390 is a single-chipset design that supports Socket 1151 for 9^th Gen and 8^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

Ready for Socket 1151 for 9^th / 8^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® processors

This motherboard supports Socket 1151 for 9^th Gen and 8^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

ROG STRIX Z390-I GAMING

Intel Z390 LGA 1151 mini-ITX gaming motherboard with integrated I/O shield & VRM heatsink, Intel Wi-Fi, DDR4 4600+ , M.2, SATA 6Gbps, HDMI 2.0, and USB 3.1 Gen 2

The industry's first U-shaped heatsink layout

Revolutionary integrated I/O shield and VRM heatsink design

SOLID HARDWARE SPECS FOR GAMING AND MORE

Power Design

ProCool Power Connector

Digi+ Power Control

DrMOS

Thermal Solution

High Quality Choke and Caps

Cooler by Design

COOLER BY DESIGN

CPU

Chassis

M.2

VRM

AIO Pump Fan

CPU Fan

4-pin PWM/DC Fan Header

Double Decker Heatsink

VRM Heatsink & Thermal Pad

DDR4 OC 4600+MHz

Double-capacity DIMM support

Dual PCIe Gen3 M.2

Intel Integrated Ultra Wi-Fi support

Intel Gigabit Ethernet

Lower CPU workloads

High TCP and UDP throughput

LANGuard

SupremeFX

Shielded Audio, Superior Sound

DESIGN, CUSTOMIZATION, AND SETUP

Cyber Fusion

Outshine the Competition

Addressable RGB Header

RGB Header

PerfectSynchronization

Pre-Mounted I/O Shield

SafeSlot

ESD Guards

Q-SLOT

Q-DIMM

Q-LED

MemOK II

Certified Compatibility

The ROG Strix Ecosystem Awaits

TUNE YOUR RIG THE WAY YOU WANT

AI Overclocking

CPU POTENTIAL

COOLING CAPABILITY

AI OVERCLOCKING

5-Way Optimization

TPU INSIGHT

EPU Guidance

FAN XPERT 4

DIGI+POWER CONTROL

TURBO APP

TPU INSIGHT

EPU Guidance

Fan Xpert 4

Digital Power Controls

Game Faster, Rank Higher

UEFI BIOS

ADVANCED MODE

EZ MODE

Sonic Studio III

APP-SPECIFIC PROFILES

SURROUND SOUND

Sonic Studio Link

GAMING

MOVIE

MUSIC

COMMUNICATION

VIRTUAL REALITY

MULTITASKING

Scan and Detect to Dominate

Sonic Radar III

Improved Audio Algorithm

3D Engine

Intel Integrated
Ultra Wi-Fi support

Perfect
Synchronization

DIGI+
POWER CONTROL

LOW-LATENCY
GAMING
