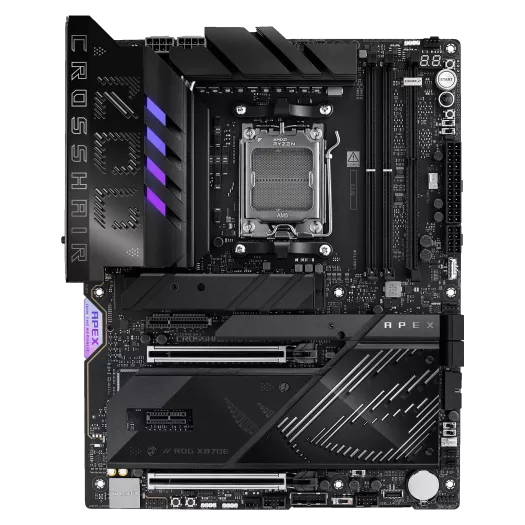

ROG CROSSHAIR X870E APEX

AMD X870E (AM5 Socket) ATX motherboard, Advanced AI PC-ready, 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, ROG Memory Fan Kit for DDR5 overclocking, Wi-Fi 7 with ASUS WiFi Q-Antenna, three PCIe^® 5.0 M.2 slots onboard, two PCIe 4.0 slots on an ROG DIMM.2 card, PCIe^® 5.0 x16 SafeSlots with PCIe^® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4^® ports, two USB 20Gbps Type-C^® front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), AI Overclocking, AI Cooling II, and AI Networking II

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications 
AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors 
Intelligent Control: ASUS-exclusive AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance 
ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement  
Robust Power Solution: 18(110A)+2(110A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium SMD capacitors 
Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with a heatpipe   
Latest M.2 Support: Three onboard PCIe^® 5.0 M.2 slots and two PCIe^® 4.0 M.2 slots on an ROG DIMM.2 card, all with substantial cooling solutions 
ROG Memory Fan Kit: Cooling solution can unleash memory overclocking up to 9600+ MT/s  
Abundant Connectivity: Dual USB4^® Type-C^® ports, two USB 20Gbps Type-C^® front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), six additional USB 10Gbps ports, t, two PCIe^® 5.0 x16 SafeSlots with full support for next-gen graphics cards 
High-Performance Networking: Onboard Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 5Gb Ethernet 
DIY Friendly Design: PCIe^® Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield 
Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier 
Unmatched Personalization: Three gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting 
Renowned Software: ASUS DriverHub, Dolby Atmos^®, exclusive 1-year Internet Security subscription, TurboV Core, GlideX, HWiNFO, and 1-year AIDA64 Extreme subscription
