ROG Azoth 96 HE Gaming Keyboard

ROG Azoth 96 HE Gaming Keyboard

ROG Azoth 96 HE analog gaming keyboard with hot-swappable ROG HFX V2 magnetic switches and ROG Hall Sensor; featuring an OLED display, three-way knob, tri-mode connectivity with ROG SpeedNova 8K wireless technology, Zone mode, six-layer dampening and detachable silicone wrist rests

  • Hot-swappable ROG HFX V2 magnetic switches: Refined keystrokes with customizable 0.1–3.5mm actuation and 0.01mm-step precise tuning
  • ROG Hall sensor: Exceptional precision, accurate input detection, reduces electrical noise and interference, and increases magnetic flux tolerance for superior performance
  • Superb connectivity: ROG SpeedNova 8K wireless technology, wired USB, and Bluetooth® connectivity support up to five devices simultaneously; wired and wireless modes offer up to 8K polling rate
  • Full-color OLED touchscreen: Three-way knob allows instant switching between and adjustment of system info and customizable keyboard settings
  • Gasket mount and six-layer dampening design: Cushioned typing feel ensured with four PORON® layers, an IXPE pad, and a silicone pad to absorb vibrations and switch pinging noises; gasket softness can be adjusted by swapping out underlying dampening foam
  • Refined design: Metal top cover offers a premium look

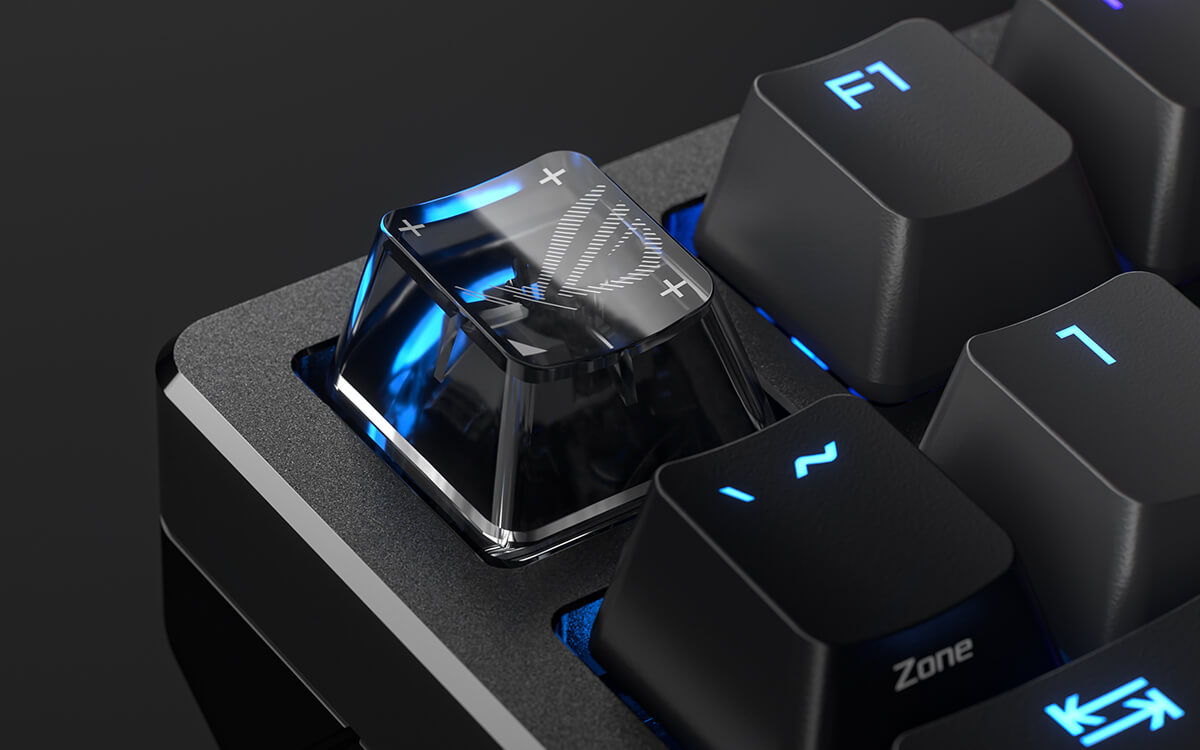

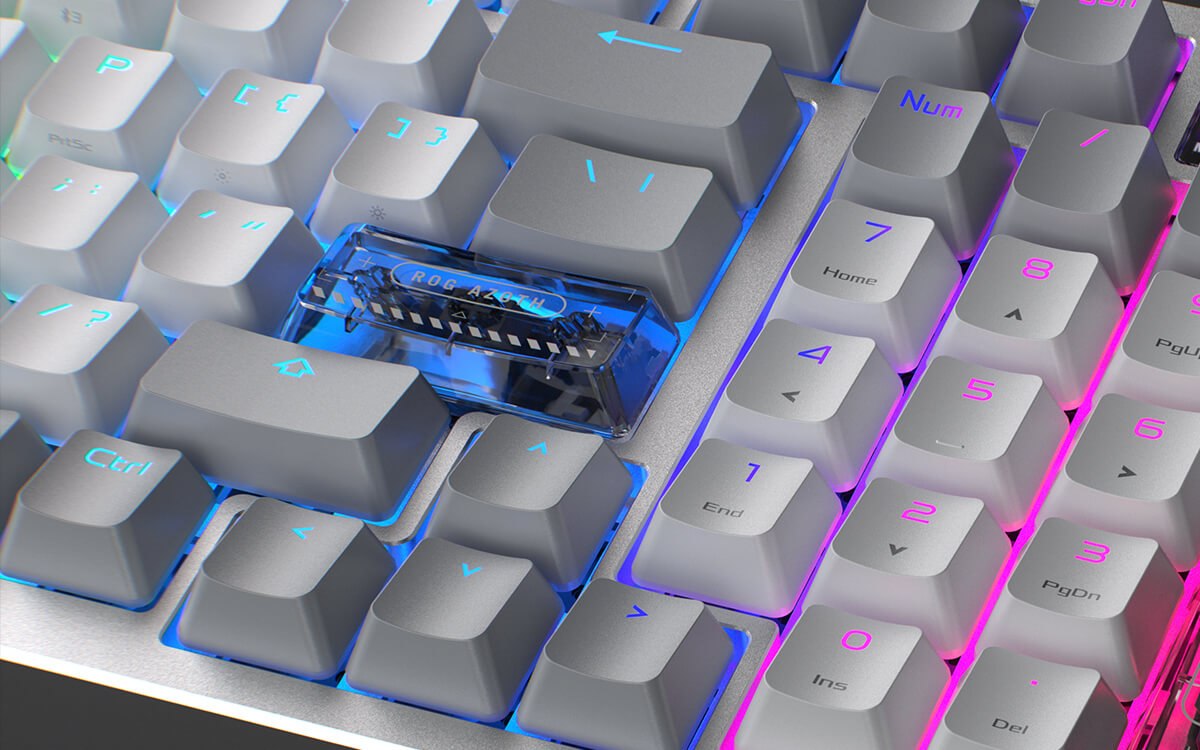

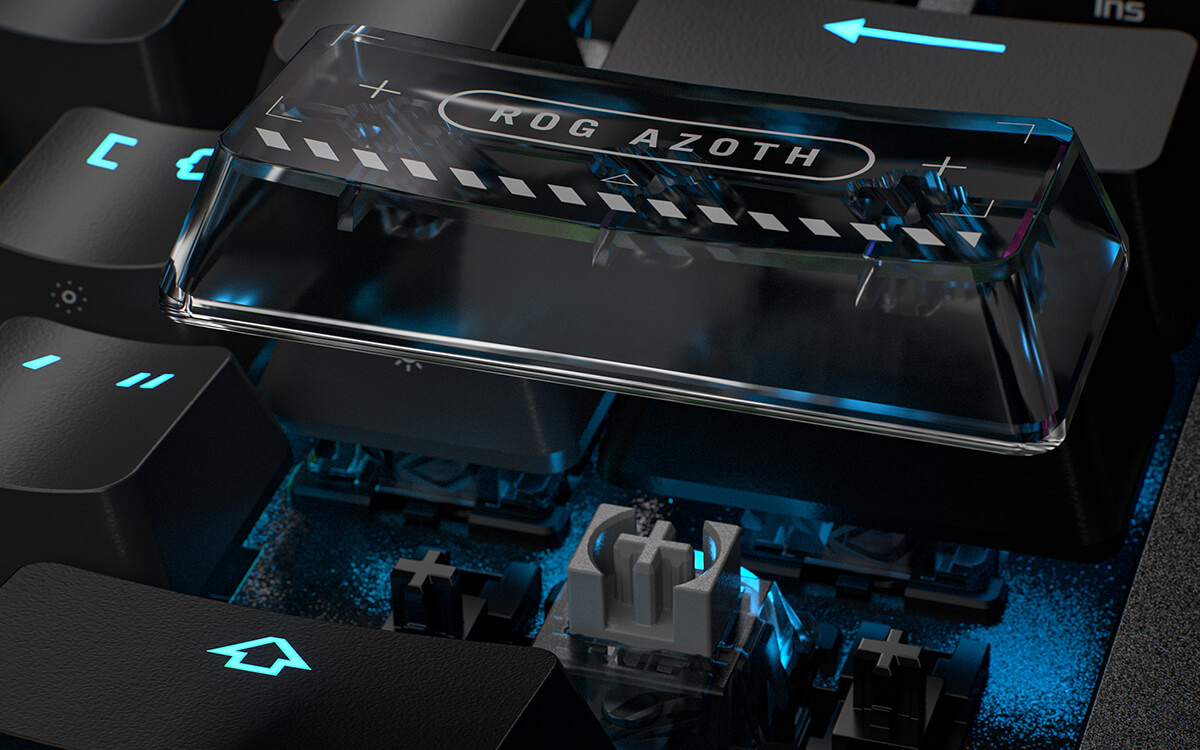

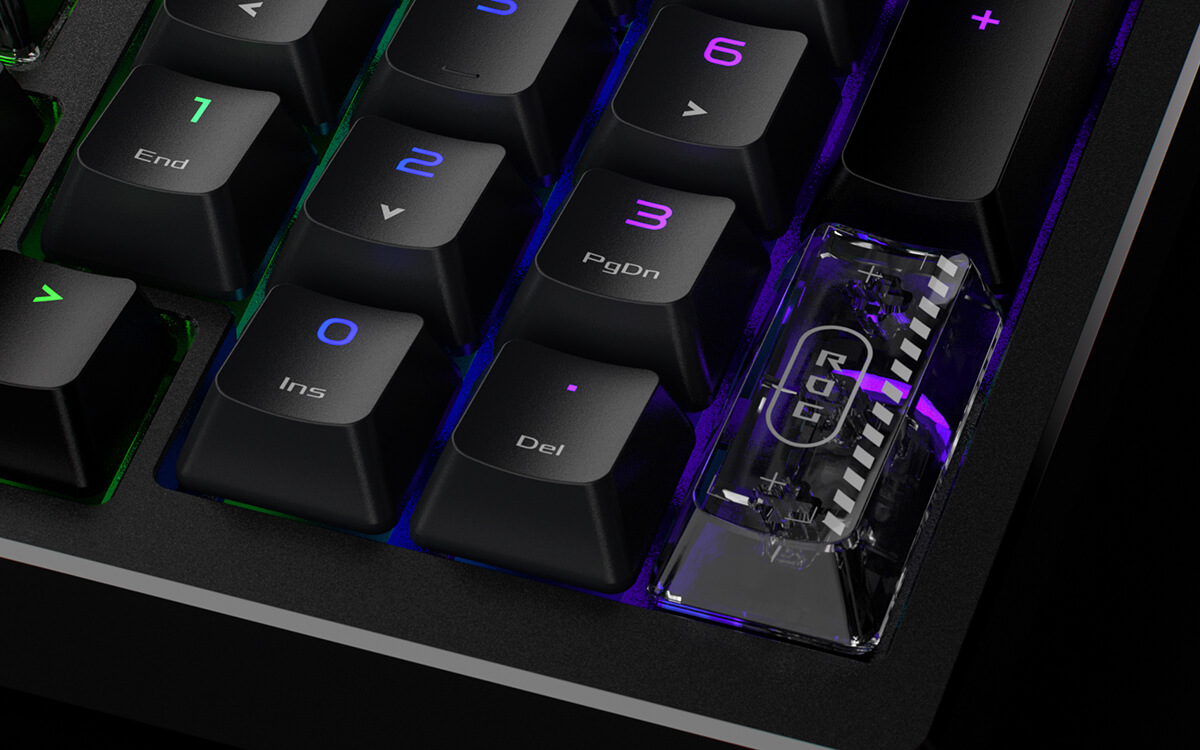

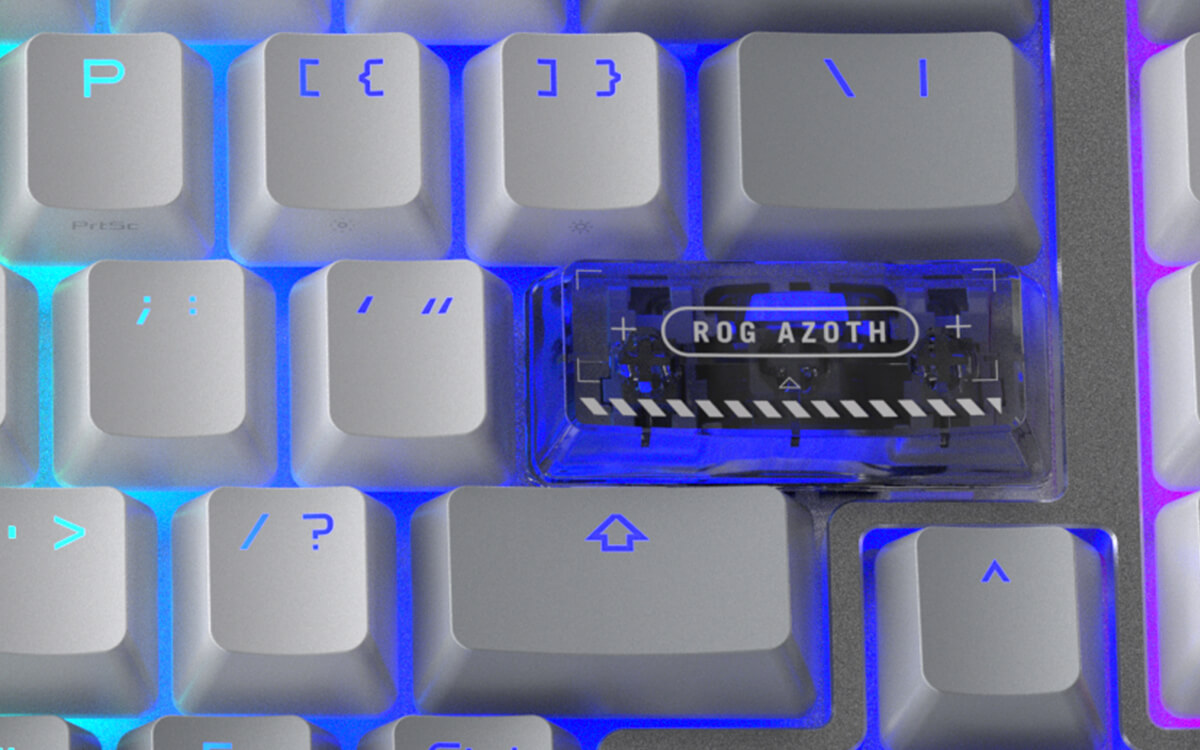

  • Unique ROG-themed keycaps: Additional translucent keycaps with ROG markings provide unique customization options

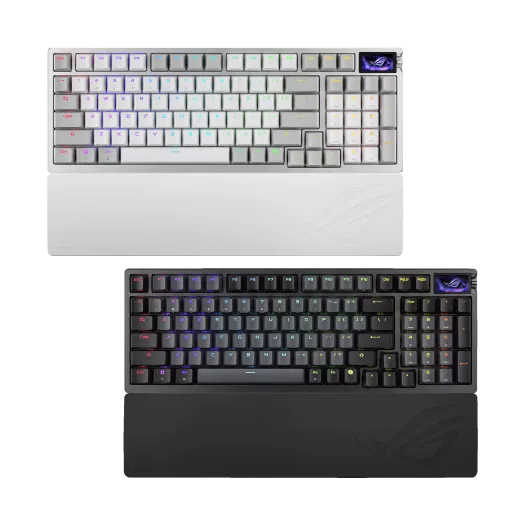

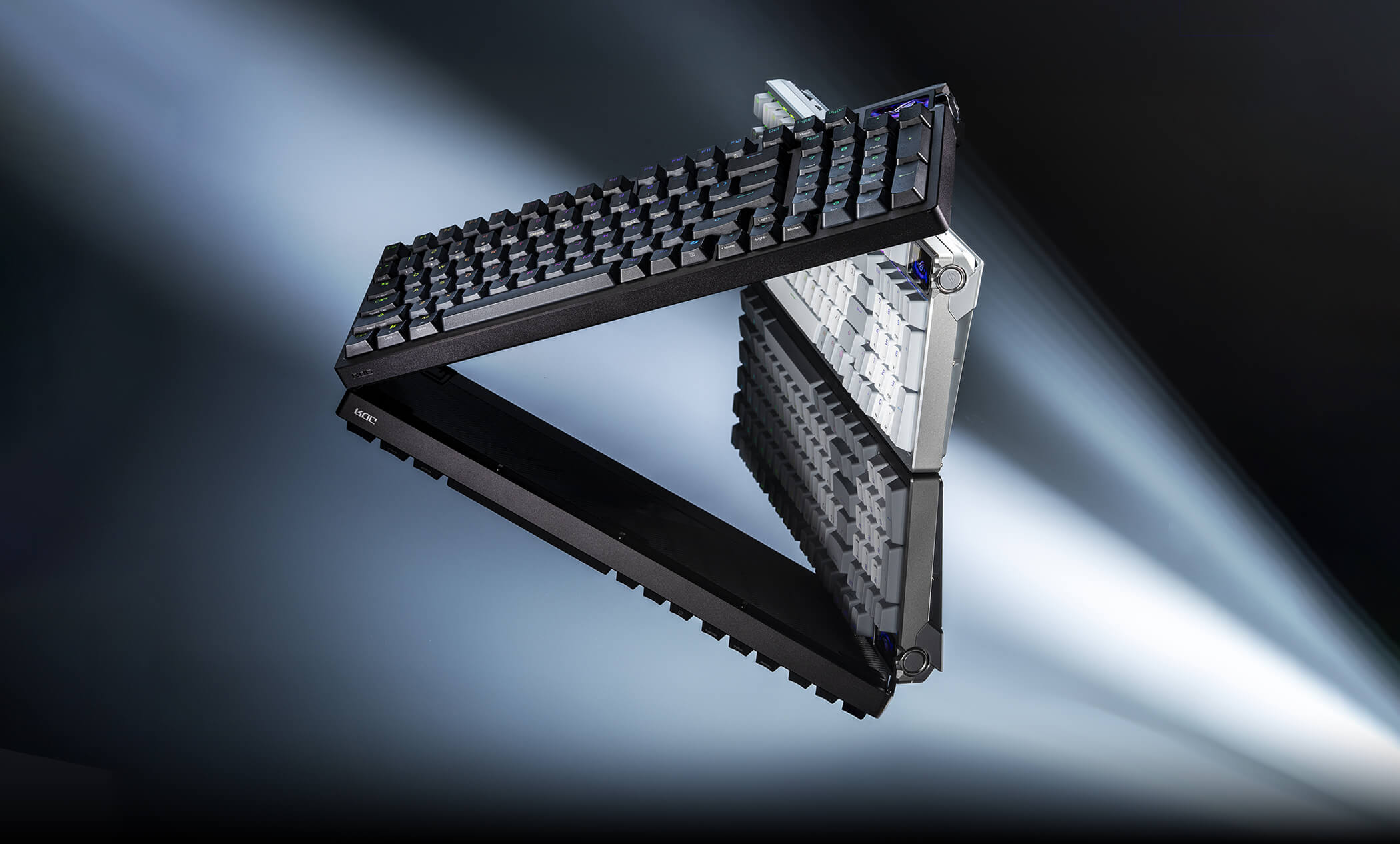

ROG Azoth 96 HE key visual

ROG Azoth 96 HE Transcend To Adapt

The ROG Azoth 96 HE is an wireless analog gaming keyboard that packs pro-level performance into a sleek, compact 96% form. Equipped with hot-swappable ROG HFX V2 magnetic switches and a next-gen ROG Hall sensor, it ensures lightning-fast input detection and consistent responsiveness. Tri-mode connectivity lets you seamlessly switch between up to five devices, with polling rates of up to 8000 Hz. A vibrant OLED touchscreen and intuitive knob put system settings at your fingertips, while a six-layer dampening design ensures every keystroke feels soft, stable, and satisfying. Wrapped in a premium metal top frame and finished with signature ROG keycaps, this board isn’t just built to play—it’s built to flex.

Compact 96% Form Factor

The layout of the ROG Azoth 96 HE offers a balanced blend of efficiency and functionality. Measuring only a centimeter wider than a standard TKL (tenkeyless) keyboard, it offers a full numpad and functions such as Print Screen, Screen Lock, Home, and End, making it suitable for both work and play.

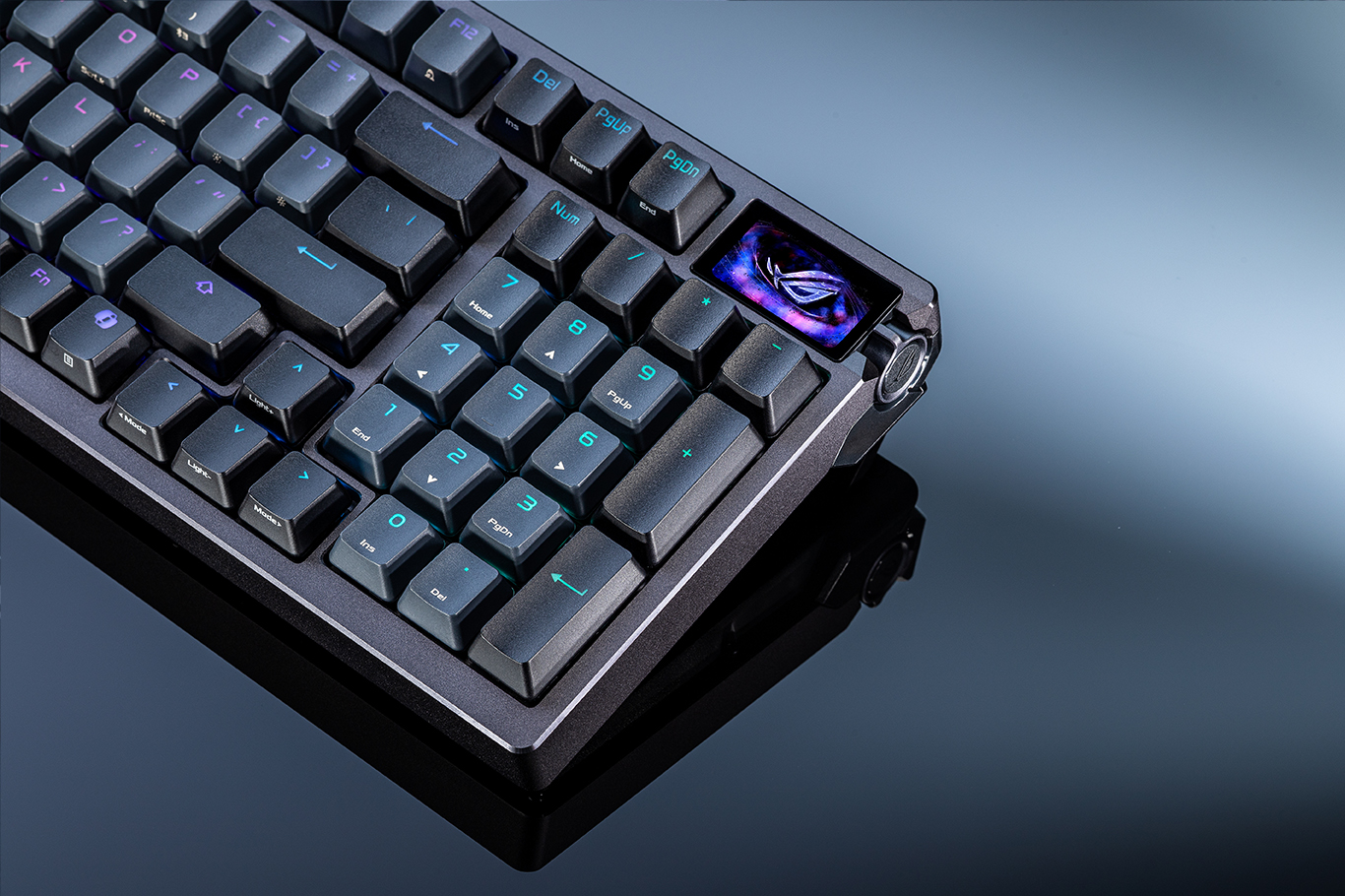

OLED Display & Three-Way Control Knob

The 1.47-inch full-color OLED touchscreen shows real-time keyboard status at a glance, including indicators for Caps Lock, connection mode, and PC/Mac profiles. It can also display battery level, media playback info, system metrics like CPU temperature, and custom animations. Paired with a three-way control knob and dedicated side button, it offers seamless access to essential settings.

ROG Azoth 96 HE OLED screen displaying animation

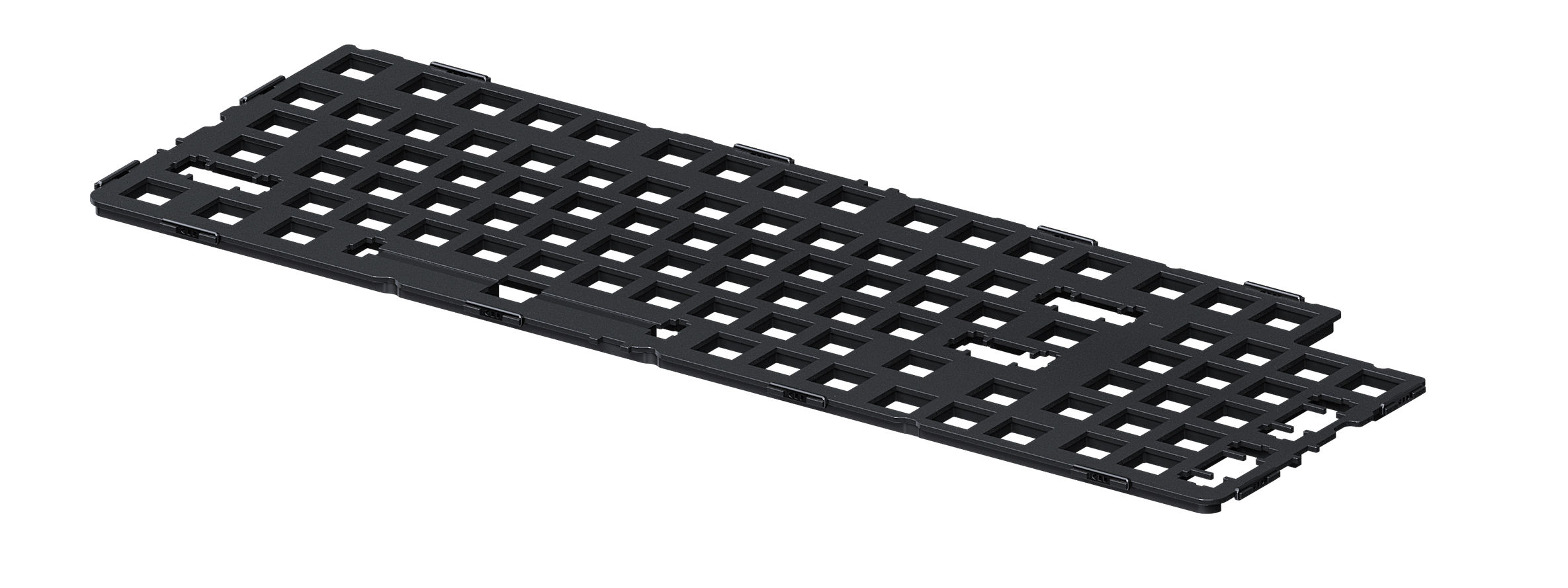

Six-Dampening Design & Gasket Mount

The Azoth 96 HE uses six dampening layers – four PORON®, one IXPE and one silicone layers – to absorb keystroke vibrations and pinging noise, providing a superior cushioned typing experience.

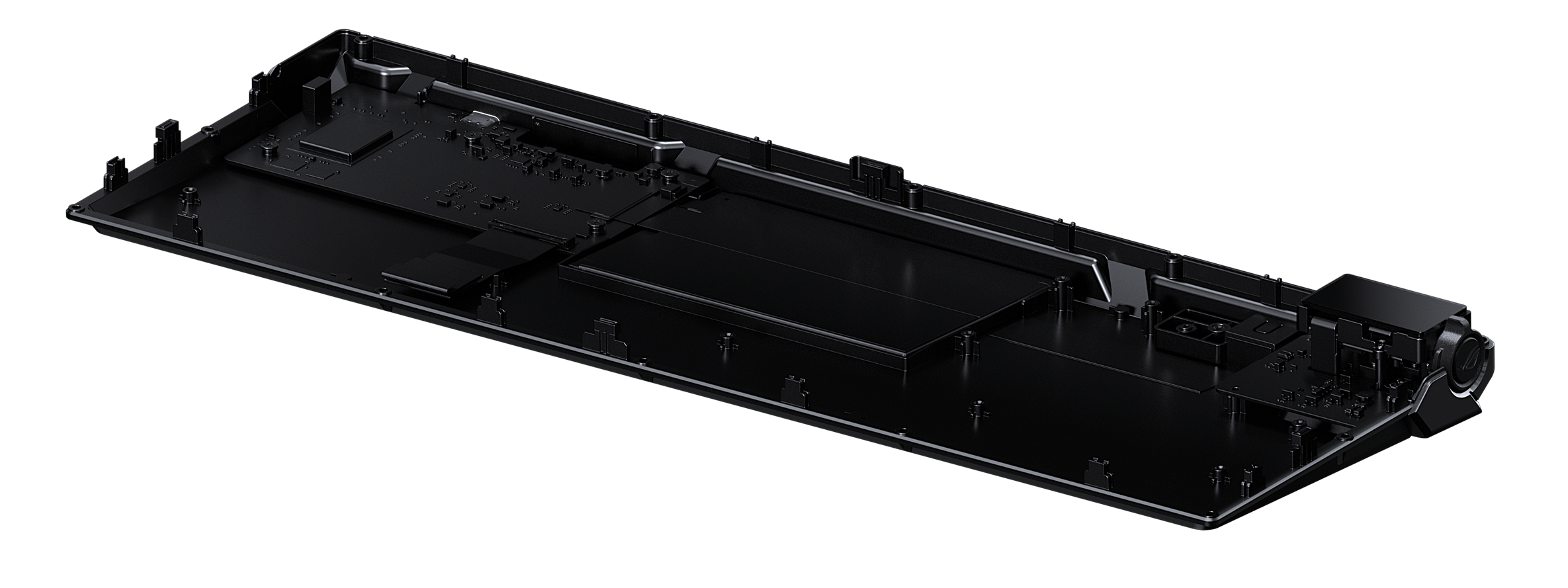

ROG Azoth 96 HE explosion view

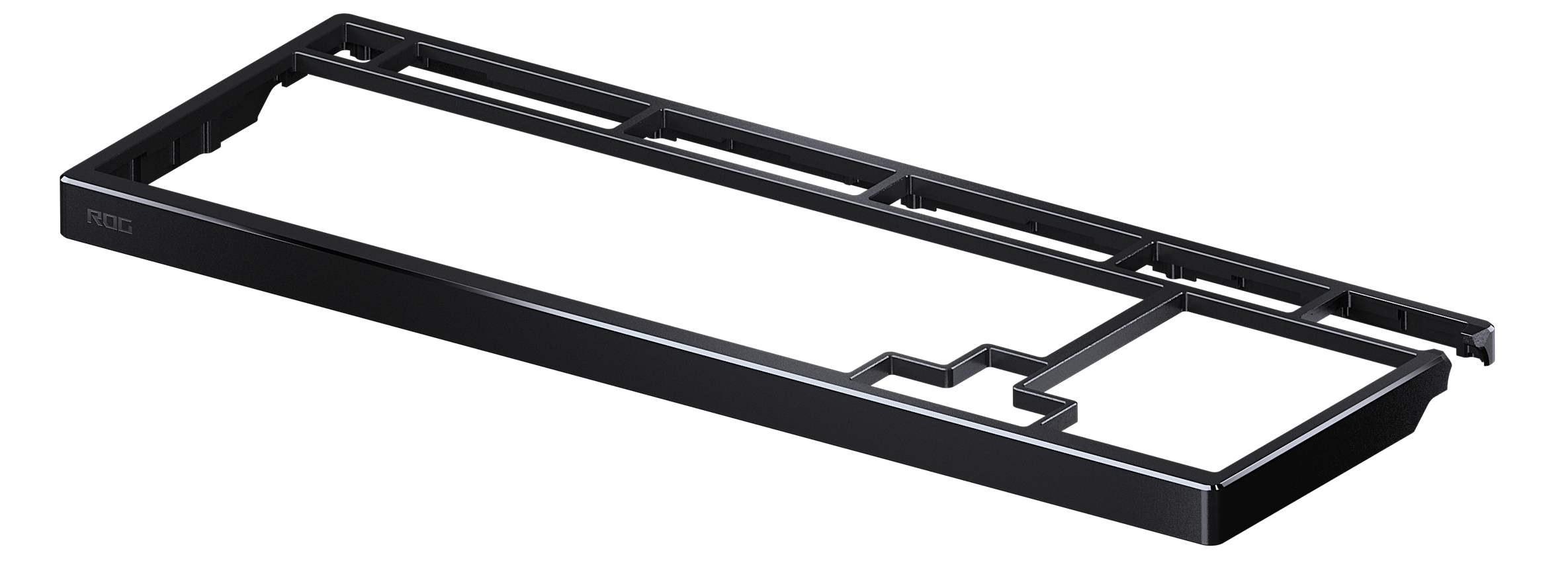

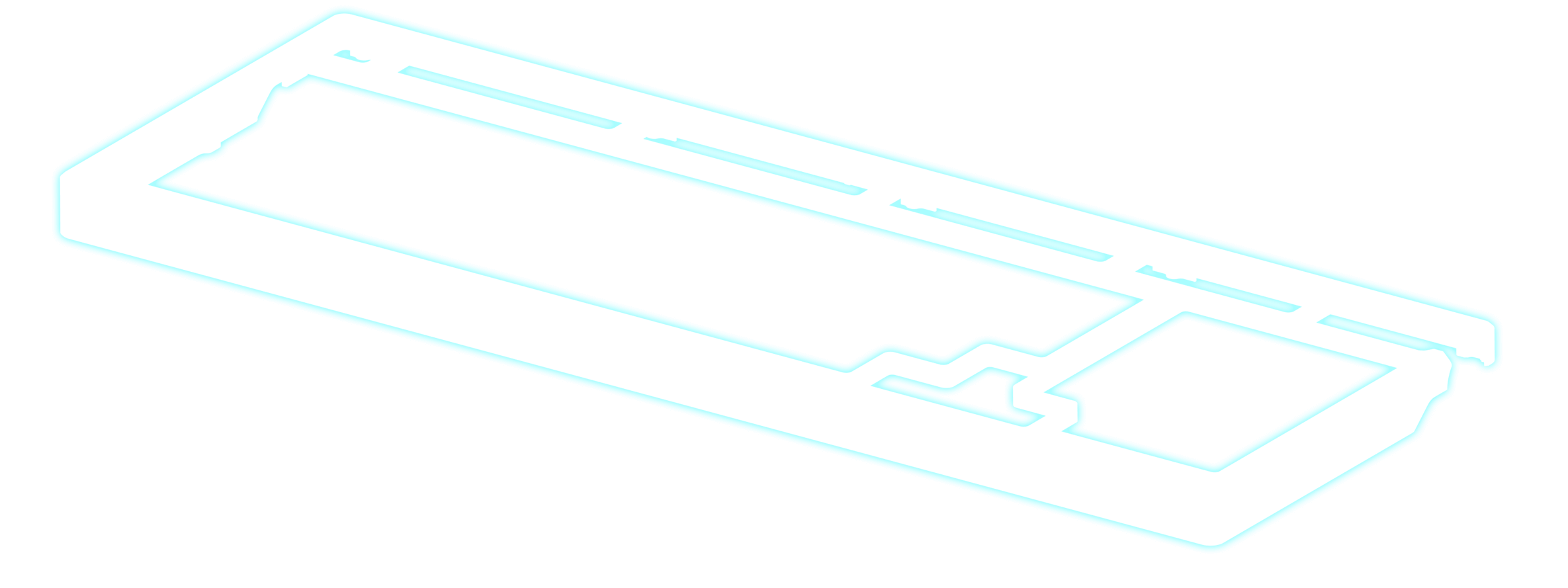

  • Refined Top Cover

    Extends downward to wrap around the bottom case, creating a unified and premium look.

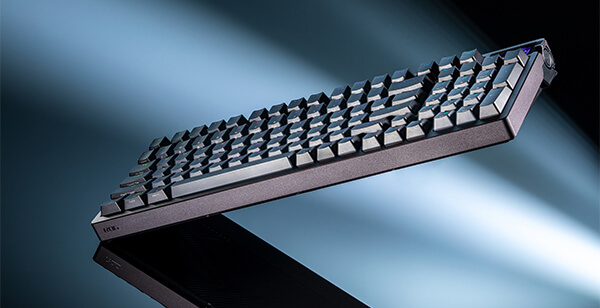

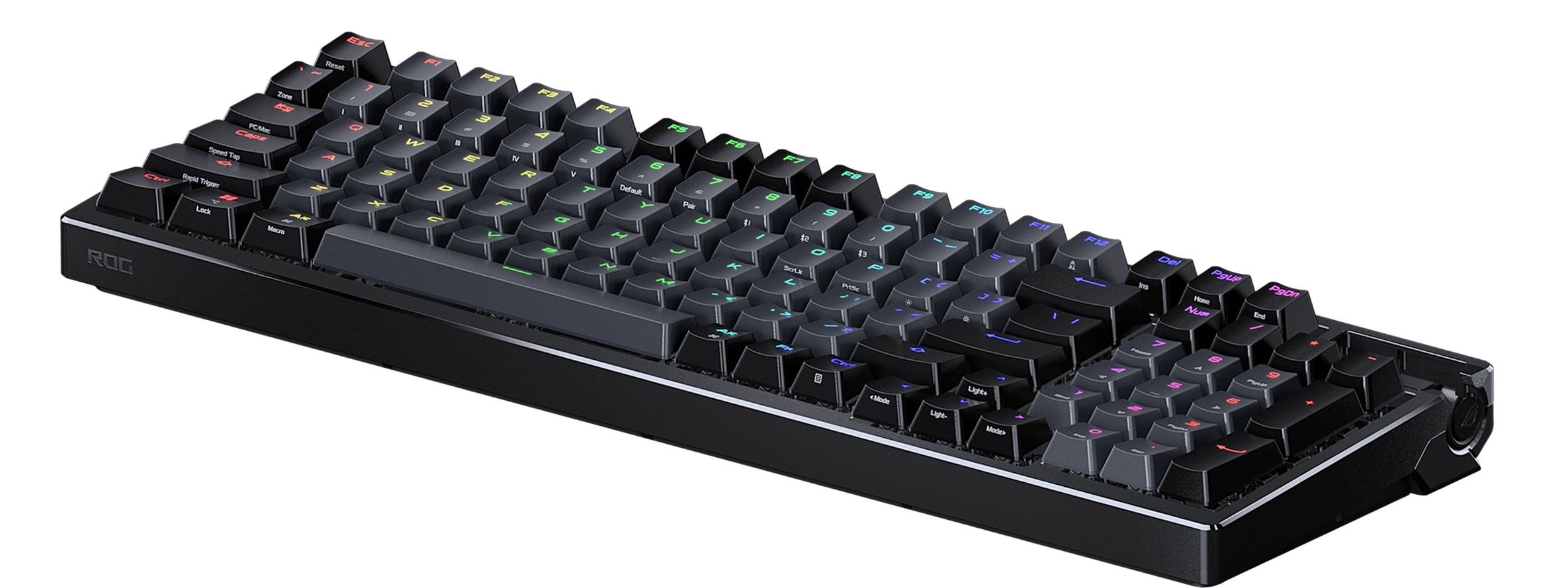

    ROG Azoth 96 HE slanted, showcasing its refined top cover

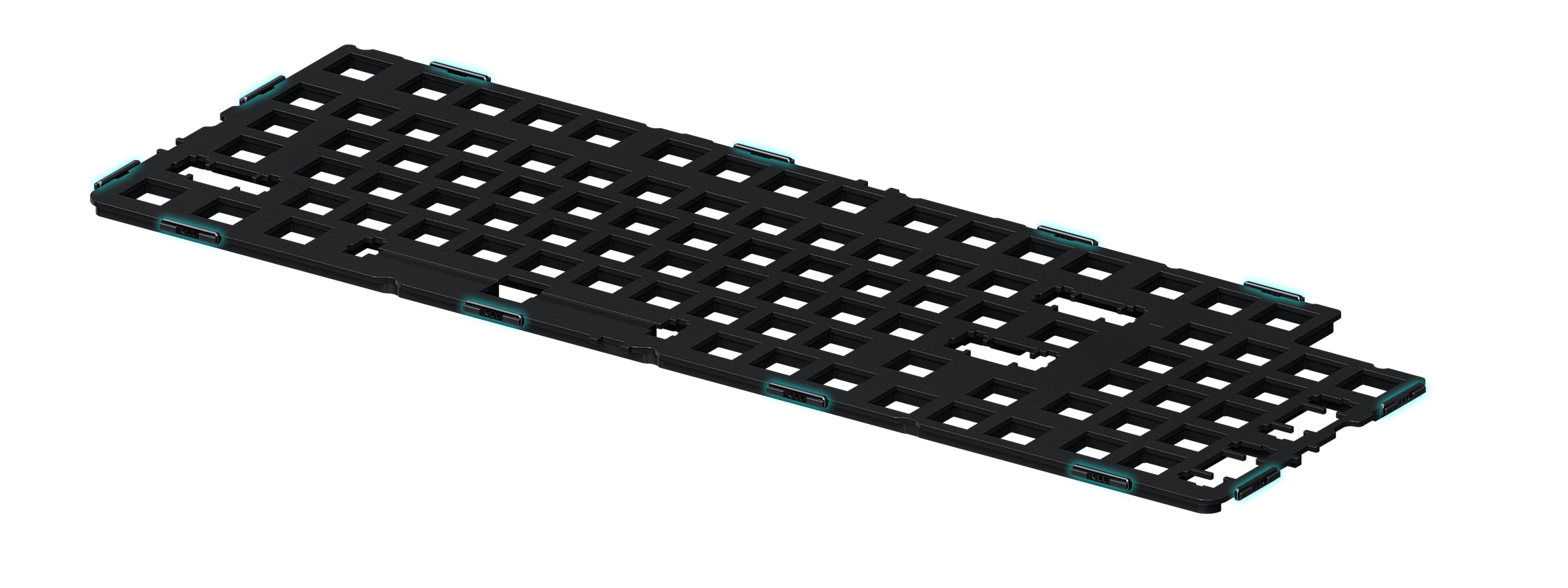

  • Silicone Gaskets

    Provide support for the internal mounting system and absorb vibrations. Typing feel changes depending on the foam configuration — with firmer feedback when all layers installed, or a softer press when layers are removed.

  • PORON® Pad

    Absorbs unwanted pinging noises to improve acoustic performance.

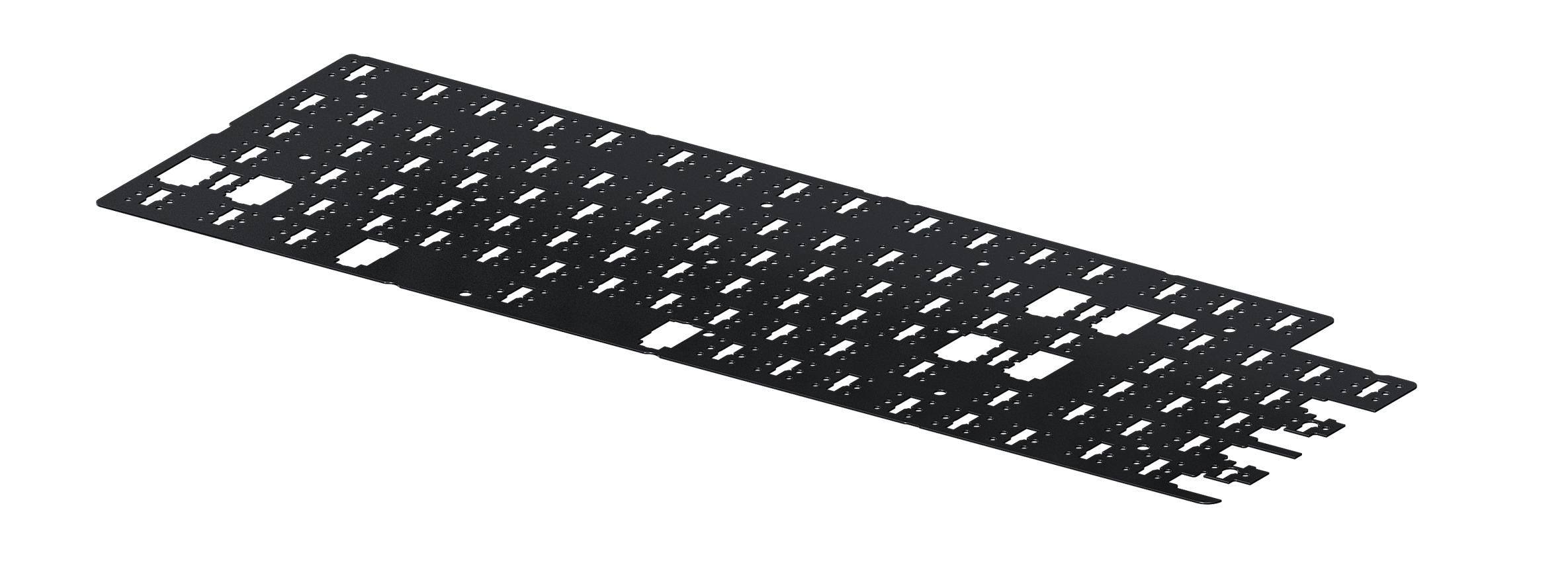

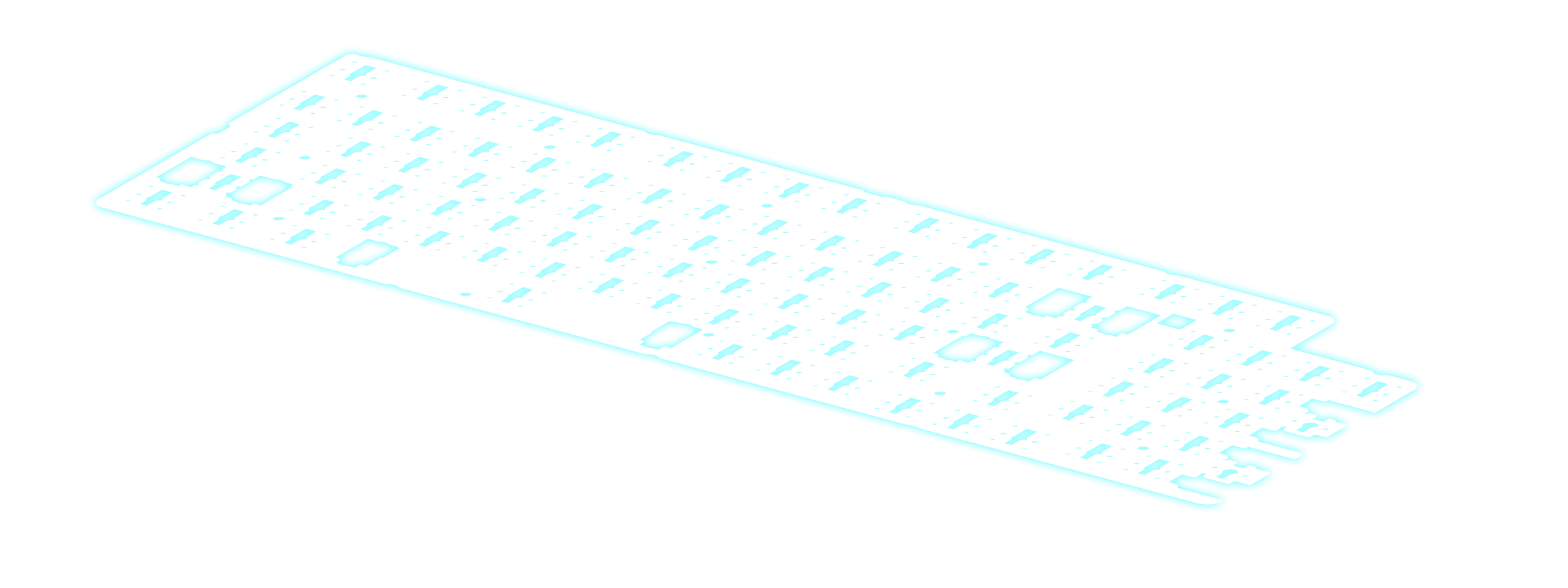

  • IXPE Switch Pad

    Cushions every switch to reduce impact on the PCB and enhance keystroke feel.

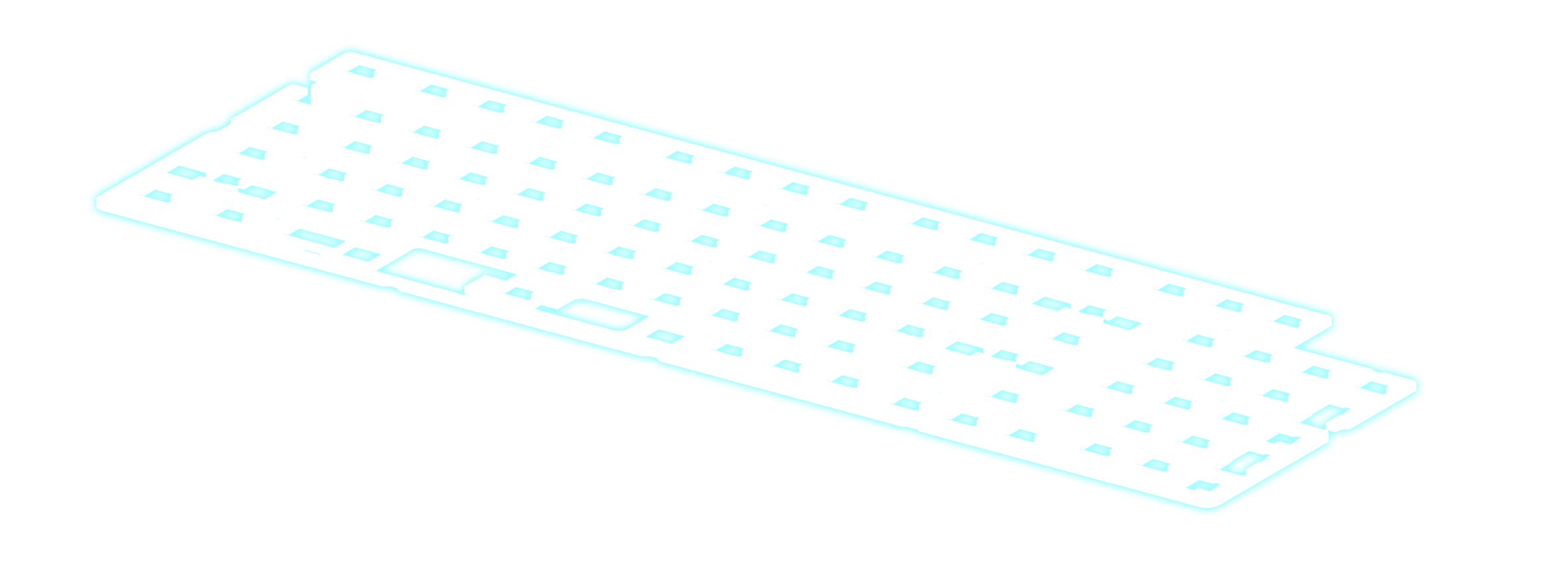

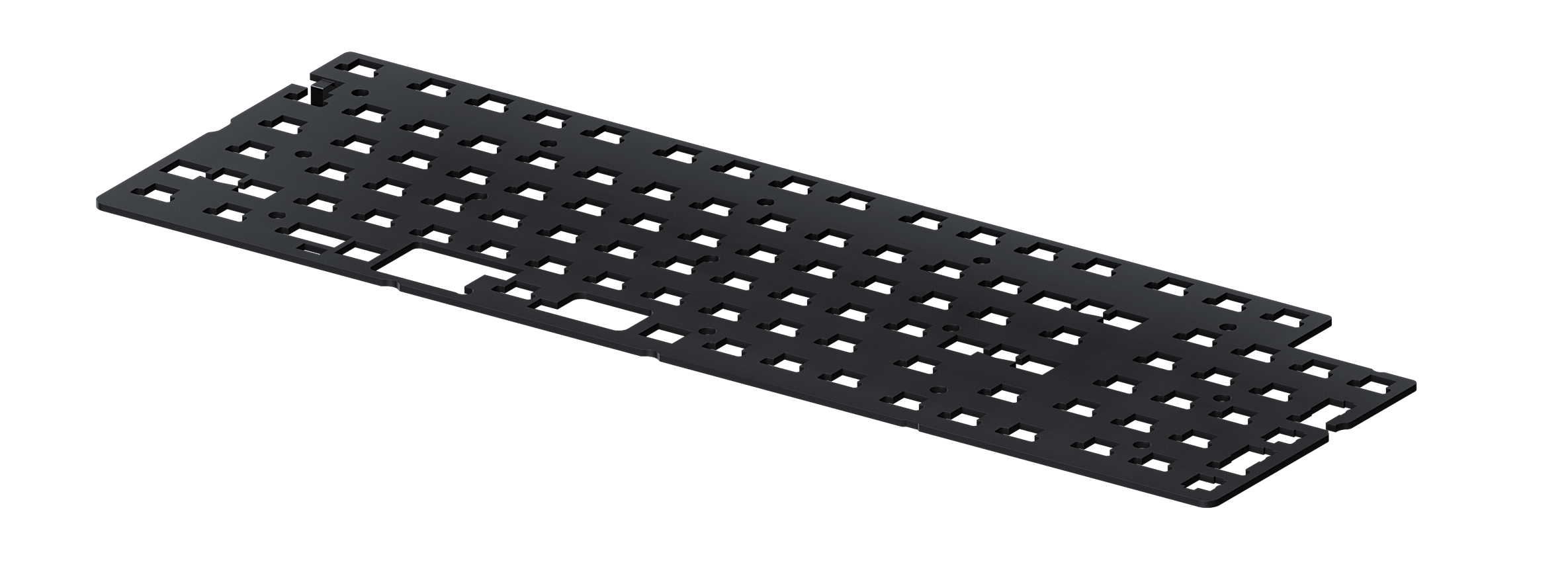

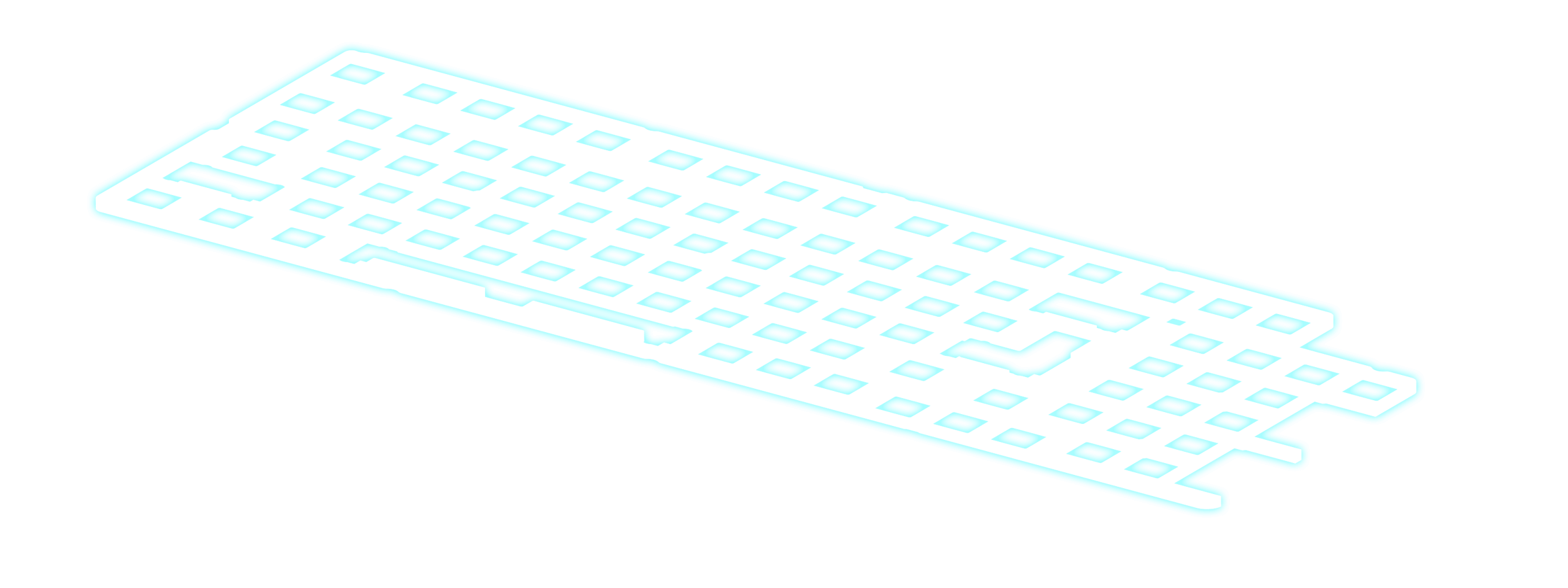

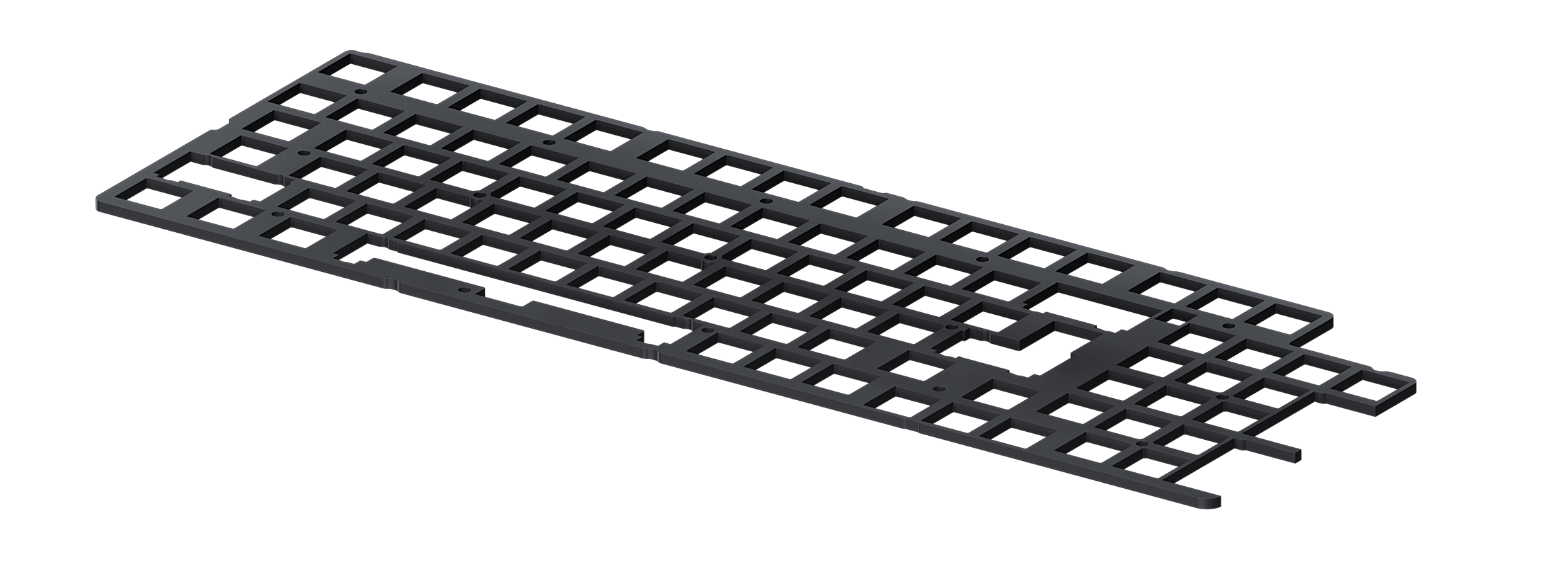

  • PORON® Dampening Layer

    Absorbs keystroke vibrations and minimizes switch pinging noise.

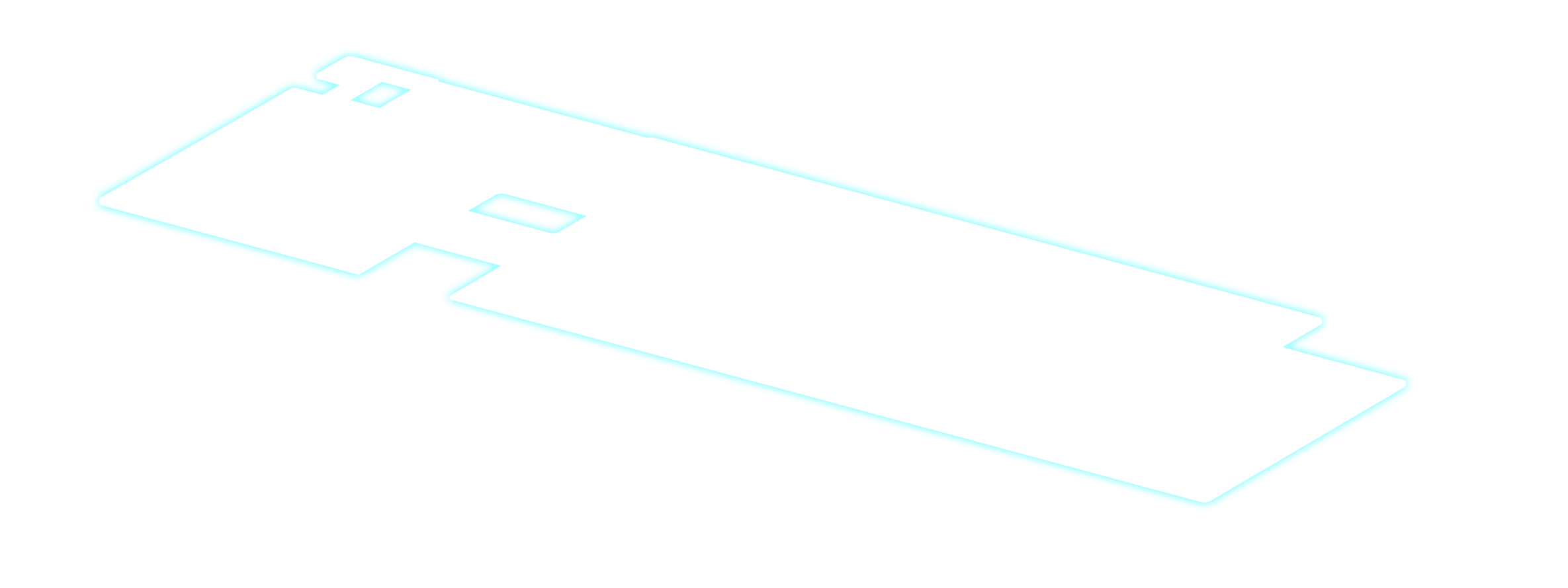

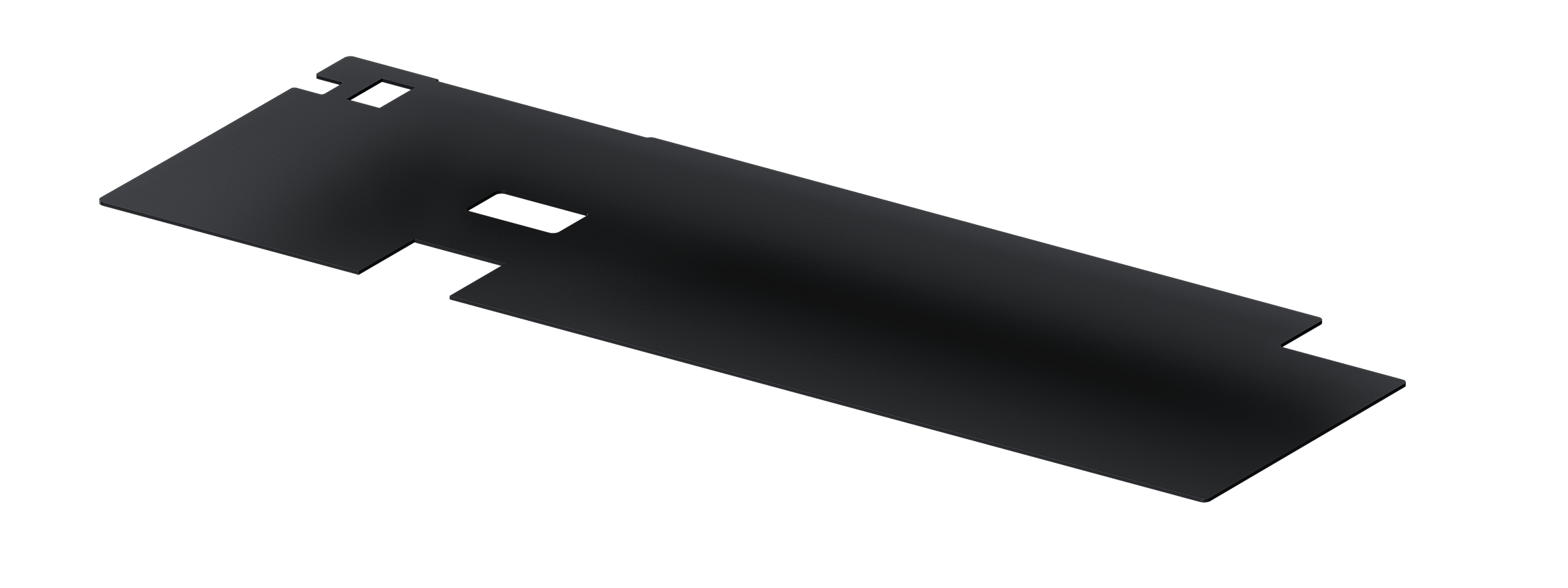

  • Two Removable PORON® Dampening Foams

    Minimize internal echoes and allow users to fine-tune gasket compression for a customized typing feel.

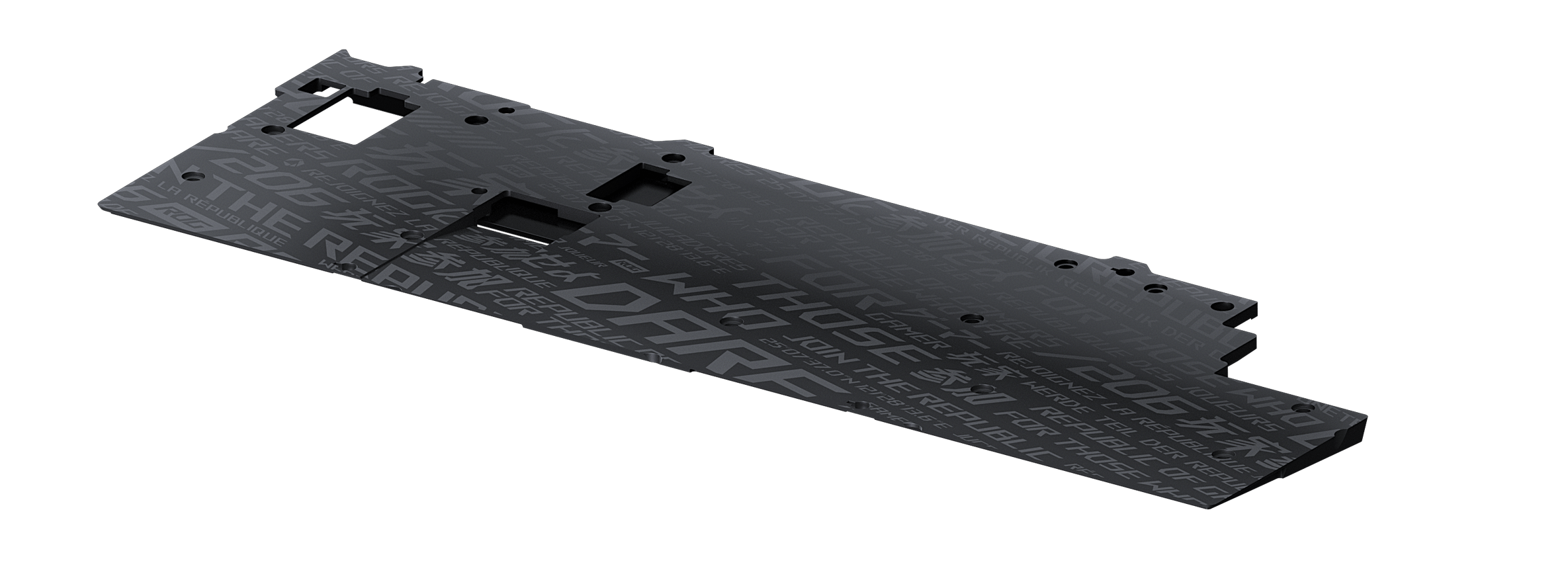

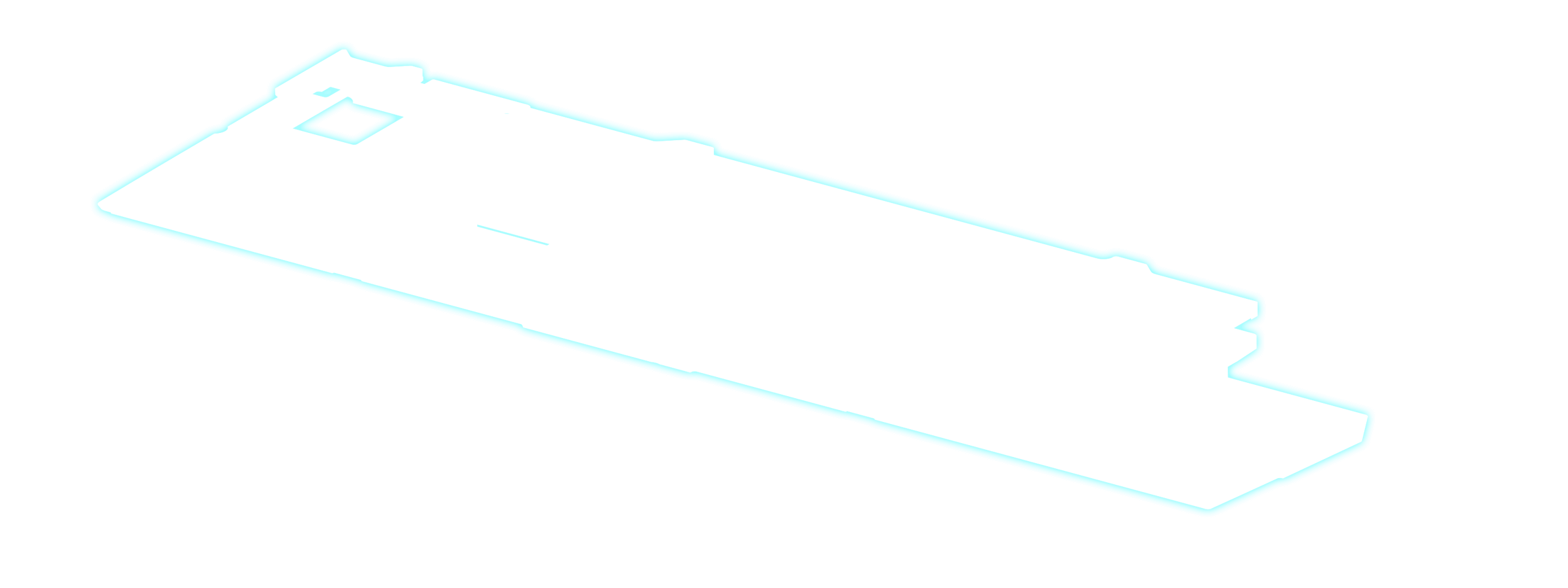

  • Silicone Pad

    Minimizes internal echoes to maintain a cleaner, more refined sound profile.

ROG HE Platform

ROG HE is a new platform with structural upgrades that deliver improved stability and performance. It is a socket platform identifier for ROG keyboards using Hall Effect switches, supporting hot-swappable magnetic switch compatibility. Within the HE Platform, magnetic switches can be shared across all supported ROG HE keyboards and will support future upgrades within the same socket.

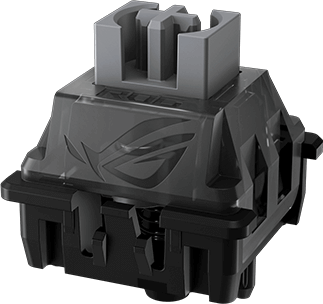

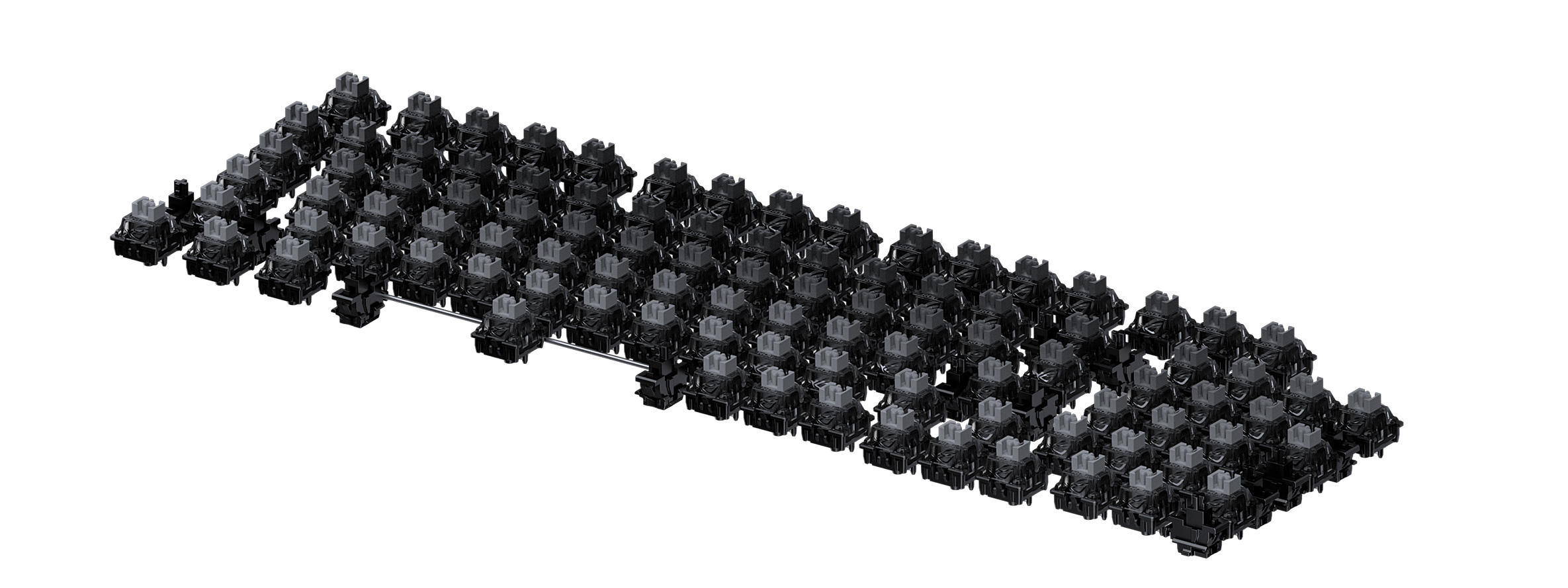

ROG HFX V2 Magnetic Switches

This latest pre-lubed magnetic switch delivers solid, ultra-precise feel with lightning-fast responsiveness along with a 100-million-keystroke lifespan. The polycarbonate top housing and POM plastic stem and bottom housing ensure ultrasmooth keystrokes, while the walled-stem design enhances stability and keeps out dust and debris. This results in consistently smooth, reliable, and precise keypresses when gaming or typing.

  • 3.5 mm

    Travel Distance

  • 32 gf

    Initial Force

  • 49 gf

    Total Force

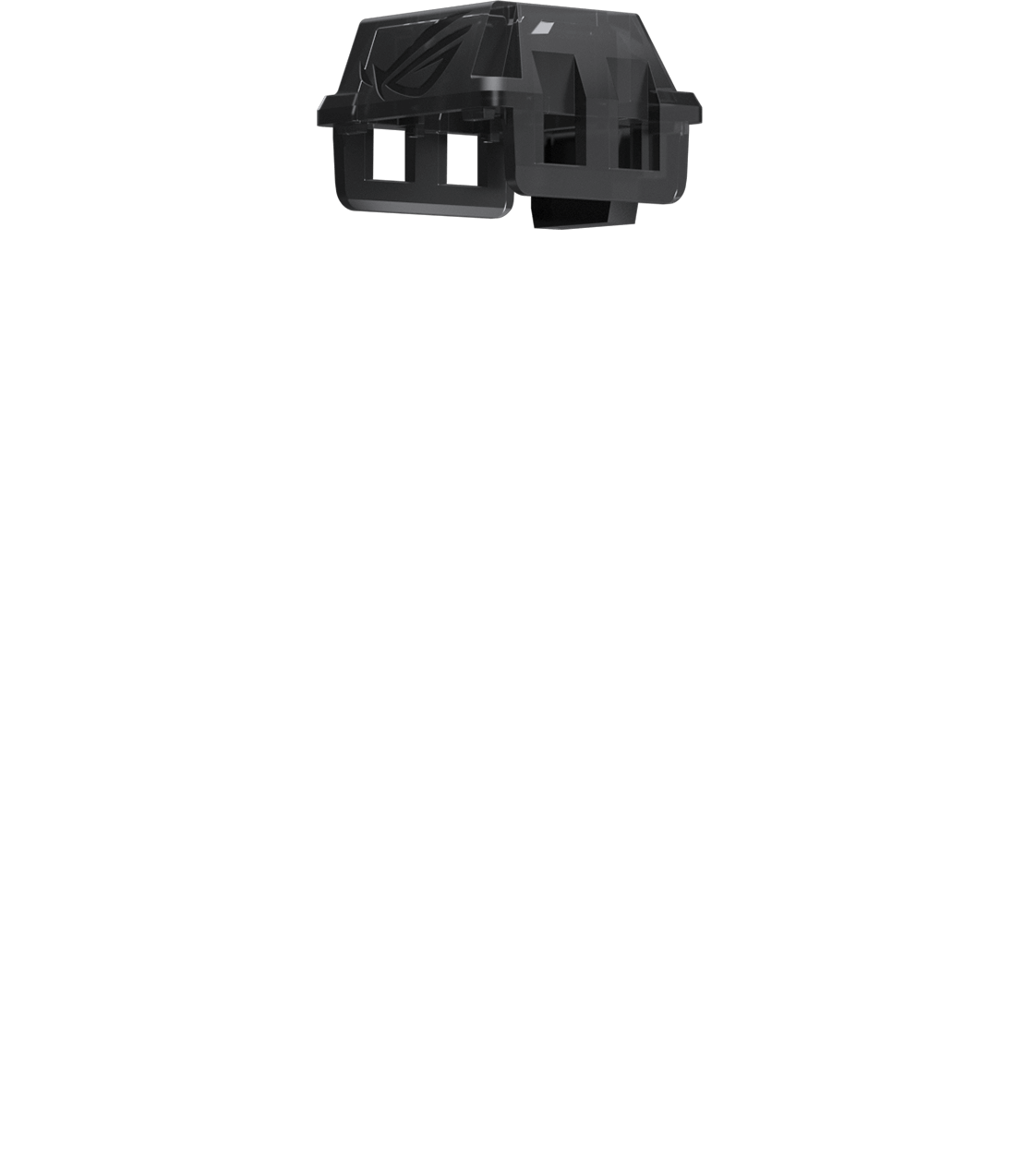

ROG HFX V2 Magnetic Switch Explosion View

  1. Upper Housing

    PC top housing with highly polished stem contact areas ensures ultra-smooth key actuation.

  2. Compatible with Aftermarket Keycaps

    Standard cross-shaped stem design ensures compatibility with most keycaps, allowing users to customize their setup.

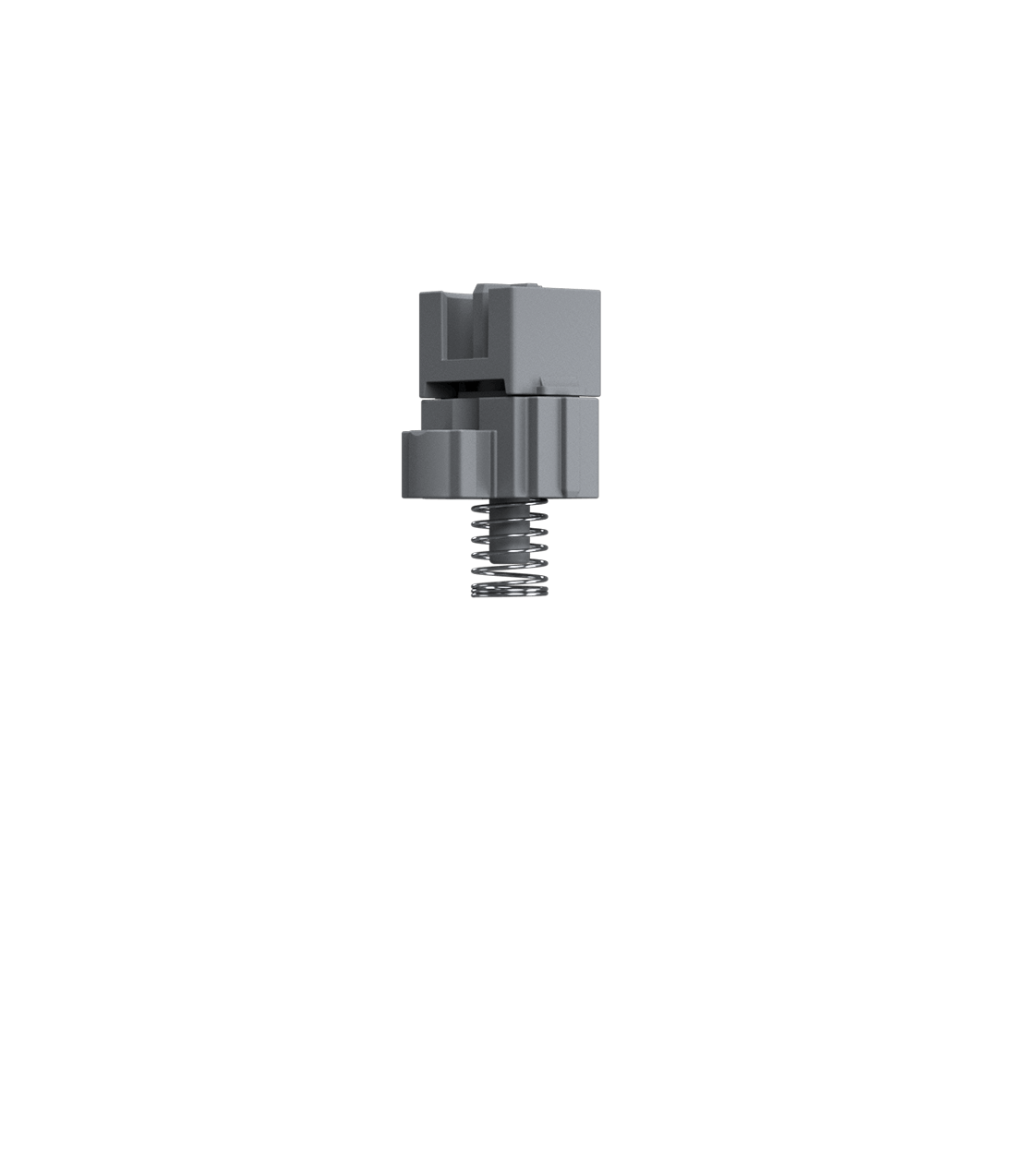

  3. Switch Stem

    Composite POM material enables a low friction coefficient for exceptionally smooth keystrokes.

  4. Snap-fit Design

    A unique snap-fit mechanism prevents key wobble from affecting magnet movement, ensuring precise and accurate actuation.

  5. Walled Stem Design

    Enhance keystroke stability and prevent dust intrusion while maintaining compatibility with most keycaps.

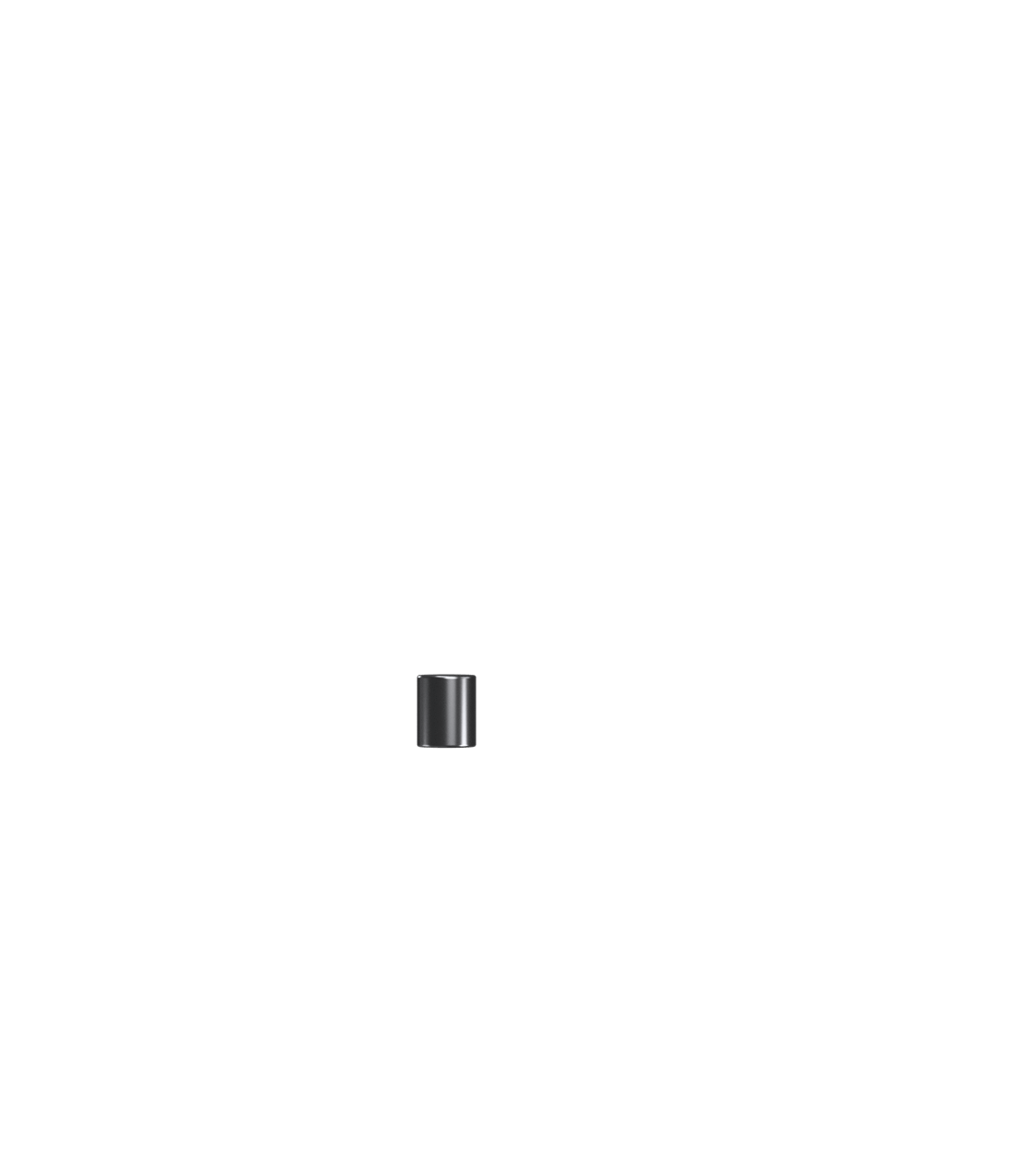

  6. Larger Magnet

    Enlarged magnet boosts magnetic flux for even greater precision and responsiveness, reducing risk of accidental or missed keystrokes.

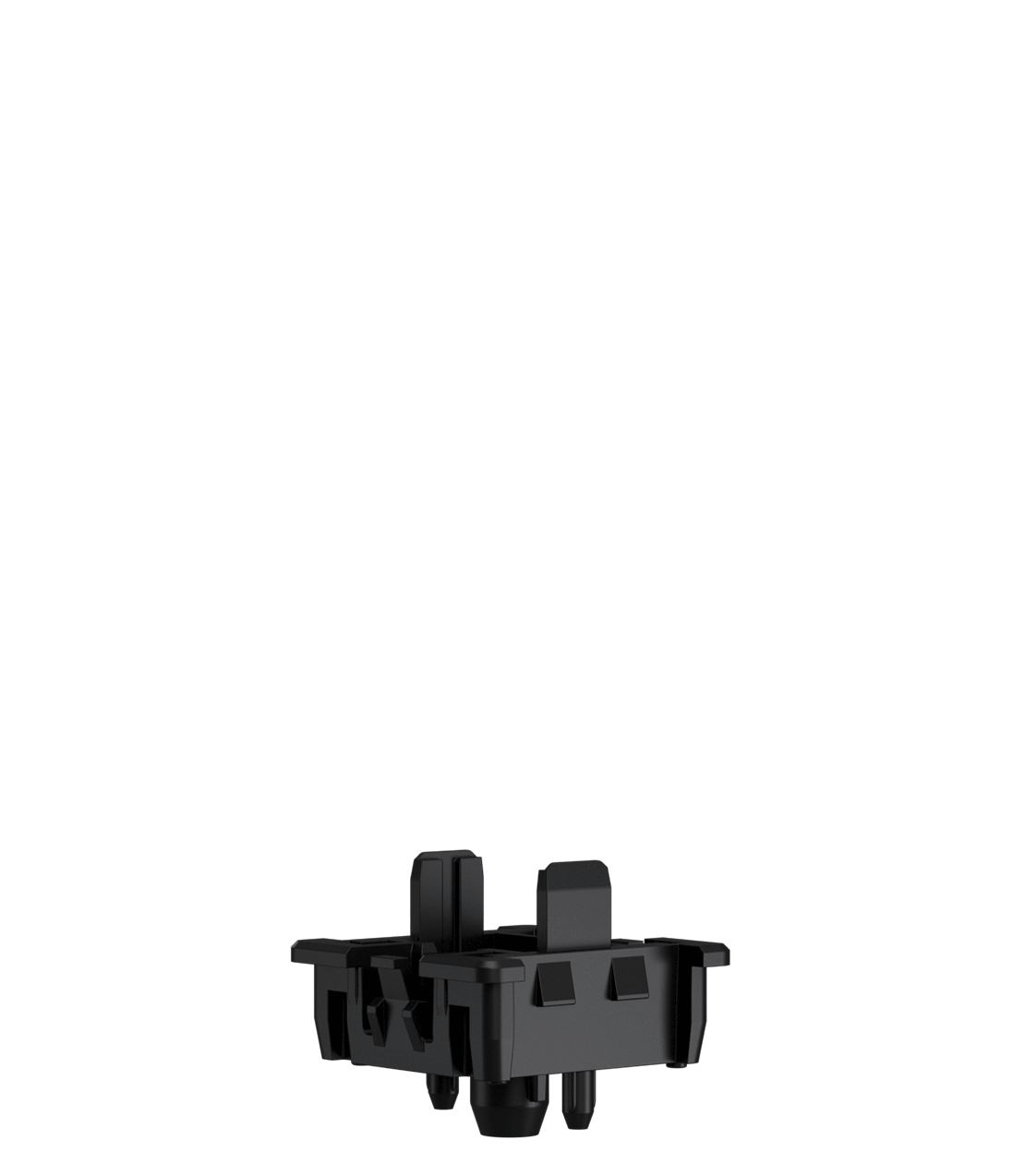

  7. Based housing

    POM bottom housing delivers a deeper, more refined keystroke sound.

ROG Keyboard Technology

  • Customizable Actuation Point

    With the ROG Hall sensor and HFX V2 magnetic switches, the 0.1–3.5 mm actuation range of the ROG Azoth 96 HE can be adjusted in precise 0.01mm increments. The actuation point can be tweaked via the three-way knob or web-based Gear Link interface.

  • ROG Hall Sensor Calibrator

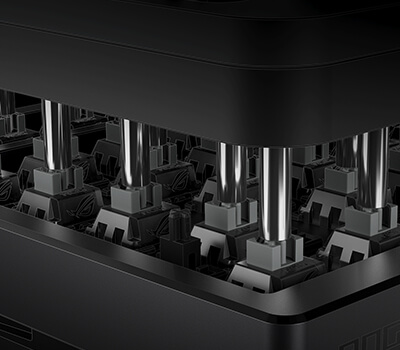

    ROG Hall Effect Technology

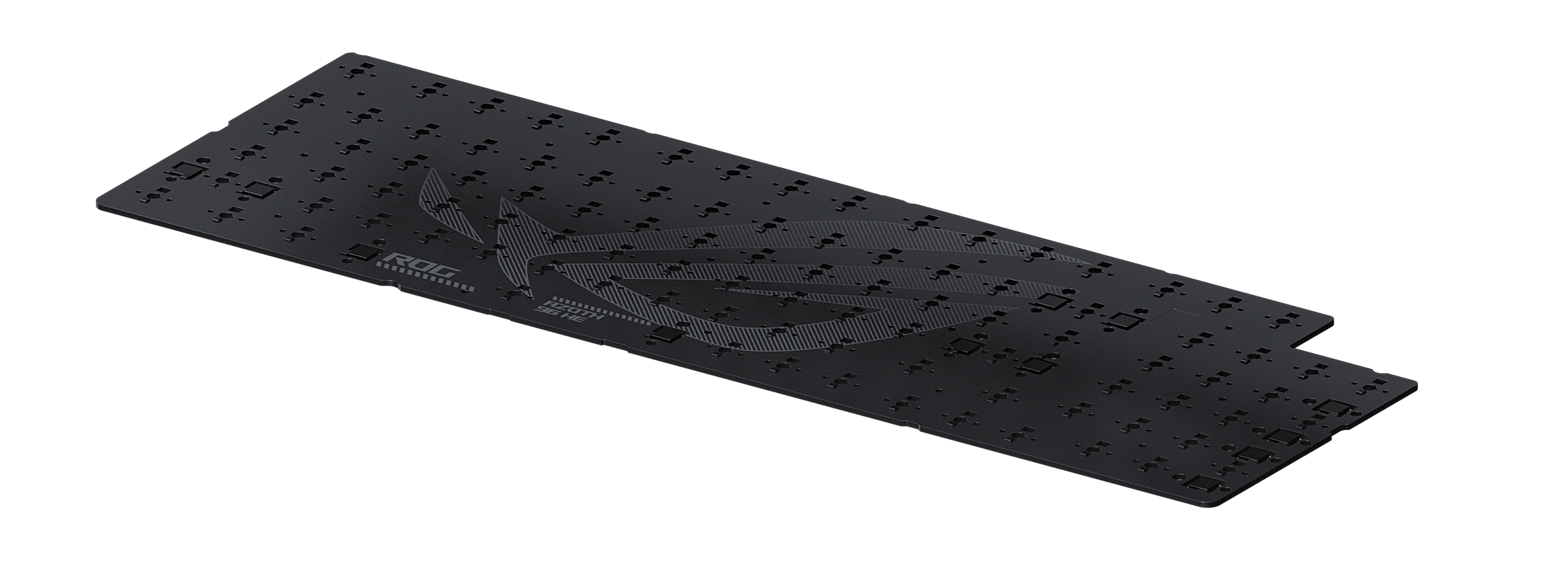

    Leveraging the increased magnetic flux tolerance of the HFX V2 magnetic switches, the IC is directly mounted on the PCB, allowing it to be positioned closer to the magnet without being affected by board thickness. This further enhances magnetic sensing accuracy without affecting saturation.

  • Mechanical Switch vs. Magnetic Switch

    Traditional mechanical switches require a return to the reset point before the next click registers. With ROG HFX V2 magnetic switches and the Rapid Trigger feature, each switch resets instantly as it moves upward, delivering maximum counter-strafing potential with minimal effort.

Speed Tap Mode

When activated, the keyboard will prioritize the latest key press and automatically release the previous input when two keys are pressed in quick succession. This means that in FPS games, pressing two opposing directional keys (e.g., A + D) will no longer cause the character to stop moving; instead, directional changes can now be done immediately without releasing the previous key, eliminating any time gap for counter-strafing and ensuring precise aim every time.

*Speed Tap feature is turned off by default. Simultaneously press and hold Fn + Caps keys for 1 second to activate.

Superb Connectivity

The Azoth 96 HE features tri-mode connectivity, enabling seamless connections via ROG SpeedNova wireless technology, Bluetooth®, or wired USB. Experience an ultra-responsive 8000 Hz polling rate in ROG SpeedNova and wired USB modes, with input refresh rates up to 8X faster than most gaming keyboards—reducing delay from 1ms to just 0.125ms for precise, real-time actions.

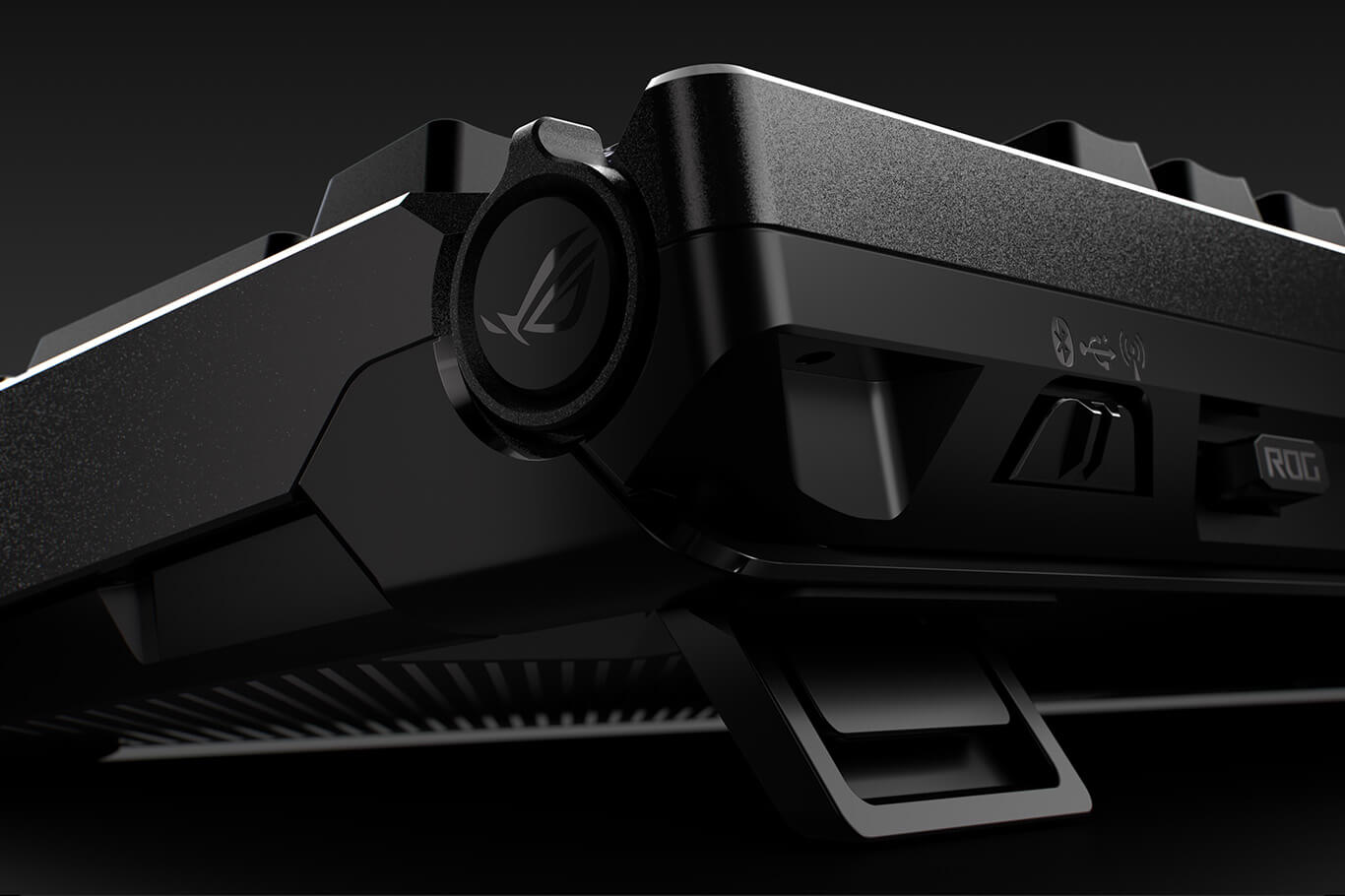

ROG Azoth 96 HE focused view, showcasing three-way knob and connectivity toggle

Zone Mode

Zone mode unlocks peak competitive performance while disabling features like RGB lighting. Once enabled, gaming-critical keys are automatically set to an 8000Hz polling rate by default, while lesser-used keys are reduced to 250Hz. The polling rate for each key can be further customized to user preferences.

*Simultaneously press Fn + ` keys to activate.
**Selected keys are preset for optimized performance.

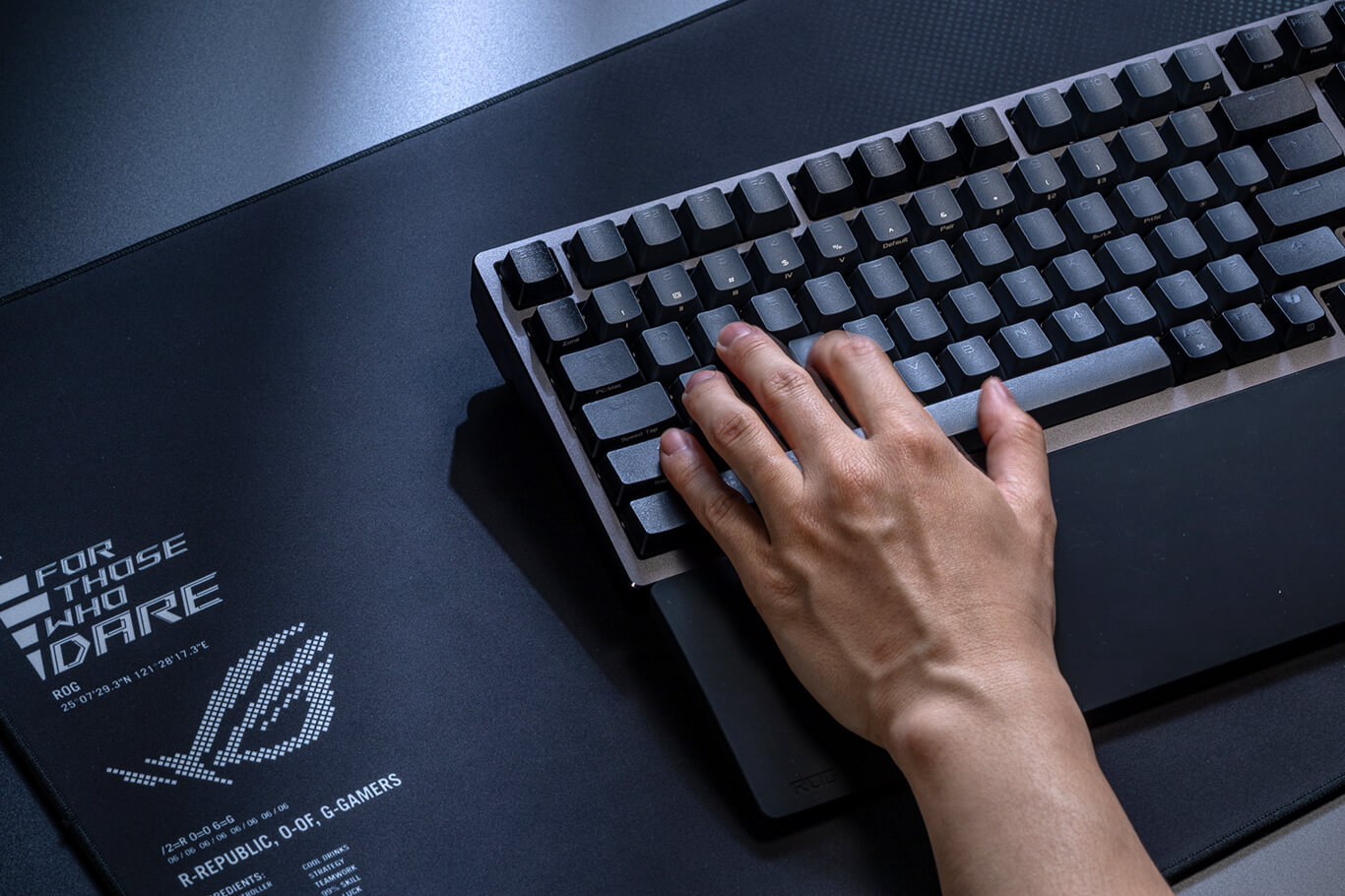

Zone Mode scenario shot

Hands-On with your Custom Keyboard

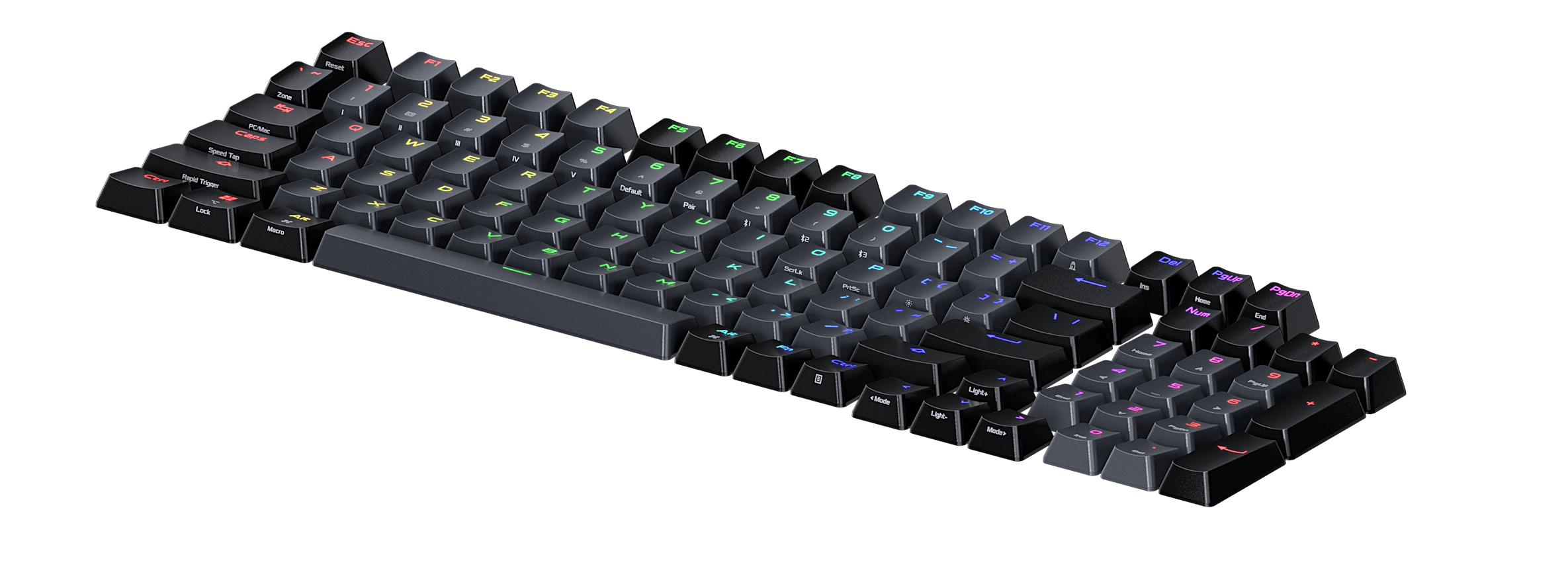

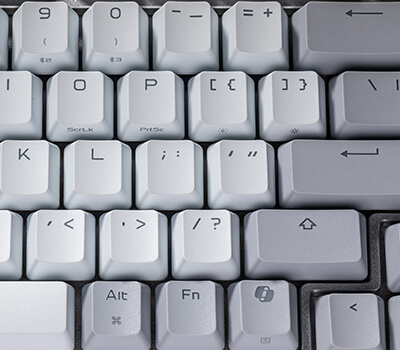

  • ROG PBT Doubleshot Keycaps

    ROG PBT doubleshot keycaps provide a premium feel and offer long-lasting durability. Key design has been optimized with mid-height keycaps and a shorter stem to reduce key wobble, providing a more comfortable user experience.

    *Keycap material may vary by region.

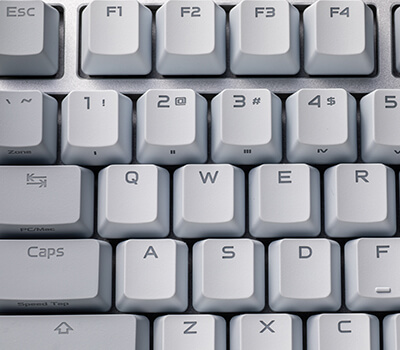

  • ROG UV-Coated ABS Keycaps

    ROG UV-coated ABS keycaps utilize a layer of hard UV coating to provide superb abrasion resistance protection against keycap shining.

    *Keycap material may vary by region.

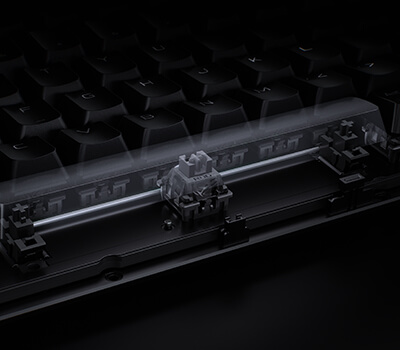

  • ROG Keyboard Stabilizer

    The pre-lubed keyboard stabilizer has been specially tuned with gamers in mind; it produces less friction, allowing long keys such as Spacebar, Shift and Enter to deliver keystrokes that stay true to the original switch feel.
