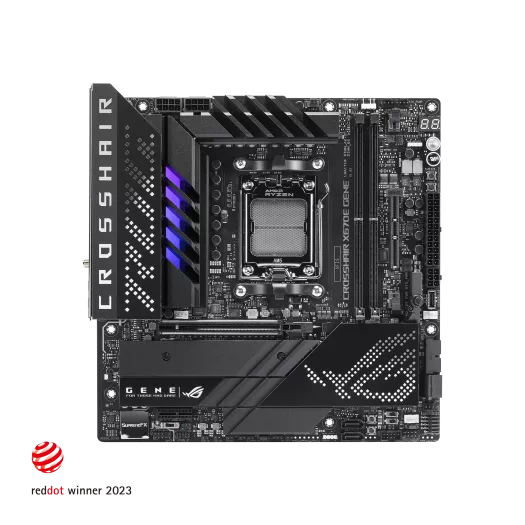

ROG CROSSHAIR X670E GENE
AMD X670 MATX motherboard with 16+2 power stages, DDR5, Three M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ support, Dual USB4® ports., PCIe® 5.0, Onboard Wi-Fi 6E and Aura Sync RGB lighting
- AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
- Intelligent Control: ASUS-exclusive tools including AI Cooling II, AI Networking, Two-Way AI Noise-Cancelation for easy configuration
- Robust Power Solution: 16+2 teamed power stages rated for 110A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, ROG GEN-Z.2, high-conductivity thermal pad, triple M.2 heatsinks and single M.2 with embedded backplate
- High-Performance Networking: Onboard Wi-Fi 6E, Intel® 2.5 Gb Ethernet, and ASUS LANGaurd
- Fastest Gaming Connectivity: PCIe® 5.0, Gen 5 M.2 onboard, ROG GEN-Z.2 card with PCIe 5.0 support, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ support, dual USB4® Type-C ports
- Industry-Leading Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier for pinpoint positioning and dynamics
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and two addressable Gen 2 RGB headers
- DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Graphics Card Holder
- Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard
** TUF Gaming AIO mounting kits are directly compatible with AM5 platforms, so no mounting kit request is necessary.
ROG Crosshair X670E Gene
Formed by splicing the ROG DNA and mixing in an SFF enzyme, the ROG Crosshair X670E Gene is a mATX powerhouse that lets you have it all. With bulked-up power delivery and heatsinks, it dishes up a full-fat serving of AMD Ryzen™ 7000 Series processors, alongside a digestible blend of PCIe 5.0, DDR5, WiFi 6E, and USB4 for enthusiasts that want a compact AM5 build on the desktop.
-
Robust 16 + 2 teamed power solution rated for 110A per stage
-
Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
-
MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
-
Both the on-board M.2 slot and x16 slot are PCIe Gen 5-ready
-
ROG GEN-Z.2 adds a Gen 5 and Gen 4 M.2 slot inside a DIY-friendly heatsink shell
-
AI Cooling II uniquely balances noise and thermals for your system with a single click
-
Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
-
Dual USB4 Type-C® ports for up to 40 Gbps bi-directional bandwidth
SPEC OVERVIEW
- Performance
- Cooling
- Gaming Immersion
- Connectivity
- DIY friendly
Extreme Power & Performance
-
DUAL PROCOOL II POWER
CONNECTORS - 16 + 2 POWER STAGES
-
EXPANSION SLOTS
・ 1 x PCIe 5.0 x16 Safeslot
・ 1 x PCIe 4.0 x1 slot
- AMD AM5 SOCKET for AMD Ryzen™ 7000 Series Desktop Processors
-
DDR5, 2 X DIMM
・ Dual Channel
-
M.2 SLOT 2280 (PCIe 5.0 x4)
ROG GEN-Z.2
・ 1 x M.2 22110 (PCIe 5.0 x4)
・ 1 x M.2 22110 (PCIe 4.0 x4)
Comprehensive Cooling
- INTEGRATED I/O COVER & VRM HEATSINKS
-
M.2 HEATSINK WITH
M.2 BACKPLATE - MULTIPLE 4-PIN FAN HEADERS
- BUNDLED ROG GEN-Z.2 WITH M.2 HEATSINKS AND THERMAL PADS
Total Gaming Immersion
-
I/O ZONE AURA LIGHTING
AURA LIGHTING
-
SUPREMEFX ALC4080 AUDIO CODEC
・ Savitech SV3H712 AMP
・ 120 dB SNR stereo playback output
・ 113 dB SNR recording input
・ Gold-plated audio jacks
SONIC STUDIO III + SONIC STUDIO VIRTUAL MIXER + SONIC SUITE COMPANION SONIC RADAR III DTS® SOUND UNBOUND -
2 X 3-PIN ADDRESSABLE GEN 2 RGB HEADERS
- 1 X 4-PIN AURA RGB HEADER
Full Connectivity
- BIOS FLASHBACK™ BUTTON
- CLEAR CMOS BUTTON
- 1 X PS/2 KEYBOARD/MOUSE COMBO PORT
- 2 X USB 2.0 PORTS
- 2 X USB4® PORTS (USB TYPE-C®)
-
6 X USB 3.2 GEN 2 PORTS
(5 x TYPE-A + 1 X USB TYPE-C®)
- INTEL® 2.5G ETHERNET
- WiFi 6E
- OPTICAL S/PDIF OUT
- 5 X GOLD-PLATED AUDIO JACKS
-
1 X USB 3.2 GEN 2X2
USB Type-C® front panel connector supports QC4+
- 4 X SATA 6GB/S
DIY Friendly
- ROG PATENTED PRE-MOUNTED I/O SHIELD
-
ESD GUARDS
Providing greater electrostatic protection than the industry standard, ESD Guards cover the USB, audio and LAN ports.
-
TRUEVOLT USB
USB power supplies a rock-steady 5 volts to all USB ports, minimizing power fluctuations for minimal data loss.
-
SAFESLOT
Reinforced to protect the motherboard and PCIe expansion card from damage.
-
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
-
2 x Q-DIMM
One-sided clips for super simple and secure handling of memory modules.
-
Q-CODE
LED panel that shows 2-digit codes to indicate power status and potential problems for quick diagnosis.
-
FLEXKEY
At its default, FlexKey functions as a system reset button, but it can also be easily reassigned to quickly turn Aura lighting on or off, activate Safe Boot, or enter the BIOS.
-
PCIE SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
-
Q-CONNECTOR
Simple adapter that helps arrange front-panel cables in an orderly manner.
SPEC OVERVIEW
- Overclocking
- Power Solution
- Memory
PERFORMANCE
The ROG Crosshair X670E Gene features a sixteen-pack power solution specifically grown to handle the multi-threaded muscle of AMD Ryzen™ 7000 Series processors. Combined with a streamlined DDR5 layout, this nimble powerhouse dishes out hyperspeed performance. And ROG makes it as easy to access its natural edge through a suite of unique software and firmware technologies catering to beginners and veterans alike.
ROG OVERCLOCKING TECHNOLOGIES
Take Ryzen beyond the already impressive sum of its parts. Dynamic OC Switcher and Ryzen Core Flex create additional frequency waypoints for single and multi-threaded workloads, allowing Ryzen to break boundaries and achieve peak performance in all games and apps.
- AI Overclocking
- Dynamic OC Switcher
- Ryzen Core Flex
- Asynchronous Clock
- Overclocker's Toolkit
- ROG True Voltician
- PBO Enhancement
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
What's New?
As the first foray of AI Overclocking on an AMD architecture, the set of parameters has changed substantially, but voltage and clock speeds are still the primary targets for adjustment. Every core has a recommended VID and frequency, with the latter based on a combination of ratio and Asynchronous BCLK tuning.
Predictive settings in the utility are designed to work in tandem with Precision Boost Overdrive (PBO), but they go one step further by enhancing the values for EDC, TDC, and PPT, as well as tuning the curve optimizer.
Finally, by enabling the Dynamic OC Switcher, AI Overclocking ensures that the CPU is using ideal settings whether in single- or multi-threaded workloads.
Dynamic OC Switcher
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher lets you use them both, dynamically engaging PBO or your preferred settings based on the CPU current or temperature.
Dynamic
OC Switcher
Temp Current
MANUAL OC
Ex: > 35A, < 80°Performance
AMD PBO
Performance
Example: If a user sets thresholds for current and temperature as shown, once CPU current exceeds 35A, the manual overclock engages until the temperature reaches 80°. At all other times, Precision Boost Overdrive will be used.
Ryzen Core Flex
Ryzen Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
Ryzen
Core Flex
Temp Current
Voltage
MAX PERFORMANCE
MEDIUM
SAFE & STABLE
EXAMPLE: BASE CLOCK
For this CPU, the base clock (BCLK) can be stably increased to give an extra boost during lightly threaded workloads.
At Level 1, the BCLK is set to 104, and it remains at that frequency until the current reaches 35A.
Then the BCLK drops down to 102, and stays in that Level 2 range up until 55A.
From that point on, the CPU is using most or all of its threads, so the BCLK scales back to the default 100.
EXAMPLE: EDC
By managing the Electrical Design Current (EDC) in tandem with the total current, this CPU can gain extra performance for short, demanding bursts.
During lightly threaded workloads, below 35A, the Level 1 EDC is set to a low value, in this case 60.
As more cores are needed, the EDC is set to 120, which was found by this user to be a sweet spot for performance.
Once the CPU passes 70A, it is in multi-threaded territory, where it was found that a high EDC of 250 gave optimal performance.
EXAMPLE: PPT
In order to let the CPU cool off if its temperatures go too high, this user constrains the Package Power Target (PPT) when thermals increase. Specifically the short-term value (“Fast”) is used.
Until the CPU reaches 70°, it can run at full performance, so 350W is set to give plenty of overhead.
At that point, the power limit reduces to 220W, to let the CPU start reducing heat.
If it is still under sustained load and keeps getting hotter, then a more stringent 165W PPT is set at 85°.
Asynchronous Clock
For next-level frequency flexibility, the ROG Crosshair X670E Gene features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
CPU Clock
Separate CPU BCLK from other components for a stable overclocking edge
Crystal
Oscillator
Clock
Generator
SoC-Connected Components
ROG TRUE VOLTICIAN
For truly advanced performance optimization, the ROG Crosshair X670E Gene includes the ROG True Voltician, a miniature oscilloscope that connects to an onboard USB header and displays waveforms for the CPU Vcore, VCCIN, and System Agent rails. It can also be used to monitor a video card or power supply, and users can even run the True Voltician software on one PC while they get readings from another.
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
- EDC
- PPT
- TDC
- Fmax
- Scalar
OVERCLOCKER’S TOOLKIT
The ROG Overclocker’s Tooklit is a powerful set of hardware-level controls to enhance your overclocking experience. Some are quick and easy time savers, while others offer masterful functionality to help you smash benchmarks and break records.
-
ReTry Button
Instantly initiates a hard reset with just a press.
-
SAFE BOOT BUTTON
Instantly reset the PC and boot directly into Safe mode.
-
Slow Mode Switch
Reduces the CPU ratio to 8X to keep the system stable during setup for extreme overclocking.
-
RSVD Switch
Helps the system boot under extreme temperatures (≤ -120°C)
-
LN2 Mode
Jumper to enable special options and functions for liquid-nitrogen (LN2) overclocking.
-
Probelt
Includes nine integrated measurement points for advanced tuning.
-
BCLK Buttons
Adjust the BCLK frequency to improve system performance.
Teamed Power Architecture
Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
- A brief history
- A shift in CPU demands
- Bucking the trend
- Thermal performance
- High-quality components
Teamed
Power Stage Design
12V EPS IN
12V EPS IN
Conventional
Phase-doubled Design
12V EPS IN
12V EPS IN
-
ASUS became the first manufacturer to implement phase-doublers with the A8N32-SLI Deluxe motherboard, back in 2005. The board's VRM was lauded for elegantly overcoming the power handling capabilities of components that were available at the time while also reducing voltage ripple. Those benefits led to phase-doublers becoming universally accepted in the industry, and they are still used for similar purposes today.
-
Modern CPUs pack more cores than their predecessors, and the latest instruction sets allow them to crunch computationally dense workloads at an incredible pace. In addition, they consume less power at idle and can transition between load states much more quickly. These improvements necessitate a re-evaluation of power-design priorities because phase-doublers add a propagation delay that hampers transient response.
-
Fortunately, the latest integrated power components can handle higher currents than the devices of yesteryear, making it possible to implement a simple circuit topology that isn't hamstrung by the processing lag of phase-doublers. That's why the ROG Crosshair X670E Gene utilizes teamed power stages to deliver higher burst current per phase, while maintaining the thermal performance of phase-doubled designs.
-
Each VRM component serves a specific purpose. PWM controllers and phase-doublers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. The power stages feature low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom.
-
8+8 pins ProCool II power connectors
Two ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
-
16 + 2 power stages
The VRM features 16 + 2 power stages, each rated to handle 110 amps.
-
MicroFine alloy chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
-
10K black metallic capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
DDR5 Memory
Comprehensive memory tuning options are the cornerstone of ROG motherboards. With the Crosshair X670E lineup, you can extract all of the potential out of your DDR5 modules, regardless of if they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
- DDR5 Strength
- AEMP
DDR5 Strength
For those who want to fly past stock DDR5 speeds, the ROG Crosshair X670E Gene is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
- Heatsinks
- Headers
- Compatibility
COOLING
Meeting Ryzen thermal demands head-on, the ROG Crosshair X670E Gene wields hefty VRM, chipset, and M.2 heatsinks to keep everything running at top performance. To aid in airflow, the Gene boasts copious fan header support—a blessing for building in tight spaces. Once the rig is assembled, ROG tools make it easy to monitor and control fan speeds, and with the improved AI Cooling II utility, balancing system acoustics is better than ever.
Cooler by Design
-
VRM heatsinks and heatpipe
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
-
M.2 heatsink and backplate
Dedicated heatsinks on the front and back of the M.2 slot ensure that your drive delivers peak performance, even if airflow is restricted.
-
High-conductivity thermal pads
A high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink. For future maintenance, a replacement thermal pad can also be found in the package.
-
Chipset heatsink
A dedicated heatsink draws heat away from both chipsets to maintain optimum operating temperature.
Thermal Management
An extensive array of headers line the ROG Crosshair X670E Gene for precise cooling control and monitoring.
- Multiple temperature sources
- 4-pin PWM/DC fan headers
- AIO pump
-
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
-
Every onboard header auto-detects any PWM or DC fan.
-
A dedicated PWM/DC header for self-contained water-cooling setups.
COOLER COMPATIBILITY
The ROG Crosshair X670E Gene bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.
- PCIe 5.0
- USB Ports
- Networking
- Audio
CONNECTIVITY
Vast and fast. With PCIe 5.0 laced across the ROG Crosshair X670E Gene, loading and transfer times are nearly instantaneous. Plentiful USB lines the rear I/O, including two USB4® Type-C® ports capable of 40 GB/s speeds and 8K display output. Networking has a two-pronged attack with WiFi 6E and 2.5G LAN, and SupremeFX on-board audio keeps sound immersive and punchy.
PCIE 5.0
Fully embracing the new standard, the ROG Crosshair X670E Gene offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
- Onboard M.2 Slot
- ROG GEN-Z.2
- Expansion Slot
Onboard M.2 Slot
The ROG Crosshair X670E Gene features an onboard M.2 slot that is PCIe 5.0-ready to offer blistering 16 GB/s speeds.
ROG GEN-Z.2
The ROG GEN-Z.2 is the natural successor to the ROG DIMM.2 module. It inherits all the perks that made the original easy to install and use, and then raises the bar by adopting PCIE 5.0 on one slot and adding a suitably upgraded thermal solution to deal with the heat of next-gen drives.
Expansion Slot
The x16 expansion slot has undergone the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, it is also protected with SafeSlot retention brackets, and can be easily released thanks to the Q-Release button.
-
USB 3.2 GEN 2X2 TYPE-C® FRONT-PANEL CONNECTOR WITH QUICK CHARGE 4+
USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60W*.
* Requires a PCIe power supply cable to be plugged into the nearby 6-pin connector.
-
TWO USB4® TYPE-C® PORTS
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
-
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
-
INTEL 2.5G ETHERNET
Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, smooth lag-free gaming and high-res video streaming.
-
WiFi 6E Antenna
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.
-
Adjustable Design
Four-way positioning enables better signal reception.
-
Magnetic Base
A powerful magnetic base secures the antenna on the top or side of the PC case.
SupremeFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In the ROG Crosshair X670E Gene, SupremeFX features the ALC4080 codec for immersive 384 kHz resolution audio across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving a wide variety of gaming headsets and high-fidelity headphones.
››› Learn more about ROG audio technology
- Audio line shielding
- Savitech SV3H712 Amplifier
- ALC4080 Codec
- Switching MOSFETS
- Capacitors
-
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
-
The integrated Savitech amplifier greatly improves THD+N performance from 72 dB to 83 dB to deliver pristine audio quality.
-
Instead of the conventional high definition audio (HDA) interface, the ALC4080 codec uses a USB interface to deliver studio-level sound reaching up to 32-bit 384 kHz audio resolution.
-
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
-
Fine-quality components that produce a warmer, natural sound with exceptional clarity and fidelity.
- Intelligent Control
- AI Suite 3
- BIOS
- Differential Sensing
OPTIMIZATION
A wealth of intuitive tools are at your fingertips so that you can optimize system performance quickly and efficiently while still having the flexibility to tinker to your heart’s content.
AI SUITE 3
The AI Suite 3 dashboard contains a set of intuitive controls that boost CPU performance while maintaining system stability.
- CPU Performance Boost
- Precise Digital Power Control
- Turbo Core app
CPU PERFORMANCE BOOST
The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.
PRECISE DIGITAL POWER CONTROL
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
TURBO CORE APP
Modern processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
- Advanced mode
- EZ mode
When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
Advanced mode
-
My Favorites
Quickly locate tuning options and add preferred tools to your favorites list.
-
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
-
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
-
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
-
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
-
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
-
SATA Port Renaming
Rename SATA ports for easy identification.
-
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
-
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
Designed to simplify setup, EZ mode presents vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
EZ mode
-
Intuitive graphical fan controls
Fine-tune individual fans simply by dragging a curve with the mouse.
-
Storage information
View SATA port details for easy device recognition.
-
Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.
-
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Accurate Voltage Monitoring
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Crosshair X670E Gene features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
- AI Cooling II
- TWO-WAY AI NOISE CANCELATION
- AI Networking
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Two-way AI Noice Cancelation
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
Hear the difference
AI ON
AI OFF
AI Networking
GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.
- Aura Sync
- Armoury Crate
- Gaming Audio
- AIDA64 Extreme
- Graphics Card Holder
PERSONALIZATION
The powerful core of the ROG Crosshair X670E Gene is graced by reflective plating across the board, contrasted by a dash of lighting that shines between grooves in the VRM heatsink. Sync the RGB glow with your other gear through Armoury Crate to bring out the unique personality of your build.
GROW YOUR GAMING WORLD WITH AURA SYNC
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
-
Static
-
Breathing
-
Strobing
-
Rainbow
-
Color cycle
-
Starry night
-
Music effect
-
Smart
-
Adaptive color
-
Dark
ADDRESSABLE GEN 2 RGB HEADERS
The addressable Gen 2 RGB headers can be controlled with Aura software, which automatically tailors your preferred lighting effects to the number of LEDs present in the connected gear or strip. The new headers also offer backward-compatibility with existing Aura RGB components.
- Sonic Studio III
- DTS : SOUND UNBOUND
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
- Sonic Studio link
- App-specific profiles
- Sonic Studio virtual mixer
Sonic Studio link
Easily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device.
App-specific profiles
Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.
Sonic Studio virtual mixer
Combine audio output from selected apps with audio from the microphone input and stream the compiled mix.
DTS : Sound Unbound
Through the pre-loaded DTS® Sound Unbound™ app, the ROG Crosshair X670E Gene envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with developers for supported titles.
-
Stereo Sound
-
Surround Sound
-
Spatial Sound
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers.
You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.
Download Link ›››
- AURA SYNC
- Device
- Tool
- Fan Control
- Gaming News Highlight
- ASUS Account Management
AIDA64 Extreme
The ROG Crosshair X670E series includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and later models.
Learn More About AIDA64 >
- ROG x AIDA64 Extreme
- Hardware Monitor Display
Graphics Card Holder
Featuring a magnetic base and adjustable slider and hinge, the ROG Graphics Card Holder banishes sag and provides support where it’s needed most.
CUSTOMER REVIEWS
Recommended Products
ROG CROSSHAIR X670E HERO
AMD X670 ATX motherboard with 18 + 2 power stages, DDR5 support, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ support, dual USB4®, PCIe® 5.0, onboard Wi-Fi 6E and Aura Sync RGB lighting
ROG STRIX X670E-I GAMING WIFI
AMD X670 Mini-ITX motherboard with 10 + 2 power stages, ROG Strix Hive, EZ mode PBO button, DDR5 support, two M.2 slots and a M.2 Gen 5 & chipset heatsink, PCIe® 5.0 NVMe® SSD support, onboard WiFi 6E, Dynamic OC Switcher, Ryzen Core Flex, AI Cooling II, two USB4® Type-C ports, SATA and Aura Sync RGB lighting
ROG STRIX B650E-E GAMING WIFI
AMD B650E AM5 ATX motherboard with 16 + 2 power stages, DDR5, PCIe® 5.0 NVMe® SSD support, two PCIe 5.0 x16 SafeSlots and one with Q-Release, USB 3.2 Gen 2x2 Type-C® rear I/O port and USB 3.2 Gen 2 Type-C® front-panel connector, WiFi 6E, and Aura Sync RGB lighting
ROG STRIX B650E-F GAMING WIFI
AMD B650E AM5 ATX motherboard with 12 + 2 power stages, DDR5, PCIe® 5.0 NVMe® SSD support, one PCIe 5.0 x16 SafeSlot with Q-Release, USB 3.2 Gen 2x2 Type-C® rear I/O port, USB 3.2 Gen 2 Type-C® front-panel connector, WiFi 6E, and Aura Sync RGB lighting
ROG STRIX B650-A GAMING WIFI
AMD B650 AM5 ATX motherboard with 12 + 2 power stages, DDR5, PCIe® 5.0 NVMe® SSD support, a PCIe 4.0 x16 SafeSlot with Q-Release, USB 3.2 Gen 2x2 Type-C® rear I/O port, USB 3.2 Gen 2 Type-C® front-panel connector, WiFi 6E, and Aura Sync RGB lighting
ROG STRIX B650E-I GAMING WIFI
AMD B650 mini-ITX motherboard with 10 + 2 power stages, DDR5 support, PCIe® 5.0 NVMe® SSD support, one PCIe 5.0 x16 Safeslot, USB 3.2 Gen 2 Type-C® connector, Onboard WiFi 6E, and Aura Sync RGB lighting
ROG STRIX X870-I GAMING WIFI
AMD X870 Mini-ITX motherboard with 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe® 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4® ports, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
ROG CROSSHAIR X870E HERO
AMD X870E (AM5 Socket) ATX motherboard, Advanced AI PC-ready, 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP & NitroPath DRAM Technology, Wi-Fi 7 with ASUS WiFi Q-Antenna, five M.2 slots onboard, three PCIe® 5.0 NVMe® SSD slots onboard, SlimSAS connector, PCIe® 5.0 x16 SafeSlots with PCIe® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4® ports, two USB 20Gbps Type-C® front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), AI Overclocking, AI Cooling II, AI Networking II, and Polymo Lighting II
Related Products
ROG STRIX XF 120
Whisper-quiet, 4-pin PWM fan for PC cases, radiators or CPU cooling
ROG Eye S
Full HD 60 fps webcam with AI-powered, noise-canceling mics for superior live-streaming audio and a compact and foldable design that’s easy to carry and attach instantly to any laptop
ROG Herculx Graphics Card Holder
The robust ROG Herculx Graphics Card Holder securely fortifies even the most powerful cards, plus offers an easy-to-use design and extensive compatibility.
ROG Strix SQ7 Gen4 SSD 1TB
1 TB M.2 PCIe® Gen 4 NVMe® , internal solid state drive with DRAM buffering and large SLC cache, up to 7000 MB/s maximum file transfer speed, compatible with PC and PlayStation® ™5, TCG Opal and AES 256-bit encryption, plus NTI Backup Now EZ software
ROG Raikiri Pro
The ROG Raikiri Pro PC Controller features an OLED display, four rear buttons, selectable triggers, ESS DAC, customizable joystick sensitivity and response curves, and tri-mode connectivity. It’s ideal to play in wired USB-C, 2.4GHz, or Bluetooth on PCs
ROG Ally Travel Case
Keep your ROG Ally safe on the go with the ROG Ally travel case. With a soft case material and a fleece inner liner, the Ally will be protected in any bag or backpack.
ROG Herculx EVA-02 Edition
The robust ROG Herculx EVA-02 Edition securely fortifies even the most powerful cards, plus offers an easy-to-use design and extensive compatibility.
ROG Carnyx
Professional cardioid condenser gaming microphone features a studio-grade 25 mm condenser capsule, 192 kHz / 24-bit sampling rate, high-pass filter, built-in pop filter, premium metal shock mount, and ASUS Aura Sync RGB lighting.
Disclaimer
- The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
- For pricing information, ASUS is only entitled to set a recommendation resale price. All resellers are free to set their own price as they wish.
- Price may not include extra fee, including tax、shipping、handling、recycling fee.
