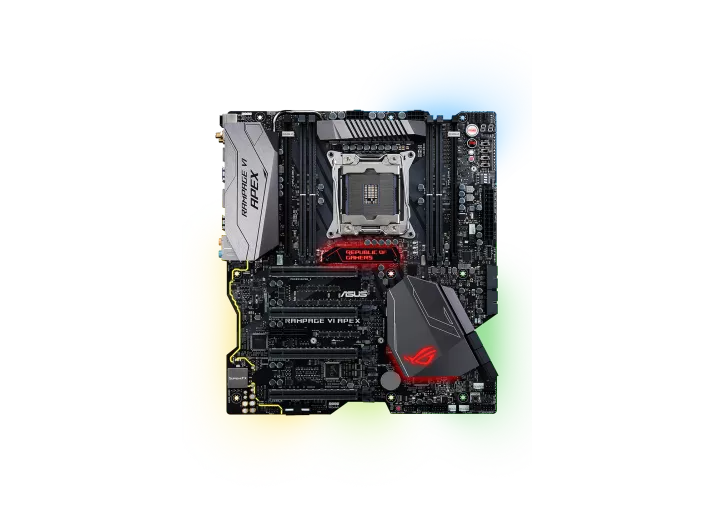

ROG RAMPAGE VI APEX
Intel X299 EATX enthusiast motherboard with record-breaking performance, Aura Sync RGB LEDs, quad-channel DDR4 4133MHz+, dual DIMM.2 expansion cards (up to four M.2 SSDs), and USB 3.1
- Intel® Core™ X Series processor family: Ready for the latest LGA 2066 socket CPUs.
- Dual-Channel DDR4 4500MHz+/Quad-channel 4133MHz+ (O.C.) supported: Push memory to the max for smoother, faster performance.
- Engineered for performance: Streamlined layout breaks all boundaries.
- Dual ROG DIMM.2: Two dual M.2 expansion cards with fan mounting kits that allow users to install their own fans to prevent throttling.
- X-shaped PCB: Unique cutouts allow Aura Sync lighting to shine through.
- Aura Sync RGB LED: Stunning synchronized effects and two Aura 4-pin RGB-strip headers.
- Illuminated customizable nameplate: Your board, your insignia.
- Overclocker’s Toolkit: hardware-level controls to aid the overclocking experience.
- Condensation Detection: Onboard condensation detection circuits for subzero cooling
- ROG Water Cooling Zone: Onboard flow rate and temp probe headers allow you to monitor vital water cooling stats.
- Made for great gaming: 5-Way Optimization, SupremeFX audio and Intel gigabit Ethernet.
- Best protection: SafeSlot, SafeDIMM and premium components for maximum durability.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/kv/kv.jpg)
THE EXTREME OC BOARD FOR ENTHUSIASTS
Deftly tailored by ROG engineers, and tuned to perfection by the world’s best overclockers, the Rampage VI Apex is purpose-built to break performance records. Featuring an optimized 4-DIMM memory trace layout, innovative dual DIMM.2 modules that keep your M.2 SSDs cool, and a distinct X-shaped PCB that’s tactfully accented with Aura RGB lighting, the Apex melds no-compromise engineering with radical aesthetics. Build your next showcase rig and push the X299 platform to the limits with the Rampage VI Apex.
![play](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/play_btn.png)
- 1
Clr CMOS
BIOS Flashback® button - 2 2x2 802.11ac Wi-Fi
- 3
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port - 4
Intel I219-V
LANGuard
USB 3.1 Gen 2 Ports1 Type-A + 1 Type-C
- 5
10 x USB 3.1 Gen 1 Ports
(4 @ mid-board) - 6
Multi-GPU SLI / CFX support
4 x PCIe 3.0 x16 SafeSlots (CPU)
1 x PCIe 3.0 x4 slot (PCH) - 7
Illuminated customizable nameplate
- 8
SupremeFX S1220A CODEC
・ Impedance sense for front and rear
・ 120dB SNR stereo playback output
・ 113dB SNR recording input - 9 2 x AURA 4-pin RGB headers
- 10 Dual CPU 8-PIN connectors
- 11
Overclocker’s Toolkit
・ Q-Code
・ LN2 Mode
・ Condensation Detect LEDs
・ Slow Mode Switch
・ ReTry Button
・ Safe Boot Button
・ MemOK! Button
・ ProbeIt
・ PCIe Switches - 12 3D-Printing Mount
- 13 Intel LGA2066 for Intel X-Series processors
- 14
2 x DIMM.2 Socket ( CPU+PCH )
・ 1 x M.2 2230~22110 (PCIe 3.0 x4 + SATA)
・ 3 x M.2 2230~22110 (PCIe 3.0 x4) - 15
1 x USB 3.1 front panel connector
- 16
DDR4 4500MHz+/Dual channel
DDR4 4133MHz+/Quad channel・ 4 x DIMM Quad/Dual Channel DDR4
・ XMP Support
・ SafeDIMM slots - 17 W_IN/OUT, W_Flow headers
- 18 Intel X299 Chipset
- 19 6 x SATA 6G ports
- 20 5 x USB 2.0 ports (3 @ mid-board)
built to BREAK LIMITS
WORLD RECORDS SMASHED
Rampage VI Apex is built to break world records — and it’s already done just that. With its optimized layout, high-quality components, and its ability to withstand the rigors of sub-zero operation with liquid-nitrogen (LN2) and helium (LHe), Apex has already smashed seven world records and scored 16 global first-places.* These include the highest CPU frequency for Intel Core i7 at 7.562GHz with four cores and eight threads — that’s a staggering 75.87% overclock of the chip‘s default 4.3GHz frequency!
* World records and global first-place positions were verified on 27 July 2017, and are recorded at HWBOT.org.![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/limits.png)
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/frequency_1.png)
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/frequency_2.png)
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/records_man1.png)
“With APEX, ASUS ROG managed to bring the LN2-OC optimizations onto a consumer board which also achieves best clocks for 24/7 overclocking. My go-to board for Skylake-X.”
Roman “der8auer” Hartung
Worldwide #6 Overclocker
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/records_man2.png)
“One to rule them all – no cold boot bugs thanks to special ROG engineering! And from a performance standpoint, the Apex is simply the best motherboard you can buy!”
Daniel “Dancop” Schier
Worldwide #1 Overclocker
Overclocker's Toolkit
HARDWARE-LEVEL CONTROLS
Rampage VI Apex includes an overclocker's toolkit with hardware-level controls to aid your overclocking experience. The motherboard's Dual BIOS allows you to experiment with different firmware versions and provides a path for recovery in case one becomes corrupt, and the onboard switch allows you to easily change between the first and second BIOS. The overclocker's toolkit also includes a Pause switch to halt the system, and four PCIe switches for quick slot toggling. Other tools include Safe Boot and ReTry buttons, an LN2 jumper to aid POST at sub-zero temperatures, and a Slow mode switch. Combined, they're quick and easy time-savers designed to help you break more records.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/toolkit.jpg)
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/toolkit_m.jpg)
-
QLED
Four LEDs to show the current boot status.
-
LN2 MODE JUMPER
Jumper to enable special options and functions for liquid-nitrogen (LN2) overclocking.
-
Slow Mode Switch*
Instantly reduces the CPU ratio to 8X to bypass finicky benchmark passages.
-
Pause Switch*
Activate to pause the system and fine-tune OC parameters mid-benchmark.
-
RETRY BUTTON
One press instantly initiates a hard reset.
-
SAFE BOOT BUTTON
Instantly reset the PC and boot directly into a safe mode.
-
PROBEIT
Check the voltage via integrated measurement points.
-
PCIE SWITCHES
Four switches to independently enable or disable any of the four x16-length PCIe slots, for easy debugging.
-
MEMOK!
Instantly retune memory settings for a guaranteed boot.
-
BIOS SWITCH (FOR DUAL BIOS)
Switch quickly and easily between BIOS one and two.
*Slow mode and Pause switches require that LN2 mode is enabled
Condensation Detection
Specialized circuitry allows Rampage VI Apex to detect when condensation occurs on the back of the board. Divided into four distinct sections — CPU, DRAM_L, DRAM_R and PCIe — the feature provides a useful warning when an area may be at risk of short-circuiting.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/circuit.jpg)
-
CPU LED
Flashes when condensation is detected near the CPU. -
DRAM LEDs
Flashes when condensation is detected near the left and/or right DRAM. -
PCIE LED
Flashes when condensation is detected near the PCIe.
Optimized Trace Layout
It’s the combination of intricate and innovative engineering that makes Rampage VI Apex such a big performer. Allotting just one DIMM slot per channel allowed our engineers to create shorter trace distances, which in turn means tighter control over impedance and reduced possibility for signal interference. We also adopted an engineering-first strategy, paring back the number of integrated circuits to enable the best possible trace routing. The end result is a motherboard with better stability and more overclocking headroom, allowing you to get the best performance from your memory kit.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/trace.jpg)
DDR4 OVERCLOCKING STRENGTH IN NUMBERS
ROG engineers adopted a four-slot memory design on an EATX motherboard, enabling a highly optimized layout for memory trace paths to minimize noise and improve signal integrity. Rampage VI Apex allows for DDR4 overclocking to reach up to 4500+MHz in dual channel mode, and 4133MHz+ with 4 DIMMs in quad-channel mode. ROG also works with all the major DDR4 memory vendors to ensure the best compatibility and real-word performance.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/limits/strength.jpg)
ASUS PRO CLOCK II TECHNOLOGY WITH EXTREME ENGINE DIGI+
A dedicated base-clock generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control, providing the flexibility to extract every ounce of performance from Intel® Core™ X-series processors. And, of course, Rampage VI Apex includes Extreme Engine Digi+ — ROG's revered digital power controller. With a Digi+ PWM controller, PowlRstage® IR3555 MOSFETs, MicroFine alloy chokes, and 10K black metallic capacitors, Extreme Engine Digi+ technology delivers consistently stable power.
4x
FASTERBCLK Range
-
OC
470MHz
-
Default
100MHz
CPU : Intel LGA 2066 i7-7740X | Motherboard : Prime X299-Deluxe | DRAM : G.Skill F4-3200C16Q-16GRKD | Power : Corsair AX1500i | Water-cooling : Corsair H115i
Advantages of ASUS Pro Clock II:
- Reduced boot time
- Lower jitter under extreme conditions for higher overclocks
- Increased stability under heavy overclocking
-
MicroFine alloy chokes
More stable and greater efficiency at high currents- 3xfiner than
standard - 31%cooler than
large granules - 75%hysteresis
reduction
- 3xfiner than
-
10KJapanese-made black
metallic capacitors
- 5xlonger
lifespan - 20%greater extreme
temperature enduance
- 5xlonger
-
POWLRSTAGE ®
IR3555 MOSFETS
- Higherefficiency
- Lowerpower loss
- Cooler
- Longerlifespan
cutting edgeinnovations
DUAL ROG DIMM.2
Rampage VI Apex includes two ROG DIMM.2 modules to support a total of four PCIe 3.0 x4 M.2 SSDs. ROG DIMM.2 supports a wide variety of existing memory coolers, and the Rampage VI Apex comes with two fan mounts that support up to two 50mm fans or a single 80mm fan, making it easy to chill your M.2 drives. Each module features a pair of onboard thermal-sensor headers for temperature reporting, allowing control over fan speed and acoustics via Fan Xpert 4 software, or the ASUS UEFI. As a finishing touch, the modules have onboard RGB LEDs that are controllable via our Aura software, adding options to accent your build with a range of lighting effects.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/innovations/dimm2.jpg)
- 1
- 2
-
ROG DIMM.2 expansion cards
X2
-
2 FAN MOUNTS INCLUDED
RAID & VROC
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/innovations/vroc.png)
- 1
- 2
-
VROC
Use the CPU_DIMM.2 expansion card to take advantage of Intel’s Virtual RAID on CPU (VROC) feature* by connecting two M.2 drives in RAID. Or maximize storage performance with the addition of an ASUS Hyper M.2 X16 Card** for up to four PCIe® 3.0 x4 M.2 drives and total bandwidth of up to 128Gbps. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated so your storage is not held back by other traffic.
*Additional purchase of Intel VROC hardware key required for RAID 1, 5 or 10
**The ASUS Hyper M.2 X16 Card is sold separatelyHyper M.2 x16 Card
-
PCH RAID
Wired directly to the X299 PCH, the PCH_DIMM.2 module can be installed to enable chipset-based RAID configurations to improve storage performance or provide a layer of redundancy.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/innovations/heatsink.jpg)
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/innovations/heatsink-1.png)
VRM AND I/O HEATSINK
The latest high-core-count Intel Core i7 and i9 CPUs consume serious amounts of power, so Rampage VI Apex is equipped with serious VRM cooling. Featuring a high-mass, finned heatsink that connects to the I/O cover via heat pipe, the expansive surface area dissipates heat efficiently. And, for enthusiasts that want to push the platform to the absolute limit, we’ve even included a bracket that allows you to mount a fan to accelerate the airflow.
* Fan sold separately.ROG WATERCOOLING ZONE
ROG's innovative Water-Cooling Zone lets you monitor your cooling system like never before. ROG Water-Cooling Zone's dual water-temperature headers and flow-rate header feed information straight into the AI Suite utility ─ so you can keep track of coolant temperatures, and the flow rate of the entire loop.
INTEL OPTANE MEMORY READY
Intel® Optane™ memory* is a revolutionary non-volatile memory technology supported by Rampage VI Apex. Offering dramatically accelerated data transfer speeds, Optane memory modules can be used to augment traditional mechanical hard-drives to improve storage performance.
*Enabled via Intel® X Series processor, driver and BIOS update. Only available on PCH_DIMM.2.USB 3.1 Gen 2 Type-A & Type-C
Ultimate-speed 10Gbps with USB 3.1 onboard
With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you’ll experience ultimate connection flexibility and blazing data transfer speeds of up to 10Gbps.
best gaming CUSTOMIZATION
OUTSHINE THE COMPETITION
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs, as well as strips connected to the two onboard 4-pin RGB headers.* And it can all be synced with an ever-growing portfolio of Aura Sync-enabled ASUS hardware.
-
Static
-
Breathing
-
Strobing
-
Rainbow
-
Color cycle
-
Comet
-
Flash & dash
-
Wave
-
Glowing Yo Yo
-
Starry night
-
Music effect
-
CPU Temperature
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/lighting/lighting.png)
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/lighting/lighting-b.png)
**One extension cable is included. LED Strips and Aura Compatible devices are sold separately.
**One extension cable is included. LED Strips and Aura Compatible devices are sold separately.
Infinite lighting possibilities
ASUS Aura SDK allows developers to take full advantage of the vast eco-system of Aura Sync-capable PC gear. From in-system illumination to peripherals and beyond, the SDK provides an evolving toolkit of options to enhance games and software with RGB lighting. Game effects, alerts, and audio can all be portrayed via Aura-compatible hardware, creating subtle or dazzling visual cues to augment the action. There's also scope to map system parameters such as temperatures to lighting, giving enthusiasts new ways to monitor vital information.
![AURA SYNC products](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/lighting/aura-sync.jpg)
Illuminated customizable nameplate
Use the bundled DIY kit to customize your nameplate, then see your personal mark illuminated with Aura Sync lighting!
* The pre-cut ROG logo is shown here as an example, but the content is easily customized.**The LEDs for the customized nameplate are disabled by default by the LIGHT_BAR_1 jumper. Switch the jumper position in order to enable the LEDs.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/lighting/nameplate.jpg)
-
DIY KIT
Black Mylar X3
Nameplate with protective film
-
Cut
Cut the black Mylar using a box cutter
Download the text file
-
Tape
Remove the protective film from the custom name plate, and adhere the modified black sticker.
-
Mount
Mount the new nameplate onto the board with the provided screws.
-
Learn how to customize now
X-shaped PCB
With an asymmetrical X-shaped circuit board and a radical lighting scheme, Rampage VI Apex dares to be different. The unique X design enables simpler, cleaner cable routing, and features Aura RGB backlighting to make your build stand out from the crowd.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/lighting/shaped.jpg)
3D Printing Friendly
3D-printable accessories
As system parts are visible in custom PC builds, make yours stand out from the competition with 3D-printed accessories.
2-Way SLI HB bridge cover
Clip the cover onto the PCB SLI HB bridge to add style to your build. Multiple form factors — eATX, ATX and mATX — are available.Fan grill
Add some style to your build.Cable Combs
Keep cables organized with the multi-connector design. 3D design files are available for 24-pin, 8-pin, 8 + 6-pin, 6-pin and 4-pin PSU connectors.ROG FONTS
Use ROG font files to print letters -- then fully customize your build by adding your name or any other word or phrase!ROG KEYCHAIN
Print a 3D keychain and show your ROG passion to the world!Guide to Start 3D Printing
Follow these steps to start printing your own 3D parts, and integrate them seamlessly into your PC build in no time!
-
DOWNLOAD
Select the 3D source files you want to download.
-
Personalize
Adjust size or shape, add text or change other attributes.
Watch tutorial
-
Print
Use your own printer, or visit a local vendor or ASUS store with Shapeways.
-
Setup
Easily assemble and fit your 3D-printed parts.
Watch tutorial
best gaming experience
5-Way Optimization
One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
・ An automated tuning utility that optimizes overclocking and cooling profiles for your unique
system configuration.
・ Fans stay whisper-quiet for everyday computing, and deliver optimal
airflow when the system is crunching through
CPU or GPU-intensive tasks.
・ All-new stress test that allows users to optimize and overclock
for CPU or memory-centric
workloads.
-
TPU
-
EPU
-
FAN XPERT 4
-
DIGI+
POWER CONTROL -
TURBO CORE APP
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/experience/ui_tpu.png)
CPU PERFORMANCE BOOST
Unleash your PC's full performance with the ASUS AI Suite 3 utility. A TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/experience/allround.png)
ALL-ROUND ENERGY EFFICIENCY
With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
FLEXIBLE COOLING CONTROLS FOR AIR OR LIQUID
With ROG Rampage VI Apex, you have comprehensive control over fans, water pumps and even all-in-one (AIO) coolers, via either Fan Xpert 4 or our award-wining UEFI. Whether you’re cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum – keeping your system whisper-quiet when performing light tasks.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/experience/rog_performance_3-2.png)
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/experience/precise.jpg)
PRECISE DIGITAL POWER CONTROL
Digi+ delivers real-time control over voltage droop, switching frequency and power -efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/experience/tubro01.png)
Optimize per-core performance for every app
Intel's latest processors feature per-core tuning, and the ASUS Turbo Core app makes use of this feature by enabling you to assign applications to specific processor cores, allowing you to prioritize compute power where it’s needed most.
Cooler By Design
Rampage VI Apex features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
![Rampage VI Extreme](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/experience/cooler_pd.png)
-
Multiple temperature sources
-
Water pump+
-
4-pin PWM/DC fan
-
AIO pump
-
Smart protection
-
Water in/out
-
Water flow
-
Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI.
-
A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.
-
Every onboard header supports auto-detection of PWM or DC fans.
*W_PUMP+ and AIO PUMP are also PWM/DC controllable. -
A dedicated PWM/DC header for self-contained water-cooling setups.
-
A dedicated integrated circuit that protects each fan header from over-temperature and over-current.
-
Allows for monitoring of temperature at the input/out of any component.
-
Allows for constant monitoring of the flow rate of entire loop
-
A special connector that lets water clocks designed for the Rampage VI Extreme to provide flow, temp and leakage data.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more gorgeous. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/experience/EzMode_left.png)
EZ Mode
-
EZ Tuning Wizard
OC and RAID. Select your hardware and apply different scenarios to tune system performance, or streamline your RAID configuration for faster data retrieval and backups.
-
Intuitive graphical fan control
Fine-tune individual fans simply by dragging a curve with the mouse.
-
EZ XMP
Improve your DRAM performance with a click.
-
SATA Information
View SATA port details for easy device recognition.
-
Fast Clock Adjustment
Use mouse controls to change the time and date.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/experience/EzMode_right.png)
Advanced Mode
-
My Favorites
Quickly find tuning options and add preferred tools to the list.
-
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
-
SMART
Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.
-
GPU POST
Provides recommendations for multi-VGA configurations and detailed information for selected ASUS graphics cards.
-
Secure Erase
Restore your SSDs to factory-fresh condition.
-
Last Modified Log
Track the latest changes and save preferred profiles onto a USB drive.
-
SATA Port Renaming
Rename SATA ports for easy identification.
SupremeFX
Shielded audio, superior sound
Rampage VI Apex's awesome SupremeFX audio technology has levelled up, delivering an exceptional 113 dB signal-to-noise ratio on the line-in connection for best-ever ROG recording quality! We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220A codec. It all adds up to audio that envelops you as never before!
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/experience/supremefx-note.jpg)
- Audio cover Effective shielding preserves the integrity of audio signals to ensure best quality.
- PREMIUM NICHICON™ CAPACITORS Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.
- Audio line shielding Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
best gaming NETWORKING
![ethernet](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/networking/ethernet.png)
Intel ETHERNET
lower cpu workload, high tcp & udp THROUGHPUT
ROG Rampage VI Apex features the very latest Intel® Ethernet (I219-V) for faster, smoother gaming. Intel Ethernet controllers have a natural synergy with their processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for games and other tasks.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/networking/ethernet-1.png)
Lower CPU workload
High TCP & UDP throughput
![mimo](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/networking/mimo.jpg)
![mimo](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/networking/mimo_m.jpg)
2x2 Wi-Fi with MU MIMO
ONBOARD WI-FI WITH TRANSFER SPEEDS UP TO 867MBPS
Next-level 802.11ac Wi-Fi with 2x2 dual-band 2.4/5GHz antennas offer up to 867Mbps* transfer speeds — and the very latest Multi-User MIMO (MU-MIMO) technology ensures that every connected user** experiences the best wireless and online speeds!
* Actual speed varies, and Wi-Fi hotspot feature operates at 802.11a/b/g/n. Windows 10 does not currently support Wi-Fi hotspot functionality.** Requires MU-MIMO-ready client.
LANGuard
PUMPED-UP THROUGHPUT, BEST SURGE PROTECTION
LANGuard means safer, more reliable connections for your battles. Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your ROG Rampage VI Apex's connection, while protected components (ESD Guards) provide 1.9X-greater tolerance to static electricity and 2.5X-greater protection against surges — up to 15kV!
1.9X HIGHER
STATIC-ELECTRICITY TOLERANCE2.5X-GREATER
SURGE TOLERANCE![languard](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/networking/languard.png)
best gaming PROTECTION
![SafeSLOt](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/protection/safeslot.jpg)
SafeSLOt
SafeSlot* is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
*Patent pending![SafeDIMM](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/protection/safedimm.jpg)
SafeDIMM
SafeDIMM slots feature a metal key-pin that increases durability, versus traditional DIMM slots.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/protection/guards.jpg)
ESD Guards
2X greater
electrostatic protection than standard. ESD Guards cover the USB, audio and LAN ports
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/protection/truevolt.jpg)
TrueVolt USB
2 dedicated
USB power supplies provide rock-steady 5V to all USB ports, minimizing power fluctuations and potential for data loss
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/protection/Q-connector.jpg)
Q-connector
1 piece
sorts all front-panel cables
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/protection/Q-Slot.jpg)
Q-Slot
1 clip
makes it easy to swap or secure your graphics card
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/protection/Q-DIMM.jpg)
Q-DIMM
1 sided
clips for super-simple, super-secure handling of memory modules
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/protection/dram_over.jpg)
DRAM Over-current Protection
1 additional
resettable fuse protects connection ports and DRAM against overcurrent and short-circuit damage
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/protection/shield.jpg)
Black nickel-coated Q-shield
0 pain!
Protect your hands from nicks and cuts.
ROGgives
youmore
Overwolf
Stay in the game
A clever, unobtrusive overlay keeps you in the game and allows you to browse the Web, email, IM, stream or record while you play. The overlay is dressed in color-matched ROG skins to show you're part of an elite pack. Grab it now from the Overwolf Appstore!
-
In-game dock
-
In-game calling
-
Multi-IM support
-
5 customizable apps
-
0 missed calls during gaming
-
5+ clients in a single interface
ROG Clone Drive
Image your drives, the smart way
All-new ROG Clone Drive is the smart, convenient cloning solution that quickly and efficiently replicates hard drives or SSDs. Clone Drive is so smart that it can clone one drive to two target drives at the same time, or image any file from your disk at breakneck speeds.
RAMCache II
Speed your game loads
ROG's uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it's activated. RAMCache II turns milliseconds into microseconds to boost game-load times to stratospheric levels.
Automatically caches all your storage devices at the same time for optimal use of your system‘s caching resources.
and.. more
-
AI Suite 3
One-stop control panel
-
ROG CPU-Z
Shows your important system information with pride
-
Mem TweakIt
Dynamic timing monitoring, DRAM efficiency gauge
-
RAMDisk
Boost your favorite applications up to 20X faster than SSD with the junction function
-
Kaspersky® Anti-Virus (1 year)
The best protection from viruses and spyware
-
DAEMON Tools Pro Standard (1 year)
The leading tool for optical and virtual discs
-
PC Cleaner
Accelerate your PC by eliminating clogs with simple click
Beyond VR READY
ROG Rampage VI Apex isn't just VR Ready — it goes way beyond! The ASUS ROG Beyond VR Ready marque means that Apex has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance after you've taken off the headset. ASUS ROG Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.
The Power of Intel
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/intel/chipset.jpg)
Intel® X299 chipset
The Intel X299 chipset supports LGA 2066-socket Intel Core X-Series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.1 Gen 1 ports, 8 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.
![](https://dlcdnimgs.asus.com/websites/global/products/ZiZmcsHioLQEkQuB/img/intel/xseries.jpg)
Intel Core™ XSeries processors for LGA 2066 (R4) socket
Intel Core X-Series processors (6 core above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes. Intel Core X-Series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.
CUSTOMER REVIEWS
Recommended Products
ROG STRIX X299-E GAMING
Intel X299 ATX gaming motherboard with Aura Sync RGB LED lighting, 802.11ac Wi-Fi, DDR4 4133MHz, dual M.2, SATA 6Gbps and a USB 3.1 Gen 2 front panel connector
ROG CROSSHAIR VI EXTREME
AMD X370 EATX gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 3200MHz, Dual M.2,USB 3.1 Gen2 and 802.11ac Wi-Fi
ROG Zenith Extreme
AMD X399 EATX Gaming Motherboard with M.2 heatsink, Aura Sync RGB LED, 802.11ad Wi-Fi, DDR4 3600MHz, triple M.2, 10G Lan card, U.2 and USB 3.1 Gen 2
ROG STRIX X399-E GAMING
AMD X399 EATX Gaming Motherboard Aura Sync RGB LED lighting, 802.11ac Wi-Fi, DDR4 3600MHz, Dual M.2, SATA 6Gbps and a USB 3.1 Gen 2 front panel connector
ROG STRIX X299-XE GAMING
Intel X299 ATX gaming motherboard with Aura Sync RGB LED lighting, 802.11ac Wi-Fi, DDR4 4133MHz, dual M.2, SATA 6Gbps and USB 3.1 type - A/C
ROG Dominus Extreme
EEB motherboard compatible with ATX mounts, support for 6 channel DDR4 4000MHz+ (OC), dual DIMM.2 with heatsinks, quad M.2, onboard 10G Lan, integrated Wi-Fi, USB 3.1 and dual U.2
ROG RAMPAGE VI EXTREME OMEGA
Intel X299 EATX gaming motherboard LGA 2066 for Intel Core X-Series processors, with ROG DIMM.2, DDR4 4266MHz , onboard 802.11ac Wi-Fi, 10Gbps LAN, USB 3.1 Gen 2, SATA, Quad M.2 and Aura Sync RGB lighting
ROG Zenith Extreme Alpha
AMD X399 EATX gaming motherboard for AMD Ryzen™ Threadripper™ processors, with ROG DIMM.2, DDR4 3600MHz , onboard 802.11ac Wi-Fi, 10Gbps LAN, USB 3.1 Gen 2, SATA, Triple M.2 and Aura Sync RGB lighting
Related Products
ROG STRIX XF 120
Whisper-quiet, 4-pin PWM fan for PC cases, radiators or CPU cooling
ROG XG Mobile
ROG XG Mobile
ROG Eye S
Full HD 60 fps webcam with AI-powered, noise-canceling mics for superior live-streaming audio and a compact and foldable design that’s easy to carry and attach instantly to any laptop
ROG Strix SQ7 Gen4 SSD 1TB
1 TB M.2 PCIe® Gen 4 NVMe® , internal solid state drive with DRAM buffering and large SLC cache, up to 7000 MB/s maximum file transfer speed, compatible with PC and PlayStation® ™5, TCG Opal and AES 256-bit encryption, plus NTI Backup Now EZ software
ROG Kunai 3 Bumper for ROG Phone 5
Experience physical buttons and play games on the go
ROG XG Mobile (2023)
ROG XG Mobile, GC33, NVIDIA GeForce RTX 4090 Laptop GPU, external GPU, PCIe Gen 4.0x8, 330W integrated adapter, USB-Type A 3.2 Gen2, USB-Type C 3.2 Gen2, HDMI 2.1, DP 1.4, RJ-45 Jack(2.5G), DC input jack,
ROG Raikiri
The ROG Raikiri PC controller features two rear buttons, left and right triggers with short and full range of motion plus dead zone customization, built-in ESS DAC for supreme audio, joystick sensitivity and response curve customization. The ROG Raikiri is ideal for gaming on PC, laptop or the next gen Xbox console.
ROG Raikiri Pro
The ROG Raikiri Pro PC Controller features a built-in OLED display, tri-mode connectivity, four rear buttons, selectable step triggers, an ESS DAC, plus adjustable joystick sensitivity and response curves. The ROG Raikiri Pro is ideal for PC gaming and next-gen Xbox consoles.
Disclaimer
- Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
- *Precise specifications and features vary by model . Please refer to the specification page
- The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
- The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
