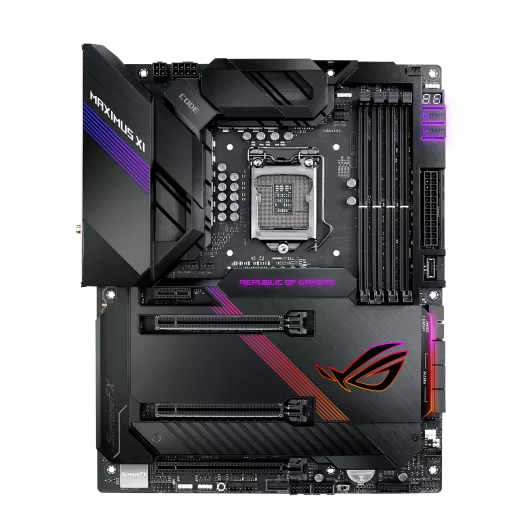

ROG MAXIMUS XI CODE

Intel Z390 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 4400MHz, 802.11ac Wi-Fi , dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2

  • LGA1151 socket for 9th/8th -gen Intel® Core™ desktop processors.
  • ROG Eco-System: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips.
  • Perfected cooling with dedicated water header zones, M.2 heatsink and various fan control.
  • Gaming connectivity: Intel Gigabit Ethernet, LANGuard, 2x2 802.11ac Wi-Fi, Dual M.2, USB 3.1 Gen 2 Type-A and Type-C™ connectors.
  • 5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles trailor-made for your rig
  • Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action.
  • Gaming durability: ROG Armor, pre-mounted I/O shield and premium components throughout.

Awards

THE CODE

Inspired by the rich heritage that has bound the Republic of Gamers to the world of gaming, ROG Maximus XI Code brings together the finest in ROG engineering in understated form that offers all the expansion and personalization opportunities needed to create a distinctive custom rig.

SPEC OVERVIEW

  1. ROG Patented
    Clr CMOS Button
    BIOS FlashBack™ button

  2. HDMI 1.4b

  3. 10 x USB 3.1 Gen1 Ports
    4 x USB3.1 Gen2 ports

    (Type-A + Type-C)

  4. Intel I219-V Gb LAN

    ROG GameFirst V
    Anti-surge LANGuard

  5. Intel® Wireless-AC 9560

    ‧ 2 x 2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac

  6. ROG RGB ARMOR
    STRONG ABS TOP COVER

    A tough, thermoplastic top-plate helps to
    keep your build neat and tidy , and adds
    style that's both unique and understated.

  7. SupremeFX S1220 CODEC

    ‧ ESS® ES9023P High Definition DAC
    ‧ Impedance sense for front and rear
    ‧ 120dB SNR stereo playback output
    ‧ 113dB SNR recording input

    Sonic Studio III

    ‧ Sonic Studio Link

    Sonic Radar III
  8. 2 x 3-pin Addressable headers
    2 x 4-pin AURA RGB headers

  1. ESD GUARDS

    Greater electrostatic protection than standard. ESD Guards cover the USB, audio and LAN ports.

    ESD GUARDS
  2. TRUEVOLT USB

    USB power supplies rock-steady 5V to all USB ports, minimizing power fluctuations for minimal data loss

    TRUEVOLT USB
  3. 2 X SAFESLOT

    Provides stronger PCIe device retention and greater shearing resistance.

    SAFESLOT
  4. 4 X Q-DIMM

    One sided clips for super-simple, super-secure handling of memory modules

    Q-DIMM
  5. 3 X Q-SLOT

    Clip to swap or secure your graphics card

    Q-SLOT
  6. Q-CONNECTOR

    sorts all front-panel cables

    Q-CONNECTOR
  1. Q-Code
    Multicolored Q-LED
  2. DDR4 4400+ MHz (O.C.)

    ‧ 4 x DIMM, dual-channel
    ‧ XMP Support
    ‧ OptiMem II Support

  3. Socket 1151 for 9th / 8th Gen Intel® Core, Pentium® Gold and Celeron® processors

  4. 1 x USB 3.1 Gen 2 front panel connector
  5. Multi-GPU SLI/CFX support
    2 x PCIe 3.0 x16

    (supports x16, x8/x8, x8/x4+x4)

    1 x PCIe 3.0x16 Max. at X4 mode
    1 x PCIe 3.0 x1
  6. 6 x SATA 6Gb/s
  7. Intel Z390 Chipset
    ROG LOGO RGB LED
    intel CHIPSET Z390 inside
    ASUS AURA SYNC
  8. 2 x M.2 Socket 3

    ‧ 1 x M.2 2242~22110 (PCIe 3.0 x 4 + SATA) ‧ 1 x M.2 2242-2280 (PCIe 3.0 x4 mode)

  9. W_IN/OUT, W_FLOW headers
  10. 1 x Thermal sensor header
  11. NODE Connector

THRILLING PERFORMANCE

With a dedicated onboard clock generator, support for the latest high-performance memory, and cooling options to keep thermals under tight control, Code provides a potent foundation for your next gaming build.

Built for overclocking

By default, all of Coffee Lake's major bus frequencies are derived from the same reference clock, limiting the control and flexibility needed to harness the full overclocking potential of the platform. ROG Maximus XI Code features a dedicated onboard clock generator that supplies dynamic reference clocks to the CPU cores and major subdomains, giving you the freedom to coax every MHz of headroom from the system.

DDR4 4400Mhz+

Whether you're gunning for high memory frequencies or tuning timings for the lowest latency, ROG Maximus XI Code provides the tools you need to exploit the Coffee Lake architecture's full potential: carefully optimized trace pathways maintain signal integrity, and the acclaimed ROG firmware offers the necessary tweaks to ensure stability while maximizing memory performance. Load up with a high-density memory kit for heavy multitasking, or run a focused setup that delivers the bandwidth your favorite games and applications need. Any way you stack it, the Code has you covered.

Optimem II

To provide Intel's latest CPUs unfettered access to memory bandwidth, we've reimagined motherboard trace routing from the ground up. Our OptiMem II tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk. And to further enhance overclocking headroom for fully stacked memory configurations, we've employed a highly customized T-Topology layout that delivers time-aligned signaling.

Cooler By Design

Comprehensive cooling zone

ROG Maximus XI Code features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.

Rampage VI Extreme
  • Multiple temperature sources position
  • Water pump+ position
  • 4-pin PWM/DC fan position
  • Fan Extension Header position
  • Smart protection position
  • Water in/out position
  • Water flow position
  • AIO pump position
  • Multiple temperature sources

  • Water pump+

  • 4-pin PWM/DC fan

  • Fan Extension Header

  • Smart protection

  • Water in/out

  • Water flow

  • AIO pump

  • Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI.

  • A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

    detail
  • Every onboard header supports auto-detection of PWM or DC fans.

    *W_PUMP+ and AIO PUMP are also PWM/DC controllable.
  • Allows expansion of three additional DC or PWM fan headers, plus three thermal-probe headers.

    detail
  • A dedicated integrated circuit that protects each fan header from over-temperature and over-current.

  • Allows for monitoring of temperature at the input/out of any component.

    detail
  • Allows for constant monitoring of the flow rate of entire loop

    detail
  • An All-In-One header that supports auto-detection of PWM, DC fans and water pumps.

    detail

CONTROL YOUR RIG

Fast, intuitive control is vital for effective command of your rig, so we've loaded ROG Maximus XI Code with simple, flexible tools that let you tweak almost every system aspect. Enjoy intelligent automated tuning with 5-Way Optimization technology, or dive deep into the revered ROG UEFI BIOS to take full manual control. Code also makes short work of fine-tuning everything from audio to storage, so it's easy to get every park of your system up to speed.

CONTROL YOUR RIG

AI Overclocking

ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.

CPU POTENTIAL

We created a proprietary algorithm that evaluates the capabilities of your CPU.

COOLING CAPABILITY

The onboard intelligence also watches system vitals like temperatures, fan speeds, and power draw to gauge cooling performance.

AI OVERCLOCKING

Utilizes onboard intelligence to perform automated clocking and provides target frequency and voltage estimations for savvy veterans that prefer manual tuning.

5-Way Optimization

Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking,but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.

  • TPU INSIGHT

  • EPU Guidance

  • FAN XPERT 4

  • DIGI+
    POWER CONTROL

  • TURBO APP

  • TPU INSIGHT

    TPU INSIGHT

    The TurboV Processing Unit (TPU) Insight provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking.

  • EPU Guidance

    EPU

    The Energy Processing Unit (EPU) Guidance enables system-wide power efficiency, automatically optimizing consumption to maximize savings.

  • Fan Xpert 4

    Fan Xpert 4

    Enjoy comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI.

  • Digital Power Controls

    Digital Power Controls

    The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

  • Game Faster, Rank Higher

    Game Faster, Rank Higher

    Intel's processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

  • When you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.

    ADVANCED MODE
    ADVANCED MODE

    Prediction

    AI OC monitors system vitals like temperatures, fan speeds, and power draw to estimate overclocking performance.

    My Favorites

    Quickly find tuning options and add preferred tools to the list.

    EZ Flash 3

    Flash the latest BIOS via the internet from within the BIOS.

    AI OC Guide

    The AI OC Guide allows you to enable the AI Optimization or view a quick guide.

    SMART

    Check your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.

    GPU POST

    Automatically detect selected ASUS graphics cards to view detailed information.

    Secure Erase

    Restore your SSDs to factory-fresh condition.

    Last Modified Log

    Track the latest changes and save preferred profiles onto a USB drive.

    SATA Port Renaming

    Rename SATA ports for easy identification.

    Search Function

    Quickly and easily find the option or setting you're looking for.

    ASUS User Profile

    Port configuration settings between different BIOS versions or share them with friends.

  • Designed to simplify setup, EZ mode presents all the vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.

    EZ MODE
    EZ MODE

    EZ Tuning Wizard

    Streamline your RAID configuration for faster data retrieval and backups.

    Intuitive graphical fan control

    Fine-tune individual fans simply by dragging a curve with the mouse.

    SATA Information

    View SATA port details for easy device recognition.

    Fast Clock Adjustment

    Use mouse controls to change the time and date.

    Aura On/Off mode (Stealth)

    Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.

SupremeFX

Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220 codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
Learn More

  • S1220 Codec

    10 DAC channels, simultaneous 7.1 channel playback, independent 2.0-channel, multiple-stream stereo to front panel outputs

  • ESS® SABRE9018Q2C DAC/AMP

    Creates a perfect balance for top-tier audio clarity capable of -112dB THD

  • Nichicon caps

    Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

  • Gold-Plated Audio Jacks

    Prevents oxidization to ensure a reliable connection

  • Switching Mosfets

    Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs

  • S1220 CODEC

  • ESS® ES9023P

  • NICHICON CAPS

  • GOLD-PLATED
    AUDIO JACKS

  • SWITCH MOSFETS

GameFirst V

  • GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

    Smart/Auto modes

    Optimize network traffic for active apps, or allocate more bandwidth to games.

  • GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

    One-click prioritization

    Speed network packets for specific applications, helping to reduce latency.

    Extreme mode on: 371.7Mbps
    Extreme mode off: 16.03Mbps

    * Tested with 4GB file download while also playing 4K online video.

  • GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

    ROG First

    Interface directly with a ROG router and automatically configure QoS to prioritize network bandwidth to games.

  • GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

    Network insight

    View real-time traffic by biggest hogs, app groups, and task types, or drill down for detailed connection information.

All New Status Overlay

View or adjust network settings during your game, without interrupting play.

Team With ROG Routers For More Wins

ROG NETWORKING EDGE

  • ROG MOTHERBOARD
    ROG MOTHERBOARD

    with GameFirst

  • +
  • ROG WIFI ROUTER
    ROG WIFI ROUTER

    with GameBoost

  • =
  • LOW-LATENCY
    GAMING

ROG
12 ms

33% Faster than key competitor!

18 ms

Ping time

*Tested with League of Legends, with BitTorrent download and streaming also running.

LEARN MORE

-->

RamCache III

RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

  • Smart mode: Automatically caches all your storage devices to maximize your system's resources.

  • An intuitive interface displays real-time drive information, such as current read/write speeds.

  • And allows you to quickly check the health status of assigned memory.

6Gb File Transfer Time 2X Faster

Armoury Crate

The brand-new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers.

Armoury Crate

PERSONALIZED FOR YOU

With Aura Sync to unleash synchronized effects that extend from motherboard to a vast ecosystem of compatible components, ROG Maximus XI Code is primed for endless personalization.

GROW YOUR GAMING WORLD

Gear up with ROG components, from graphics and monitors, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.

  • Static Static
  • Breathing Breathing
  • Strobing Strobing
  • Rainbow Rainbow
  • Color cycle Color cycle
  • Comet Comet
  • Flash and dash Flash and dash
  • Wave Wave
  • Glowing Yo-Yo Glowing Yo-Yo
  • Starry Night Starry Night
  • Music effect Music Effect
  • Smart Smart
close open

Addressable Strip

RGB Strip

THE POWER OF INTEL

Ready for Socket 1151 for 9th / 8th Gen Intel® Core, Pentium® Gold and Celeron® processors

This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

Intel Z390 chipset

The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

CUSTOMER REVIEWS

Recommended Products

ROG MAXIMUS VIII EXTREME/ASSEMBLY

Rule-breaking Z170 motherboard with best overclocking and gaming innovations, plus SupremeFX Hi-Fi and 10G Express

ROG MAXIMUS IX CODE

Intel Z270 ATX gaming motherboard with Water Cooling Zone, Aura Sync RGB LEDs, DDR4 4133MHz, 802.11ac Wi-Fi, dual M.2 and USB 3.1 Type-A/C

ROG MAXIMUS IX HERO

Intel Z270 ATX gaming motherboard with Aura Sync RGB LEDs, DDR4 4133MHz, dual M.2 , USB 3.1 front-panel connector and type - A/C

ROG STRIX Z270E GAMING

Intel LGA-1151 ATX Z270 gaming motherboard with Aura Sync RGB LED, 802.11ac Wi-Fi, DDR4 3866 MHz, Dual M.2, SATA 6Gb/s, HDMI, and a front-panel USB 3.1 Type-C

ROG STRIX Z270G GAMING

Intel LGA-1151 mATX Z270 gaming motherboard with Aura Sync RGB LED, 802.11ac Wi-Fi, DDR4 4000MHz, Dual M.2, SATA 6Gb/s, HDMI, and a front-panel USB 3.1 Type-C connector

ROG MAXIMUS X APEX

Intel Z370 EATX enthusiast motherboard with extreme performance, DDR4 4500MHz+, ROG DIMM.2 (dual M.2), onboard 5G Ethernet, USB 3.1 Gen2 and Aura Sync RGB lighting

ROG MAXIMUS X HERO

Intel Z370 ATX gaming motherboard with Aura Sync RGB LEDs,DDR4 4133MHz, dual M.2 and USB 3.1 Gen 2

ROG MAXIMUS X HERO (WI-FI AC)

Intel Z370 ATX gaming motherboard with Aura Sync RGB LEDs, 802.11ac Wi-Fi, DDR4 4133MHz, dual M.2 and USB 3.1 Gen 2

Related Products

ROG Strix Helios

ROG Strix Helios RGB ATX/EATX mid-tower gaming case with tempered glass, aluminum frame, GPU braces, 420mm radiator support and Aura Sync

ROG STRIX ARION

ROG Strix Arion M.2 NVMe SSD Enclosure—USB3.2 Gen 2x1 Type-C (10 Gbps), Dual USB-C to C and USB-C to A Cables, Screwdriver-Free, Thermal Pads Included, Fits PCIe 2280/2260/2242/2230 M key/B+M Key

ROG Strix SQ7 Gen4 SSD 1TB

1 TB M.2 PCIe® Gen 4 NVMe® , internal solid state drive with DRAM buffering and large SLC cache, up to 7000 MB/s maximum file transfer speed, compatible with PC and PlayStation® ™5, TCG Opal and AES 256-bit encryption, plus NTI Backup Now EZ software

ROG Raikiri

The ROG Raikiri PC controller features two rear buttons, left and right triggers with short and full range of motion plus dead zone customization, built-in ESS DAC for supreme audio, joystick sensitivity and response curve customization. The ROG Raikiri is ideal for gaming on PC, laptop or the next gen Xbox console.

ROG Raikiri Pro

The ROG Raikiri Pro PC Controller features an OLED display, four rear buttons, selectable triggers, ESS DAC, customizable joystick sensitivity and response curves, and tri-mode connectivity. It’s ideal to play in wired USB-C, 2.4GHz, or Bluetooth on PCs

ROG Hyperion GR701

ROG Hyperion GR701 E-ATX computer case, 420 mm dual radiator support, four 140 mm fans, metal GPU holder, component storage, ARGB fan hub, 60W fast charging.

ROG Hyperion EVA-02 Edition

ROG Hyperion EVA-02 PC case, 420 mm dual radiator support, four 140 mm fans, metal GPU holder, component storage, ARGB fan hub, 60W fast charging.

ROG Tessen Mobile Controller

Transform Your Game

Product has High-Definition Multimedia Interface

Disclaimer

  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
  • The actual transfer speed of USB 3.0, 3.1 (Gen 1 and 2), and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
  • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • For pricing information, ASUS is only entitled to set a recommendation resale price. All resellers are free to set their own price as they wish.
  • Price may not include extra fee, including tax、shipping、handling、recycling fee.
