ROG Crosshair VIII Dark Hero
AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages, OptiMem III, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps Ethernet, USB 3.2, SATA, M.2 and Aura Sync RGB lighting
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Comprehensive thermal design: Passive chipset heatsink, M.2 aluminum heatsinks and ROG Water Cooling Zone.
- Robust power delivery: Designed power solution 14+2 TI power stages rated for 90A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst VI software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
- Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.
Awards
Video Reviews
تجميعات ماهركو #2: جهاز البث والمونتاج 2022
New overclocking feature changes Ryzen OC COMPLETELY - 5950X 16 core OC
Finally it is fun for me to overclock Ryzen CPUs.
Doigby discovers his new 4000€ Gaming PC
Sama PC 2021 - My personal Setup !
Sama PC 2021 - My personal Setup !
Australian PC Awards 2021
N/a
Motherboard AMD X570 Kasta Tertinggi - ASUS ROG CROSSHAIR VIII DARK HERO
Motherboard ASUS X570 ROG CROSSHAIR VIII DARK HERO - SIAP UNTUK GAMING, OVERCLOCK & PRODUKTIVITAS!
ROG X AMD LAGI BAGI-BAGI EXCLUSIVE MERCHANDISE 10 Pcs Bomber Jacket dan E-Money Edisi ROG with AMD Untuk 10 Orang Beruntung
#RakitPC High End Versi Akhir Tahun 2020 ft. Corsair & ROG!
Update BIOS tanpa colok CPU, RAM, dll. Jadi Gini Caranya? (Ft. ASUS ROG Crosshair VIII Dark Hero)
It is definitely a very special model among the RTX 3080 Ti models. A very successful graphics card has emerged with its stylish design and excellent cooling that does not exceed 60 degrees.
It was a model that won our admiration with its 3 huge cooling fans, successful design and very good cooling performance.
Excellent voltage stabilization, does not overheat, everything is done smartly.
This board is close to perfect - looks good and great favourite
Media Reviews
ROG CROSSHAIR VIII
DARK HERO
Upgraded power delivery, passive chipset cooling, and stealthy aesthetics allow the Crosshair VIII Dark Hero to strike from the shadows and form a menacing duo with AMD Zen 3.
SPEC OVERVIEW
- Performance
- Cooling
- Gaming Immersion
- Connectivity
- DIY friendly
Extreme Power & Performance
- PROCOOL II POWER CONNECTOR
- 14+2 POWER STAGE
-
MULTI-GPU SLI®/ CFX SUPPORT*
‧ 2 x PCIe 4.0 x16 Safeslots (x16, x8/x8) [CPU]
‧ 1 x PCIe 4.0 x16 slot (x4)
‧ 1 x PCIe 4.0 x1 slot -
AMD AM4 Socket
for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors
-
DDR4, 4 X DIMM
・ OptiMem III
・ Dual channel -
2 x M.2 Socket 3 Type M*
・ 2242~2280 (PCIe 4.0 x 4 + SATA)
・ 2242~22110 (PCIe 4.0 x 4 + SATA)
Comprehensive Cooling
- VRM HEATSINK DESIGN
- DUAL M.2 HEATSINKS
- MULTIPLE 4-PIN PWM FAN HEADERS
- PASSIVE CHIPSET HEATSINK DESIGN
-
ROG WATER-COOLING ZONE
・ W_FLOW tachometer
・ W_IN/OUT T-sensor
Total Gaming Immersion
- I/O & ARMOR ZONE AURA LIGHTING
-
SupremeFX S1220 CODEC
ESS® ES9023P High Definition DAC
Sonic Studio III
120dB SNR stereo playback output
113dB SNR recording input
Gold-plated Audio Jacks
Sonic Studio Virtual Mixer
Sonic Radar III
DTS® Sound Unbound - 2 x 4-pin AURA RGB headers
- 2 x 3-pin Addressable Gen 2 RGB headers
- PCH ZONE AURA LIGHTING
Full Connectivity
- BIOS FlashBackTM button
- CLEAR CMOS butoon
- Intel® Wi-Fi 6 AX200
-
8 x USB 3.2 Gen 2*
‧ 7 x Type-A
4 x USB 3.2 Gen 1
‧ 1 x USB Type-C®‧ 4 x Type-A
-
2.5G Ethernet
Intel® I211-AT Gb LANROG GameFirst VI
ASUS LANGuard - OPTICAL S/PDIF OUT
-
1 x USB 3.2 Gen 2
Front Panel Connector
- 8 x SATA 6Gb/s
- ASUS NODE Connector
DIY Friendly
- ROG PATENTED PRE-MOUNTED I/O SHIELD
-
ESD GUARDS
Provides greater electrostatic protection than the industry standard. ESD Guards cover the USB, audio and LAN ports.
-
TRUEVOLT USB
Supplies stable 5-volt power delivery to all USB ports, with minimal power fluctuations to minimize data loss.
-
2 x SAFESLOT
Provides stronger PCIe device retention and greater shearing resistance.
-
Q-Code
LED panel shows a 2-digit code to reflect system status.
-
4 x Q-DIMM
One sided clips for super-simple, super-secure handling of memory modules.
-
FlexKey
At its default, the FlexKey functions as a system reset button, but it can also be easily set to quickly turn Aura lighting on or off, activate Safe Boot or enter the BIOS.
-
Q-CONNECTOR
Simple adapter that helps arrange front-panel cables in an orderly manner.
PERFORMANCE
ROG Crosshair VIII Dark Hero boasts an optimized power design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors.
- Power solution
- Memory
Teamed Power Architecture
Modern CPU architectures up the ante for motherboard power design by transitioning from deep power-saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
- A brief history
- A shift in CPU demands
- Bucking the trend
- Thermal performance
- High Quality Components
Teamed
Power Stage Design
12V EPS IN
12V EPS IN
Conventional
Phase-doubled Design
12V EPS IN
12V EPS IN
-
We became the first manufacturer to implement phase-doublers when we shipped our A8N32-SLI Deluxe motherboard, back in 2005. The board's VRM was lauded for elegantly overcoming the power handling capabilities of components that were available at the time and also reducing voltage ripple. Those benefits led to phase-doublers becoming universally accepted in the industry, and they are still used for similar purposes today.
-
However, today’s CPUs now pack more cores than their predecessors, and the latest instruction sets allow them to crunch computationally dense workloads at an incredible pace. In addition, they consume less power at idle and can transition between load states much more quickly. These improvements necessitate a re-evaluation of power-design priorities because phase-doublers add a propagation delay that hampers transient response.
-
Fortunately, the latest integrated power components can handle higher currents than the devices of yesteryear, making it possible to implement a simple circuit topology that isn't hamstrung by the processing lag of phase-doublers. That's why ROG Crosshair VIII Dark Hero utilizes teamed power stages to deliver higher burst current per phase, while maintaining the thermal performance of phase-doubled designs.
-
Each VRM component serves a specific purpose. PWM controllers and phase-doublers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. That's why ROG Crosshair VIII Dark Hero utilizes 16 power stages. The power stage sits at the top of Infineon's lineup and features a low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom.
-
Dual 8-pin ProCool II power connector
Two ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
-
14+2 power stage
The VRM has 14+2 power stages, each rated to handle 90 amps.
-
MicroFine alloy chokes
Each Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
-
10K Japanese-made black metallic capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
ASUS Optimem III
Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Dark Hero with your favorite modules and maximize Zen 3 processors throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads.
-
G.Skill Memory 4 x 32GB CL18 @3600MHz
-
OptiMem IIICL 16
-
No OptiMem IIICL 18
-
Lower the data is better

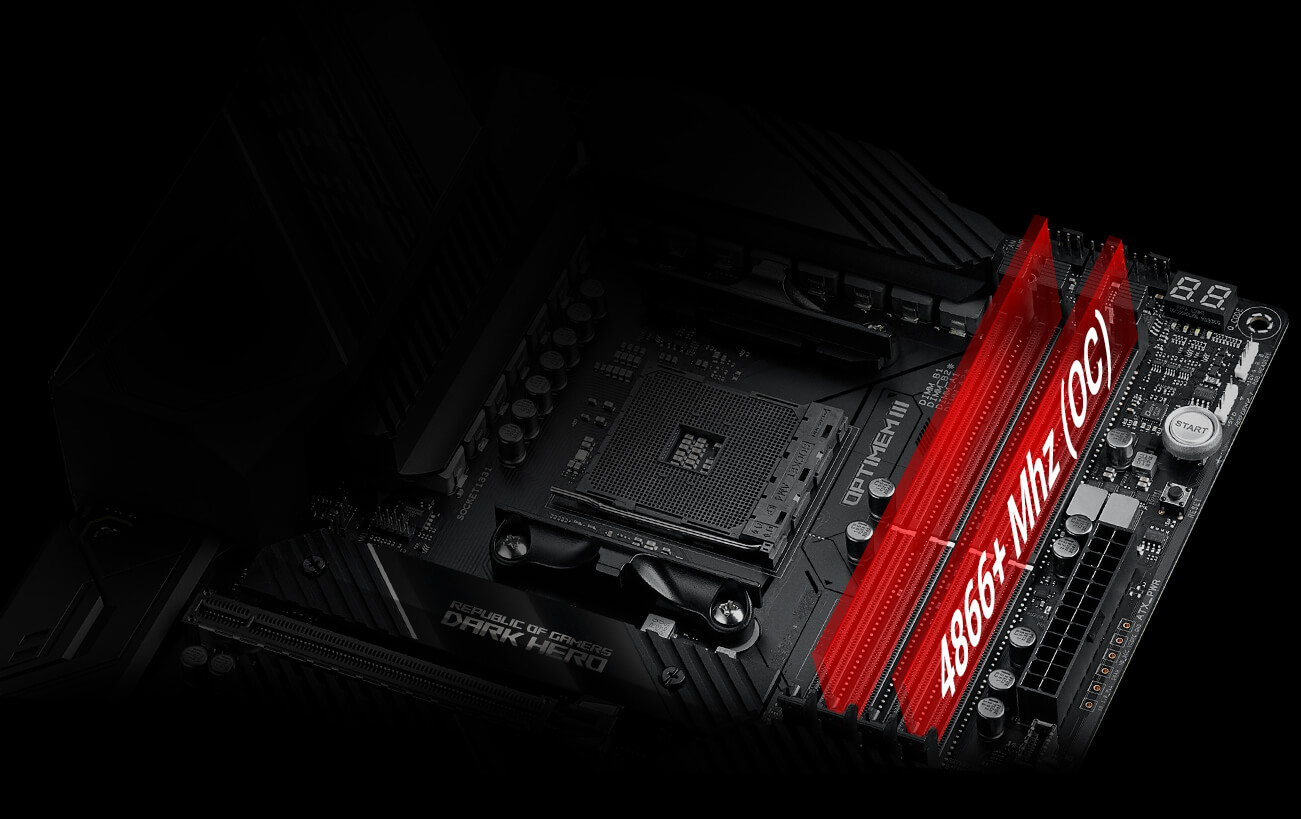

- High Frequency

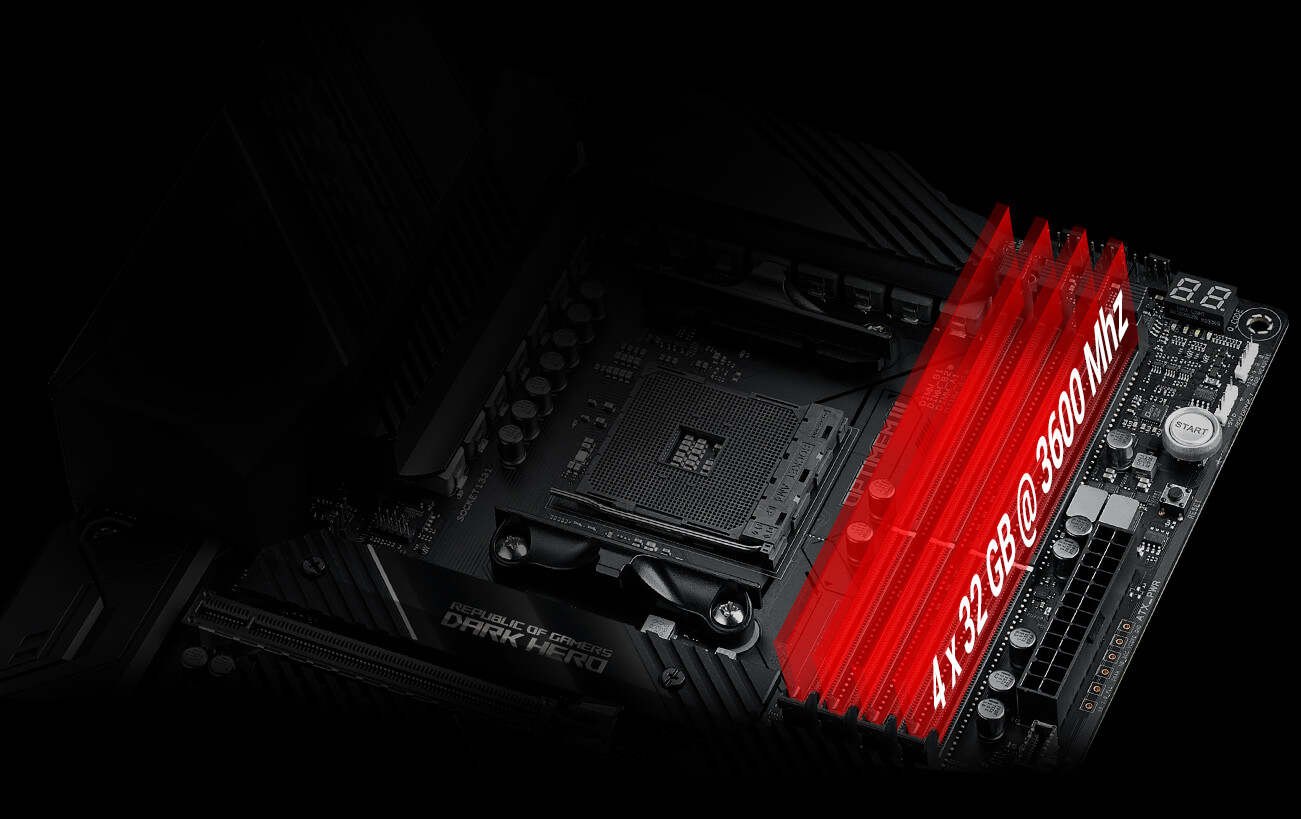

- Max Capacity without Compromise
COOLING
Maintaining system stability is paramount under high load, so Crosshair VIII Dark Hero employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Featuring premium components and multiple fan headers, Crosshair VIII Dark Hero is fully armed to provide the best foundation for gaming systems.
- Heatsinks
- Headers
Cooling Heatsinks
-
VRM heatsink
The two VRM heatsinks are placed above the MOSFETs and chokes, and are connected by a heat-pipe to further increase surface area for heat dissipation.
-
M.2 heatsink
Two dedicated heatsinks keep the dual M.2 SSDs at the optimum operating temperature for consistent performance and reliability.
-
High-conductivity thermal pad
A high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
-
Passive chipset heatsink
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
Cooler by design
ROG Crosshair VIII Dark Hero features the most comprehensive cooling options ever.
-
Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI.
-
4-pin PWM/DC fan
Every onboard header supports auto-detection of PWM or DC fans.
-
AIO PUMP
A dedicated PWM/DC header for self-contained water-cooling setups.
ROG Water-Cooling Zone
Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
-
Water pump+
A dedicated header can supply over 3 amps to high-performance PWM or DC water pumps.
-
Water in/out
A dedicated header enables monitoring of temperatures at the input/output points of any component.
-
Water flow
A dedicated header enables constant monitoring of flow rate throughout the entire loop.
Optimization
ROG Crosshair VIII Dark Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want.
- 5-way optimization
- BIOS
- Differential Sensing
Performance Level Up
The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG Crosshair VIII Dark Hero system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
- TPU
- EPU
- Fan Xpert 4
- Digital power controls
- Turbo App
CPU-performance boost
The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.
All-around energy efficiency
With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible cooling controls for air or liquid
Enjoy comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.
Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
Turbo App
This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level ― so your system is perfectly optimized for whatever you're doing.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
- Advanced Mode
- EZ Mode
When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
Advanced Mode
-
My Favorites
Quickly find tuning options and add preferred tools to the list.
-
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
-
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability and identify potential failures.
-
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
-
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
-
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
-
SATA Port Renaming
Rename SATA ports for easy identification.
-
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
-
Q-Fan control
Configure the fan's operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75°C.
Designed to simplify setup, EZ mode presents vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
EZ Mode
-
Intuitive graphical fan controls
Fine-tune individual fans simply by dragging a curve with the mouse.
-
SATA information
View SATA port details for easy device recognition.
-
Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.
-
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Accurate Voltage Monitoring
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. ROG Crosshair VIII Dark Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
CONNECTIVITY
ROG Crosshair VIII Dark Hero offers advanced connectivity, including WiFi 6 (AX200) and dual Ethernet with Intel® 1Gb and Realtek 2.5Gb Ethernet port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.
- Networking
- Storage
- Audio
-
WiFi 6 (AX200)
Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense WiFi environments, providing exceptional online gaming experiences. *
Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. Find out more about ASUS WiFi 6 solutions: https://www.asus.com/wifi6/
-
REALTEK 2.5G LAN
2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
-
Intel® 1Gbps Ethernet
ROG Crosshair VIII Dark Hero features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
Storage
-
UNTHROTTLED TRANSFER SPEED
Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the AMD Ryzen™ 5000 and 3000 Series desktop processors.
-
AMD STOREMI
AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.
-
SupremeFX
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS® ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments® RC4580 op amp for high gain with low distortion — all to produce unmatched audio quality.
>Learn more about ROG audio technology
- Audio Line Shielding
- ESS® ES9023P
- S1220 Codec
- Switching MOSFETS
- Nichicon® CAPS
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
The ESS® ES9023P digital-to-analog converter creates a perfect balance for top-tier audio clarity capable of 112db DNR /-94dB THD+N for superior front-panel output
10 DAC channels provide simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs
Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity
Personalize
In addition to extraordinary performance, ROG Crosshair VIII Dark Hero provides extensive styling and customization options to let you build a system that truly stands apart.
- Aura Sync
- Ramcache III
- Audio
- Armoury Crate
- Aura Sync
- RGB Header
Grow your gaming world
Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
- Static
- Breathing
- Strobing
- Rainbow
- Color cycle
- Starry night
- Music effect
- Smart
-
AAddressable Gen 2 RGB Header
-
BRGB Header
Addressable Gen 2 RGB header
The addressable Gen 2 RGB headers now feature software that can automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
RAMCache lll software utility turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, RAMCache lll utilizes uniquely intelligent technology to effectively cache any storage device, so favorite games and apps launch at breakneck speeds.
- Smart mode
- Real-time information
- Health check
Automatically cache all your storage devices to maximize your system's resources.
Intuitive interface displays real-time drive information, such as current read/write speeds.
Quickly check for corrupt sectors of installed memory modules.
- Sonic Studio III
- DTS
- Two-Way AI Noise Cancelation
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
Learn more about Sonic Studio III
*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.
- Sonic Studio Link
- App-specific profiles
- Sonic Studio virtual mixer
Sonic Studio Link
Easily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device.
App-specific profiles
Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.
Sonic Studio virtual mixer
Combine audio output from selected apps with audio from the microphone input and stream the compiled mix.
DTS : Sound Unbound
ROG Crosshair VIII Dark Hero includes a pre-loaded DTS Sound Unbound app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with developers for titles that offer support.
-
Stereo Sound
-
Surround Sound
-
Spatial Sound
Two-way AI Noise Cancelation
This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. Distracting keyboard clatter, mouse clicks and other ambient noises are intelligently neutralized so you can hear and be heard with crystal clarity while gaming or in calls.
*A splitter cable is necessary when using a 3.5 mm headset.
-
500M
Deep-Learning Database
-
Audio
Input/output
-
High
Fidelity
-
Minimal
Performance Impact
COD: MW - FPS (2560 x 1440)
ASUS Two-Way
AI Noise Cancelation
Similar technology
-
Enabled: 116
-1.7%
-
Disabled: 118
-
Enabled: 88
-25.4%
-
Disabled: 118
Minimal
performance impact
*Actual performance varies by configuration
Hear the difference
-
TALKING
-
HEARING
without noise
ASUS Motherboard User -
HEARING
without noise
-
TALKING
Other Party
- Background noise
- Other human voice
- Human speech
Armoury Crate
Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.
Download Link>
- AURA SYNC
- Device Configuration
- Driver & Manual Download
- Gaming Highlight
- Account Management
CUSTOMER REVIEWS
Recommended Products
ROG Crosshair VIII Hero
AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages , OptiMem III, 2.5 Gbps LAN, USB 3.2, SATA, M.2, and Aura Sync RGB lighting
ROG Crosshair VIII Hero (WI-FI)
AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages , OptiMem III, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2, SATA, M.2 and Aura Sync RGB lighting
ROG Crosshair VIII Impact
AMD AM4 X570 Mini-DTX enthusiast gaming motherboard with an SO-DIMM.2 card (dual M.2), Wi-Fi 6 (802.11 ax), PCIe 4.0, SupremeFX audio, Aura Sync RGB LED lighting, SATA 6Gb/s and USB 3.2 Gen 2
ROG STRIX B550-F GAMING (WI-FI)
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, teamed power stages, Intel® 2.5Gb Ethernet, WiFi 6 (802.11ax), dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
ROG STRIX B550-XE GAMING WIFI
AMD B550 Ryzen AM4 ATX Gaming motherboard with PCIe® 4.0, 16 power stages, Intel® 2.5 Gb Ethernet, WiFi 6 (802.11ax), two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
ROG CROSSHAIR VIII EXTREME
AMD X570 EATX gaming motherboard with 18+2 power stages, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector with PD 3.0 60 W support, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt™ 4, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, PCIe® 4.0, onboard WiFi 6E and Aura Sync RGB lighting
ROG STRIX X570-E GAMING WIFI II
AMD X570 ATX gaming motherboard with PCIe® 4.0, 12+4 power stages, and WiFi 6E (802.11ax), Realtek 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, dual M.2 with heatsinks, SATA 6 GB/s, USB 3.2 Gen 2 Type C and Aura Sync RGB lighting
ROG CROSSHAIR X870E HERO
AMD X870E (AM5 Socket) ATX motherboard, Advanced AI PC-ready, 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP & NitroPath DRAM Technology, Wi-Fi 7 with ASUS WiFi Q-Antenna, five M.2 slots onboard, three PCIe® 5.0 NVMe® SSD slots onboard, SlimSAS connector, PCIe® 5.0 x16 SafeSlots with PCIe® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4® ports, two USB 20Gbps Type-C® front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), AI Overclocking, AI Cooling II, AI Networking II, and Polymo Lighting II
Related Products
ROG STRIX XF 120
Whisper-quiet, 4-pin PWM fan for PC cases, radiators or CPU cooling
ROG Eye S
Full HD 60 fps webcam with AI-powered, noise-canceling mics for superior live-streaming audio and a compact and foldable design that’s easy to carry and attach instantly to any laptop
ROG Herculx Graphics Card Holder
The robust ROG Herculx Graphics Card Holder securely fortifies even the most powerful cards, plus offers an easy-to-use design and extensive compatibility.
ROG Strix SQ7 Gen4 SSD 1TB
1 TB M.2 PCIe® Gen 4 NVMe® , internal solid state drive with DRAM buffering and large SLC cache, up to 7000 MB/s maximum file transfer speed, compatible with PC and PlayStation® ™5, TCG Opal and AES 256-bit encryption, plus NTI Backup Now EZ software
ROG Raikiri Pro
The ROG Raikiri Pro PC Controller features an OLED display, four rear buttons, selectable triggers, ESS DAC, customizable joystick sensitivity and response curves, and tri-mode connectivity. It’s ideal to play in wired USB-C, 2.4GHz, or Bluetooth on PCs
ROG Ally Travel Case
Keep your ROG Ally safe on the go with the ROG Ally travel case. With a soft case material and a fleece inner liner, the Ally will be protected in any bag or backpack.
ROG Herculx EVA-02 Edition
The robust ROG Herculx EVA-02 Edition securely fortifies even the most powerful cards, plus offers an easy-to-use design and extensive compatibility.
ROG Carnyx
Professional cardioid condenser gaming microphone features a studio-grade 25 mm condenser capsule, 192 kHz / 24-bit sampling rate, high-pass filter, built-in pop filter, premium metal shock mount, and ASUS Aura Sync RGB lighting.
Disclaimer
- The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
- For pricing information, ASUS is only entitled to set a recommendation resale price. All resellers are free to set their own price as they wish.
- Price may not include extra fee, including tax、shipping、handling、recycling fee.
