ROG MAXIMUS Z690 EXTREME
Intel® Z690 EATX motherboard with 24+1 power stages, DDR5 with OptiMem III, Five M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support, Dual Thunderbolt™ 4, PCIe® 5.0, Onboard Wi-Fi 6E and Aura Sync RGB lighting
- Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancellation for easy configuration
- Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimised Thermal Design: Cold forged heatsink, enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, penta M.2 heatsinks and dual with embedded backplates and ROG Water-Cooling Zone
- High Performance Networking: Onboard Wi-Fi 6E, Marvell® AQtion 10Gb, Intel® 2.5Gb Ethernet, and ASUS LANGuard
- Fastest Gaming Connectivity: PCIe® 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt™ 4 support, rear triple USB Type-C® ports
- Industry Leading Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9018Q2C DAC for high-fidelity audio
- Unmatched Personalisation: AniMe Matrix™ LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, V-Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Glavis and ROG graphics card holder
- Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
EXTREME
ROG Maximus Z690 Extreme
ROG Maximus Z690 Extreme represents the ultimate in enthusiast motherboard design for those who want the best possible option that excels at both air and liquid cooling for 12th Gen Intel® Core™ CPUs. And this platform is packed with the most features that you will find on a ROG Z690 motherboard, including heavy-duty 24+1 power stages, ASUS Enhanced Memory Profiles for top-notch DDR5 speeds, multiple PCIe 5.0 slots, and the exclusive AniMe Matrix™ LED Display.
Intelligent motherboard
Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking, and onboard audio, making advanced tweaks and optimisation accessible to new recruits and savvy PC DIY veterans alike.
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.
LEARN MOREAI Cooling
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm reduces unnecessary system noise by monitoring CPU temperatures and dynamically adjusting fans to optimal speeds.
LEARN MOREAI Networking
GameFirst VI optimises networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.
LEARN MORETwo-Way AI Noise Cancellation
This utility leverages a massive deep-learning database to reduce over 500 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
LEARN MORESPEC OVERVIEW
- Performance
- Cooling
- Gaming Immersion
- Connectivity
- DIY friendly
Extreme Power & Performance
- DUAL PROCOOL II POWER CONNECTORS
- 24 + 1 POWER STAGES
-
EXPANSION SLOTS
・ 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
・ 1 x PCIe 3.0 x1 slot
- INTEL® SOCKET LGA1700 FOR 12TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS
-
DDR5, 4 X DIMM
・ Dual Channel
-
5 X M.2 SOCKETS
・ 1 x M.2 22110 (PCIe 5.0 x4)
・ 2 x M.2 2280 (PCIe 4.0 x4)
・ 2 x M.2 22110 (PCIe 4.0 x4 & SATA from DIMM.2)
Comprehensive Cooling
-
INTERGRATED I/O COVER &
VRM HEATSINK DESIGN -
TRIPLE M.2 HEATSINKS
WITH M.2 BACKPLATES -
MULTIPLE 4-PIN PWM FAN HEADERS
・ CHA_FAN1P-2P headers support ASUS HYDRANODE
-
ROG DIMM.2 HEATSINK
-
ROG WATER-COOLING ZONE
・ W_FLOW tachometer
・ W_IN/OUT T-sensor
Total Gaming Immersion
-
AniMe Matrix™ LED
AURA LIGHTING
- 2” LiveDash OLED
-
SUPREMEFX ALC4082 CODEC
・ ESS® SABRE9018Q2C high definition DAC
・ 120 dB SNR stereo playback output
・ 113 dB SNR recording input
・ LED-illuminated audio jacks
SONIC STUDIO III + SONIC STUDIO VIRTUAL MIXER + Sonic Suite Companion SONIC RADAR III DTS® SOUND UNBOUND - 1 X 4-PIN RGB HEADER
- 1 X 3-PIN ADDRESSABLE GEN 2 RGB HEADER
-
1 x 3-PIN ADDRESSABLE GEN 2 RGB HEADER
- Edge Zone Lighting
- ROG Logo lighting
Full Connectivity
- BIOS FLASHBACK™ BUTTON
- CLEAR CMOS BUTTON
- 1 x HDMI® port
- Marvell® AQtion 10Gb Ethernet
- Intel® 2.5Gb Ethernet
- 1 x Thunderbolt™ 4 USB Type-C® port
-
8 x USB 3.2 Gen 2 ports
(7 x Type-A + 1 x USB Type-C®)
- WI-FI 6E
- OPTICAL S/PDIF OUT
- 5 x LED-illuminated audio jacks
-
1 X USB 3.2 GEN 2X2
USB Type-C® front panel connector supports QC4+
- 1 x Thunderbolt™ 4 Type-C port
- 6 x SATA 6GB/S
DIY Friendly
- ROG PATENTED PRE-MOUNTED I/O SHIELD
-
ESD GUARDS
Provides greater electrostatic protection than the industry standard. ESD Guards cover the USB, audio and LAN ports.
-
TRUEVOLT USB
Supplies stable 5-volt power delivery to all USB ports, with minimal power fluctuations to minimise data loss.
-

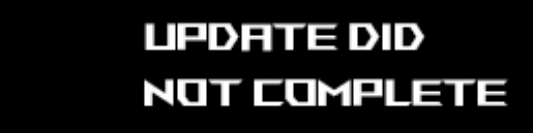

LIVEDASH OLED 2”
Indicates power status and potential problems with the CPU, memory, graphics card or boot device for quick diagnosis.
-
2 X SAFESLOTS
Provides stronger PCIe device retention and greater shearing resistance.
-
V_LATCH SWITCH
Makes tuning more intuitive by recording both the true highest and lowest core voltage and then passing the data to HWiNFO, AI Suite 3 and the onboard LiveDash OLED.
-
ASUS HYDRANODE
Both onboard chassis fan headers and a further three on the bundled ROG Fan Controller feature the ASUS Hydranode circuit, which utilises a powerline communication protocol to control up to three daisy chained fans independently through each 4-pin connector.
-
FLEXKEY
At its default, the FlexKey functions as a system reset button, but it can also be easily set to quickly turn Aura lighting on or off, activate Safe Boot or enter the BIOS.
-
4 X Q-DIMM
One sided clips for super-simple, super-secure handling of memory modules.
-
PCIE Q-RELEASE
Provides easy PCIe module swap with a single button.
-
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
SPEC OVERVIEW
- Power Solution
- ROG True Voltician
- Memory
PERFORMANCE
ROG Maximus Z690 Extreme is the kind of motherboard that uses stock clock speeds merely as a reference point. With its piles of teamed power stages working alongside high-grade capacitors and chokes, you get performance that can take high-powered processors like a 12th Gen Intel Alder Lake CPU and leave all competition in the dust.
Teamed power architecture
Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. The latest ROG VRM architecture rises to the challenge by utilising teamed power stages to rapidly swing current, while maintaining exemplary thermal.
- A brief history
- A shift in CPU demands
- Bucking the trend
- Thermal performance
- High-quality components
Teamed
Power Stage Design
12V EPS IN
12V EPS IN
Conventional
Phase-doubled Design
12V EPS IN
12V EPS IN
-
ASUS became the first manufacturer to implement phase doublers when we shipped the A8N32-SLI Deluxe back in 2005. The board’s VRM was lauded for elegantly overcoming the power handling capabilities of components that were available at the time while also reducing voltage ripple. Those benefits lead to phase doublers becoming universally accepted in the industry, and they are still used for similar purposes today.
-
Today’s CPUs pack more cores than their predecessors, and the latest instruction sets allow them to crunch computationally dense workloads at an incredible pace. As an added bonus, these processors also consume less power at idle and can transition between loads states much more quickly. These improvements necessitated a re-evaluation of power design priorities, because phase doublers add a propagation delay that hampers transient response.
-
The latest integrated power components can handle higher currents than the devices of yesteryear, making it possible to implement a simple circuit topology that isn’t hamstrung by the processing lag of phase doublers. That’s why the ROG Maximus Z690 Extreme utilises teamed power stages to deliver higher burst current per phase, while maintaining the thermal performance of phase-doubled designs.
-
Each VRM component serves a specific purpose. PWM controllers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. That's why ROG Maximus Z690 Extreme utilises 20 power stages. The high-end power stages feature a low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom.
-
Dual 8-pin ProCool II power connectors
Two ProCool connectors ensure a snug and reliable connection to the EPS12V power lines.
-
24+1 power stages
The VRM features 24 + 1 power stages rated at 105 amps each for the Vcore and two 100-amp power stages for the secondary voltage rails.
-
MicroFine alloy chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
-
Premium metallic capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
ROG TRUE VOLTICIAN
For truly advanced performance optimisation, ROG Maximus Z690 Extreme includes ROG True Voltician, a miniature oscilloscope connected to a USB header displays waveforms for a CPU’s Vcore, VCCIN, and System Agent rails. It can also be used to monitor a video card or power supply, and users can even run the True Voltician software on one PC while they get readings from another.
DDR5 Overclocking strength
Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).
- A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
- Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
- Heatsinks
- Headers
- ROG Fan Controller
COOLING
ROG Maximus Z690 Extreme features unparalleled flexibility for either air or liquid cooling, thanks to a diverse array of heavyweight heat dissipation that keeps power delivery, M.2 drives and onboard components running cool under load, regardless of the available airflow.
Cooler by Design
-
VRM heatsink
A VRM heatsink is placed on the MOSFETs and chokes, and the embedded heatpipe connects to the aluminum I/O cover.
-
Aluminum, I/O cover
An aluminum I/O cover is connected to the primary heatsink via an embedded heatpipe, increasing mass and surface area for dissipation.
-
Cold-forged heatsink
The heatsink cover is crafted from pure aluminum to efficiently cool the two onboard M.2 drives
-
Solid steel backplate
The steel, electro-galvanised, cold-rolled coil construction strengthens Maximus Z690 Extreme to prevent bending, and is finished in motherboard-matching black.
-
High-Conductivity Thermal Pad
A high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
-
M.2 Backplates
Dual M.2 slots feature back-plate blocks that ensure high-performance drives deliver peak performance even when airflow is restricted.
-
Chipset Heatsink
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
- Thermal Management
- ROG Water-Cooling Zone
- Cooler by design
- ROG Water-Cooling Zone
Cooler by design
ROG Maximus Z690 Extreme features comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS.
- Multiple temperature sources
- 4-pin PWM/DC fan headers and ASUS HYDRANODE
- Bundled ROG fan controller
-
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.
-
Every onboard header auto-detects any PWM or DC fan, with two chassis fan headers offering ASUS HYDRANODE support.
-
A bundled fan controller card includes six additional DC and PWM fan headers, plus two thermal-probe headers.
ROG Water-Cooling Zone
Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
- Water pump+
- Water in/out
- Water flow
A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps.
A dedicated header enables monitoring of temperatures at the input/output points of any component.
A dedicated header enables constant monitoring of flow rate throughout the entire loop.
ROG Fan Controller
The ROG Fan Controller offers an additional six headers that can be controlled via FanXpert 4. The card features two temperature-sensor headers, along with two thermistors that can be attached to various components. There are also six ARGB headers to illuminate ARGB fans.
- Networking
- USB Ports
- Storage
- Audio
CONNECTIVITY
ROG Maximus Z690 Extreme features the latest and greatest in connectivity, including the fastest GPU and storage device transfer speeds with PCIe® 5.0, the smoothest online gameplay with WiFi 6E and 10 Gb Ethernet, a host of rapid-fire file transfers with Thunderbolt™ 4.
-
WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
-
Marvell® AQtion 10 Gbps Ethernet
Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos and system backups and file transfers that are faster than ever before.
-
Intel® 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
-
WiFi 6E antenna
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.
-
Adjustable design
Four-way positioning enables better signal reception.
-
Magnetic base
A powerful magnetic base secures the antenna on the top or side of the PC case.
-
USB 3.2 GEN 2X2 TYPE-C® FRONT-PANEL CONNECTOR WITH QUICK CHARGE 4+
Quick Charge 4+ technology can rapidly charge devices at up to 60W with a PCIe power supply cable plugged into the nearby 6-pin connector.
-
Two Thunderbolt 4 USB-C Ports
Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.
-
Three Onboard M.2 Slots
ROG Maximus Z690 Extreme is features three onboard M2 slots, with one offering support for the latest PCIe 5.0 SSDs.
-
ROG DIMM.2
The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating aesthetics.
*DIMM.2 accommodates M.2 drives up to 22110 (110 mm) in length.
- SupremeFX
- ROG Clavis
SupremeFX
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for clean power delivery to the SupremeFX ALC4082 codec, and an ESS® 9018Q2C integrated DAC.
››› Learn more about ROG audio technology
- Audio line shielding
- ESS® SABRE 9018Q2C
- ALC 4082 Codec
- Switching MOSFETs
- Premium capacitors
-
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
-
The ESS® SABRE 9018Q2C integrated DAC amplifier is capable of providing -115 dB total harmonic distortion (THD+N) for playback that conveys all the subtlety and nuances of the audio track. In addition, the 121 dB dynamic range (DNR) provides an extremely low noise-floor, further accentuating dynamics and punch.
-
The ALC4082 codec uses USB instead of the conventional high-definition audio (HDA) interface and improves playback audio resolution from 192 to 384 kHz.
-
A unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
-
High-quality integrated components help produce warm, natural-sounding audio with exceptional clarity.
Unlock a premium audio experience
The pocket-sized ROG Clavis USB digital-to-analog converter delivers a host of features to give any compatible headset a big upgrade. Its ESS 9281 QUAD DAC™ with a built-in amplifier and Master Quality Authenticated (MQA) rendering technology treats you to hi-fi-grad audio, while AI noise-canceling technology enhances headset microphones for crystal-clear voice communication.
Learn more
- 5-Way Optimization
- BIOS
- Differential Sensing
OPTIMISATION
ROG Maximus Z690 Extreme features best-in-class automatic and interactive performance optimisation, including the TurboV Processing Unit, digitally controlled voltage regulators, Fan Xpert 4 and core-specific application assignment.
Level Up Performance
The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG Maximus Z690 Extreme system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
- TPU
- EPU
- Fan Xpert 4
- Digital power controls
- Turbo Core app
CPU performance boost
The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.
All-around energy efficiency
With the Energy Processing Unit (EPU) you’ll enjoy system-wide power savings. The EPU automactically optimises power consumption and maximises savings with Away mode.
Flexible cooling controls for air or liquid
Enjoy comprehensive control over fans, water pumps and all-in-one (AIO) coolers via either Fan Expert 4 or the ASUS UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.
Precise digital power controls
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
Turbo Core App
Intel processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritising computing power where it's needed most.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
- Advanced mode
- EZ mode
MemTest86
For added convenience, MemTest86 has been pre-installed into ROG UEFI (BIOS). Run the test to pinpoint memory issues with just one click, without the need for any USB stick or going into the OS. The memory report will also be stored in the BIOS archives for reference.
When you’re ready for a deeper dive, delve into the UEFI’s Advanced Mode and take complete control. This mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
Advanced mode
-
MemTest86 Learn more
Diagnose faulty RAM and memory problems that can lead to crashes or data issues.
-
My Favorites
Quickly locate tuning options and add preferred tools to your favorites list.
-
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
-
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
-
GPU POST
Automatically detect select ASUS graphics cards to view detailed information.
-
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
-
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
-
SATA Port Renaming
Rename SATA ports for easy identification.
-
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
-
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
Designed to simplify setup, EZ Mode presents vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
EZ mode
-
Intuitive graphical fan controls
Fine-tune individual fans simply by dragging a curve with the mouse.
-
Storage information
View SATA port details for easy device recognition.
-
Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.
-
Aura on/off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED for a more subdued aesthetic.
Accurate voltage monitoring
Conventional motherboards use single-ended sensing circuits that are susceptible to noise and have to tap voltage rails from a location that isn’t ideal for accurate monitoring. These issues lead to a large disparity between the voltage fed to components and the values reported to software. Maximus Z690 Extreme features a differential-sensing circuit that rejects noise and takes readings directly from the CPU and the end point of major voltage rails. This simplifies overclocking and tuning by allowing you to track voltages more accurately.
- Anime Matrix LED
- Aura Sync
- LiveDash OLED
- Gaming Audio
- Armoury Crate
- AIDA64 Extreme
- Graphics Card Holder
PERSONALISATION
In addition to Aura Sync RGB customisation, the ROG Maximus Z690 Extreme’s VRMs and I/O cover are graced with a new ASUS-exclusive design known as the AniMe Matrix Display, while a 2-inch OLED LiveDash can show live system information or user-customisable graphics.
AniMe Matrix™ LED display
This innovative display features an RGB grid of mini LEDs that can be programmed to show off style with custom lighting designs, unique animations and live audio visualisations. Plus, distinctive soundwave lighting effects can even flash to the sound of a person’s voice.
- Default Animation
- Text Animation
- Loop Animation
Grow your gaming world with Aura Sync
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronised across compatible ROG graphics cards, monitors, mice and keyboards to give your setup a unified look.
- Static
- Breathing
- Strobing
- Rainbow
- Color cycle
- Starry night
- Music effect
- Smart
- Adaptive color
- Dark
Addressable Gen 2 RGB header
The addressable Gen 2 RGB headers can be controlled with Aura software, which automatically tailors your preferred lighting effects to the number of LEDs present in the connected gear or strip. The new headers also offer backward-compatibility with existing Aura RGB components.
LiveDash OLED
The ROG Maximus Z690 Extreme includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customisable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, fan speeds or water-cooling information. You can also personalise the default OLED GIF with a preferred image or animation.
- Hardware Monitor
- Extreme Exclusive
- BIOS Update
- Customization Content
- Sonic Studio III
- DTS : SOUND UNBOUND
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.
- Sonic Studio link
- App-specific profiles
- Sonic Studio virtual mixer
Sonic Studio link
Easily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device.
App-specific profiles
Apply customised audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.
Sonic Studio virtual mixer
Combine audio output from selected apps with audio from the microphone input and stream the compiled mix.
DTS : Sound Unbound
The ROG Maximus Z690 Extreme includes a pre-loaded DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with developers for titles that offer support.
-
Stereo Sound
-
Surround Sound
-
Spatial Sound
Armoury Crate
Armoury Crate is a software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers.
You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.
*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
Download Link ›››
- AURA SYNC
- Fan Control
- Device Configuration
- Driver & Manual Download
- Gaming Highlight
- Account Management
AIDA64 Extreme
The ROG Maximus Z690 Extreme includes a one-year AIDA64 Extreme subscription. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be viewed on the desktop, sent to dedicated displays, or the OLED panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and later models.
Learn More About AIDA64 >
- ROG x AIDA64 Extreme
- Hardware Monitor Display
Graphics Card Holder
Featuring a magnetic base, adjustable slider and hinge, the ROG Graphics Card Holder banishes sag and provides support where it’s needed most.
CUSTOMER REVIEWS
Recommended Products
ROG MAXIMUS Z690 EXTREME GLACIAL
Intel® Z690 EATX motherboard with 24+1 power stages, Integrated EK® Ultrablock DDR5 with OptiMem III, Five M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support, Dual Thunderbolt™ 4, PCIe® 5.0, Onboard Wi-Fi 6E and Aura Sync RGB lighting
ROG MAXIMUS Z790 EXTREME
Intel® Z790 LGA 1700 EATX motherboard with 24 + 1 power stages, DDR5, five M.2 slots, on-board PCIe® 5.0 NVMe® SSD slot, two PCIe 5.0 x16 SafeSlots, Wi-Fi 6E, Thunderbolt™ 4 port and front-panel connector, USB 3.2 Gen 2x2 Type-C® port and front-panel connector with Quick Charge 4+ up to 60W, PCIe Slot Q-Release, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting
ROG Maximus XIII Extreme Glacial
Intel® Z590 EATX motherboard with 18+2 power stages, integrated full-coverage EK water block, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt™ 4, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, PCIe® 4.0, onboard WiFi 6E (802.11ax) and Aura Sync RGB lighting
ROG Maximus XIII Extreme
Intel® Z590 EATX motherboard with 18+2 power stages, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt™ 4, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, PCIe® 4.0, onboard WiFi 6E (802.11ax) and Aura Sync RGB lighting
ROG MAXIMUS Z690 FORMULA
Intel® Z690 ATX motherboard with 20+1 power stages, DDR5, Five M.2, USB 3.2 Gen 2x2 front-panel connector, Dual Thunderbolt™ 4, PCIe® 5.0, Onboard WiFi 6E, 10 Gb Ethernet and Aura Sync RGB lighting
ROG MAXIMUS Z690 APEX
Intel® Z690 ATX motherboard with 24+0 power stages, DDR5, Five M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support, PCIe® 5.0, Onboard Wi-Fi 6E and Aura Sync RGB lighting
ROG MAXIMUS Z790 APEX
Intel® Z790 LGA 1700 ATX motherboard with 24 + 0 power stages, DDR5 memory support, five M.2 slots, PCIe® 5.0 M.2 Card with a PCIe 5.0 NVMe® SSD slot, two PCIe 5.0 x16 SafeSlots, PCIe slot Q-Release, WiFi 6E, USB 3.2 Gen 2x2 Type-C® rear I/O port and additional front-panel connector with Quick Charge 4+ up to 60W, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting
ROG STRIX Z690-G GAMING WIFI
Intel® Z690 LGA 1700 ATX motherboard with PCIe® 5.0, 14+1 DrMos, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, three M.2 slots with heatsinks, PCIe® 4.0 NVMe® SSD support, M.2 backplates, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting
Related Products
ROG Strix Magnus
ROG Strix Magnus USB condenser gaming microphone with AURA RGB lighting and environmental noise cancellation (ENC) for gaming/streaming
ROG Tessen Mobile Controller
Turn Your Phone to a Gaming Handheld
ROG Carnyx
Professional cardioid condenser gaming microphone features a studio-grade 25 mm condenser capsule, 192 kHz / 24-bit sampling rate, high-pass filter, built-in pop filter, premium metal shock mount, and ASUS Aura Sync RGB lighting.
ROG Raikiri
The ROG Raikiri PC controller features two rear buttons, left and right triggers with short and full range of motion plus dead zone customization, built-in ESS DAC for supreme audio, joystick sensitivity and response curve customization. The ROG Raikiri is ideal for gaming on PC, laptop or the next gen Xbox console.
ROG Raikiri Pro
The ROG Raikiri Pro PC Controller features a built-in OLED display, tri-mode connectivity, four rear buttons, selectable step triggers, an ESS DAC, plus adjustable joystick sensitivity and response curves. The ROG Raikiri Pro is ideal for PC gaming and next-gen Xbox consoles.
ROG XG Mobile (2023)
ROG XG Mobile, GC33, NVIDIA GeForce RTX 4090 Laptop GPU, external GPU, PCIe Gen 4.0x8, 330W integrated adapter, USB-Type A 3.2 Gen2, USB-Type C 3.2 Gen2, HDMI 2.1, DP 1.4, RJ-45 Jack(2.5G), DC input jack,
ROG Eye S
Full HD 60 fps webcam with AI-powered, noise-canceling mics for superior live-streaming audio and a compact and foldable design that’s easy to carry and attach instantly to any laptop
ROG Eye
ROG Eye USB camera with Full HD 1080p streaming at 60fps, Face AE technology, and beamforming microphone for high streaming video and audio quality
Disclaimer
- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- For pricing information, ASUS is only entitled to set a recommendation resale price. All resellers are free to set their own price as they wish.
- Price may not include extra fee, including tax、shipping、handling、recycling fee.
