AMD X870 Mini-ITX motherboard with 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4® ports, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
10(110A)+ 2(110A)+ 1(80A) Power Stages
DDR5 8600+ (OC)
・ 2 x DIMM
・ Dual Channel
2 x M.2 Slots
・ 1 x M.2 2280 (PCIe 5.0 x4)
・ 1 x M.2 2242-2280 (PCIe 4.0 x4)
Comprehensive Cooling
VRM Heatsink
M.2 AND CHIPSET HEATSINKS
AIO PUMP HEADER
4-PIN PWM CHASSIS FAN HEADER
Total Gaming Immersion
ESS® SABRE9260Q DACROG
・ Hyper-Grounding Technology
・ Silver-plated audio jacks
・ Dedicated audio PCB layers
DOLBY ATMOS®
2 x 3-Pin Addressable Gen 2 RGB Headers
Full Connectivity
HDMI™ Port
5 x USB 10Gbps ports
(4 x Type-A + 1 x USB Type-C®)
2 x USB4® (40Gbps) ports
(2 x USB Type-C®)
Clear CMOS Button
BIOS FlashBack™ Button
3 x USB 2.0 ports
(3 x Type-A)
Intel® 2.5Gb Ethernet Port
WiFi 7
ROG STRIX HIVE II
Volume Control Dial
USB 10Gbps 2 ports (1 x Type-A + 1 x USB Type-C®)
USB Type-C® connects to motherboard
Headphone Jack with Microphone Input
Power button
FlexKey Button
Q-LED
1 x USB 10Gbps Connector
(supports USB Type-C®)
ROG FPS Card
2 x USB 2.0 Headers (Supports 3 x USB 2.0 Ports)
2 x SATA 6Gb/s Ports
Front Panel Headers
CPU_OV jumper
Alteration PCIe Mode Switch
ASUS AI INTELLIGENCE
AI CACHE BOOST
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
* Availability of ASUS AI Advisor may vary by region.
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
ai cOOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
*Features may vary by model.

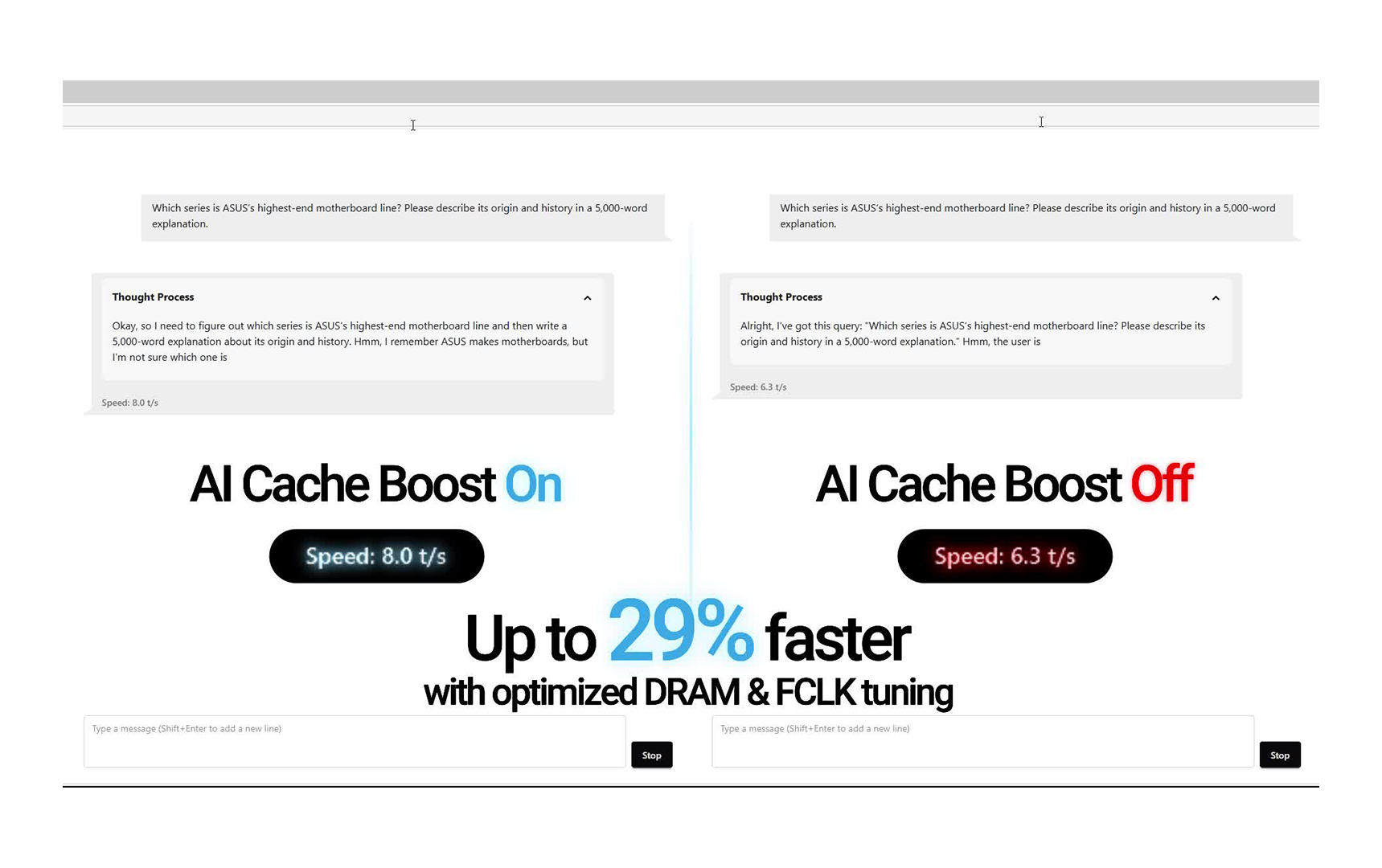

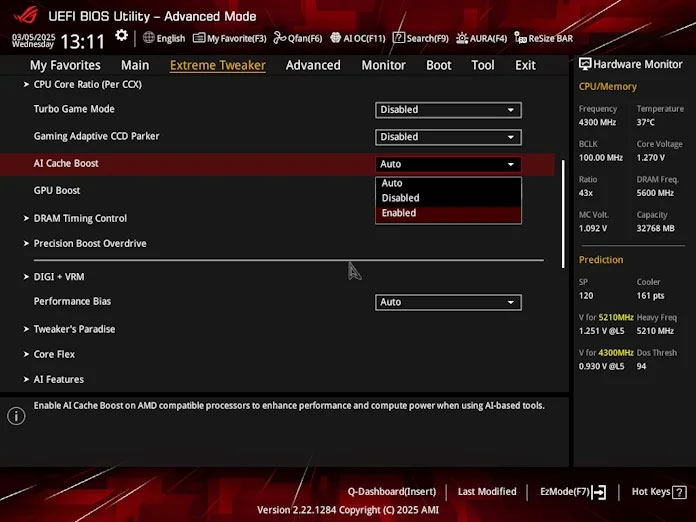

AI CACHE BOOST
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
With an ASUS AMD 600 or 800 series motherboard and a Ryzen™ 9000 series CPU, you can enable the AI Cache Boost setting in the BIOS. This feature applies comprehensive optimizations to CPU cache and memory pathways, greatly reducing the typical performance drop that can happen when VRAM is used up. Internal testing determined that enabling AI Cache Boost delivered up to a 15% performance uplift when running large language models that exceeded graphics card memory. With high-speed DDR5 memory and additional Infinity Fabric clock (FLCK) speed tuning, this performance uplift nearly doubled. For enthusiasts, creators or anyone who wants a powerful AI model capable of deep reasoning and natural conversation running on their own hardware, they can enjoy these uplifts today with AI Cache Boost.
UL Procyon - AI Computer Vision Benchmark (Higher is better)
Default: 1490
AI Cache Boost: 1680
+12.75%
ASUS AI ADVISOR
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
* Availability of ASUS AI Advisor may vary by region.
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
What's New?
As the first foray of AI Overclocking on an AMD architecture, the set of parameters has changed substantially, but voltage and clock speeds are still the primary targets for adjustment. Every core has a recommended VID and frequency, with the latter based on a combination of ratio and Asynchronous BCLK tuning.
Predictive settings in the utility are designed to work in tandem with Precision Boost Overdrive (PBO), but they go one step further by enhancing the values for EDC, TDC, and PPT, as well as tuning the curve optimizer.
Finally, by enabling the Dynamic OC Switcher, AI Overclocking ensures that the CPU is using ideal settings whether in single- or multi-threaded workloads.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Traffic Monitor
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.
*The "Channel Switch" function requires pairing with an ASUS router. If not paired with an ASUS router, the channel change process can be performed in the "Router IP" section of the Traffic Monitor.
Fast Check
Armoury Crate’s Fast Check empowers users to rapidly detect WiFi signal strength.
Direction Finder
Armoury Crate’s Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.
*The Direction Finder is only compatible with connections in the 5GHz and 6GHz bands
GameFirst
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.
PerformanceOVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Dynamic OC Switcher
Temp Current
MANUAL OC
Ex: > 35A, < 80°
Multi-Threaded Performance
Ex: ≤ 35A, ≥ 80°
AMD PBO
Single-Threaded Performance
Example:
If a user sets thresholds for current and temperature as shown, once CPU current exceeds 35A, the manual overclock engages until the temperature reaches 80°. At all other times, Precision Boost Overdrive will be used.
The Dynamic OC Switcher lets users automatically switch between manual OC and PBO.
Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
Ryzen Core Flex
Temp Current Voltage
MAX PERFORMANCE
MEDIUM
SAFE & STABLE
EXAMPLES:
Core Flex lets you fine-tune overclocks.
EXAMPLE: BASE CLOCK
For this CPU, the base clock (BCLK) can be stably increased to give an extra boost during lightly threaded workloads. At Level 1, the BCLK is set to 104, and it remains at that frequency until the current reaches 35A. Then the BCLK drops down to 102, and stays in that Level 2 range up until 55A. From that point on, the CPU is using most or all of its threads, so the BCLK scales back to the default 100.
EXAMPLE: EDC
By managing the Electrical Design Current (EDC) in tandem with the total current, this CPU can gain extra performance for short, demanding bursts. During lightly threaded workloads, below 35A, the Level 1 EDC is set to a low value, in this case 60. As more cores are needed, the EDC is set to 120, which was found by this user to be a sweet spot for performance. Once the CPU passes 70A, it is in multi-threaded territory, where it was found that a high EDC of 250 gave optimal performance.
EXAMPLE: PPT
In order to let the CPU cool off if its temperatures go too high, this user constrains the Package Power Target (PPT) when thermals increase. Specifically the short-term value (“Fast”) is used. Until the CPU reaches 70°, it can run at full performance, so 350W is set to give plenty of overhead. At that point, the power limit reduces to 220W, to let the CPU start reducing heat. If it is still under sustained load and keeps getting hotter, then a more stringent 165W PPT is set at 85°.
Asynchronous Clock
For next-level frequency flexibility, the ROG Strix X870-I features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains. Separate CPU BCLK from other domains for unfettered overclocking
CPU Clock
Separate CPU BCLK from other components for a stable overclocking edge
Crystal Oscillator
Clock Generator
SoC-Connected Components
Separate CPU BCLK from other domains for unfettered overclocking
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
EDC
PPT
TDC
Fmax
Scalar
PerformanceMEMORY
DDR5 DOMINATION
The Strix X870-I is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
DDR5 Strength
For those who want to fly past stock DDR5 speeds, the Strix X870-I is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
NitroPath DRAM Technology
NitroPath DRAM Technology provides enhanced DDR5 memory performance and durability. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
Power solution
ROG STRIX ULTIMATE POWER DESIGN 10(110A)+ 2(110A)+ 1(80A) Power Stages
10+2+1 Power Stages
The VRM features 10+2+1 power stages, each rated to handle up to 110 amps
10
VCORE(110A)
2
SoC(110A)
1
MISC (80A)
8-PIN PROCOOL II POWER CONNECTOR
A ProCool II connector is precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.
TEN-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
ALLOY CHOKES AND DURABLE CAPACITORS
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
PerformanceCOOLING
M.2
M.2 AND CHIPSET HEATSINKS
VRM
VRM HEATSINK, HIGH-CONDUCTIVITY THERMAL PADS
CPU
CPU FAN HEADERS, AIO PUMP FAN HEADER
CHASSIS
4-PIN FAN HEADERS
M.2 AND CHIPSET HEATSINKS
To save space, both on-board M.2 slots and heatsinks are stacked together over the chipset. And to keep the thermals of installed high-performance drives in check, the entire array is cooled by an embedded fan.
VRM HEATSINK
The VRM heatsink and L-shaped backplate extend over the rear I/O to maximize surface area and include a VRM fan for active cooling to deftly handle the power thermals of the latest AMD processors, while leaving clearance for large CPU coolers.
HIGH-CONDUCTIVITY THERMAL PADS
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
CPU FAN HEADERS
A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.
AIO PUMP FAN HEADER
A dedicated PWM/DC header connects self-contained water-cooling setups.
4-PIN FAN HEADERS
The Strix X870-I features five chassis fan headers, each supporting auto-detection of PWM or DC fans.
leading Connectivity
ROG STRIX HIVE ii
The ROG Hive II is an exclusive accessory designed to deliver user-friendly access to hardware and software features.
ROG FPS Card
The ROG FPS card groups I/O onto a vertically-mounted card, saving valuable motherboard space and tidying cable management.
wifi7
320 MHz
6GHz bands
4096 QAM
up to4.8X ultra-fast WiFi speeds
Intel 2.5Gb Ethernet
pcie 5.0
Fully embracing the new standard, the Strix X870-I offers end-to-end PCIe 5.0 support.
USB PORTS
DUAL USB4 PORTS
WIFI 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
* WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions. ** Specifications vary by model.
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances. Disclaimer: The availability of WiFi 7 varies according to regional regulations.
Wireless Signal Reception Improvement
Versus previous-generation antenna
Up to +6% 6GHz
Up to +18% 5/2.4 GHz
Intel 2.5Gb Ethernet
Onboard Intel® 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
PCIE 5.0
Fully embracing the new standard, the Strix X870-I offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 Gb/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 Gb/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.
DUAL USB4® PORTS
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.* *VGA resolution support depends on CPU or graphic card capabilities.
ROG FPS CARD
The ROG FPS card groups I/O onto a vertically-mounted card, saving valuable on-board space and tidying cable management. Connections can be made before the card is installed, greatly simplifying installation in cramped quarters. On board are two SATA ports, front panel headers, two USB 2.0 headers (allowing for up to three USB 2.0 connections), a CPU_OV jumper for extreme overclocking, and an Alteration mode switch.
2 x USB 2.0 headers (support 3 additional USB 2.0 ports)
1 x CPU Over Voltage jumper
2 x SATA 6Gb/s ports
1 x Front Panel header
1 x Alteration PCIe Mode switch
ROG STRIX HIVE II
The ROG Hive II is an exclusive accessory designed to deliver user-friendly access to hardware and software features, including USB ports, audio jacks, volume control and other useful features.
CONTROLS
USB
AUDIO
WHAT’S INSIDE?
FLEXKEY
The FlexKey button defaults to resetting your PC when pressed, but it can perform other quick-access functions such as booting into Safe Mode in Windows or toggling Aura Sync lighting.
Q-LED
Onboard LEDs indicate power status or issues with the CPU, memory, graphics card or boot device.
VOLUME CONTROL DIAL
Turn the dial to adjust volume, or press it like a button to mute your audio.
POWER BUTTON
Click once to turn on your PC, or hold the button down for one second to go through the Windows shutdown process, or hold this button down for four seconds to force a hard shutdown.
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
A high-speed USB Type-C port provides additional connectivity for peripherals or storage. Access right on the desktop is perfect for grab-and-go devices.
HEADPHONE JACK WITH MIC IN
USB Type-C® HIVE POWER AND DATA CONNECTOR
ESS® SABRE9260Q DAC
High-quality stereo output up to 118 dB and recording input up to 101 dB, with dynamic noise reduction and support for up to 24-Bit/96 kHz playback.
HYPER-GROUNDING TECHNOLOGY
The Hive's audio PCB features ROG Hyper-Grounding technology, which divides up analog and digital current return paths across separate layers to reduce noise, lower crosstalk, and deliver purer sound.
EZ PC DIY
New M.2 Q-LATCH
PCIE® SLOT Q-RELEASE SLIM
Q-Antenna
CLEAR CMOS & BIOS FLASHBACK™
PCIE® SLOT Q-RELEASE SLIM
With PCIe® Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
NEW M.2 Q-LATCH
The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
Q-ANTENNA
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
CLEAR CMOS & BIOS FLASHBACK™
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
BIOS
BIOS Q-DASHBOARD
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
UEFI BIOS FULL HD
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
UEFI BIOS
SOFTWARE UTILITIES
Dolby ATMOS
ROG and Dolby® have partnered to bring superior gaming audio quality to users. Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above, below and around the listener.
ASUS GLIDEX
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
ASUS DRIVERHUB
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
AIDA64 EXTREME
The ROG Strix X870-I includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*. *Support available for ROG Ryujin II and later models.
ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
PLAY IN STYLE
UNDENIABLY ROG STRIX
The I/O shield and M.2 heatsink feature a perforated metal mesh that can either reflect the glow of internal RGB components or blend seamlessly into the shadows of a stealthy build. The cyber-style text and sharp, angular details firmly establish this motherboard as a member of the ROG Strix family.
VIDEO
ROG Strix Z790-A Gaming WiFi
COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for X870 motherboards, empowering you to build your dream gaming rig.
THE ROG STRIX ECOSYSTEM AWAITS
Level up your game with ROG Strix. Enjoy complimentary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, a Strix X870E/X870 motherboard delivers. With USB 4.0 onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
1. Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106.
We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.
Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
AMD X670 ATX motherboard with 16 + 2 power stages, DDR5 support, one PCIe 5.0® x16 slot with Q-Release, four M.2 slots with heatsinks, PCIe 5.0 NVMe® SSD support, M.2 backplate, USB 3.2 Gen 2x2, onboard WiFi 6E, Dynamic OC Switcher, Ryzen Core Flex, AI Cooling II, and Aura Sync RGB lighting
AMD X670 ATX motherboard with 16 + 2 power stages, DDR5 support, one PCIe® 5.0 x16 slot with Q-Release, four M.2 slots with heatsinks, PCIe 5.0 NVMe® SSD support, M.2 backplate, USB 3.2 Gen 2x2, onboard WiFi 6E, Dynamic OC Switcher, Ryzen Core Flex, AI Cooling II, and Aura Sync RGB lighting
AMD X870E ATX motherboard with 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP & NitroPath DRAM Technology, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, PCIe® 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim, and full support for next-gen graphics cards, two USB4® ports, USB 20Gbps Type-C® with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
AMD X870 ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4® ports, USB 10Gbps Type-C® with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
AMD X870 ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4® ports, USB 10Gbps Type-C® with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
Intel® Z890 LGA 1851 Mini-iTX motherboard, Advanced AI PC-ready, 10+1+2+1 power stages, DDR5 slots, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, two PCIe® 5.0 M.2 slots with M.2 Q-Release Duo, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt™ 4 ports, two USB 20Gbps Type-C® connectors , ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II
AMD B850-E ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, one USB4® port, USB 20Gbps Type-C® with PD 3.0 up to 30W, ASUS AI Advisor, AI Overclocking, AI Networking II, and Aura Sync RGB lighting.
Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
*Precise specifications and features vary by model . Please refer to the specification page
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
For pricing information, ASUS is only entitled to set a recommendation resale price. All resellers are free to set their own price as they wish.
Price may not include extra fee, including tax、shipping、handling、recycling fee.
