Switch to a
Game Changer
ROG switches are meticulously designed from the ground up, from actuation force to click ratio, so every keystroke feels unmistakably ROG.
-
-
1.0 mm
Actuation Point
-
40 gf
Initial Force
-
55 gf
Total Force
Linear and Swift
ROG RX Red Low-Profile Switches provide a 1.0 mm actuation point for fast input. Initial actuation force is optimized to 40 gf to prevent accidental keystrokes, and it extends to 55 gf for perfect rebound feedback. As a result, keystrokes are instantaneous and have a smooth and linear feel.
-
1.0 mm
-
-
1.5 mm
Actuation Point
-
55 gf
Tactile Force
-
18%
Click Ratio
Clicky and Speedy
ROG RX Blue Low-Profile Switches feature a 1.5 mm actuation point, and an enthusiast-preferred 55 gf tactile force — all to provide firm and superb feedback with each keystroke.
-
1.5 mm
-
-
1.5 mm
Actuation Point
-
40 gf
Initial Force
-
55 gf
Total Force
Linear and Swift

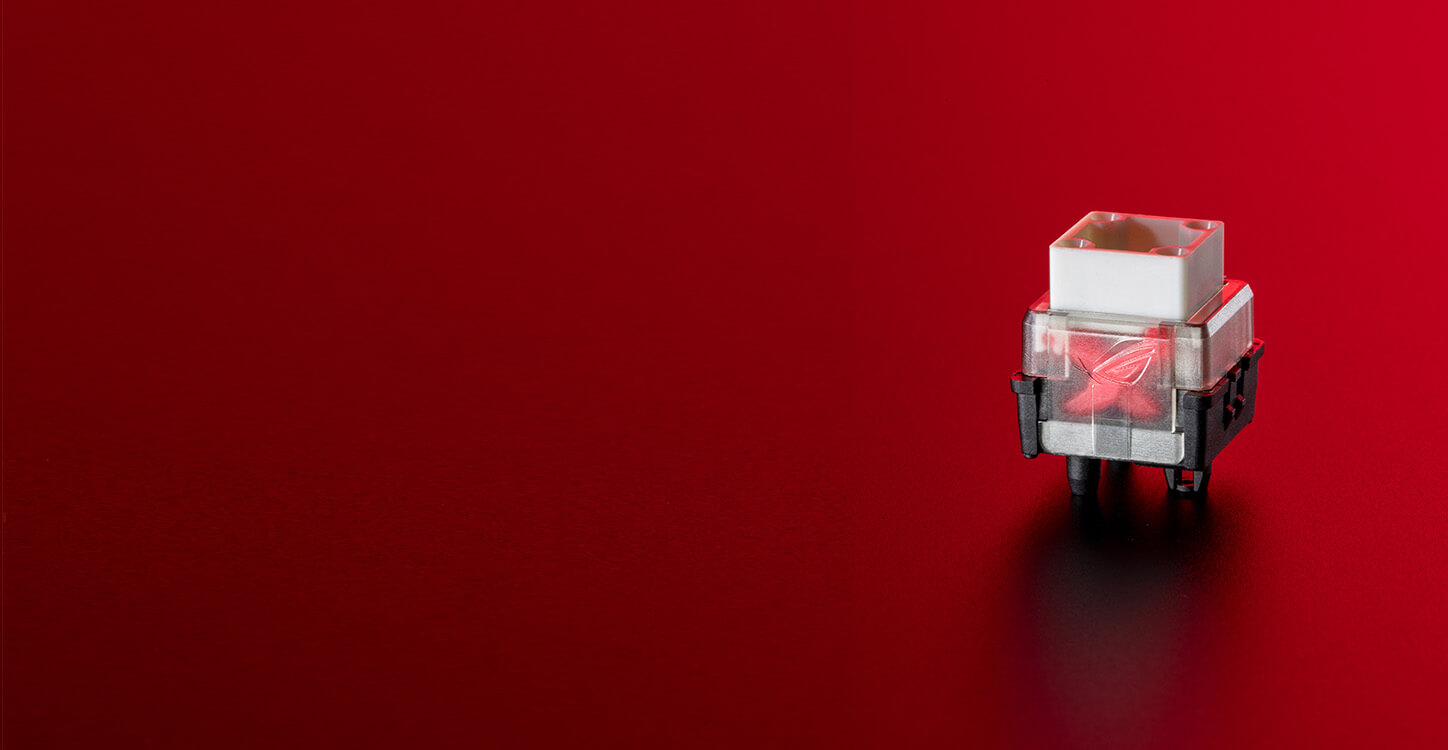

ROG RX Red optical mechanical switches are the first to be developed by ROG. Extensive research, testing and fine-tuning have resulted in switches with a 1.5 mm actuation point for lightning-fast inputs. An initial force of 40 gf prevents accidental keystrokes, and goes all the way up to 55 gf for perfect rebound feedback. ROG RX Red switches provide a smooth and linear feel to give you near instantaneous response the moment you strike the key.
-
1.5 mm
-
-
1.5 mm
Actuation Point
-
65 gf
Tactile Force
-
31%
Click Ratio
Clicky and Speedy

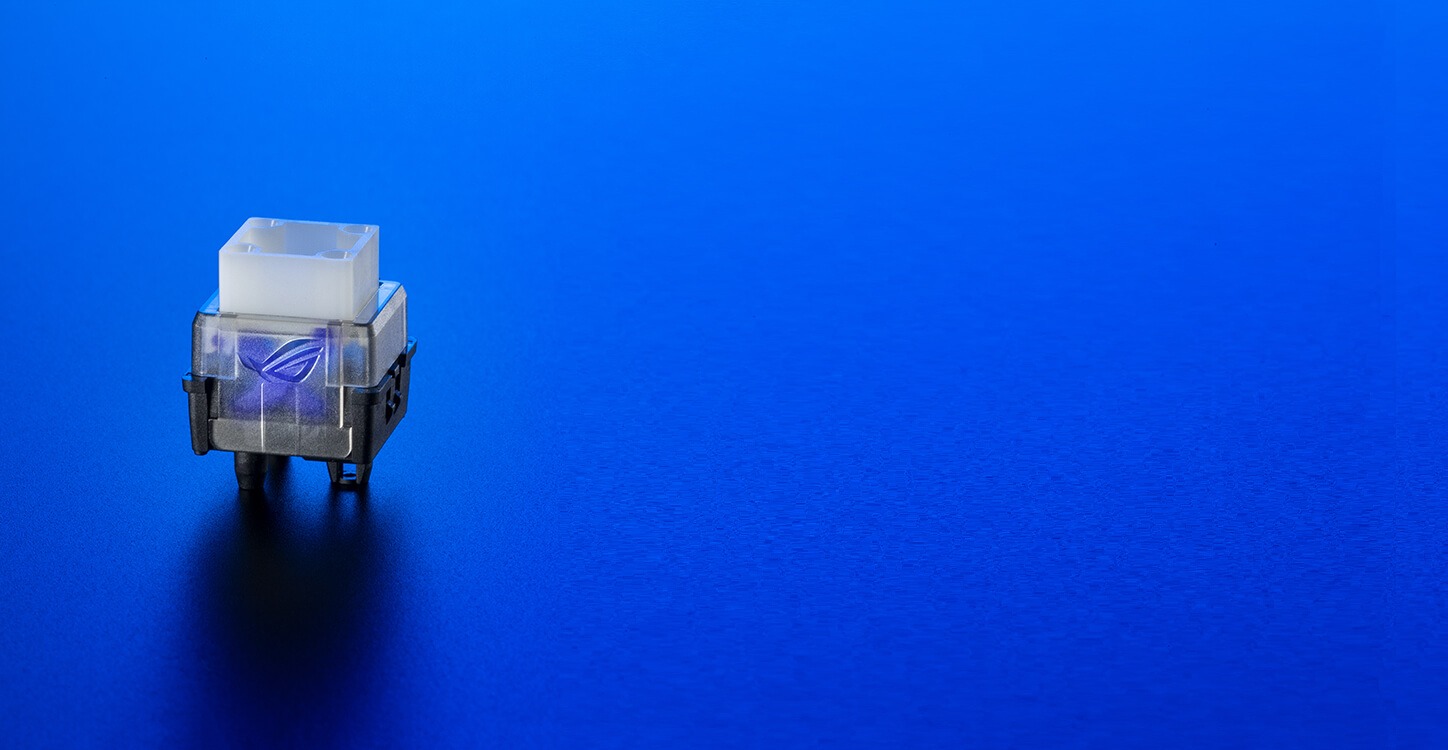

ROG RX Blue optical mechanical switches have a 1.5 mm actuation point for lightning-fast input and tactile force of 65gf, which is the level preferred by most gamers. These game-changing switches provide a firm and clicky feel while delivering near-instantaneous responsiveness.
-
1.5 mm
RX Switch Available Models
ROG Strix Scope II RX
100% gaming keyboard with ROG RX optical switches
ROG Strix Scope RX TKL Wireless Deluxe
80% wireless gaming keyboard with ROG RX optical switches
ROG Claymore II
100%/80% wireless gaming keyboard with ROG RX optical mechanical switches & detachable numpad
ROG Strix Scope RX
100% IP57 gaming keyboard with ROG RX optical mechanical switches
ROG Falchion RX Low Profile
65% tri-mode gaming keyboard with ROG RX Low-profile optical switches
A Closer Look at ROG RX
Optical Mechanical Switch
Light-Speed Actuation
Unlike traditional mechanical switches, the ROG RX optical mechanical switches have near-zero debounce delay that allow your triggers to be ahead of your opponents always.
Wobble-Free Balanced Keypress

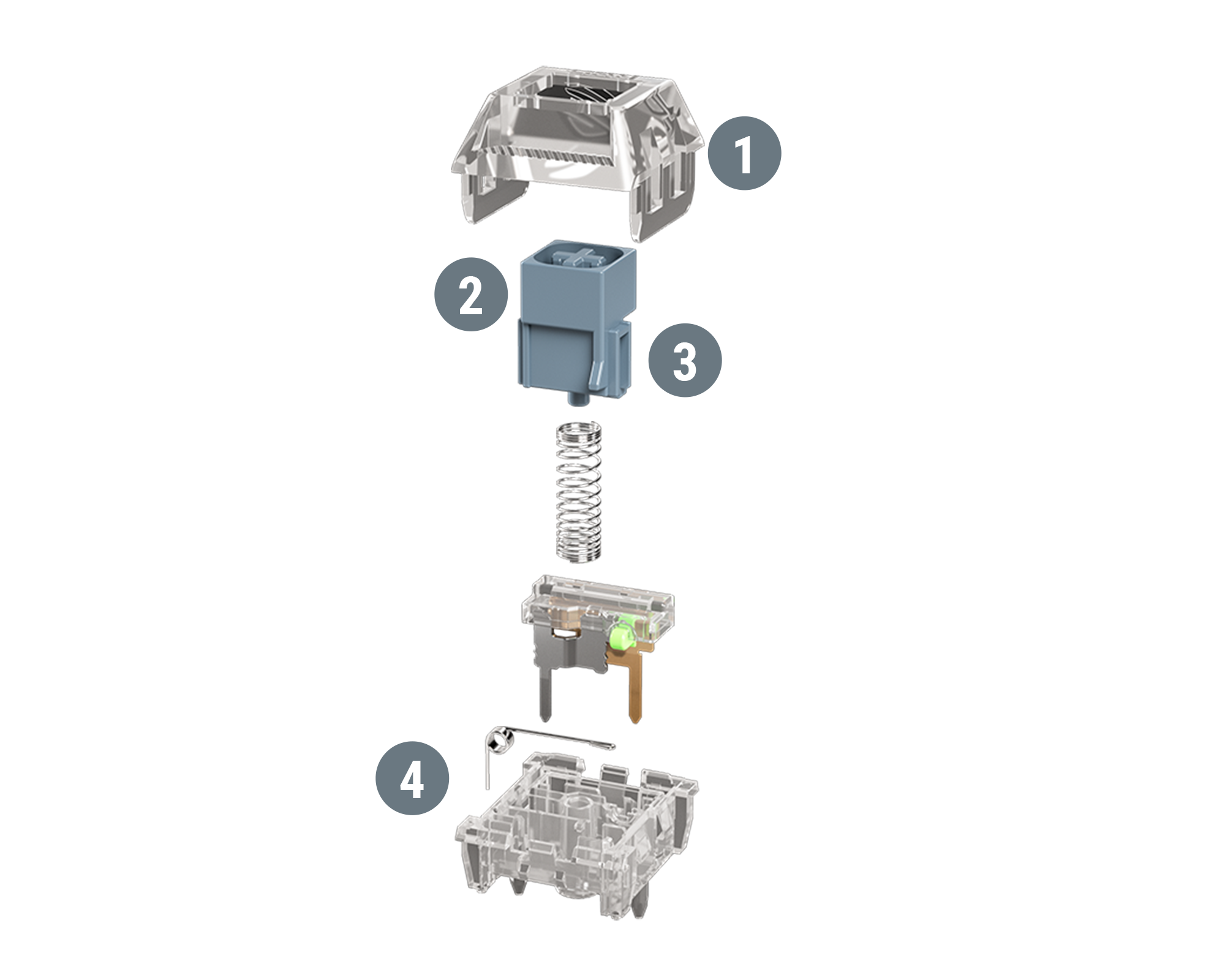

The ROG RX optical mechanical switch utilizes a unique hollow square stem, four corner latches and X-stabilizer to eliminate keystroke wobble and ensures consistent keystrokes.
CONSISTENT KEYSTROKE
Under lab conditions, ROG RX optical mechanical switches show little to no force curve deviance when keys are pressed on different areas of the keycap.
RX RED
RX BLUE
-
ROG RX Red
Optical Mechanical SwitchThe force curves show much improved force consistency
Deviation Reduction ~50%
Average Force Deviation from Center =
8.375% -
Traditional
Mechanical SwitchesThe force curves show quite a bit of deviation
Average Force Deviation from Center =
13.450~22.725%
Force curve (keypress)
Force curve (key return)
-
ROG RX Blue
Optical Mechanical SwitchThe force curves show much improved force consistency
Deviation Reduction ~47%
Average Force Deviation from Center =
6.225% -
Traditional
Mechanical SwitchesThe force curves show quite a bit of deviation
Average Force Deviation from Center =
8.20~15.50%
Force curve (keypress)
Force curve (key return)

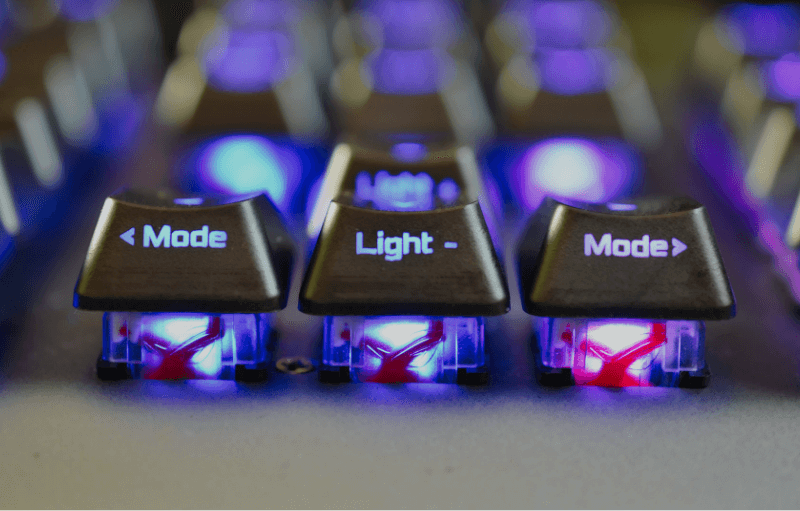

Central Lighting with
All-Round Illumination
The ROG RX optical mechanical switches feature a central LED, and each key stem diffuses light to create a stunning in-key lighting effect.
The images used are for illustration purposes only and may vary from the actual products.
Switch to a
Game Changer
ROG switches are meticulously designed from the ground up, from actuation force to click ratio, so every keystroke feels unmistakably ROG.

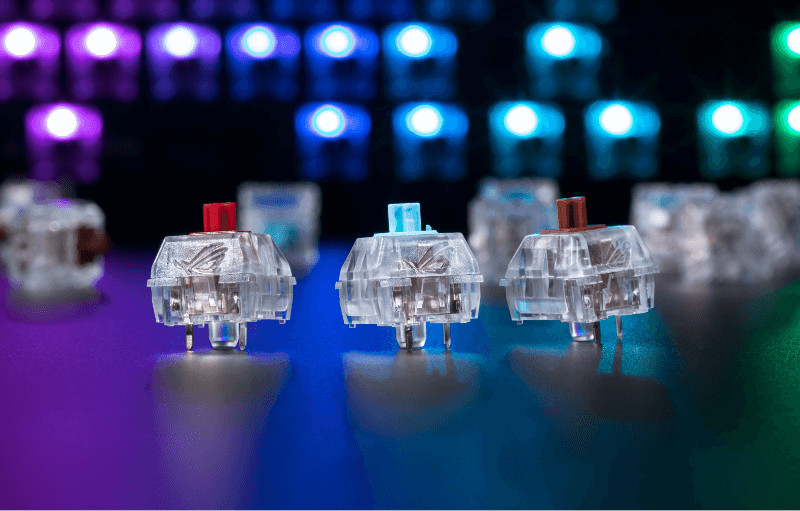

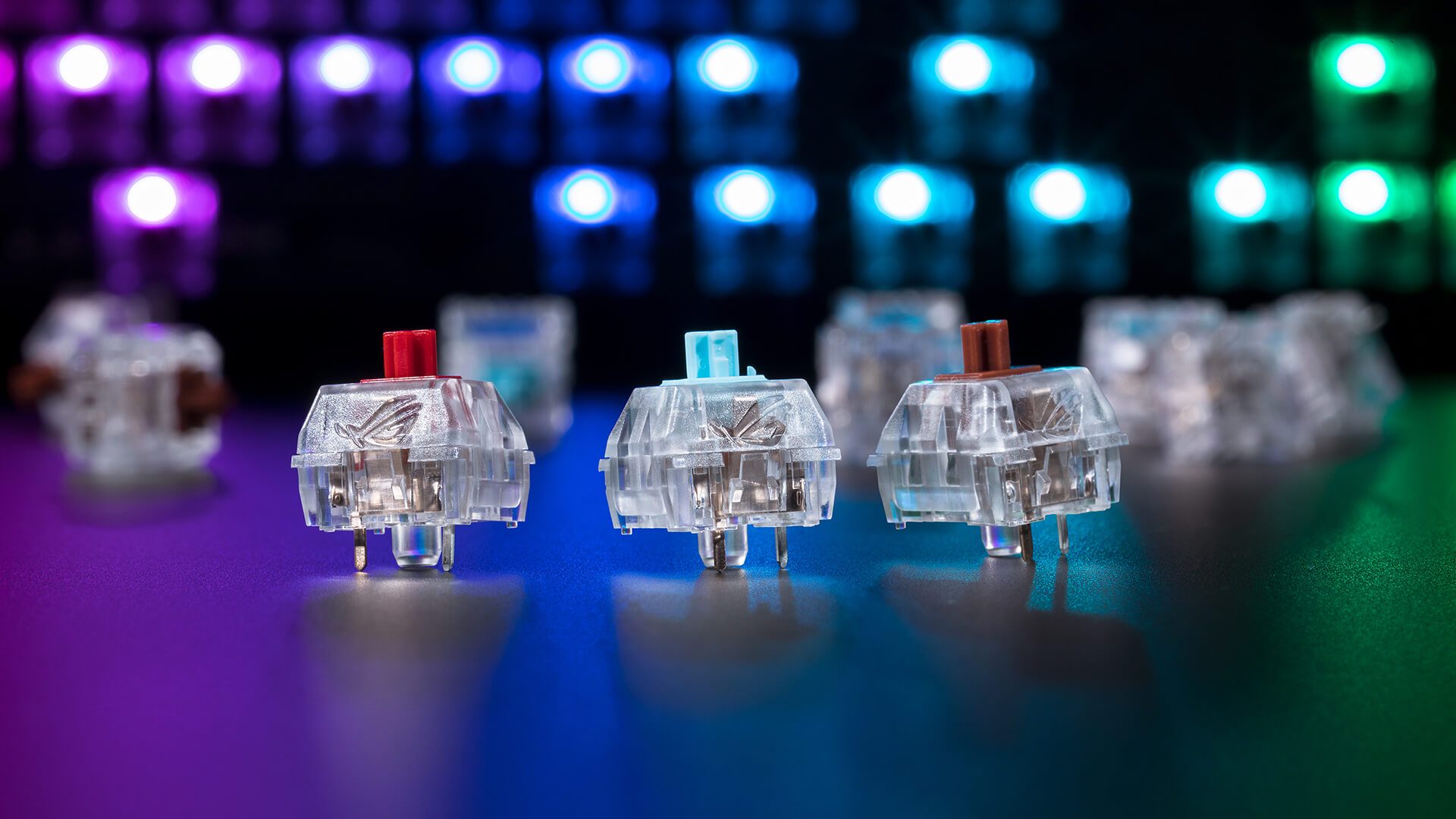

ROG NX Mechanical Switch

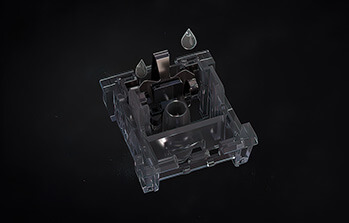

The switches have lubricated stems and base housings that offer a smoother click feel and eliminate spring bouncing noises respectively.
-
-
1.8 mm
Actuation Point
-
40 gf
Initial Force
-
53 gf
Total Force
Refined Linear

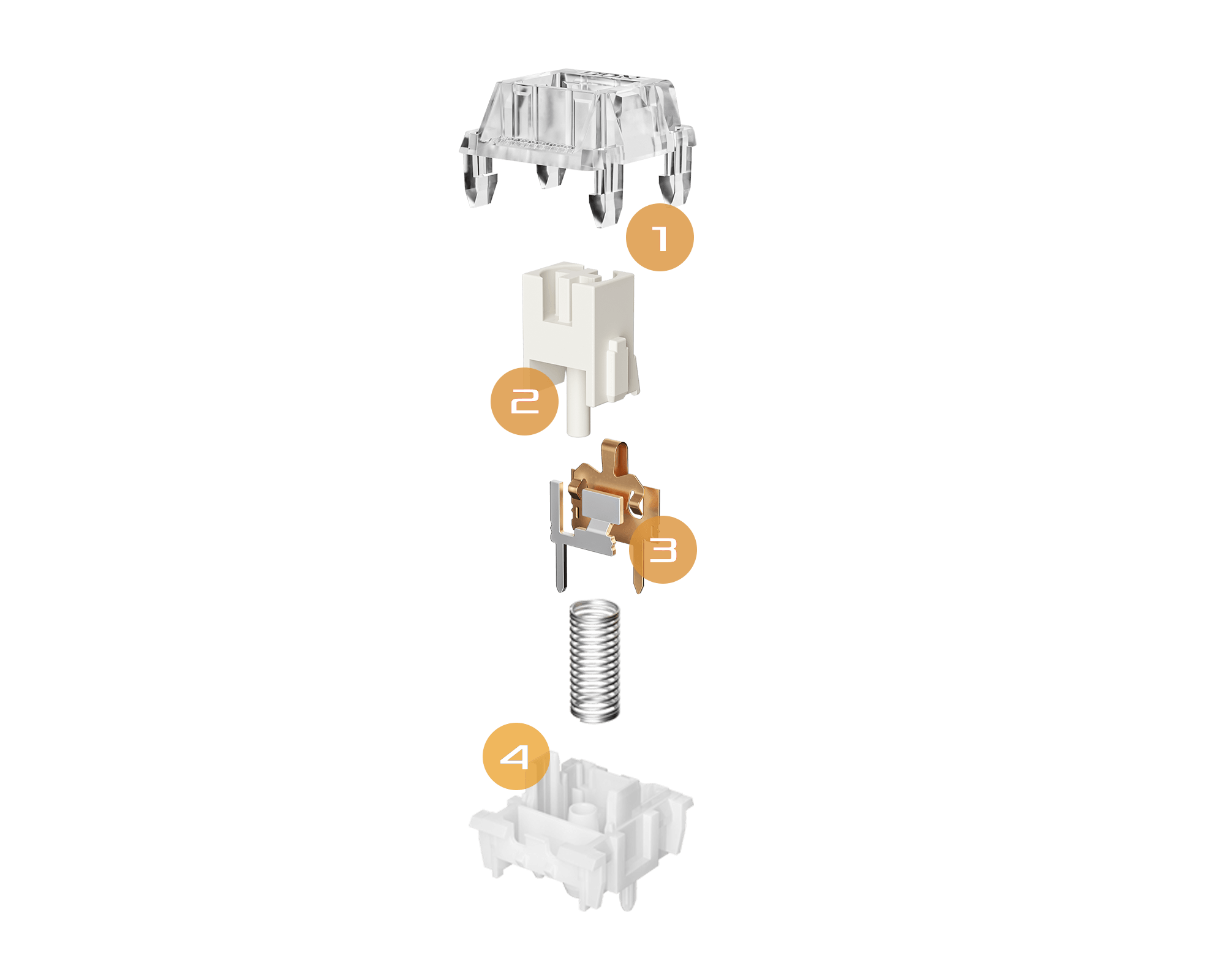

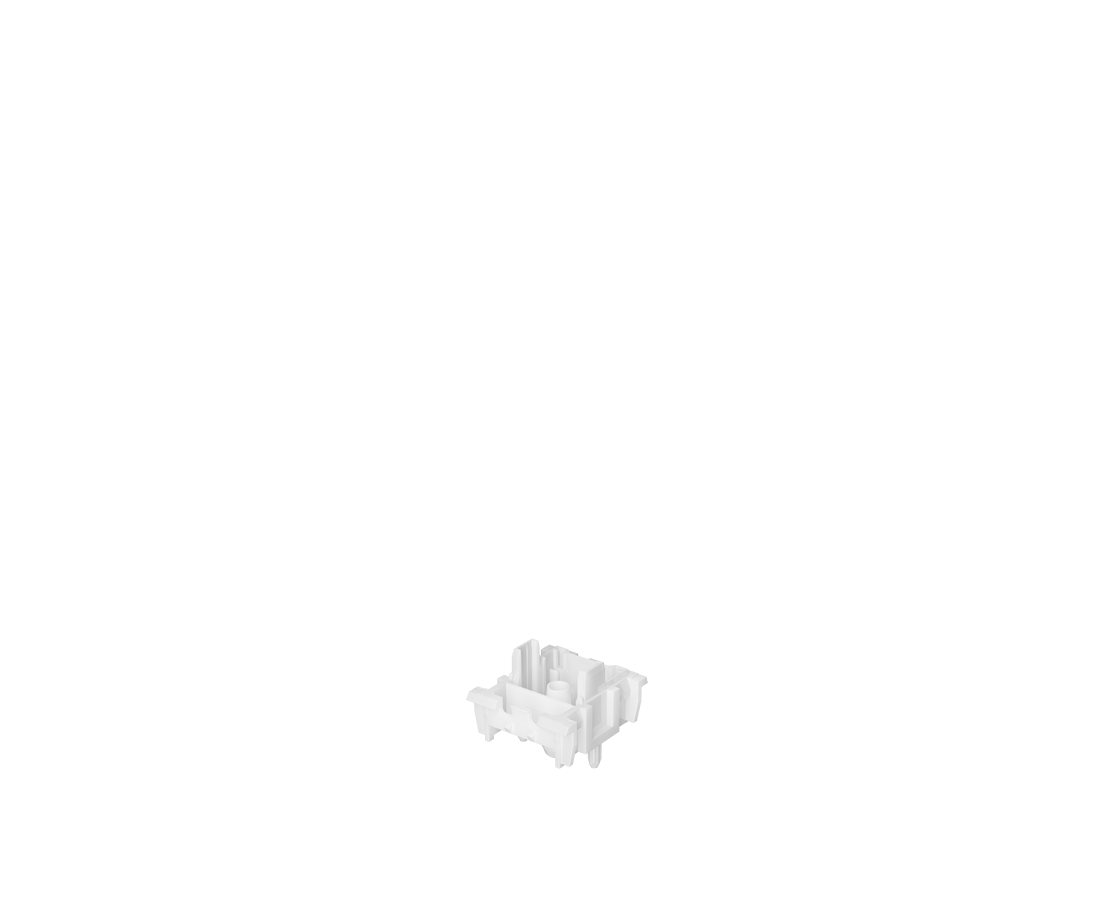

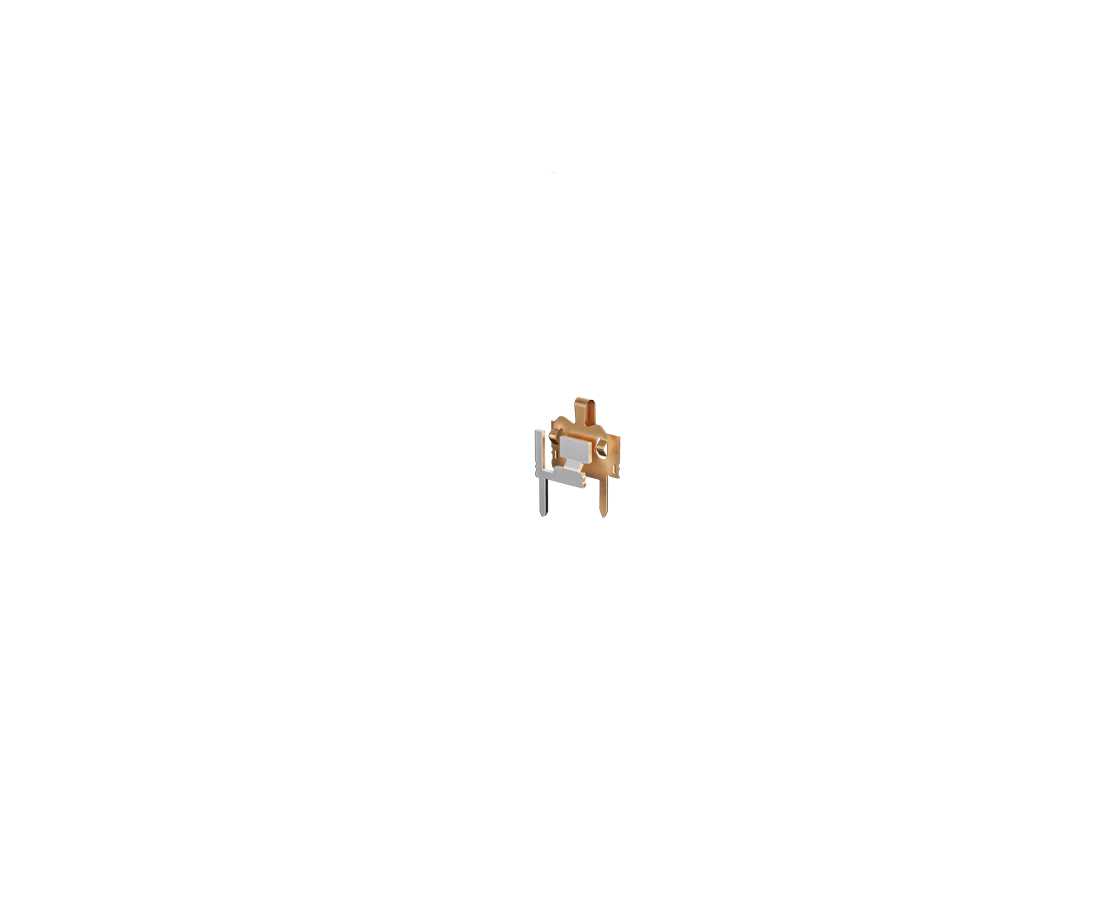

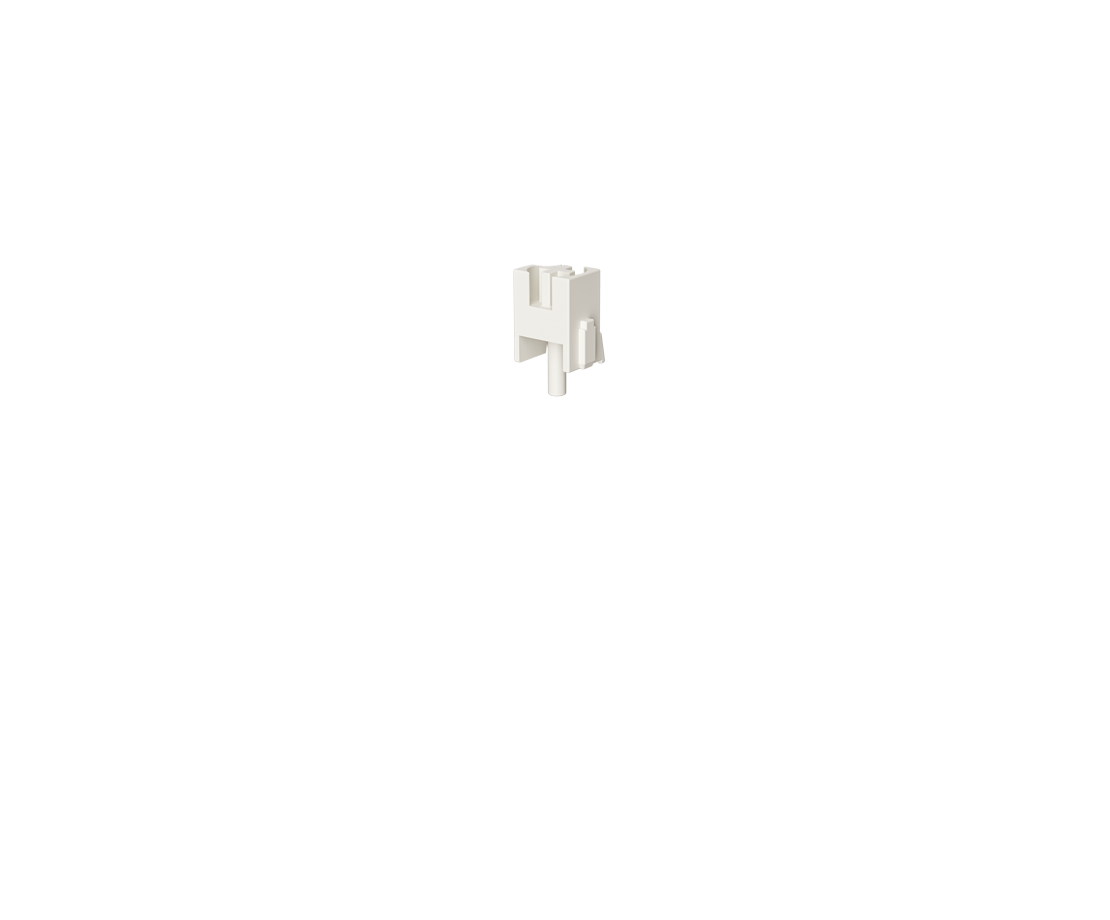

ROG NX Snow mechanical switches utilize composite POM material for the stem with PC top housing and POM bottom housing to provide ultra smooth keystrokes, and the walled stem design enhances stability and prevents dust intrusion. Special tuning is also done, coupled with factory pre-lubing, to give the ROG NX Snow keystroke a very solid and clean sound, with “thocky” acoustics.
-
1.8 mm
-
-
1.8 mm
Actuation Point
-
65 gf
Tactile Force
-
25%
Click Ratio
REFINED CLICKY

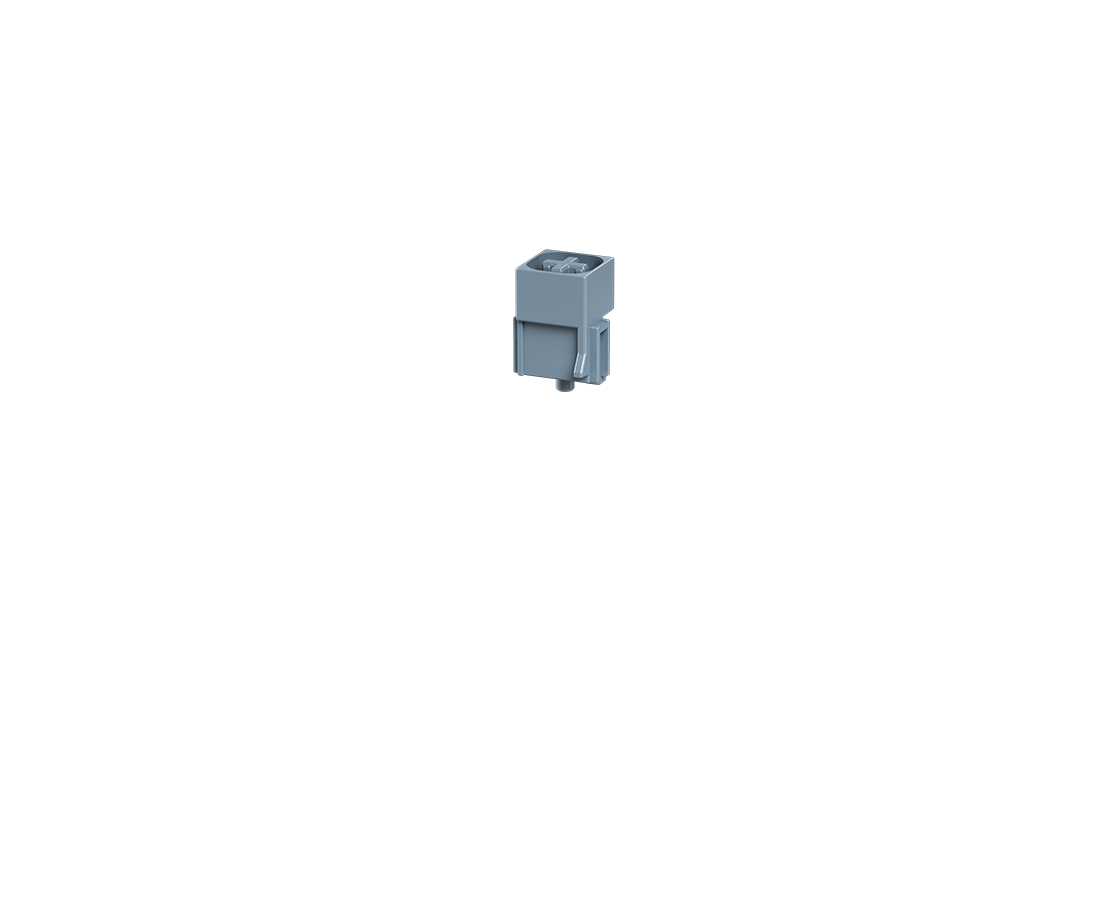

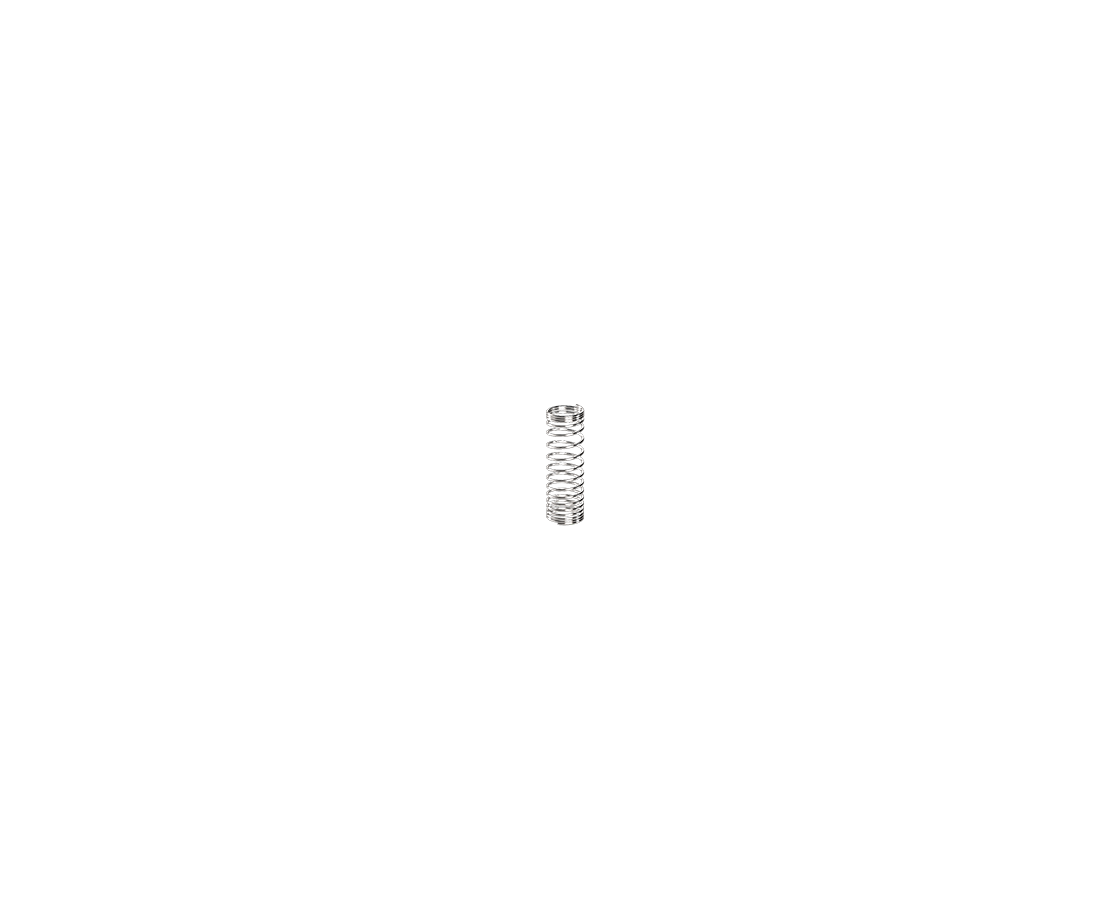

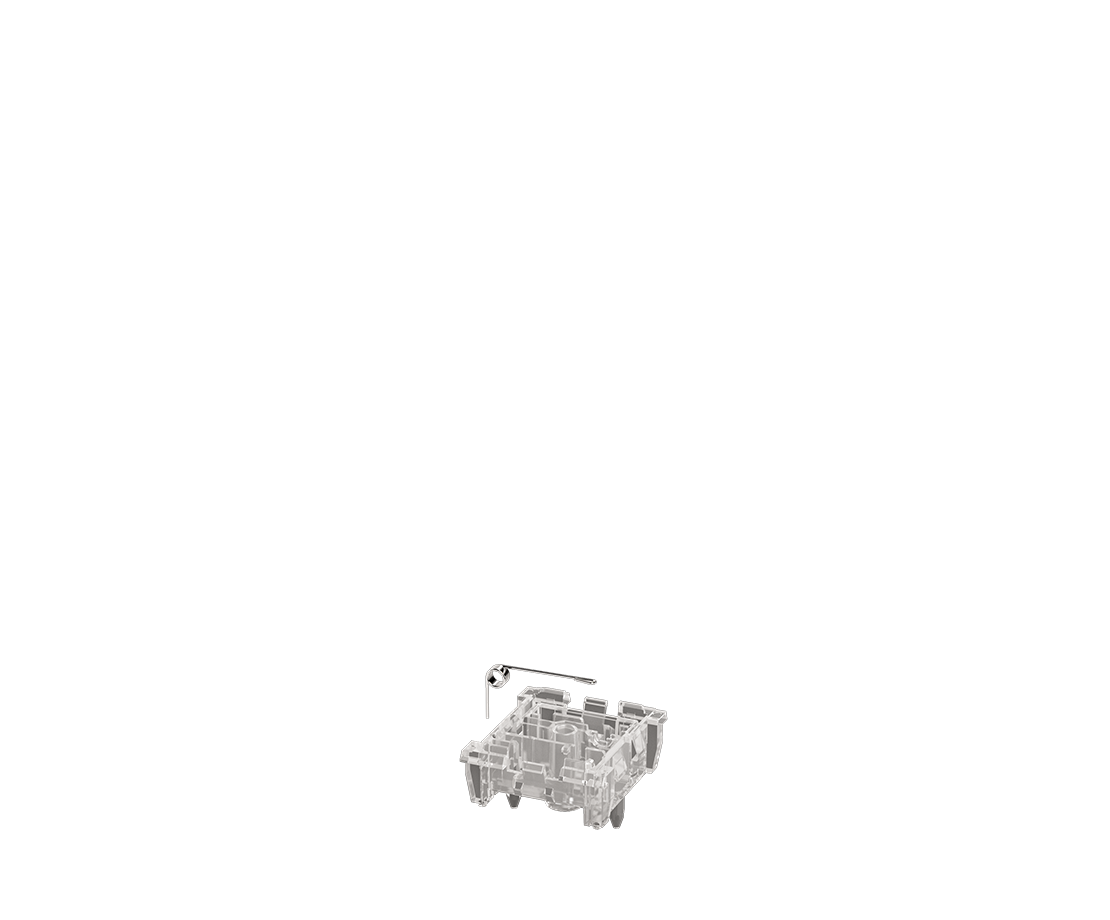

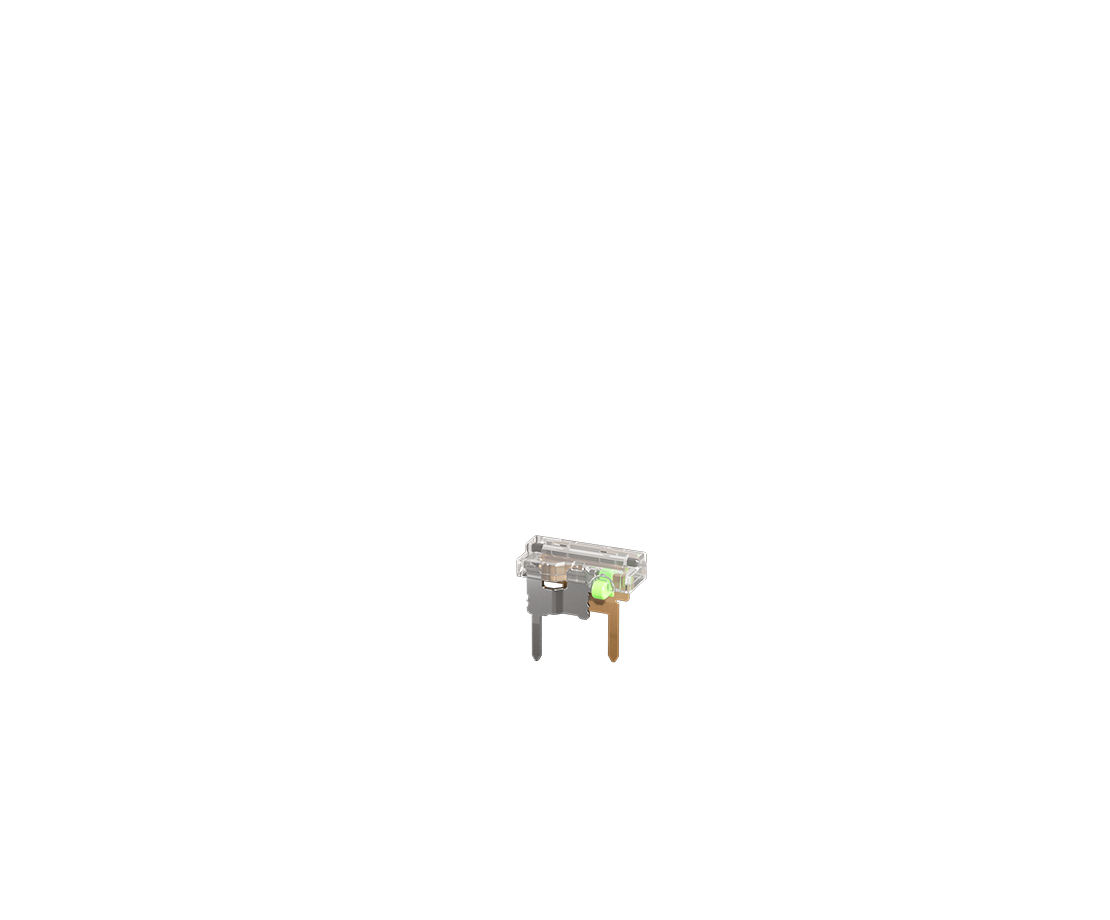

ROG NX Storm mechanical switches utilize composite POM material for the stem with PC housings to provide ultra-smooth and tactile keystrokes, and the walled stem design enhances stability and prevents dust intrusion. Special tuning is also done, coupled with factory pre-lubing, to give the ROG NX Storm keystroke a very crispy and clicky sound, with “clacky” acoustics.
-
1.8 mm
-
-
1.8 mm
Actuation Point
-
40 gf
Initial Force
-
55 gf
Total Force
Linear and Swift

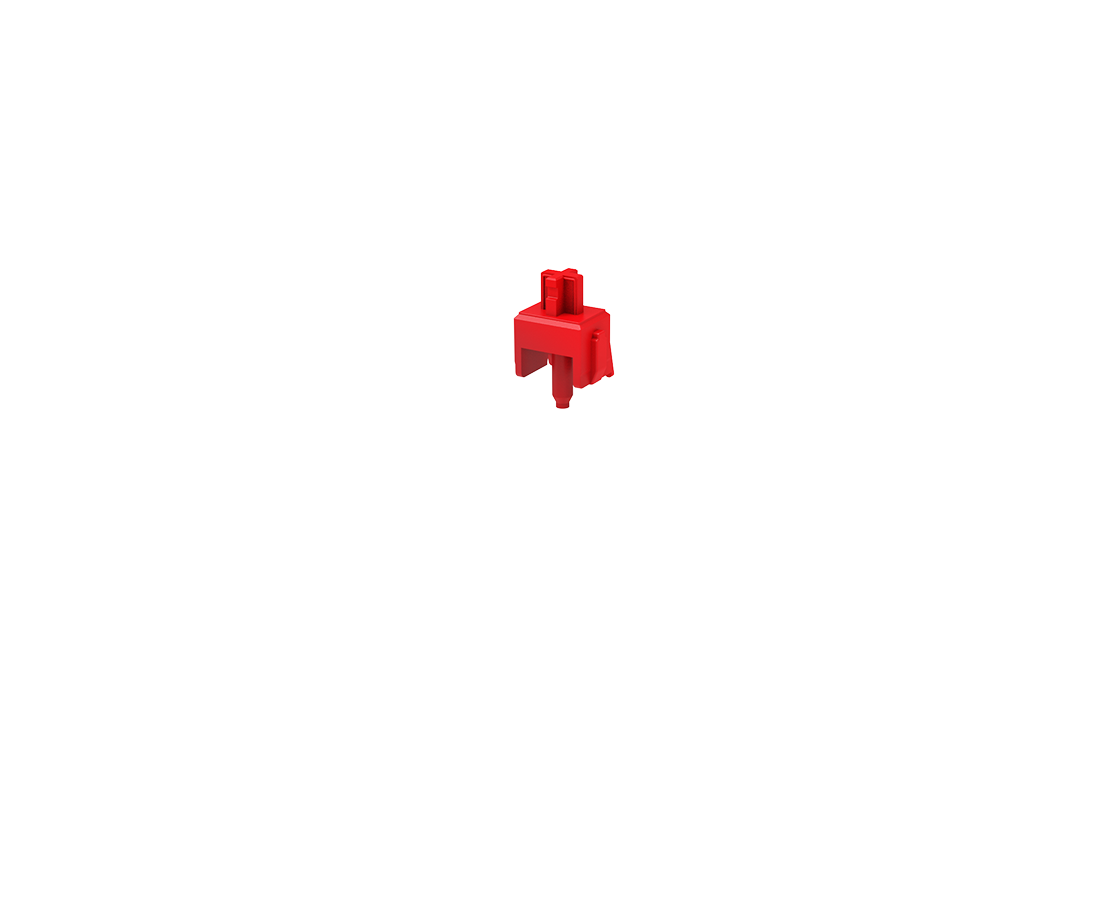

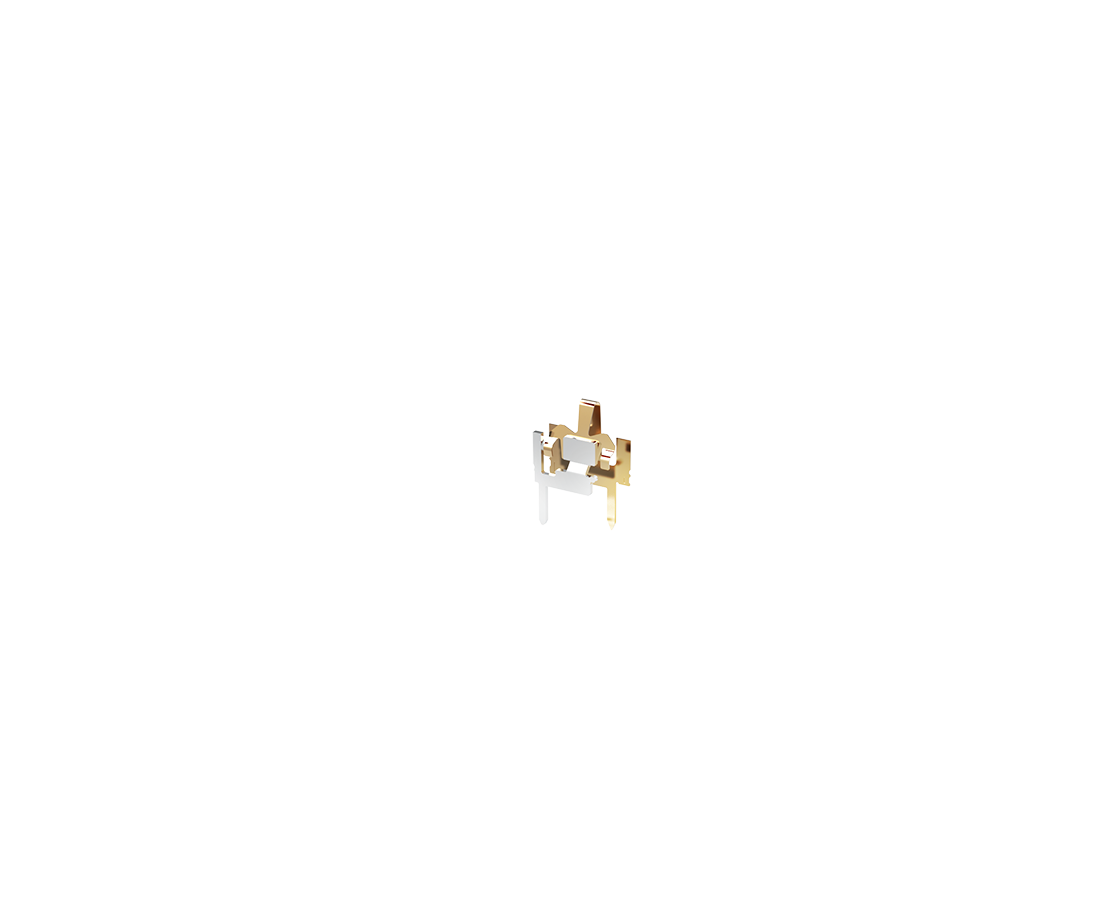

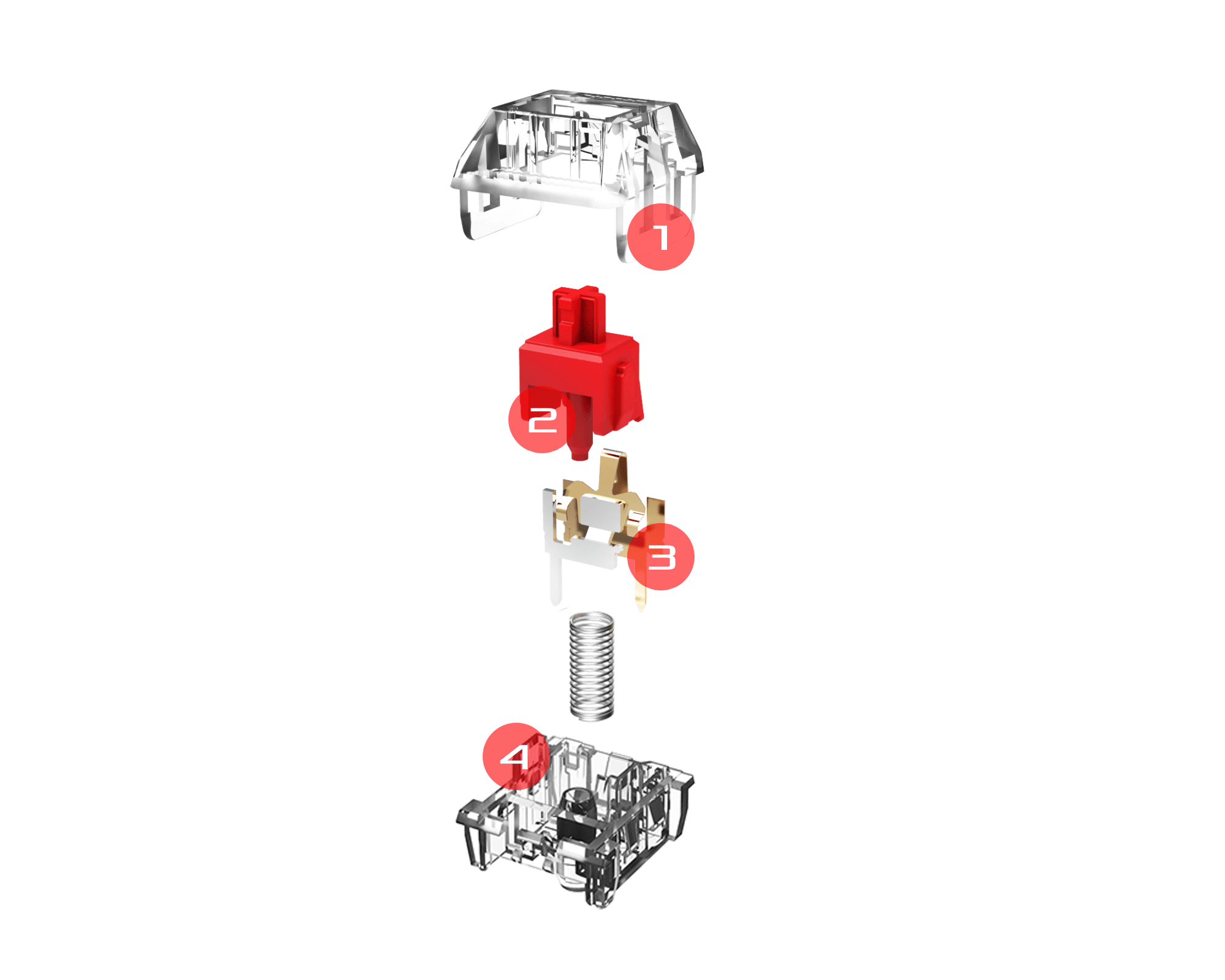

ROG NX Red mechanical switches provide a 1.8 mm actuation point for fast input. Initial force of 40 gf helps prevent accidental keystrokes, and it extends to 55 gf for perfect rebound feedback. As a result, keystrokes are instantaneous and have a smooth and linear feel.
-
1.8 mm
-
-
2.0 mm
Actuation Point
-
58 gf
Tactile Force
-
33%
Click Ratio
Ultra Tactile

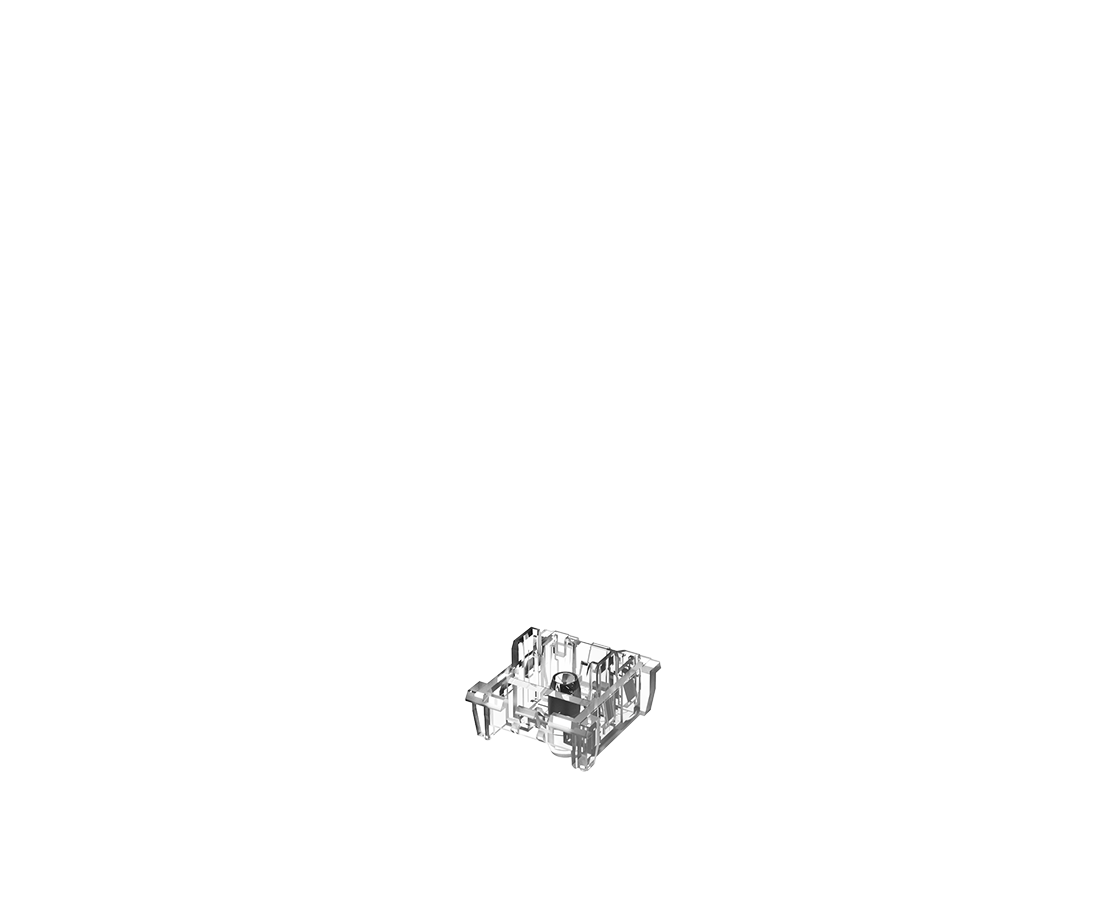

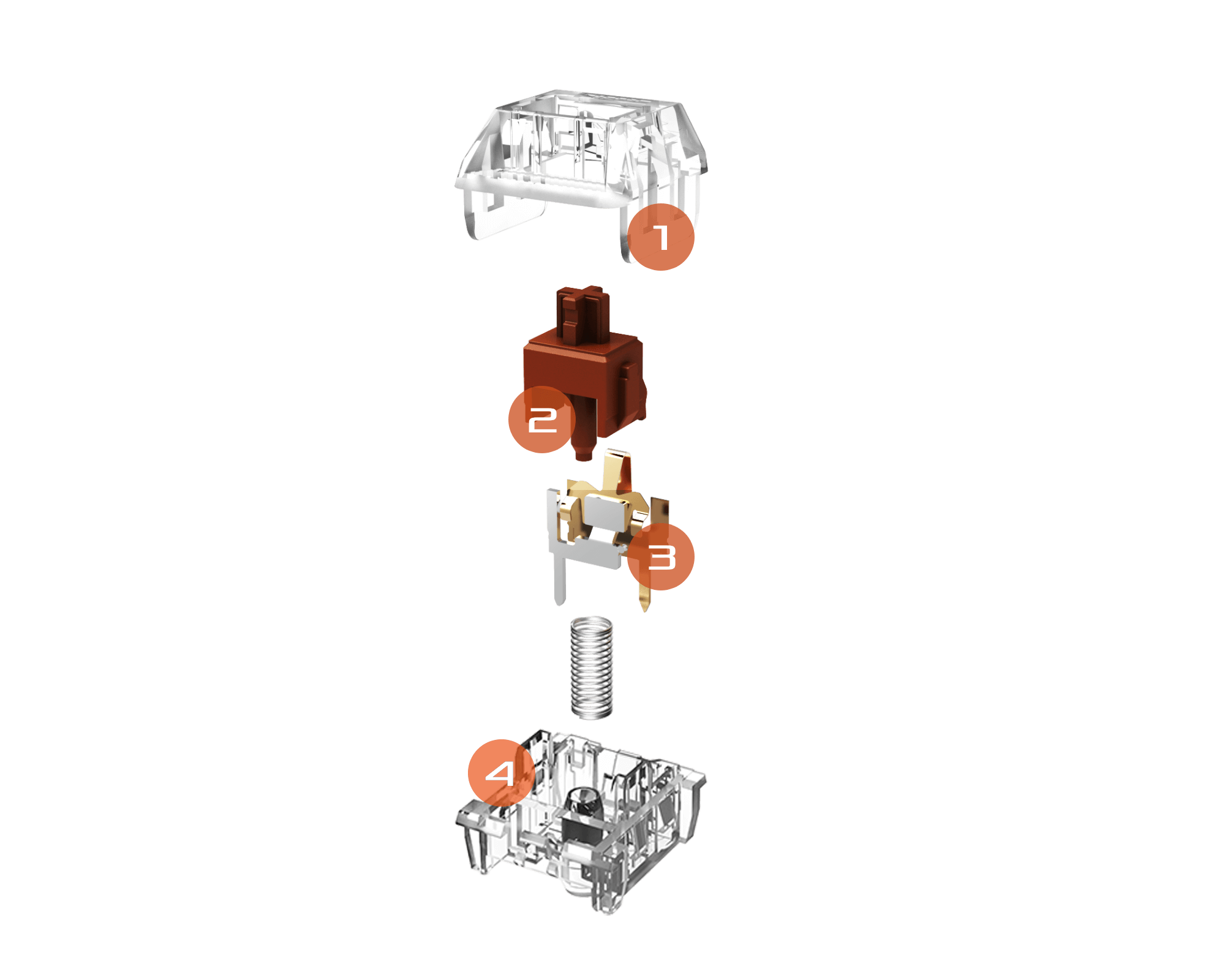

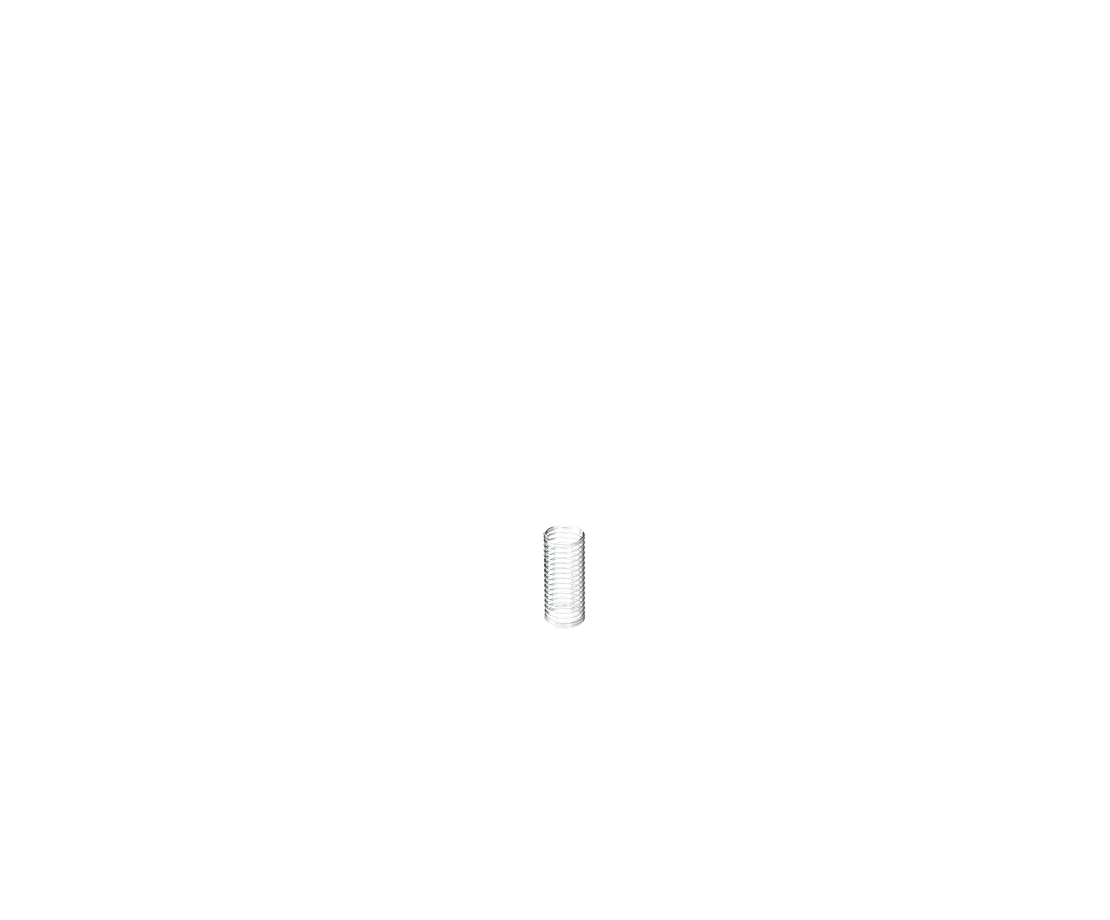

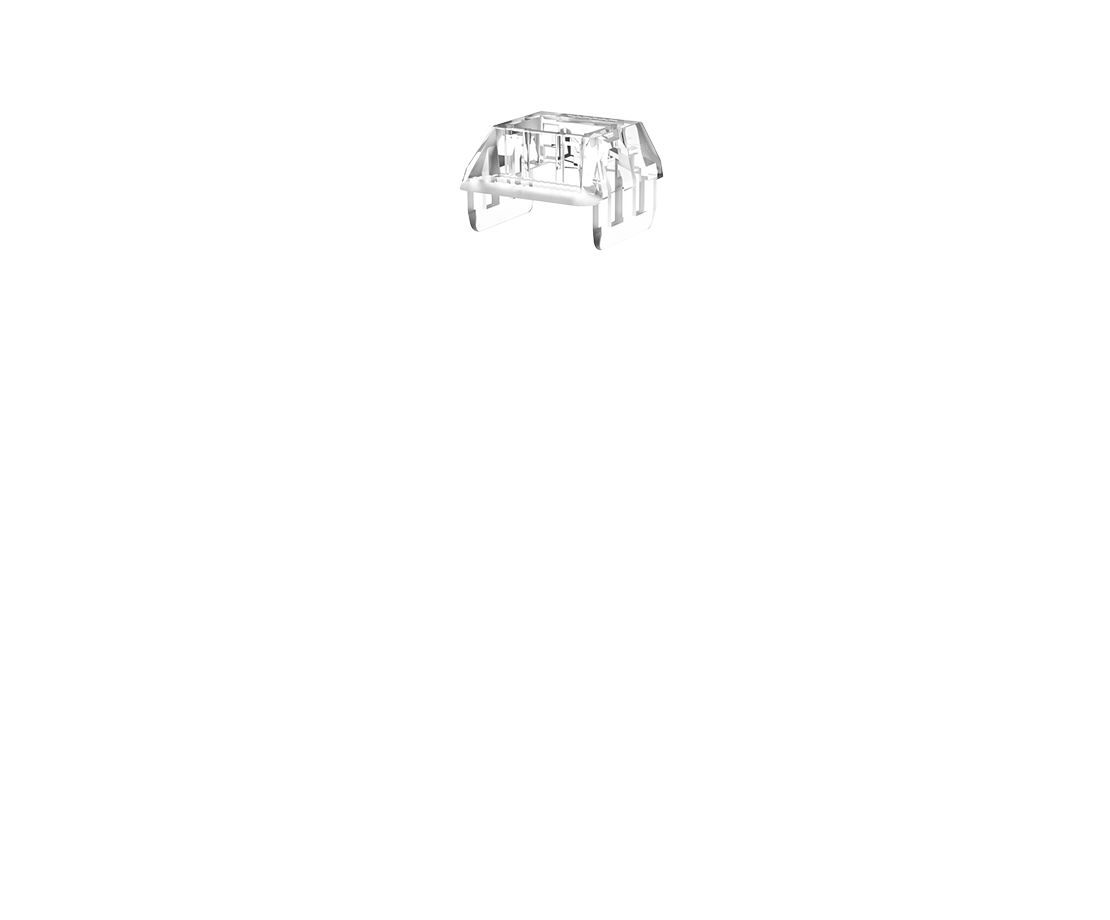

ROG NX Brown mechanical switches have a 2 mm actuation point, as preferred by traditional brown switch users. The tactile force of 58gf combined with a click ratio of 33% gives every keystroke an obvious, more pronounced tactile response.
-
2.0 mm
-
-
2.3 mm
Actuation Point
-
65 gf
Tactile Force
-
16%
Click Ratio
Clicky and Tactile

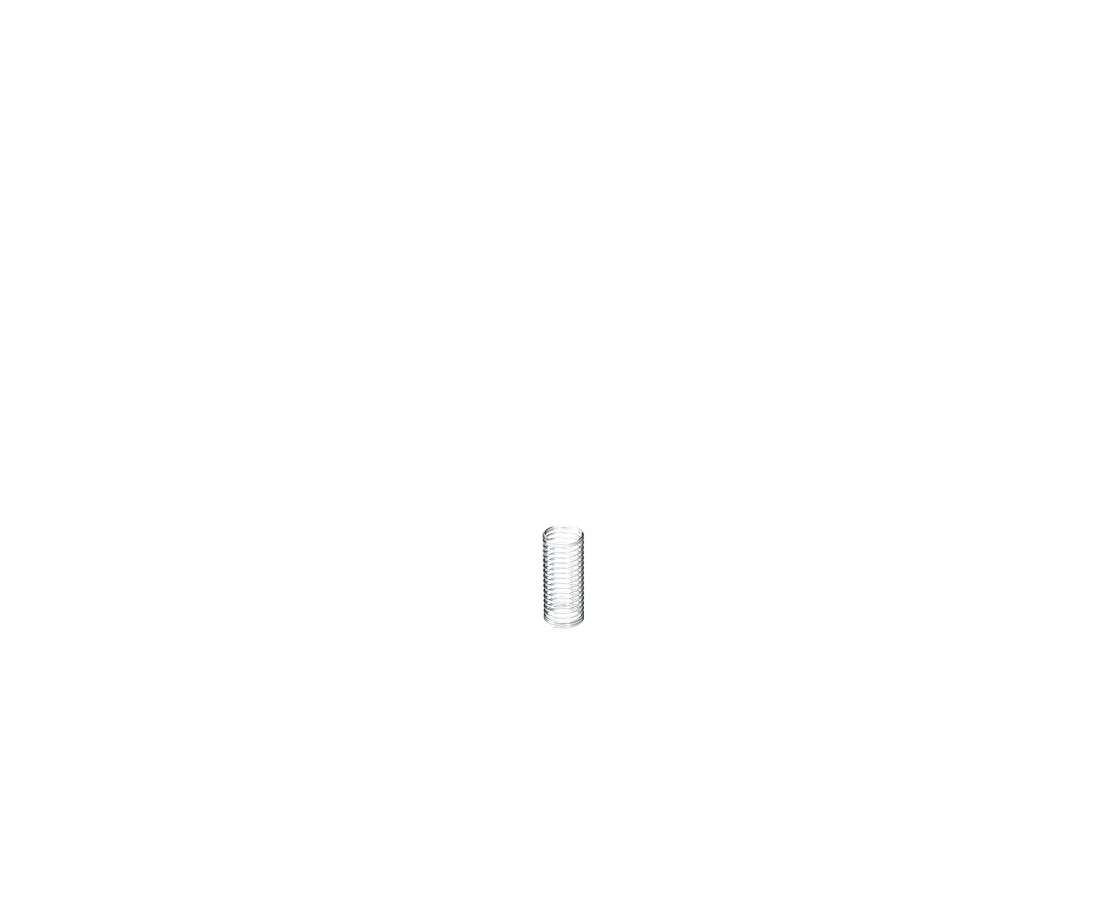

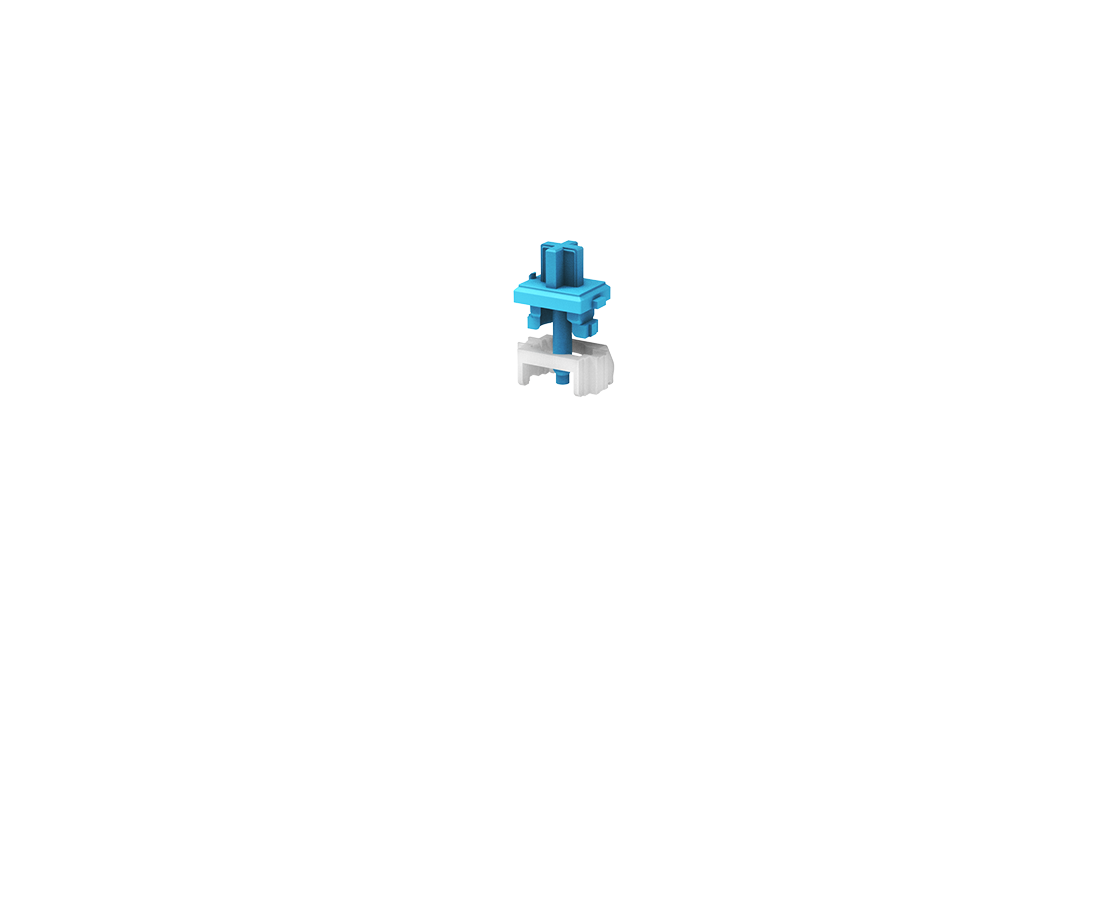

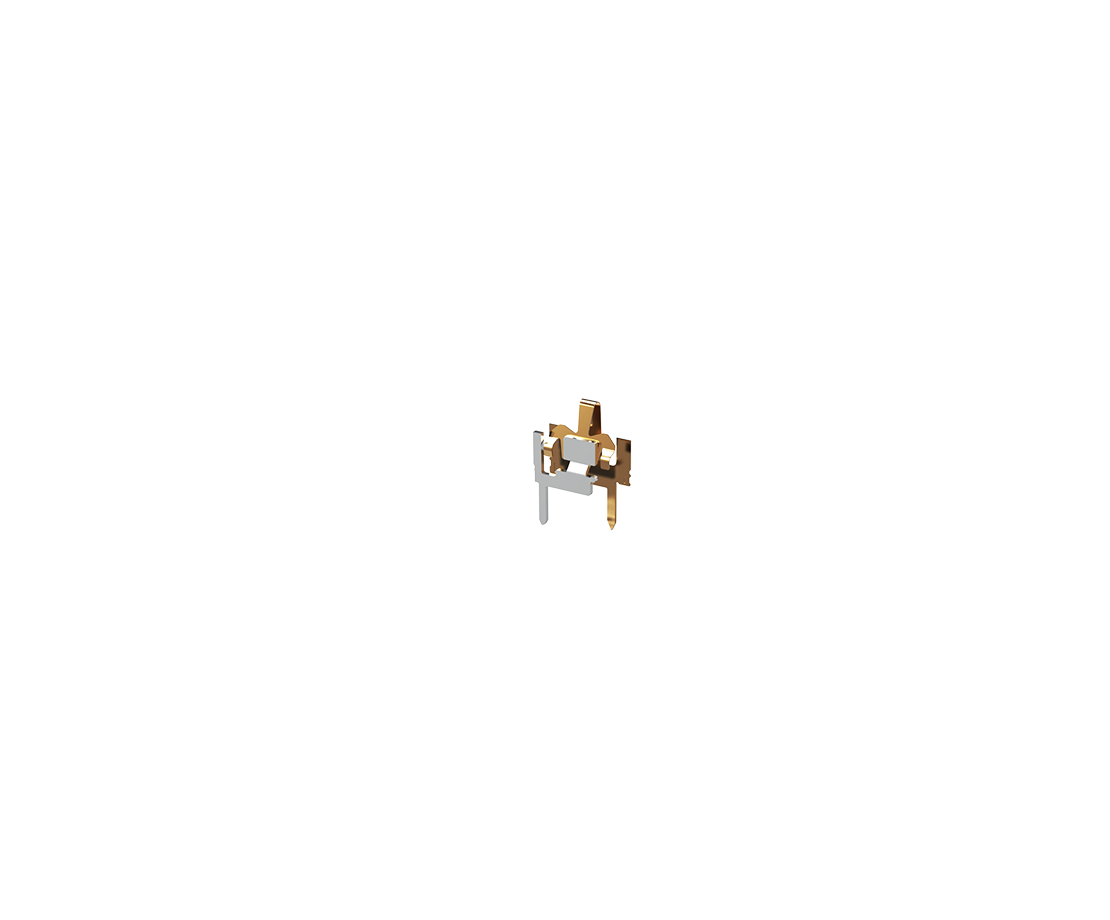

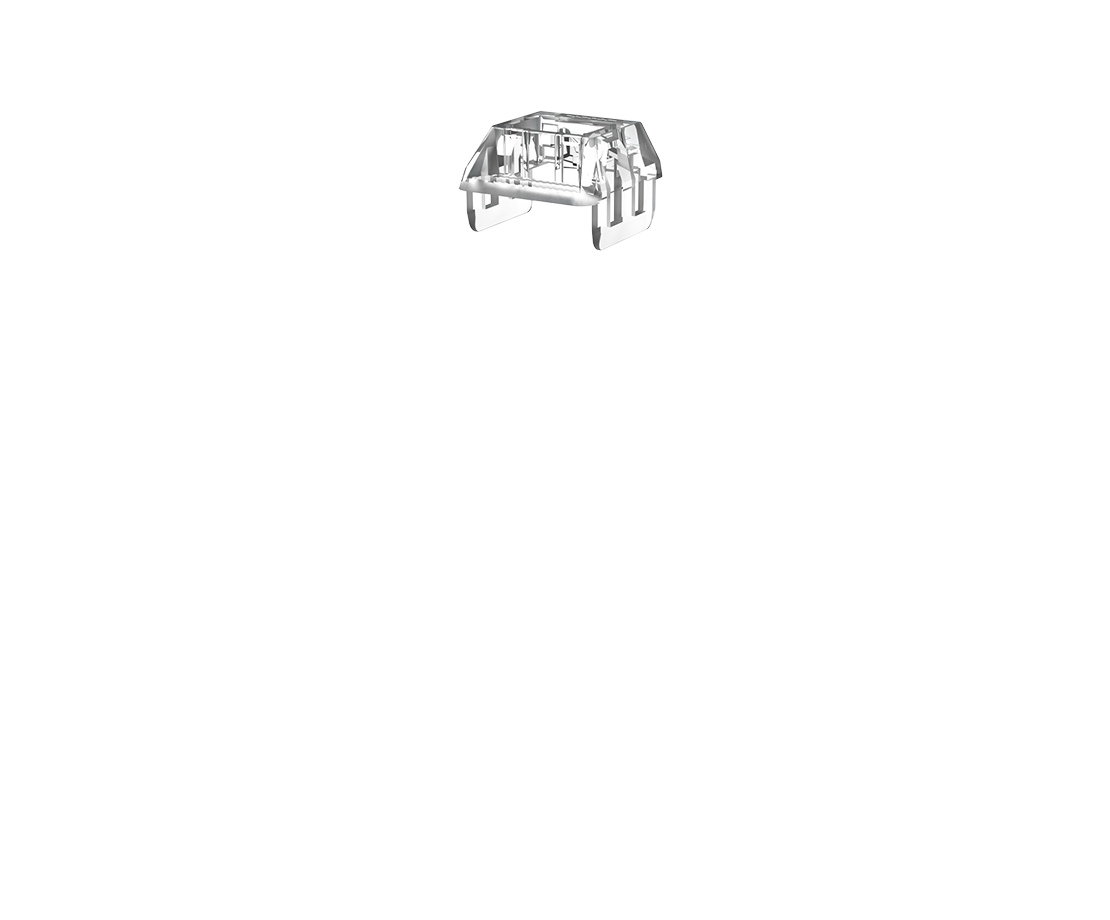

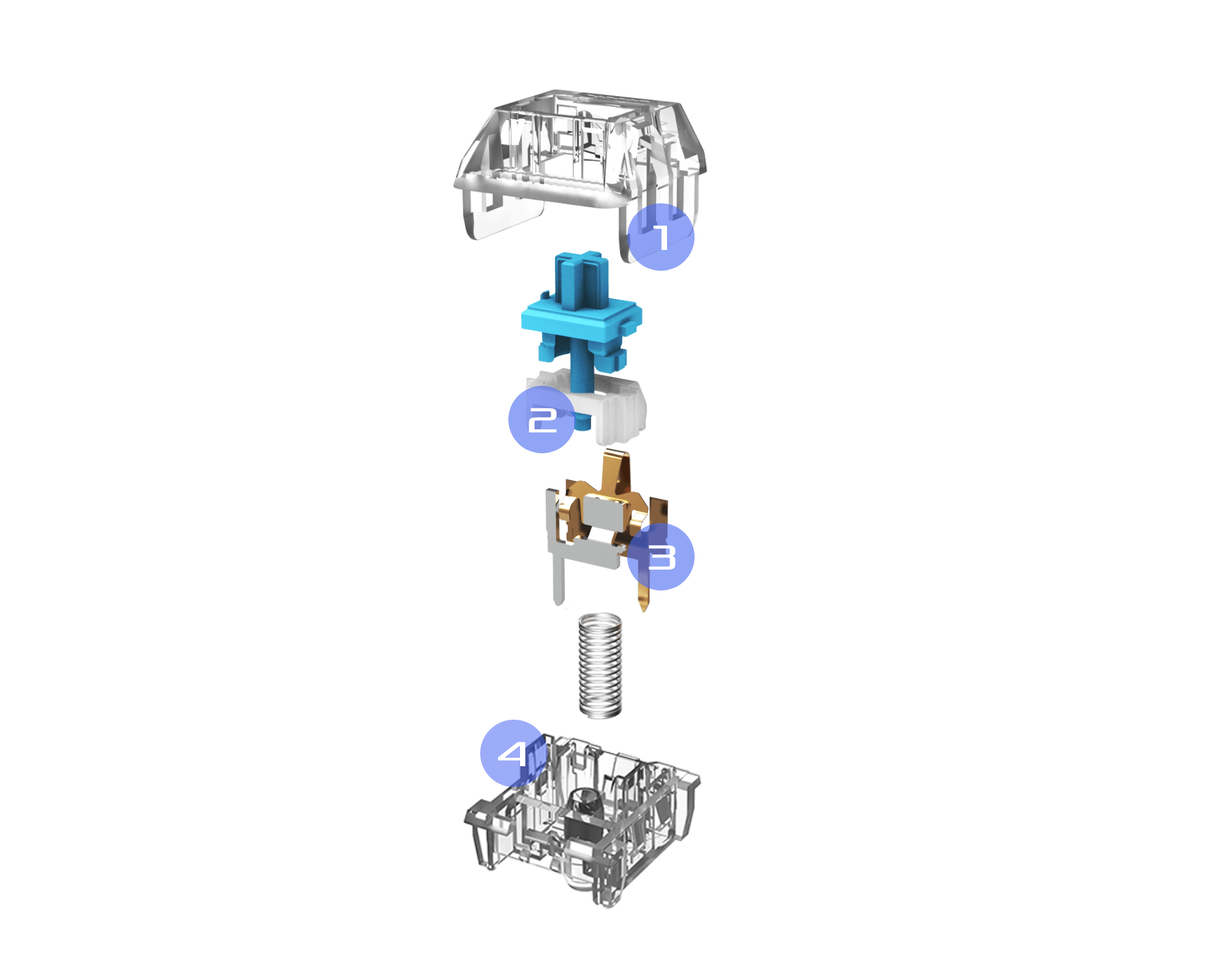

ROG NX Blue mechanical switches feature a 2.3 mm actuation point, standard 16% click ratio, and an enthusiast-preferred 65 gf tactile force – all to provide firm and superb feedback with each keystroke.
-
2.3 mm
NX Switch Available Models
ROG Strix Scope II 96 Wireless
96% wireless gaming keyboard with hot-swapable ROG NX mechanical switches
ROG Strix Scope II
100% gaming keyboard with ROG NX mechanical switches
ROG Azoth
75% wireless custom gaming keyboard with hot-swappable ROG NX mechanical switches

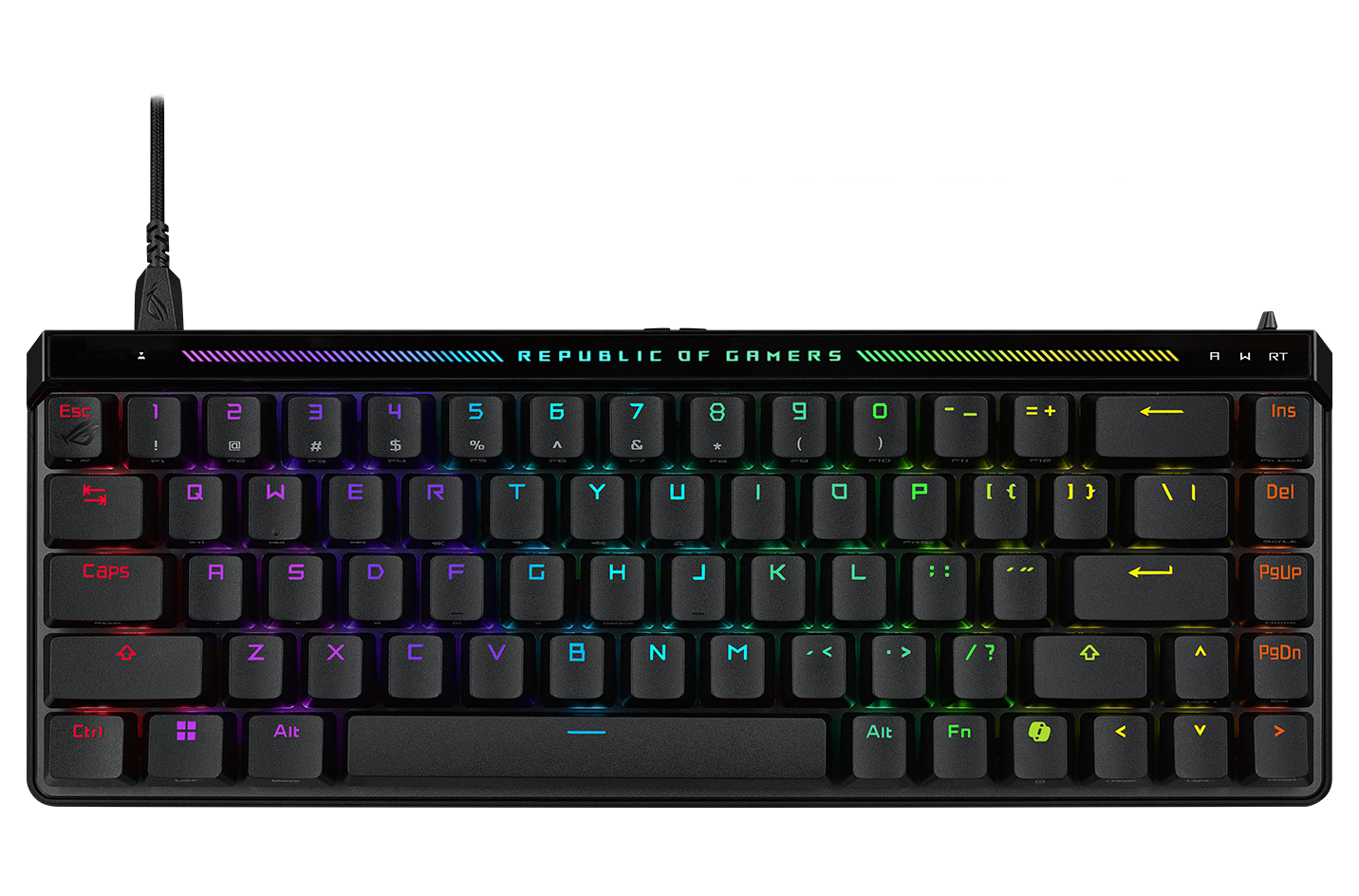

ROG Falchion Ace
65% esports gaming keyboard with ROG NX mechanical switches

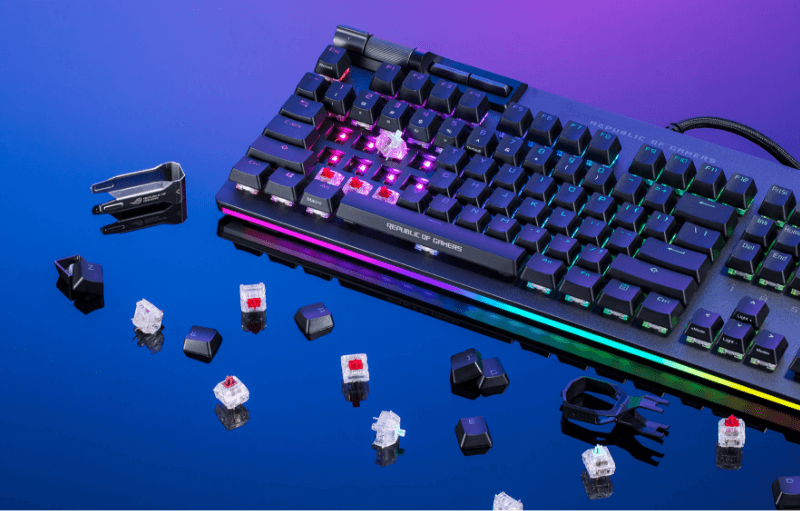

ROG Strix Flare II Animate
100% gaming keyboard with swappable ROG NX/Cherry mechanical switches
ROG Strix Flare II
100% gaming keyboard with ROG NX mechanical switches
ROG Strix Scope NX Wireless Deluxe
100% wireless gaming keyboard with ROG NX mechanical switches
ROG Falchion NX
65% wireless gaming keyboard with ROG NX mechanical switches
ROG Strix Scope NX Deluxe
100% gaming keyboard with ROG NX mechanical switches
ROG Strix Scope NX
100% gaming keyboard with ROG NX mechanical switches
ROG Strix Scope NX TKL Deluxe
80% gaming keyboard with ROG NX mechanical switches
ROG Strix Scope NX TKL
80% gaming keyboard with ROG NX mechanical switches
Consistency Breeds Muscle Memory
Gaming control comes from muscle memory, and your equipment plays a big part in that. The ROG NX Red and NX Brown mechanical switches are tuned to actuate and reset at the same point, while the ROG NX Blue mechanical switches are tuned to a near zero 0.1 mm actuation versus reset point. All ROG switches give you superb trigger and reset consistency, resulting in better gameplay experiences.
Ensuring Consistent Keystrokes

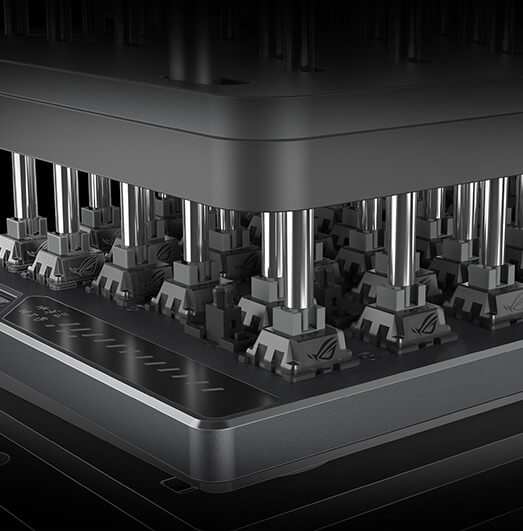

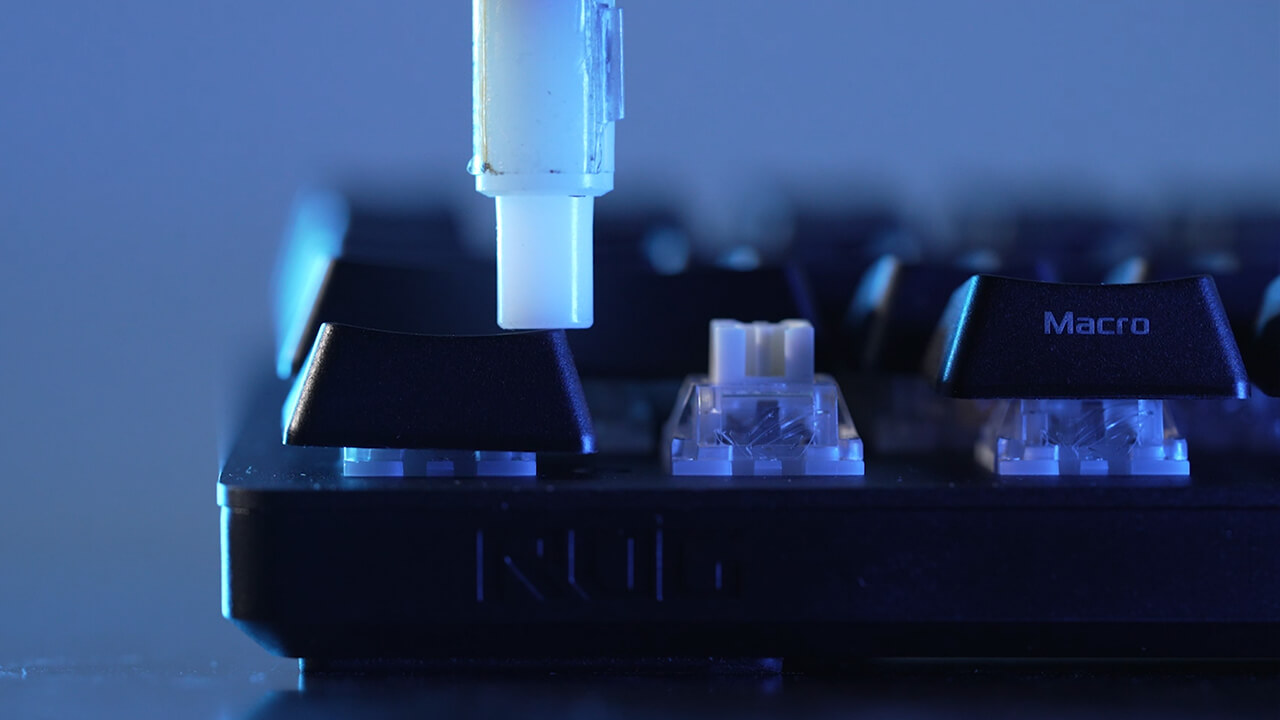

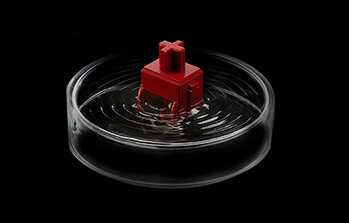

ROG NX mechanical switches exceed industry standards, offering a 5 gf force tolerance and +/ 0.4 mm total travel distance to provide consistent keystrokes for unparalleled gaming experiences.
ROG RX
|
ROG NX
|
||||||||
---|---|---|---|---|---|---|---|---|---|
Switch Type |
ROG RX RED
|
ROG RX BLUE
|
ROG RX RED
|
ROG RX BLUE
|
ROG NX RED
|
ROG NX BROWN
|
ROG NX BLUE
|
ROG NX SNOW
|
ROG NX Storm
|
Trigger Type | Light Trigger | Metal Contact Point | |||||||
Characteristics | Smooth linear keystrokes with ultra-fast actuation | Crisp, clicky feedback with tactile bump and fast actuation | Smooth linear keystrokes with ultra-fast actuation | Crisp, clicky feedback with tactile bump and fast actuation | Smooth linear keystrokes with extra-fast actuation | Pronounced tactile bump with fast actuation | Pronounced tactile bump with crisp, clicky feedback | Fast and smooth linear keystrokes with great stability | Fast and smooth tactile keystrokes with great stability |
Initial Force | 40 gf | - | 40 gf | - | 40 gf | - | - | 40 gf | - |
Tactile Force | - | 65 gf | - | 55 gf | - | 58 gf | 65 gf | - | 65 gf |
Actuation Force | 45 gf | 45 gf | 45 gf | 55 gf | 45 gf | 43 gf | 55 gf | 45 gf | 55 gf |
Total Force | 55 gf | - | 55 gf | - | 55 gf | - | - | 53 gf | - |
Click Ratio | - | 31% | - | 18% | - | 33% | 16% | - | - |
Keypress Lifespan | 100-million | 70-million |
